Rear View Mirror Exterior of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Rear View Mirror Exterior

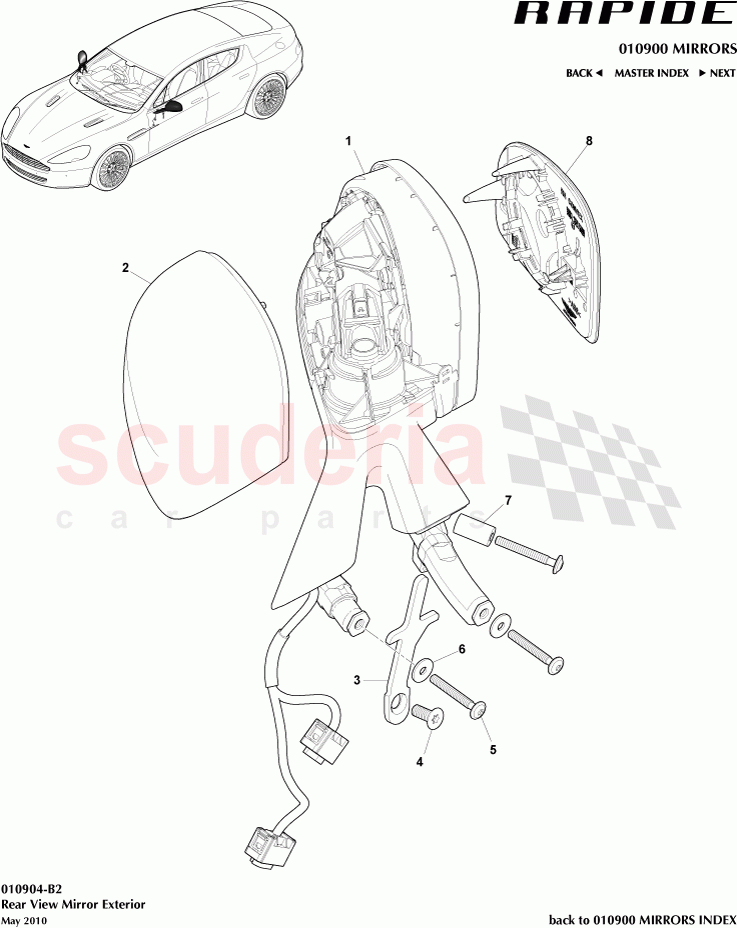

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4317682AF	MIRROR ASSY RH	Enquire	IN STOCK
	AD4317683AF	MIRROR ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3339979062AC	External Rear View Mirror Cap RH	Enquire	IN STOCK
	AG3339979063AC	Cap, Door Mirror, LH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD4327950BA	STRUT - MIRROR RH	Enquire	To Order
	AD4327951BA	STRUT - MIRROR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4327960AA	SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4327955AA	Spacer - To be confirmed, currently not available	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG333063472AC	Mirror Glass, Convex, RH, Driver Side	Enquire	To Order
	AG333063473AC	Mirror Glass, Convex, LH, Passenger Side	Enquire	To Order
	AG333063472DB	Mirror Glass, Convex, RH, Passenger Side	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD4317682AF	MIRROR ASSY RH IN STOCK	AD4317682AF MIRROR ASSY RH IN STOCK	-	1	Enquire
1	AD4317683AF	MIRROR ASSY LH	AD4317683AF MIRROR ASSY LH	-	1	Enquire
2	AG3339979062AC	External Rear View Mirror Cap RH IN STOCK	AG3339979062AC External Rear View Mirror Cap RH IN STOCK	-	1	Enquire
2	AG3339979063AC	Cap, Door Mirror, LH IN STOCK	AG3339979063AC Cap, Door Mirror, LH IN STOCK	-	1	Enquire
3	AD4327950BA	STRUT - MIRROR RH	AD4327950BA STRUT - MIRROR RH	-	1	Enquire
3	AD4327951BA	STRUT - MIRROR LH	AD4327951BA STRUT - MIRROR LH	-	1	Enquire
4	AD4327960AA	SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	AD4327960AA SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	-	1	Enquire
5	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free IN STOCK	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free IN STOCK	-	3	Enquire
6	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
7	AD4327955AA	Spacer - To be confirmed, currently not available	AD4327955AA Spacer - To be confirmed, currently not available	-	1	Enquire
8	AG333063472AC	Mirror Glass, Convex, RH, Driver Side	AG333063472AC Mirror Glass, Convex, RH, Driver Side Europe, RHD	-	1	Enquire
8	AG333063473AC	Mirror Glass, Convex, LH, Passenger Side	AG333063473AC Mirror Glass, Convex, LH, Passenger Side Europe, RHD	-	1	Enquire
8	AG333063472DB	Mirror Glass, Convex, RH, Passenger Side	AG333063472DB Mirror Glass, Convex, RH, Passenger Side Europe, LHD	-	1	Enquire
8	AG333063473DB	EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE	AG333063473DB EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE Europe, LHD	-	1	Enquire
8	AG333063472BC	Mirror Glass, Convex, RH, Passenger Side	AG333063472BC Mirror Glass, Convex, RH, Passenger Side NAS	-	1	Enquire
8	AG333063472CC	Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side	AG333063472CC Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side GCC	-	1	Enquire
8	AG333063473CC	Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side	AG333063473CC Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side GCC	-	1	Enquire
8	AG333063473BC	Mirror Glass, Flat, LH, Driver Side	AG333063473BC Mirror Glass, Flat, LH, Driver Side NAS	-	1	Enquire
