Aston Martin Rapide - Body Rear End

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43F27871AA Panel, Fuel Tank Compartment Upper $336.48 To Order
Photo Part No Description Price (each) Stock
AD4366748AA Bracket, Rear Seat Spring Damper Mounting Enquire To Order
Photo Part No Description Price (each) Stock
AD43F613D75AA Reinforcment, Isofix Inner LH Enquire To Order
AD43MRC5765AA STUD PLATE M8 REAR SEAT MOUNTING $13.03 To Order
Photo Part No Description Price (each) Stock
AD43F613D74AA Reinforcment, Isofix Inner RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F10457AC MBR RR FLR SIDE LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F10456AC MBR RR FLR SIDE RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F103B44AB Member, Rear CS Upper Enquire To Order
Photo Part No Description Price (each) Stock
AD43F106K00AB Crossmember, Rear $268.06 To Order
Photo Part No Description Price (each) Stock
GOAD43A01015AA Gusset, Crossmember LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43A01014AB GUSSET XMBR RH $58.23 To Order
Photo Part No Description Price (each) Stock
AD43F246K45AA Reinforcment, Body Side Rear- Long LH $49.55 To Order
Photo Part No Description Price (each) Stock
AD43F246K44AA Reinforcment, Body Side Rear- Long RH $51.92 To Order
Photo Part No Description Price (each) Stock
AD43F246K43AA Reinforcment, Body Side Rear- LH $30.15 To Order
Photo Part No Description Price (each) Stock
AD43F246K42AA Reinforcment, Body Side Rear- RH $30.17 To Order
Photo Part No Description Price (each) Stock
GOAD43F28286AA Bracket, Reinforcment Enquire To Order
Photo Part No Description Price (each) Stock
AD43F110A56AB NUT PLATE SUBFR MNT Enquire To Order
Photo Part No Description Price (each) Stock
AD4316C277AA LONGTIUDINAL REAR ASSY LH SERVICE $1,747.46 To Order
Photo Part No Description Price (each) Stock
AD4316C276AA LONGTITUDINAL REAR ASSY RH SERVICE $1,652.84 To Order
Photo Part No Description Price (each) Stock
AD43F41099AA Panel, Rear Outer Closing LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F41098AA Panel, Rear Outer Closing RH $23.43 To Order
Photo Part No Description Price (each) Stock
GOAD43F112K23AA Panel, Rear Lower Closing LH $26.74 To Order
Photo Part No Description Price (each) Stock
GOAD43F112K22AA Panel, Rear Lower Closing RH $26.74 To Order
Photo Part No Description Price (each) Stock
AD43F63916AA Bracket, Rear Seat Squab Mounting Outer Enquire To Order
Photo Part No Description Price (each) Stock
AD43F63917AA Bracket, Rear Seat Squab Mounting Inner Enquire To Order
Photo Part No Description Price (each) Stock
AD43F63914AA Bracket, Rear Seat Squab Stop Enquire To Order
Photo Part No Description Price (each) Stock
AD4317F035AA RR CRUSHCAN ASY LH $301.33 To Order
Photo Part No Description Price (each) Stock
AD4317F034AA RR CRUSHCAN ASSY RH $301.33 To Order
Photo Part No Description Price (each) Stock
AD43F2714AA Bracket, Crashcan Mounting $94.72 To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder $6.10 To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.37 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.25 To Order
View All

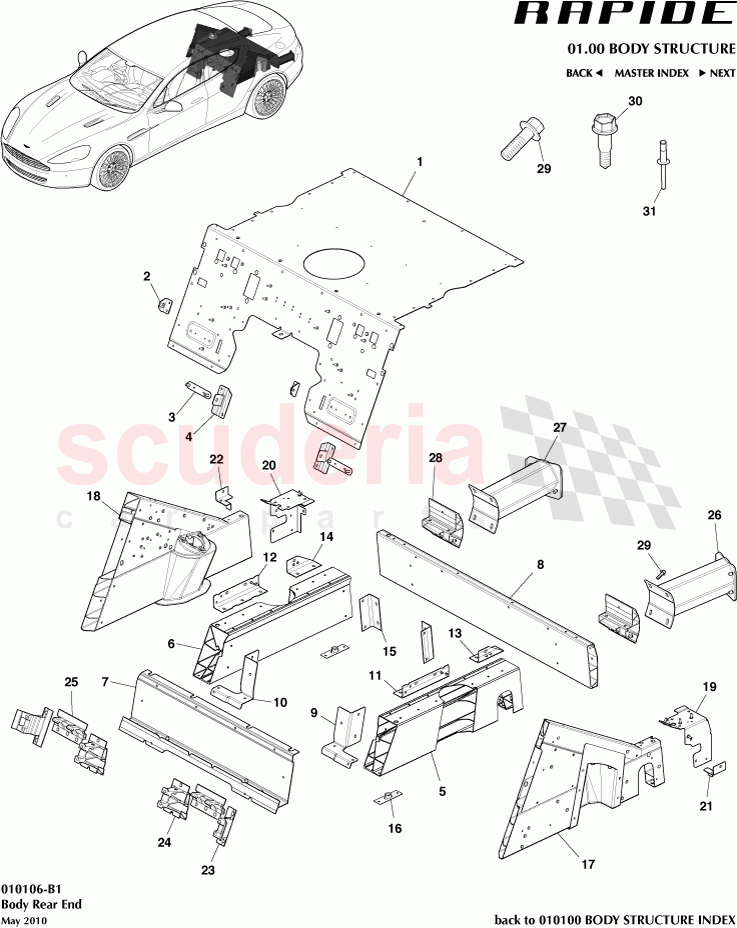

Body Rear End of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43F27871AA
Panel, Fuel Tank Compartment Upper
Structural Cat. A only 		$336.48 1
2 AD4366748AA
Bracket, Rear Seat Spring Damper Mounting
Structural Cat. A only 		- 2 Enquire
3 AD43F613D75AA
Reinforcment, Isofix Inner LH
Structural Cat. A only 		- 1 Enquire
3 AD43MRC5765AA
STUD PLATE M8 REAR SEAT MOUNTING
Structural Cat. A only 		$13.03 2
4 AD43F613D74AA
Reinforcment, Isofix Inner RH
Structural Cat. A only 		- 1 Enquire
5 AD43F10457AC
MBR RR FLR SIDE LH
Structural Cat. A only 		- 1 Enquire
6 AD43F10456AC
MBR RR FLR SIDE RH
Structural Cat. A only 		- 1 Enquire
7 AD43F103B44AB
Member, Rear CS Upper
Structural Cat. A only 		- 1 Enquire
8 AD43F106K00AB
Crossmember, Rear
Structural Cat. A only 		$268.06 1
9 GOAD43A01015AA
Gusset, Crossmember LH
Structural Cat. A only 		- 1 Enquire
10 GOAD43A01014AB
GUSSET XMBR RH
Structural Cat. A only 		$58.23 1
11 AD43F246K45AA
Reinforcment, Body Side Rear- Long LH
Structural Cat. A only 		$49.55 1
12 AD43F246K44AA
Reinforcment, Body Side Rear- Long RH
Structural Cat. A only 		$51.92 1
13 AD43F246K43AA
Reinforcment, Body Side Rear- LH
Structural Cat. A only 		$30.15 1
14 AD43F246K42AA
Reinforcment, Body Side Rear- RH
Structural Cat. A only 		$30.17 1
15 GOAD43F28286AA
Bracket, Reinforcment
Structural Cat. A only 		- 2 Enquire
16 AD43F110A56AB
NUT PLATE SUBFR MNT
Structural Cat. A only 		- 3 Enquire
17 AD4316C277AA
LONGTIUDINAL REAR ASSY LH SERVICE
Service Assy, Structural Cat. A only 		$1,747.46 1
18 AD4316C276AA
LONGTITUDINAL REAR ASSY RH SERVICE
Service Assy, Structural Cat. A only 		$1,652.84 1
19 AD43F41099AA
Panel, Rear Outer Closing LH
Structural Cat. A only 		- 1 Enquire
20 AD43F41098AA
Panel, Rear Outer Closing RH
Structural Cat. A only 		$23.43 1
21 GOAD43F112K23AA
Panel, Rear Lower Closing LH
Structural Cat. A only 		$26.74 1
22 GOAD43F112K22AA
Panel, Rear Lower Closing RH
Structural Cat. A only 		$26.74 1
23 AD43F63916AA
Bracket, Rear Seat Squab Mounting Outer
Structural Cat. A only 		- 1 Enquire
24 AD43F63917AA
Bracket, Rear Seat Squab Mounting Inner
Structural Cat. A only 		- 1 Enquire
25 AD43F63914AA
Bracket, Rear Seat Squab Stop
Structural Cat. A only 		- 2 Enquire
26 AD4317F035AA
RR CRUSHCAN ASY LH
Structural Cat. A only 		$301.33 1
27 AD4317F034AA
RR CRUSHCAN ASSY RH
Structural Cat. A only 		$301.33 1
28 AD43F2714AA
Bracket, Crashcan Mounting
Structural Cat. A only 		$94.72 2
29 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		$6.10 8
30 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.37 11
31 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.25 -
