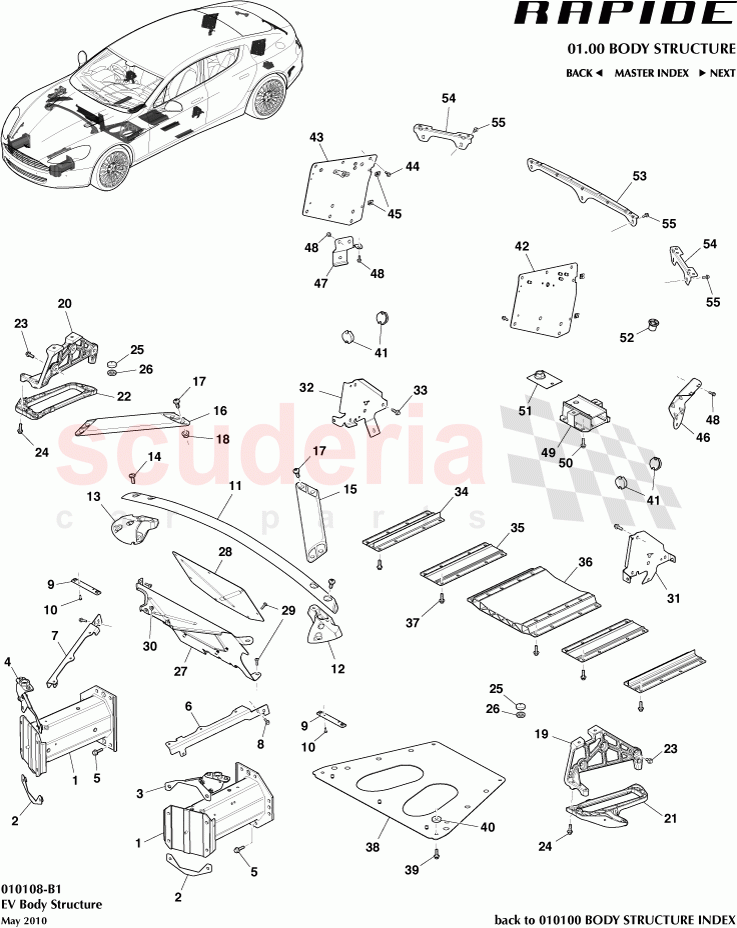

Aston Martin Rapide - EV Body Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43V17N800AC	BUMPER FRONT CRASH CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436367912AD	NUT PLT ASY FRT CRSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313069AB	PNL HD/LP MNTG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313068AB	PNL HD/LP MTNG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43199901AA	Nutplate, M6 Headlamp Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A75AB	Brace, Front crush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432011136	REINF BDY FRT C/BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432011136	REINF BDY FRT C/BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703160PK	Nut M10 HEX Flange (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316799AB	BRACKET HOD HINGE SUPPORT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316798AB	BRACKET HOD HINGE SUPPORT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335341BA	Bracket, ECU Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335340BA	Bracket, ECU Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43061B70AA	CAP DUST COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316740AB	PAD - HOOD ON COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43111C60GF	Panel, Dummy Floor Front, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111B48AB	Panel, Dummy Floor Cover, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786250	Edge Protection, Switch Harness, 150mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43FA410K25AB	Panel, centre pillar closing LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43FA410K24AB	Panel, centre pillar closing RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F28406AA	UNDERFLR RE CLS PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F8741AA	UNDERFLOOR REINF CLOSING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F110023AA	TNL REINF EXTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F111K36AA	TUNNEL REINFORCEMENT FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F16346BB	SPACER LATCH STRIKER	Enquire	To Order
	AD43F16347BB	SPACER LATCH STRIKER	Enquire	To Order
	AD43F16348BB	SPACER LATCH STRIKER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD43F27863AD	Extrusion, Rear Quarter Pillar Reinforce LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F27862AD	Extrusion, Rear Quarter Pillar Reinforce RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F17B863AA	REAR BUMPER SIDE BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F17B862AA	REAR BUMPER SIDE BRACKET RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	G0AD43F184792AA	Closer, Rear Subframe Fix	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F44M06AB	Nutplate, Subframe mount rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L205196AB	Plug, Drain TLS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F17B681AA	REAR BUMPER CENTRE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F17B930AA	REAR BUMPER OUTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN	-	2	Enquire
2	4G436367912AD	NUT PLT ASY FRT CRSH	4G436367912AD NUT PLT ASY FRT CRSH	-	2	Enquire
3	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH	-	1	Enquire
4	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH	-	1	Enquire
5	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	12	Enquire
6	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH	-	1	Enquire
7	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH	-	1	Enquire
8	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
9	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket	-	2	Enquire
10	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
11	4G43108A75AB	Brace, Front crush	4G43108A75AB Brace, Front crush	-	1	Enquire
12	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	8D33108A87AA BRACKET FRONT CROSS BRACE LH	-	1	Enquire
13	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	8D33108A86AA BRACKET FRONT CROSS BRACE RH	-	1	Enquire
14	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	4	Enquire
15	4G432011136	REINF BDY FRT C/BARS	4G432011136 REINF BDY FRT C/BARS	-	1	Enquire
16	4G432011136	REINF BDY FRT C/BARS	4G432011136 REINF BDY FRT C/BARS	-	1	Enquire
17	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	8	Enquire
18	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10)	-	4	Enquire
19	AD4316799AB	BRACKET HOD HINGE SUPPORT LH	AD4316799AB BRACKET HOD HINGE SUPPORT LH	-	1	Enquire
20	AD4316798AB	BRACKET HOD HINGE SUPPORT RH	AD4316798AB BRACKET HOD HINGE SUPPORT RH	-	1	Enquire
21	6G335341BA	Bracket, ECU Mounting, LH	6G335341BA Bracket, ECU Mounting, LH	-	1	Enquire
22	6G335340BA	Bracket, ECU Mounting, RH	6G335340BA Bracket, ECU Mounting, RH	-	1	Enquire
23	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
24	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
25	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
26	4G4316740AB	PAD - HOOD ON COWL	4G4316740AB PAD - HOOD ON COWL	-	2	Enquire
27	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD	-	1	Enquire
28	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front	-	1	Enquire
29	3786250	Edge Protection, Switch Harness, 150mm	3786250 Edge Protection, Switch Harness, 150mm	-	10	Enquire
30	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	2	Enquire
31	AD43FA410K25AB	Panel, centre pillar closing LH	AD43FA410K25AB Panel, centre pillar closing LH	-	1	Enquire
32	AD43FA410K24AB	Panel, centre pillar closing RH	AD43FA410K24AB Panel, centre pillar closing RH	-	1	Enquire
33	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
34	GOAD43F28406AA	UNDERFLR RE CLS PLT	GOAD43F28406AA UNDERFLR RE CLS PLT	-	2	Enquire
35	GOAD43F8741AA	UNDERFLOOR REINF CLOSING PLATE	GOAD43F8741AA UNDERFLOOR REINF CLOSING PLATE	-	2	Enquire
36	GOAD43F110023AA	TNL REINF EXTR	GOAD43F110023AA TNL REINF EXTR	-	1	Enquire
37	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	48	Enquire
38	AD43F111K36AA	TUNNEL REINFORCEMENT FRONT	AD43F111K36AA TUNNEL REINFORCEMENT FRONT	-	1	Enquire
39	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
40	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER	-	4	Enquire
41	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER	-	-	Enquire
41	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER	-	-	Enquire
41	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER	-	-	Enquire
41	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER	-	-	Enquire
41	AD43F16350BA	Spacer, Latch striker	AD43F16350BA Spacer, Latch striker	-	-	Enquire
41	AD43F16351BA	Spacer, Latch striker	AD43F16351BA Spacer, Latch striker	-	-	Enquire
42	AD43F27863AD	Extrusion, Rear Quarter Pillar Reinforce LH	AD43F27863AD Extrusion, Rear Quarter Pillar Reinforce LH	-	1	Enquire
43	AD43F27862AD	Extrusion, Rear Quarter Pillar Reinforce RH	AD43F27862AD Extrusion, Rear Quarter Pillar Reinforce RH	-	1	Enquire
44	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	12	Enquire
45	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
46	AD43F17B863AA	REAR BUMPER SIDE BRACKET LH	AD43F17B863AA REAR BUMPER SIDE BRACKET LH	-	1	Enquire
47	AD43F17B862AA	REAR BUMPER SIDE BRACKET RH	AD43F17B862AA REAR BUMPER SIDE BRACKET RH	-	1	Enquire
48	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	5	Enquire
49	G0AD43F184792AA	Closer, Rear Subframe Fix	G0AD43F184792AA Closer, Rear Subframe Fix	-	1	Enquire
50	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
51	AD43F44M06AB	Nutplate, Subframe mount rear LH	AD43F44M06AB Nutplate, Subframe mount rear LH	-	1	Enquire
52	6G33L205196AB	Plug, Drain TLS	6G33L205196AB Plug, Drain TLS	-	1	Enquire
53	AD43F17B681AA	REAR BUMPER CENTRE BRACKET	AD43F17B681AA REAR BUMPER CENTRE BRACKET	-	1	Enquire
54	AD43F17B930AA	REAR BUMPER OUTER BRACKET	AD43F17B930AA REAR BUMPER OUTER BRACKET	-	1	Enquire
55	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	7	Enquire
