Body Sound Insulation 1 of Aston Martin Aston Martin Rapide

View All

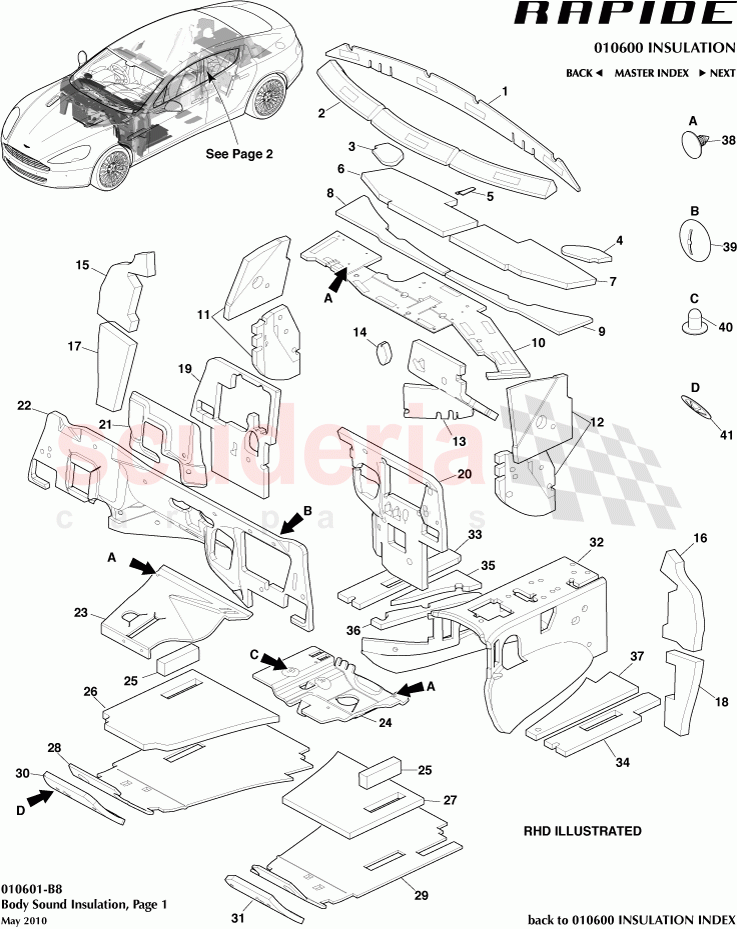

Aston Martin Rapide - Body Sound Insulation 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4302139AA	Baffle, cowl top in end	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4368066AB	Foam, NVH dash underside cavity assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348182AB	Foam Pad, Under IP, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348181AB	Foam Pad, Under IP, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4300152BB	RHD UNDER WIPER MOTOR NVH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A58AB	Insulation, Body Side Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A57AC	Insulation, Body Side Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	Enquire	To Order
	8G43021A59AA	Baffle, Body Front Panel, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4304564AA	NVH, Autobox Clutch Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4328112AB	NVH FOAM PAD ASY FENDER RH UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4328111AB	NVH FOAM PAD ASSY FENDER LH LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4328110AA	NVH Foam Pad Assembly, Fender Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4328121AB	NVH FOAM PAD FENDER LEFT LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43002K06AB	Baffle, body front panel, RHS, RHD	Enquire	To Order
	AD43002K05AA	Baffle, body front panel, RHS, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43015A22AA	Baffle, body front panel, LHS, RHD	Enquire	To Order
	AD43015A23AA	Baffle, body front panel, LHS, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43114C00BA	Pad, damping pedal box, RHD	Enquire	To Order
	AD43114C00AA	Pad, damping pedal box, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43102B00BA	Insulation, engine housing, RHD	Enquire	To Order
	AD43102B00AB	Insulation, engine housing, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43534A0BA	NVH, IP lower, RHS, RHD	Enquire	To Order
	AD43534A0AA	Panel Assy, dash lower drivers side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43534A1BA	NVH, IP lower, LHS, RHD	Enquire	To Order
	AD43534A1AA	NVH, IP lower, LHS, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4311453BA	HEEL BOARD ASSY FM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4311455CB	INS HEEL SUPPORT FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4311454CA	HEEL BOARD ASSY FM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4354572AC	Insulation, floor front, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4354571AC	Insulation, floor front, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4302282AA	Cover, lower footwell, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4302283AA	FRONT BULKHEAD LOWER INS LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD4311446BB	INS FLR PAN GR SH LV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101A86BA	FLR PAN NVH LHS INR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101A87BA	FLR PAN NVH LHS OTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101A84BA	FLR PAN NVH RHS INR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101A82BA	FLR PAN NVH RHS INR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101A85BA	FLR PAN NVH RHS OTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697648	Fastener, Fir Tree	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697564	Retainer, Push On	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702212	Snapsac, 6.8mm, Push-on, Plastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33WE600041AA	Washer, starlock	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD4302139AA	Baffle, cowl top in end	AD4302139AA Baffle, cowl top in end	-	1	Enquire
2	AD4368066AB	Foam, NVH dash underside cavity assy	AD4368066AB Foam, NVH dash underside cavity assy	-	1	Enquire
3	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH	-	1	Enquire
4	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH	-	1	Enquire
5	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	9G43047B22AA Insulation, I/ panel radio speaker opening, centre	-	1	Enquire
6	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH	-	1	Enquire
7	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH	-	1	Enquire
8	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH	-	1	Enquire
9	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH	-	1	Enquire
10	AD4300152BB	RHD UNDER WIPER MOTOR NVH	AD4300152BB RHD UNDER WIPER MOTOR NVH RHD	-	1	Enquire
11	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH	-	1	Enquire
12	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH	-	1	Enquire
13	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	8G43021A58AB BAFFLE BODY FRONT PANEL RHD CENTRE RHD	-	1	Enquire
13	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre LHD	-	1	Enquire
14	8G4304564AA	NVH, Autobox Clutch Pedal	8G4304564AA NVH, Autobox Clutch Pedal	-	1	Enquire
15	AD4328112AB	NVH FOAM PAD ASY FENDER RH UPPER	AD4328112AB NVH FOAM PAD ASY FENDER RH UPPER	-	1	Enquire
16	AD4328111AB	NVH FOAM PAD ASSY FENDER LH LOWER	AD4328111AB NVH FOAM PAD ASSY FENDER LH LOWER	-	1	Enquire
17	DG4328110AA	NVH Foam Pad Assembly, Fender Lower, RH	DG4328110AA NVH Foam Pad Assembly, Fender Lower, RH	-	1	Enquire
18	AD4328121AB	NVH FOAM PAD FENDER LEFT LOWER	AD4328121AB NVH FOAM PAD FENDER LEFT LOWER	-	1	Enquire
19	AD43002K06AB	Baffle, body front panel, RHS, RHD	AD43002K06AB Baffle, body front panel, RHS, RHD RHD	-	1	Enquire
19	AD43002K05AA	Baffle, body front panel, RHS, LHD	AD43002K05AA Baffle, body front panel, RHS, LHD LHD	-	1	Enquire
20	AD43015A22AA	Baffle, body front panel, LHS, RHD	AD43015A22AA Baffle, body front panel, LHS, RHD RHD	-	1	Enquire
20	AD43015A23AA	Baffle, body front panel, LHS, LHD	AD43015A23AA Baffle, body front panel, LHS, LHD LHD	-	1	Enquire
21	AD43114C00BA	Pad, damping pedal box, RHD	AD43114C00BA Pad, damping pedal box, RHD RHD	-	1	Enquire
21	AD43114C00AA	Pad, damping pedal box, LHD	AD43114C00AA Pad, damping pedal box, LHD LHD	-	1	Enquire
22	AD43102B00BA	Insulation, engine housing, RHD	AD43102B00BA Insulation, engine housing, RHD RHD	-	1	Enquire
22	AD43102B00AB	Insulation, engine housing, LHD	AD43102B00AB Insulation, engine housing, LHD LHD	-	1	Enquire
23	AD43534A0BA	NVH, IP lower, RHS, RHD	AD43534A0BA NVH, IP lower, RHS, RHD RHD	-	1	Enquire
23	AD43534A0AA	Panel Assy, dash lower drivers side	AD43534A0AA Panel Assy, dash lower drivers side LHD	-	1	Enquire
24	AD43534A1BA	NVH, IP lower, LHS, RHD	AD43534A1BA NVH, IP lower, LHS, RHD RHD	-	1	Enquire
24	AD43534A1AA	NVH, IP lower, LHS, LHD	AD43534A1AA NVH, IP lower, LHS, LHD LHD	-	1	Enquire
25	AD4311453BA	HEEL BOARD ASSY FM	AD4311453BA HEEL BOARD ASSY FM	-	2	Enquire
26	AD4311455CB	INS HEEL SUPPORT FRT	AD4311455CB INS HEEL SUPPORT FRT	-	1	Enquire
27	AD4311454CA	HEEL BOARD ASSY FM	AD4311454CA HEEL BOARD ASSY FM	-	1	Enquire
28	AD4354572AC	Insulation, floor front, RHS	AD4354572AC Insulation, floor front, RHS	-	1	Enquire
29	AD4354571AC	Insulation, floor front, LHS	AD4354571AC Insulation, floor front, LHS	-	1	Enquire
30	AD4302282AA	Cover, lower footwell, RHS	AD4302282AA Cover, lower footwell, RHS	-	1	Enquire
31	AD4302283AA	FRONT BULKHEAD LOWER INS LH	AD4302283AA FRONT BULKHEAD LOWER INS LH	-	1	Enquire
32	CD4311446BB	INS FLR PAN GR SH LV	CD4311446BB INS FLR PAN GR SH LV	-	1	Enquire
33	AD43101A86BA	FLR PAN NVH LHS INR	AD43101A86BA FLR PAN NVH LHS INR	-	1	Enquire
34	AD43101A87BA	FLR PAN NVH LHS OTR	AD43101A87BA FLR PAN NVH LHS OTR	-	1	Enquire
35	AD43101A84BA	FLR PAN NVH RHS INR	AD43101A84BA FLR PAN NVH RHS INR	-	1	Enquire
36	AD43101A82BA	FLR PAN NVH RHS INR	AD43101A82BA FLR PAN NVH RHS INR	-	1	Enquire
37	AD43101A85BA	FLR PAN NVH RHS OTR	AD43101A85BA FLR PAN NVH RHS OTR	-	1	Enquire
38	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	-	12	Enquire
39	697564	Retainer, Push On	697564 Retainer, Push On	-	-	Enquire
40	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic	-	1	Enquire
41	6G33WE600041AA	Washer, starlock	6G33WE600041AA Washer, starlock	-	4	Enquire
