Underbody of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Underbody

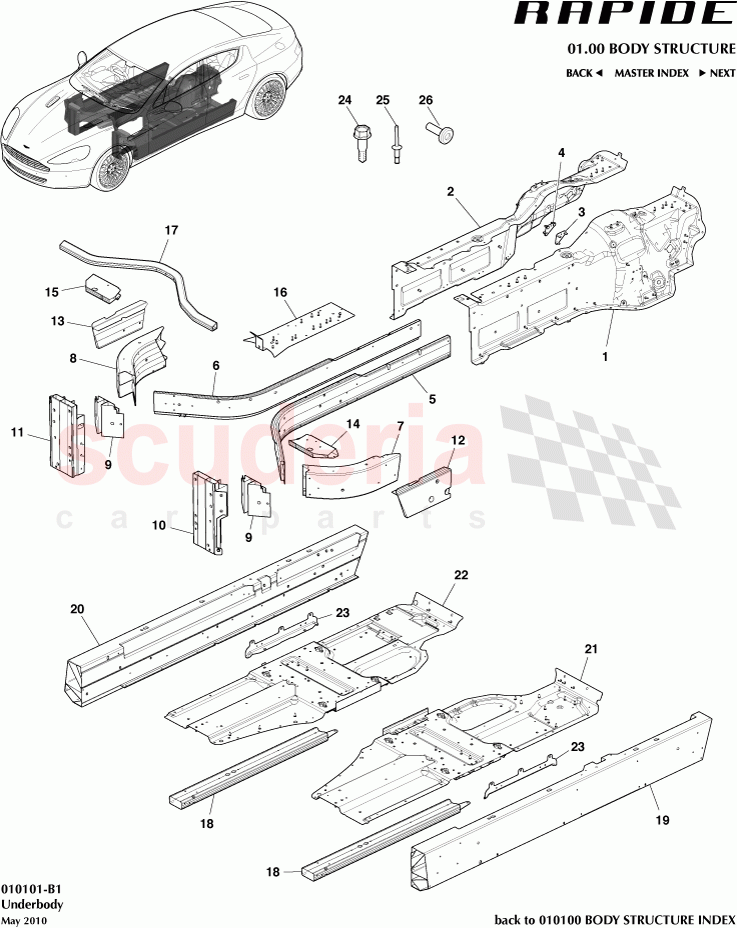

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43F13059AC	Side Panel, Tunnel rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F13058AD	Side Panel, Tunnel rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4366625AA	Plate, stud M8 Bracket inner rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4366624AA	Plate, stud M8 Bracket inner rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F10775AA	Extrusion, tunnel LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F10774AA	Extrusion, tunnel RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4310277AA	Member, Front Side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4310276AB	MBR FRT SD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P06G33F001K28AB	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43111E47AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43111E46AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43100A95AB	Member, lower reinforc front side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43100A94AB	Member, lower reinforc front side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F10095AB	Member, reinforce front side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F10094AB	Member, reinforce front side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43113C18AA	Panel, tunnel top front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	G0AG33F02599AB	Member, Body Front Cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F10120AA	MBR FLOOR SIDE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F101D11AA	MEMBER FLOOR SIDE LOWER ASSY LH SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F101D10AA	MEMBER FLOOR SIDE LOWER ASSY RH SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F10021AA	FLOOR ASSY LH SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F10020AA/S	FLOOR ASSY RH-RAPIDE SERVICE-STAMPED TO CHASSIS No.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAD43F54671AA	SEAT MOUNT REINFORCE ANGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43F13059AC	Side Panel, Tunnel rear LH	AD43F13059AC Side Panel, Tunnel rear LH Structural Cat. A only	-	1	Enquire
2	AD43F13058AD	Side Panel, Tunnel rear RH	AD43F13058AD Side Panel, Tunnel rear RH Structural Cat. A only	-	1	Enquire
3	AD4366625AA	Plate, stud M8 Bracket inner rear LH	AD4366625AA Plate, stud M8 Bracket inner rear LH Structural Cat. A only	-	1	Enquire
4	AD4366624AA	Plate, stud M8 Bracket inner rear RH	AD4366624AA Plate, stud M8 Bracket inner rear RH Structural Cat. A only	-	1	Enquire
5	AD43F10775AA	Extrusion, tunnel LH	AD43F10775AA Extrusion, tunnel LH Structural Cat. A only	-	1	Enquire
6	AD43F10774AA	Extrusion, tunnel RH	AD43F10774AA Extrusion, tunnel RH Structural Cat. A only	-	1	Enquire
7	AD4310277AA	Member, Front Side LH	AD4310277AA Member, Front Side LH Structural Cat. A only	-	1	Enquire
8	AD4310276AB	MBR FRT SD RH	AD4310276AB MBR FRT SD RH Structural Cat. A only	-	1	Enquire
9	P06G33F001K28AB	Bracket, tunnel upper inner	P06G33F001K28AB Bracket, tunnel upper inner Structural Cat. A only	-	2	Enquire
10	AD43111E47AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	AD43111E47AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE Service assy, Structural Cat. A only	-	1	Enquire
11	AD43111E46AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	AD43111E46AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE Service assy, Structural Cat. A only	-	1	Enquire
12	GOAD43100A95AB	Member, lower reinforc front side LH	GOAD43100A95AB Member, lower reinforc front side LH Structural Cat. A only	-	1	Enquire
13	GOAD43100A94AB	Member, lower reinforc front side RH	GOAD43100A94AB Member, lower reinforc front side RH Structural Cat. A only	-	1	Enquire
14	GOAD43F10095AB	Member, reinforce front side LH	GOAD43F10095AB Member, reinforce front side LH Structural Cat. A only	-	1	Enquire
15	GOAD43F10094AB	Member, reinforce front side RH	GOAD43F10094AB Member, reinforce front side RH Structural Cat. A only	-	1	Enquire
16	AD43113C18AA	Panel, tunnel top front	AD43113C18AA Panel, tunnel top front Structural Cat. A only	-	1	Enquire
17	G0AG33F02599AB	Member, Body Front Cross	G0AG33F02599AB Member, Body Front Cross Structural Cat. A only	-	1	Enquire
18	AD43F10120AA	MBR FLOOR SIDE FRONT	AD43F10120AA MBR FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
19	AD43F101D11AA	MEMBER FLOOR SIDE LOWER ASSY LH SERVICE	AD43F101D11AA MEMBER FLOOR SIDE LOWER ASSY LH SERVICE Service assy, Structural Cat. A only	-	1	Enquire
20	AD43F101D10AA	MEMBER FLOOR SIDE LOWER ASSY RH SERVICE	AD43F101D10AA MEMBER FLOOR SIDE LOWER ASSY RH SERVICE Service assy, Structural Cat. A only	-	1	Enquire
21	AD43F10021AA	FLOOR ASSY LH SERVICE	AD43F10021AA FLOOR ASSY LH SERVICE Service assy, Structural Cat. A only	-	1	Enquire
22	AD43F10020AA/S	FLOOR ASSY RH-RAPIDE SERVICE-STAMPED TO CHASSIS No.	AD43F10020AA/S FLOOR ASSY RH-RAPIDE SERVICE-STAMPED TO CHASSIS No. Service assy, Structural Cat. A only	-	1	Enquire
23	GOAD43F54671AA	SEAT MOUNT REINFORCE ANGLE	GOAD43F54671AA SEAT MOUNT REINFORCE ANGLE Structural Cat. A only	-	2	Enquire
24	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head	-	8	Enquire
25	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	-	Enquire
26	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	2	Enquire
