Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Power Conversion

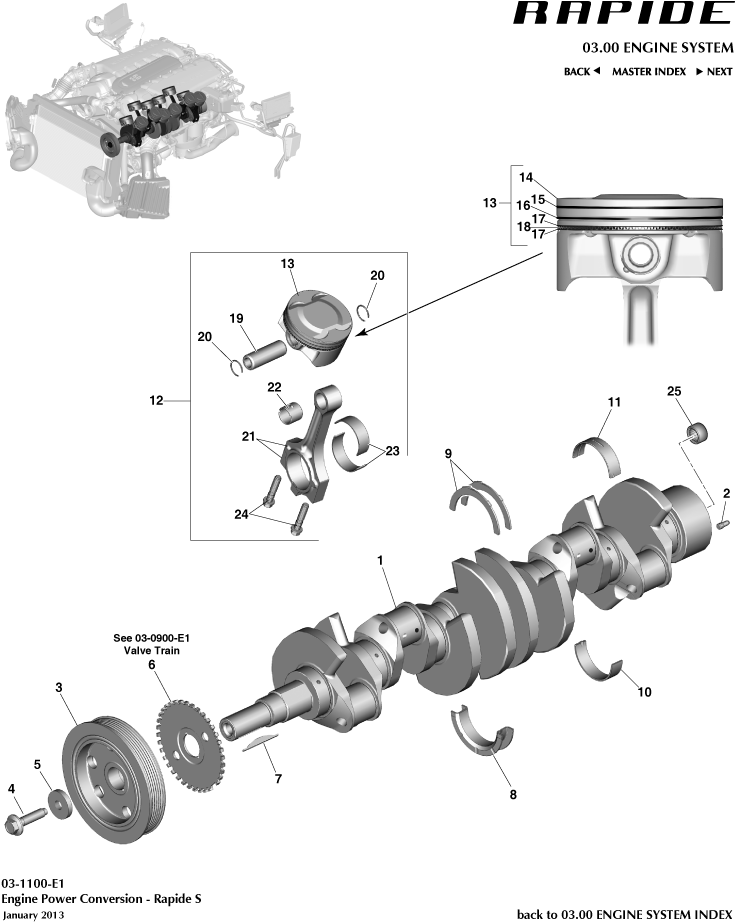

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012) -	-	6	Enquire
-	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014) -	-	6	Enquire
-	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2 -	-	7	Enquire
-	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3 -	-	7	Enquire
-	CD336K109BA	Piston and Ring Assy, Grade 2	CD336K109BA Piston and Ring Assy, Grade 2 -	-	12	Enquire
-	CD336K109CA	Piston and Ring Assy, Grade 3	CD336K109CA Piston and Ring Assy, Grade 3 -	-	12	Enquire
-	CD336110BA	Piston, Grade Size 2	CD336110BA Piston, Grade Size 2 -	-	12	Enquire
-	CD336110CA	Piston, Grade Size 3	CD336110CA Piston, Grade Size 3 -	-	12	Enquire
1	4G430210229	CrankShaft	4G430210229 CrankShaft Includes Item 2	-	1	Enquire
2	1R124110177	DOWEL PIN	1R124110177 DOWEL PIN -	-	1	Enquire
3	CD336316AA	Damper Assy, Crankshaft	CD336316AA Damper Assy, Crankshaft -	-	1	Enquire
4	4G430210822	BOLT-M12x48 HF PIL10 ARRIVING SOON	4G430210822 BOLT-M12x48 HF PIL10 ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	1	Enquire
5	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL -	-	1	Enquire
6	00RC052	Washer - M6x6.0mm	00RC052 Washer - M6x6.0mm -	-	1	Enquire
7	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5 -	-	1	Enquire
8	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	4R3E6A339BA Washer Crankshaft Main Thrust Lower -	-	1	Enquire
9	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper -	-	2	Enquire
10	4R3E6A338AA	Bearing CrankShaft Main Thrust Lower	4R3E6A338AA Bearing CrankShaft Main Thrust Lower -	-	6	Enquire
11	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1 -	-	7	Enquire
12	CD336100AA	Piston & Connecting Rod Assy, Grade Size 1	CD336100AA Piston & Connecting Rod Assy, Grade Size 1 -	-	12	Enquire
13	CD336K109AA	Piston and Ring Assy, Grade 1	CD336K109AA Piston and Ring Assy, Grade 1 -	-	12	Enquire
14	CD336110AA	Piston, Grade Size 1	CD336110AA Piston, Grade Size 1 -	-	12	Enquire
15	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper -	-	12	Enquire
16	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring - ARRIVING SOON	-	12	Enquire
17	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring -	-	24	Enquire
18	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment -	-	12	Enquire
19	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE) -	-	12	Enquire
