Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Engine Sealing

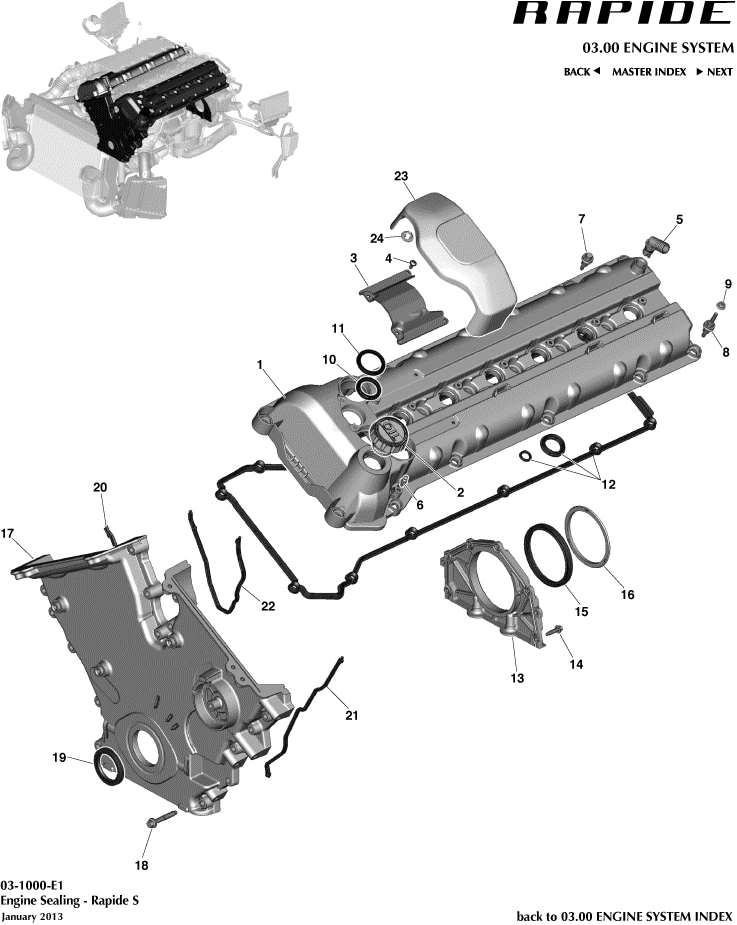

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED236A505AA	CAM COVER LH	ED236A505AA CAM COVER LH From 15MY, AM29. Includes items 5,7,8,10,11 and 12	-	1	Enquire
-	CD336582AB	CVR ASY VLV RCKR ARM	CD336582AB CVR ASY VLV RCKR ARM Up To 15MY, AM11. Includes items 5,7,8,10,11 and 12	-	1	Enquire
-	ED236582AA	CAM COVER RH	ED236582AA CAM COVER RH From 15MY, AM29. Includes items 5,7,8,10,11 and 12	-	1	Enquire
-	8G436D080DA	COVER ENGINE FRONT	8G436D080DA COVER ENGINE FRONT 15MY on	-	1	Enquire
1	CD336A505AB	CVR ASY VLV RCKR ARM	CD336A505AB CVR ASY VLV RCKR ARM Up To 15MY, AM11. Includes items 5,7,8,10,11 and 12	-	1	Enquire
3	CD336P068AB	Coil Cover, Spark Plug	CD336P068AB Coil Cover, Spark Plug Up to 17MY	-	2	Enquire
4	706471	SCREW-5 x 16 PN TI R	706471 SCREW-5 x 16 PN TI R Up to 17MY	-	8	Enquire
5	CD3395487AA	Vent Pipe	CD3395487AA Vent Pipe -	-	2	Enquire
7	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 1	-	30	Enquire
8	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 1	-	4	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	4	Enquire
10	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 1	-	4	Enquire
11	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 1	-	4	Enquire
13	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal -	-	1	Enquire
14	697745	BOLT-M6 x 22 HEX FLG	697745 BOLT-M6 x 22 HEX FLG -	-	6	Enquire
18	702853	BOLT-M8 x 47.5 W/WSH	702853 BOLT-M8 x 47.5 W/WSH -	-	13	Enquire
19	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front -	-	1	Enquire
20	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH - ARRIVING SOON	-	1	Enquire
21	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH -	-	1	Enquire
22	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre - ARRIVING SOON	-	1	Enquire
23	CD3313C026AA	Cover, Oil Control Valve Solenoid	CD3313C026AA Cover, Oil Control Valve Solenoid -	-	2	Enquire
