Engine Structure of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

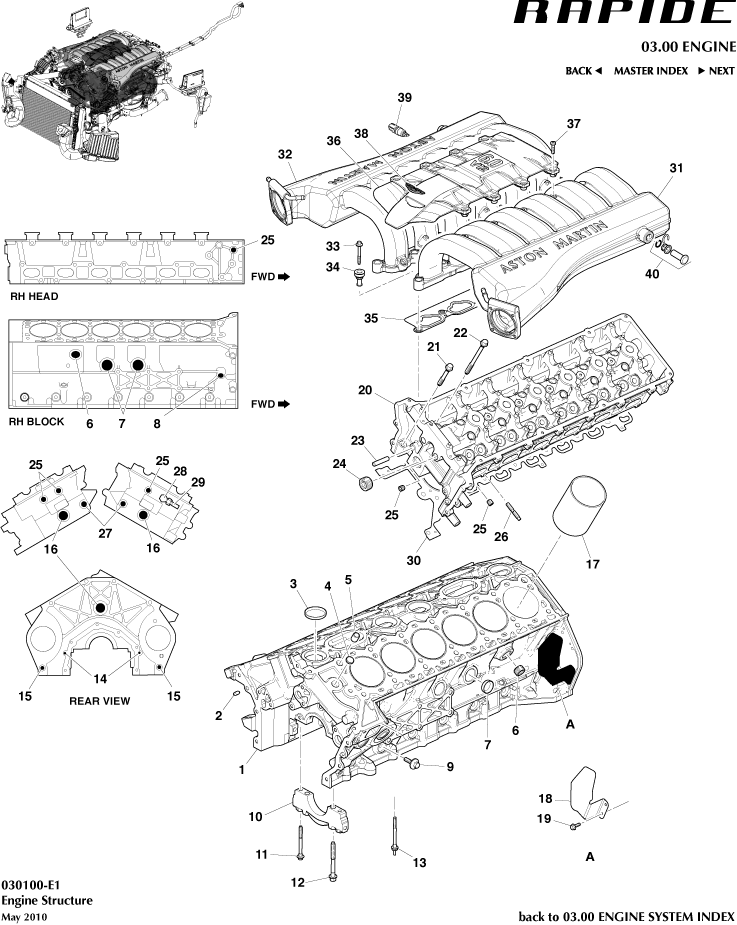

Aston Martin GT RAPIDE (2010-2019) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y66832AB	FUEL TANK GROUND STR	SY9Y66832AB FUEL TANK GROUND STR AM16	-	1	Enquire
-	SY9Y8333AA	R-HTS-TSNO-SR1	SY9Y8333AA R-HTS-TSNO-SR1 AM16	-	1	Enquire
-	8G436F093AA	HD ASY CYL W CMPNT	8G436F093AA HD ASY CYL W CMPNT Includes Valves, Adjusters, Springs, less Camshafts	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion -	-	1	Enquire
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19 -	-	4	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
8	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14 -	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
16	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	3	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
20	SY9Y9142WA	FAN STONE PROTECTION	SY9Y9142WA FAN STONE PROTECTION Includes Valves, Adjusters, Springs, Less Camshafts	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
24	SY9Y8C477DA	COOLING PACK BRKT 4	SY9Y8C477DA COOLING PACK BRKT 4 -	-	1	Enquire
25	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	2	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
27	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14 -	-	2	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure -	-	1	Enquire
31	8G439424DA	MANF ASY INTK LH	8G439424DA MANF ASY INTK LH -	-	1	Enquire
32	8G439424CA	INTAKE MANIFOLD ASSY	8G439424CA INTAKE MANIFOLD ASSY -	-	1	Enquire
33	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
35	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	2	Enquire
36	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	8G439J444AA SUPPORT BRACE INTAKE MANIFOLD -	-	1	Enquire
37	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8 -	-	8	Enquire
38	4G43001B46BB	MANIFOLD BADGE	4G43001B46BB MANIFOLD BADGE -	-	1	Enquire
39	6G430810064	AIR TEMP SENSOR	6G430810064 AIR TEMP SENSOR -	-	1	Enquire
40	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
