Aston Martin GT RAPIDE (2010-2019) - Evaporative Emissions

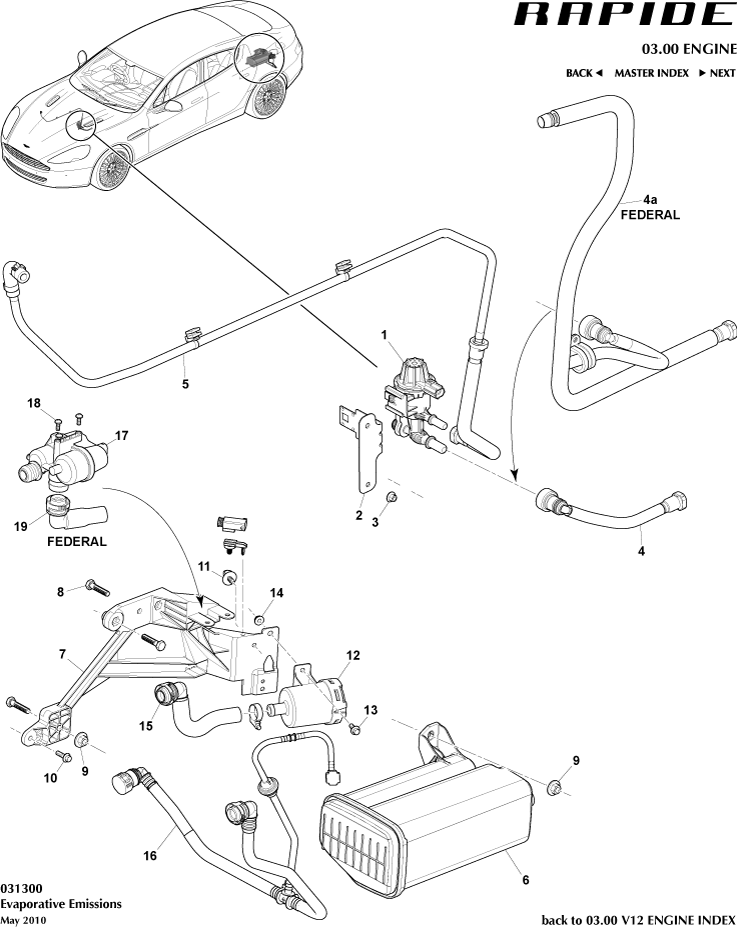

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD439E857BA	CAN & BRKT NON FED	AD439E857BA CAN & BRKT NON FED Items 6,7,8,12 and 15	-	1	Enquire
-	AD439E857AB	FUEL CARBON CANNISTE BRACKET ASSY FEDERAL	AD439E857AB FUEL CARBON CANNISTE BRACKET ASSY FEDERAL Federal, items 6,7,8,12,17,18 and 19	-	1	Enquire
1	4L249G641BB	VALVE ASSY FUEL	4L249G641BB VALVE ASSY FUEL -	-	1	Enquire
2	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management -	-	1	Enquire
3	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
4	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET -	-	1	Enquire
4a	4G439B051AD	TUBE - PURGE VALVE INLET	4G439B051AD TUBE - PURGE VALVE INLET Federal	-	1	Enquire
5	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH -	-	1	Enquire
6	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
7	SY9Y9142UA	LINES LTS-SLTS BRKT	SY9Y9142UA LINES LTS-SLTS BRKT -	-	1	Enquire
8	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Bracket, Fuel Tank Vent Valve	-	4	Enquire
9	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged -	-	2	Enquire
10	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	2	Enquire
11	699711	Â‘P Clip, 23 x 15 x M6	699711 Â‘P Clip, 23 x 15 x M6 -	-	1	Enquire
12	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister -	-	1	Enquire
13	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
14	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	1	Enquire
15	22AB065GP	SEAL RH	22AB065GP SEAL RH	-	1	Enquire
16	AD439A228AB	VAPOUR LINE FROM CANISTER TO TANK	AD439A228AB VAPOUR LINE FROM CANISTER TO TANK -	-	1	Enquire
17	6H529C111BA	PMP ON BD DGNTL LEK	6H529C111BA PMP ON BD DGNTL LEK Federal	-	1	Enquire
18	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Federal, part of bracket assy	-	2	Enquire
19	00RA028	Bolt - M8x25 - 10.9 - Hex	00RA028 Bolt - M8x25 - 10.9 - Hex Federal,	-	1	Enquire
