Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Coolant Reservoir & Hoses

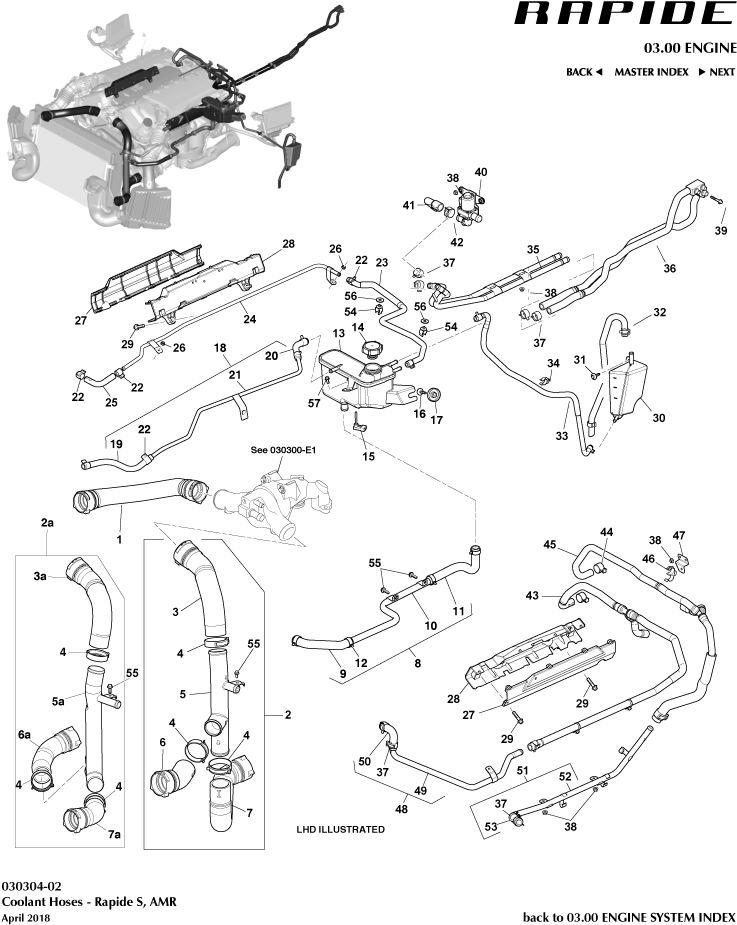

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4318D359CA	HOSE HEATER OUTLET ASSY RHD	AD4318D359CA HOSE HEATER OUTLET ASSY RHD RHD	-	1	Enquire
-	CD3318D334AA	Hose, Heater Inlet	CD3318D334AA Hose, Heater Inlet LHD, AMR, Includes Items 37 and 44	-	1	Enquire
-	DD4318D334BA	HEATHER INLET HOSE	DD4318D334BA HEATHER INLET HOSE RHD, 'S' Includes Items 37 and 44	-	1	Enquire
-	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	4G4318D334BC HEATER INLET HOSE ASSY - RHD RHD, AMR, Includes Items 37 and 44	-	1	Enquire
-	DD4318D359BB	HEATER OUTER HOSE	DD4318D359BB HEATER OUTER HOSE RHD, Includes Items 37 and 44	-	1	Enquire
-	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 LHD	-	2	Enquire
1	8D338333AA	HOSE RADIATOR	8D338333AA HOSE RADIATOR -	-	1	Enquire
2	DD438556AC	Bypass Tube Assembly	DD438556AC Bypass Tube Assembly 'S'	-	1	Enquire
2a	CD338556AC	TUB-WTR BYP ASSY	CD338556AC TUB-WTR BYP ASSY AMR, 19MY	-	1	Enquire
3	DD438555EA	TUB WTR BYP	DD438555EA TUB WTR BYP 'S'	-	1	Enquire
3a	708835	P/SMPL-GOODWOOD GRN	708835 P/SMPL-GOODWOOD GRN AMR, 19MY	-	1	Enquire
4	702903	Heavy Duty Spring Band Clamp 55 x 15	702903 Heavy Duty Spring Band Clamp 55 x 15 -	-	4	Enquire
5	SY9Y45718BC	ASY DRVR FALSE FLR	SY9Y45718BC ASY DRVR FALSE FLR 'S'	-	1	Enquire
5a	CD338555FC	Tube Assembly	CD338555FC Tube Assembly AMR, 19MY	-	1	Enquire
6	8D338555DA	HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE	8D338555DA HOSE ASSY- BYPASS TUBE TO RADIATOR MODULE 'S'	-	1	Enquire
6a	CD338555BB	Hose Assembly, Bypass Tube to Water Pump	CD338555BB Hose Assembly, Bypass Tube to Water Pump AMR, 19MY	-	1	Enquire
7	8D338555BA	HOSE ASSY - BYPASS TUBE TO WATER PUMP	8D338555BA HOSE ASSY - BYPASS TUBE TO WATER PUMP 'S'	-	1	Enquire
7a	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right AMR, 19MY	-	1	Enquire
8	CD338C350AB	Hose Assy, Engine Coolant Reservoir	CD338C350AB Hose Assy, Engine Coolant Reservoir -	-	1	Enquire
9	4G438C350CA	Hose, Make Up Tube to Bypass Tube	4G438C350CA Hose, Make Up Tube to Bypass Tube -	-	1	Enquire
10	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 8	-	1	Enquire
11	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 8	-	1	Enquire
12	702902	HEAVY DUTY SPRING BAND CLAMP 27 x 15mm	702902 HEAVY DUTY SPRING BAND CLAMP 27 x 15mm -	-	4	Enquire

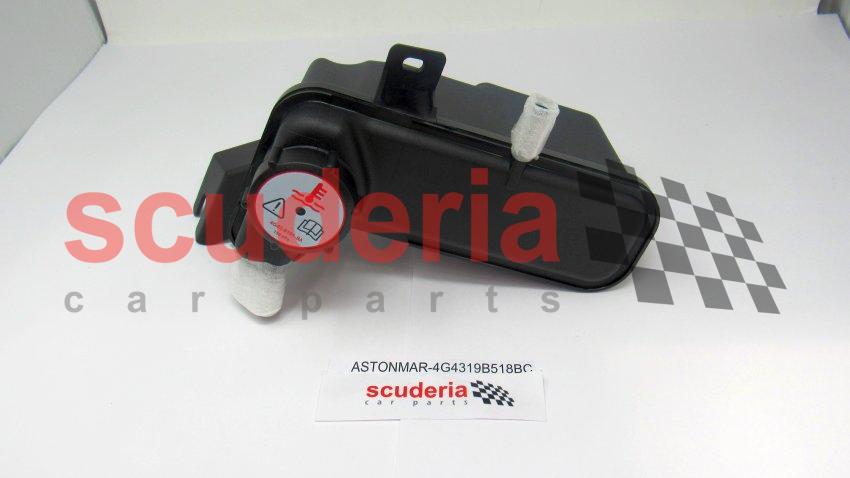

13	4G4319B518BC	Tank-Asy Expansion	4G4319B518BC Tank-Asy Expansion Includes Items 14 and 15	-	1	Enquire

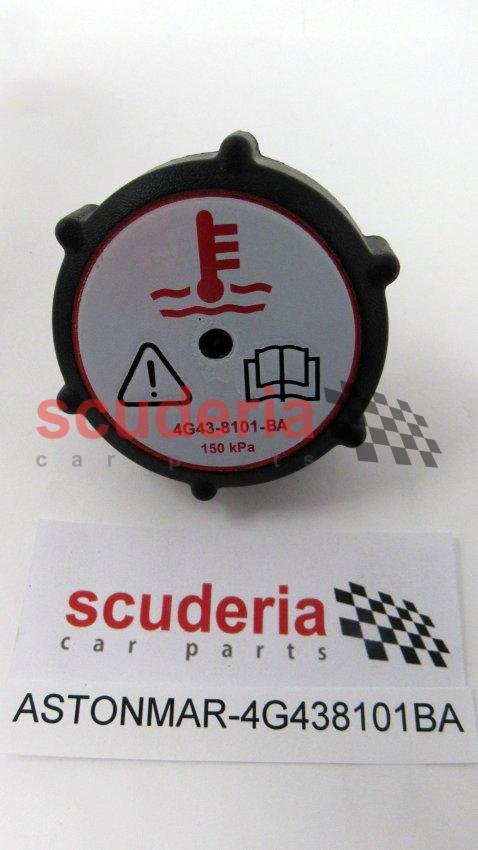

14	4G438101BA	Pressure Cap Assy	4G438101BA Pressure Cap Assy Includes Seal	-	1	Enquire

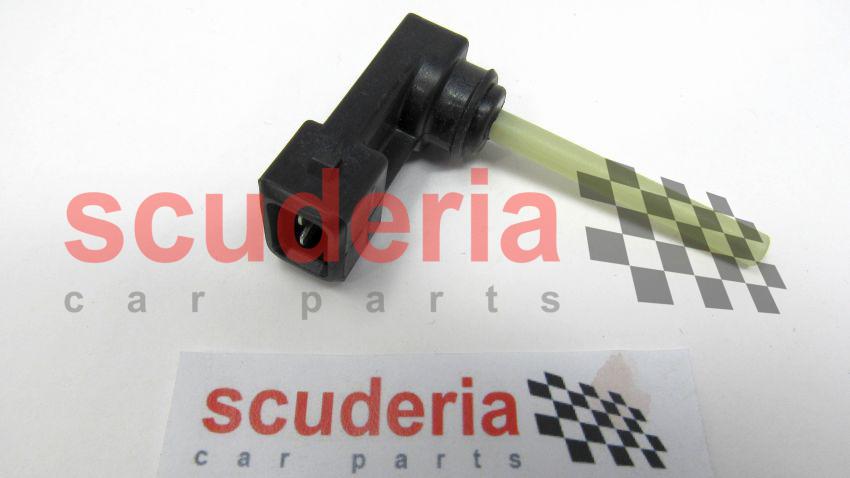

15	1R123710166	Switch, Coolant Level	1R123710166 Switch, Coolant Level -	-	1	Enquire
16	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE -	-	1	Enquire
17	CD331660AA	Spacer, Coolant Reservoir Assy	CD331660AA Spacer, Coolant Reservoir Assy -	-	1	Enquire
18	CD338C363AC	Hose Assy, Radiator Degas	CD338C363AC Hose Assy, Radiator Degas -	-	1	Enquire
19	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 18	-	1	Enquire
20	4G438C363DA	HOSE - RADIATOR DEGAS ASSY	4G438C363DA HOSE - RADIATOR DEGAS ASSY -	-	1	Enquire
21	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 18	-	1	Enquire
22	702904	Spring Clamp, Hose, 17 x 15	702904 Spring Clamp, Hose, 17 x 15 -	-	8	Enquire
23	4G438063AE	Hose, Engine to Supply Tank	4G438063AE Hose, Engine to Supply Tank Includes Item 22	-	1	Enquire
24	4G438003EA	PIPE-C/OVR BLD	4G438003EA PIPE-C/OVR BLD -	-	1	Enquire
25	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed -	-	1	Enquire
26	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
27	4G436793BB	Top Cover, Engine Harness	4G436793BB Top Cover, Engine Harness -	-	2	Enquire
28	4G434867BC	Bottom Cover, Engine Harness	4G434867BC Bottom Cover, Engine Harness -	-	2	Enquire
29	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head -	-	4	Enquire
30	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion -	-	1	Enquire
31	703734	Bolt and Washer M6x25 hex hd	703734 Bolt and Washer M6x25 hex hd -	-	2	Enquire
32	4G438N029AG	Hose Assy, Overflow	4G438N029AG Hose Assy, Overflow Includes Clip	-	1	Enquire
33	AD438B081AA	HOSE RADIATOR SUPPLY TANK OVERFLOW	AD438B081AA HOSE RADIATOR SUPPLY TANK OVERFLOW Includes Item 22	-	1	Enquire
34	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 -	-	1	Enquire
35	AD4318D359EA	HTR PIPE OLET INLET ASSY	AD4318D359EA HTR PIPE OLET INLET ASSY -	-	1	Enquire
36	AD4318D359DA	HTR PIPE OLET INLET ASSY	AD4318D359DA HTR PIPE OLET INLET ASSY -	-	1	Enquire
37	702901	HEAVY DUTY SPRING BAND CLAMP 23 x 15	702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 -	-	7	Enquire
38	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	8	Enquire
39	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free -	-	1	Enquire
40	AD4318495AA	Valve assy, Water Heater Control	AD4318495AA Valve assy, Water Heater Control -	-	1	Enquire
41	51415A42BF2	Cover, holder, armrest	51415A42BF2 Cover, holder, armrest LHD	-	1	Enquire
42	35405A47465	Accelerator pedal module	35405A47465 Accelerator pedal module -	-	2	Enquire
43	DD4318D334AA	HEATER INLET HOSE	DD4318D334AA HEATER INLET HOSE LHD 'S', Includes Items 37 and 44	-	1	Enquire
44	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15 -	-	2	Enquire
45	DD4318D359AB	HEATER OUTLET HOSE	DD4318D359AB HEATER OUTLET HOSE LHD, Includes Items 37	-	1	Enquire
46	4G4358AA	HOSE CLIP SPACER PLATE	4G4358AA HOSE CLIP SPACER PLATE LHD Only	-	1	Enquire
47	AD432A155AA	BRACKET - HOSE CLIP	AD432A155AA BRACKET - HOSE CLIP LHD Only	-	1	Enquire
48	ED238584AA	HOS ASY THERMO UPR	ED238584AA HOS ASY THERMO UPR -	-	1	Enquire
49	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 48	-	1	Enquire
50	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 48	-	1	Enquire
51	AD2318674AB	Tube Assy, Heater Outlet	AD2318674AB Tube Assy, Heater Outlet -	-	1	Enquire
52	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 51	-	1	Enquire
53	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 51	-	1	Enquire
54	701172	Clip, 16 x 2.8 - 3.3	701172 Clip, 16 x 2.8 - 3.3 RHD	-	2	Enquire
55	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	3	Enquire
57	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD -	-	1	Enquire
