Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Engine Lubrication

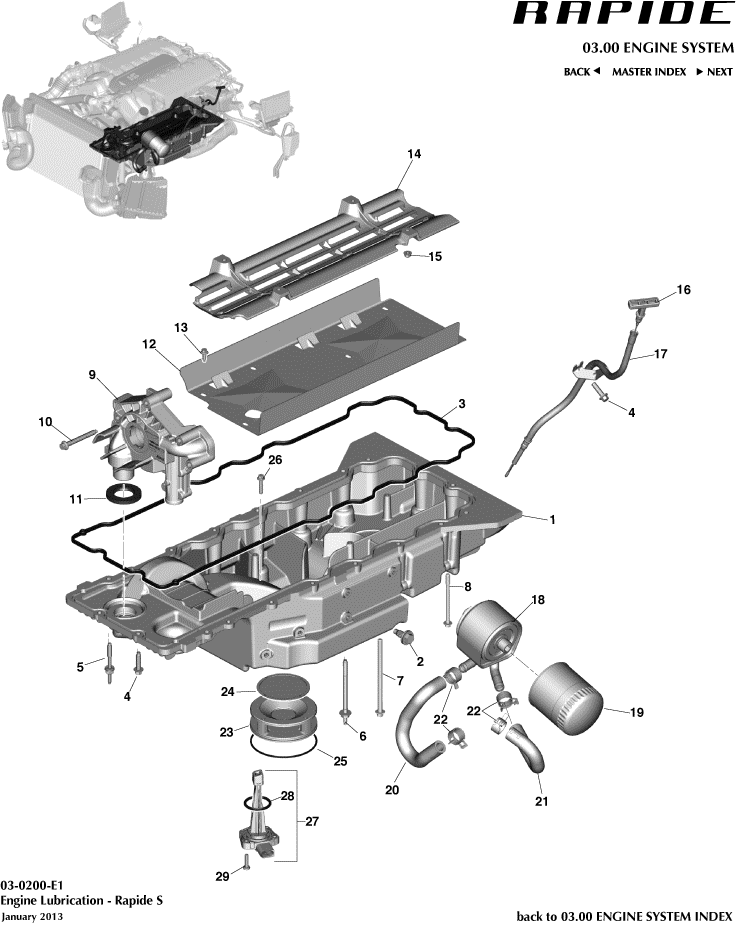

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G436K804AA	DEC ENG OIL LVL IND	4G436K804AA DEC ENG OIL LVL IND Not Illustrated	-	1	Enquire
1	CD336675CC	OIL PAN ASSY	CD336675CC OIL PAN ASSY Includes items 2, and 23-29. See Service Bulletin SB-03-0371.	-	1	Enquire
2	4G430410205	Plug, Oil Pan Drain	4G430410205 Plug, Oil Pan Drain Minimum order quantity of 8	-	1	Enquire
4	702526	Bolt M8 x 30 Hex Flange Head	702526 Bolt M8 x 30 Hex Flange Head -	-	9	Enquire
5	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF -	-	1	Enquire
6	706713	STUD M8 + M6 HF PIL	706713 STUD M8 + M6 HF PIL -	-	1	Enquire
7	706714	BOLT - M8 x 140 HF8	706714 BOLT - M8 x 140 HF8 -	-	4	Enquire
8	706715	BOLT- M8 x 105 HF8	706715 BOLT- M8 x 105 HF8 -	-	5	Enquire
9	8G430411112	Service Assy - Oil Pump ARRIVING SOON	8G430411112 Service Assy - Oil Pump - ARRIVING SOON	-	1	Enquire
10	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8 -	-	4	Enquire
11	4G430410196	Seal, Oil Pump Pickup Tube to Pan ARRIVING SOON	4G430410196 Seal, Oil Pump Pickup Tube to Pan - ARRIVING SOON	-	1	Enquire
12	8D336686AD	Baffle Plate, Oil Pan	8D336686AD Baffle Plate, Oil Pan -	-	1	Enquire
13	705052	Screw, M6 x 14	705052 Screw, M6 x 14 -	-	7	Enquire
14	AD236B660AC	WINDAGE TRAY	AD236B660AC WINDAGE TRAY -	-	1	Enquire
15	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	4	Enquire
16	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	8D336750CA OIL LEVEL INDICATOR ASSEMBLY -	-	1	Enquire
17	CD336754AB	Tube Assy, Oil Level Indicator	CD336754AB Tube Assy, Oil Level Indicator -	-	1	Enquire
18	CD336A642AA	Oil Cooler, Engine	CD336A642AA Oil Cooler, Engine -	-	1	Enquire
19	AG436714AAPK	Oil Filter (Pack of 12)	AG436714AAPK Oil Filter (Pack of 12) Pack of 12	-	1	Enquire
20	CD338B451AC	Hose Assy, Oil Cooler Outlet	CD338B451AC Hose Assy, Oil Cooler Outlet Includes Item 22	-	1	Enquire
21	CD336N867AA	Hose Assy, Oil Cooler Inlet	CD336N867AA Hose Assy, Oil Cooler Inlet Includes Item 22	-	1	Enquire
22	3285381	CLAMP	3285381 CLAMP -	-	4	Enquire
23	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
24	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
25	CD336625BA	O Ring	CD336625BA O Ring -	-	1	Enquire
26	CD3310630CAA	Bolt, M6 x 30	CD3310630CAA Bolt, M6 x 30 -	-	4	Enquire
27	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level -	-	1	Enquire
28	8W9387030BA	O Ring, Engine Low Oil Level Sensor	8W9387030BA O Ring, Engine Low Oil Level Sensor ALWAYS REPLACE DO NOT RE-USE	-	1	Enquire
29	699842	SCREW M6x25 PAN HD	699842 SCREW M6x25 PAN HD -	-	3	Enquire
