Rapide S and AMR - Valve Train of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Valve Train

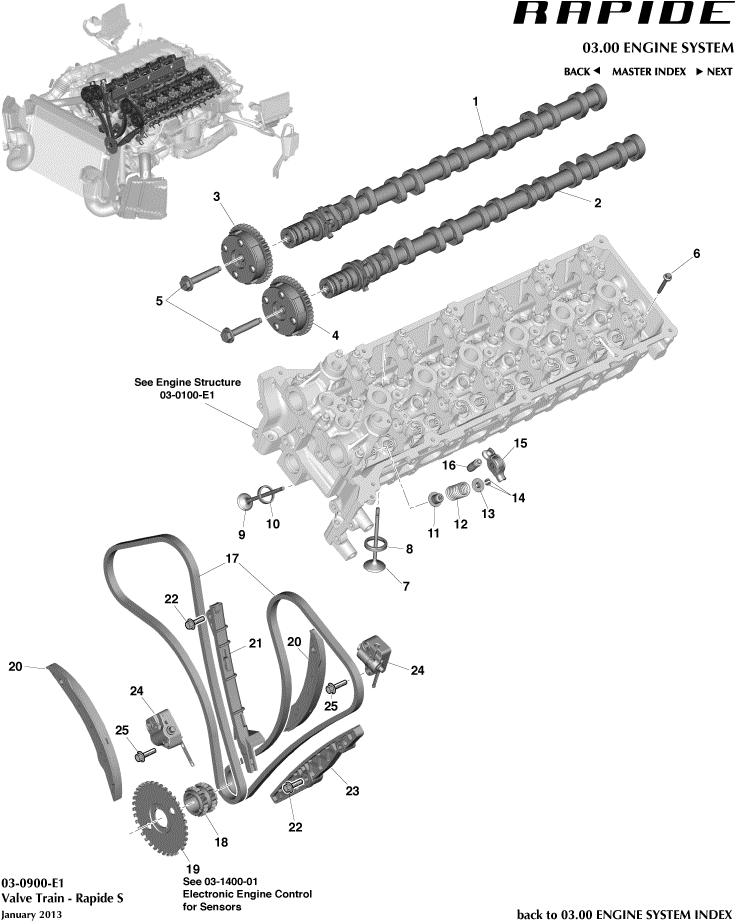

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD336A266AA	Camshaft Assembly, Intake, RH	CD336A266AA Camshaft Assembly, Intake, RH -	-	1	Enquire
-	CD336A268AA	Camshaft Assembly, Exhaust, RH	CD336A268AA Camshaft Assembly, Exhaust, RH -	-	1	Enquire
1	CD336A267AA	Camshaft Assembly, Intake, LH	CD336A267AA Camshaft Assembly, Intake, LH -	-	1	Enquire
2	CD336A269AA	Camshaft Assembly, Exhaust, LH	CD336A269AA Camshaft Assembly, Exhaust, LH -	-	1	Enquire
3	CD336C524AB	Cam Timing Assembly, Engine Variable, Intake	CD336C524AB Cam Timing Assembly, Engine Variable, Intake -	-	2	Enquire
4	CD336C525AB	Cam Timing Assembly, Engine Variable, Exhaust	CD336C525AB Cam Timing Assembly, Engine Variable, Exhaust -	-	2	Enquire
6	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	56	Enquire
7	CD336507AB	Valve, Intake	CD336507AB Valve, Intake -	-	24	Enquire
8	CD336056AA	Valve Seat, Intake	CD336056AA Valve Seat, Intake -	-	24	Enquire
9	CD336505AA	Valve, Exhaust	CD336505AA Valve, Exhaust -	-	24	Enquire
10	CD336057AA	Insert, Valve Seat, Exhaust	CD336057AA Insert, Valve Seat, Exhaust -	-	24	Enquire
12	CD336513AA	Spring, Valve	CD336513AA Spring, Valve -	-	48	Enquire
15	685914	Arm Assembly Valve Rocker ARRIVING SOON	685914 Arm Assembly Valve Rocker - ARRIVING SOON	-	48	Enquire
16	685042	Adjuster Valve Lash	685042 Adjuster Valve Lash -	-	48	Enquire
19	00RC052	Washer - M6x6.0mm	00RC052 Washer - M6x6.0mm -	-	1	Enquire
20	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner -	-	2	Enquire
21	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH -	-	1	Enquire
22	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE -	-	2	Enquire
23	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH -	-	1	Enquire
25	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8 -	-	6	Enquire
