Rapide S And Amr - Accessory Drive

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Accessory Drive

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

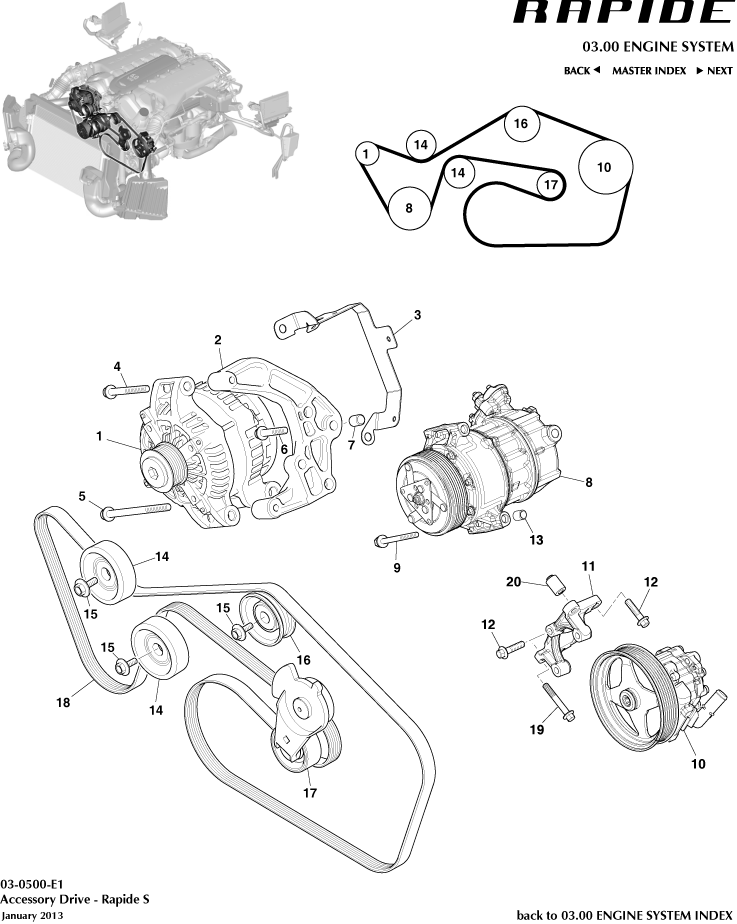

Rapide S and AMR - Accessory Drive of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- HD2319D629AA
COMP & CLUT ASSY AIR
From 17MY 		- 1 Enquire
- FD433A696AA
PMP & PLY ASY-PWR ST
From 15MY 		- 1 Enquire
- 61278890103
High-volt connect.panel charging socket
From 15MY 		- 1 Enquire
1 8D3310300AA
Alternator, 200A
- 		- 1 Enquire
3 FD3314W163AA
HRNS SUPP BRKT ALT
- 		- 1 Enquire
4 700140
Bolt and Washer, M10 x 97.5
- 		- 2 Enquire
5 704079
Bolt, M10 x 150, Hex Flg Hd
- 		- 1 Enquire
6 703692
Bolt, flg, M10x45, Alt bkt to cl hd
- 		- 3 Enquire
7 697759
Dowel, hollow, 14.0 X 17.5
- 		- 2 Enquire
8 AD4319D629AA
COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT
Up to 17MY 		- 1 Enquire
9 702557
BOLT M8 X 100 HF 8
- 		- 3 Enquire
10 DG433A696AA
Pump and Pulley, PAS
Up To 15MY 		- 1 Enquire
11 ED233K738AB
BRKT ASY PAS PUMP
Up To 15MY 		- 1 Enquire
12 707752
SCREW-M8 x 1.25 x 35
- 		- 7 Enquire
13 702859
PIN
- 		- 2 Enquire
15 703702
BOLT M8x1.25x24.5
- 		- 3 Enquire
18 ED238620AA
Feed Drive Belt
- 		- 1 Enquire
19 703193
BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE
- 		- 2 Enquire
20 ED23592072AA
Spacer Assembly
Up To 15MY 		- 2 Enquire
