Coolant Reservoir & Hoses of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

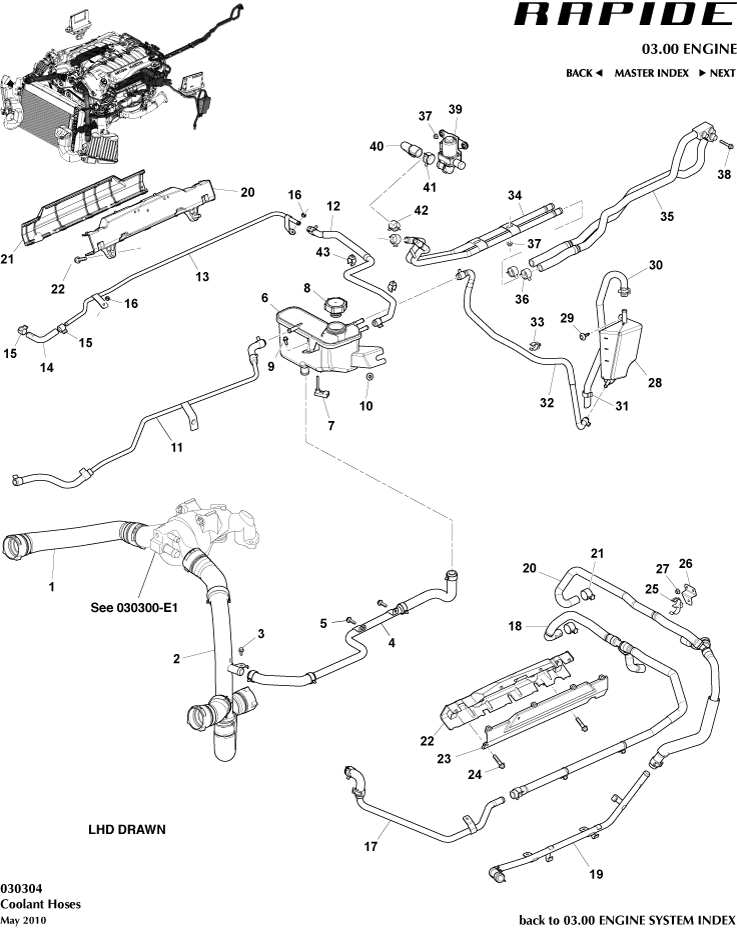

Aston Martin GT RAPIDE (2010-2019) - Coolant Reservoir & Hoses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4318D334BA	HOS-HTR INLT ASSY RH	AD4318D334BA HOS-HTR INLT ASSY RH RHD	-	1	Enquire
-	AD4318D359BA	HOS-HTR OLET ASSY RH	AD4318D359BA HOS-HTR OLET ASSY RH RHD	-	1	Enquire
-	AD4318D359CA	HOSE HEATER OUTLET ASSY RHD	AD4318D359CA HOSE HEATER OUTLET ASSY RHD RHD	-	1	Enquire
1	8D338333AA	HOSE RADIATOR	8D338333AA HOSE RADIATOR -	-	1	Enquire
2	8D338555AB	TUBE WATER BYPASS	8D338555AB TUBE WATER BYPASS -	-	1	Enquire
3	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	1	Enquire
4	4G438C350GA	HOS-ENG COOL RSVR A	4G438C350GA HOS-ENG COOL RSVR A -	-	1	Enquire
5	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD Hose, engine cool reservoir	-	2	Enquire
7	1R123710166	Switch, Coolant Level	1R123710166 Switch, Coolant Level -	-	1	Enquire
8	4G438101BA	Pressure Cap Assy	4G438101BA Pressure Cap Assy -	-	1	Enquire
9	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD Tank assy, expansion	-	1	Enquire
10	11657609961	ISA screw	11657609961 ISA screw -	-	1	Enquire
11	4G438C363FB	HOSE RAD DEGAS	4G438C363FB HOSE RAD DEGAS -	-	1	Enquire
12	4G438063AE	Hose, Engine to Supply Tank	4G438063AE Hose, Engine to Supply Tank -	-	1	Enquire
13	4G438003EA	PIPE-C/OVR BLD	4G438003EA PIPE-C/OVR BLD -	-	1	Enquire
15	702904	Spring Clamp, Hose, 17 x 15	702904 Spring Clamp, Hose, 17 x 15 -	-	2	Enquire
16	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head Crossover Bleed Pipe	-	2	Enquire
17	4G438584DB	TUB HTR INLT	4G438584DB TUB HTR INLT Also use items 17a and 17b	-	1	Enquire
17a	ED238A209AA	HOS ASY THERMO UPR	ED238A209AA HOS ASY THERMO UPR Also use items 17 and 17b	-	1	Enquire
17b	702901	HEAVY DUTY SPRING BAND CLAMP 23 x 15	702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 Also use items 17 and 17a	-	2	Enquire
18	AD4318D334AA	HOS-HTR INLT ASSY LH	AD4318D334AA HOS-HTR INLT ASSY LH LHD	-	1	Enquire
19	4G4318674EB	HEATER RETURN TUBE ASSY	4G4318674EB HEATER RETURN TUBE ASSY -	-	1	Enquire
20	AD4318D359AA	HOS-HTR OLET ASSY LH	AD4318D359AA HOS-HTR OLET ASSY LH LHD	-	1	Enquire
21	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15 -	-	2	Enquire
22	4G434867BC	Bottom Cover, Engine Harness	4G434867BC Bottom Cover, Engine Harness -	-	2	Enquire
23	4G436793BB	Top Cover, Engine Harness	4G436793BB Top Cover, Engine Harness -	-	2	Enquire
24	700229	Bolt, M8 x 35, Hex Flange Head	700229 Bolt, M8 x 35, Hex Flange Head -	-	4	Enquire
25	4G4358AA	HOSE CLIP SPACER PLATE	4G4358AA HOSE CLIP SPACER PLATE -	-	1	Enquire
26	AD432A155AA	BRACKET - HOSE CLIP	AD432A155AA BRACKET - HOSE CLIP -	-	1	Enquire
27	701345	NUT M6 HEX FLG MTL 8	701345 NUT M6 HEX FLG MTL 8 -	-	2	Enquire
28	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion -	-	1	Enquire
29	703734	Bolt and Washer M6x25 hex hd	703734 Bolt and Washer M6x25 hex hd Overflow tank	-	3	Enquire
30	4G438N029AG	Hose Assy, Overflow	4G438N029AG Hose Assy, Overflow -	-	1	Enquire
31	AD4355AA	DOUBLE C CLIP 18	AD4355AA DOUBLE C CLIP 18 -	-	1	Enquire
32	AD438B081AA	HOSE RADIATOR SUPPLY TANK OVERFLOW	AD438B081AA HOSE RADIATOR SUPPLY TANK OVERFLOW -	-	1	Enquire
33	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 -	-	1	Enquire
34	AD4318D359EA	HTR PIPE OLET INLET ASSY	AD4318D359EA HTR PIPE OLET INLET ASSY -	-	1	Enquire
35	AD4318D359DA	HTR PIPE OLET INLET ASSY	AD4318D359DA HTR PIPE OLET INLET ASSY -	-	1	Enquire
36	702901	HEAVY DUTY SPRING BAND CLAMP 23 x 15	702901 HEAVY DUTY SPRING BAND CLAMP 23 x 15 Rear Heater Pipe assy	-	2	Enquire
37	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head Rear Heater Pipe assy	-	2	Enquire
38	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free Rear Heater Pipe assy	-	1	Enquire
39	AD4318495AA	Valve assy, Water Heater Control	AD4318495AA Valve assy, Water Heater Control -	-	1	Enquire
40	51415A42BF2	Cover, holder, armrest	51415A42BF2 Cover, holder, armrest LHD	-	1	Enquire
43	701172	Clip, 16 x 2.8 - 3.3	701172 Clip, 16 x 2.8 - 3.3 -	-	2	Enquire
