Aston Martin GT RAPIDE (2010-2019) - Engine Lubrication

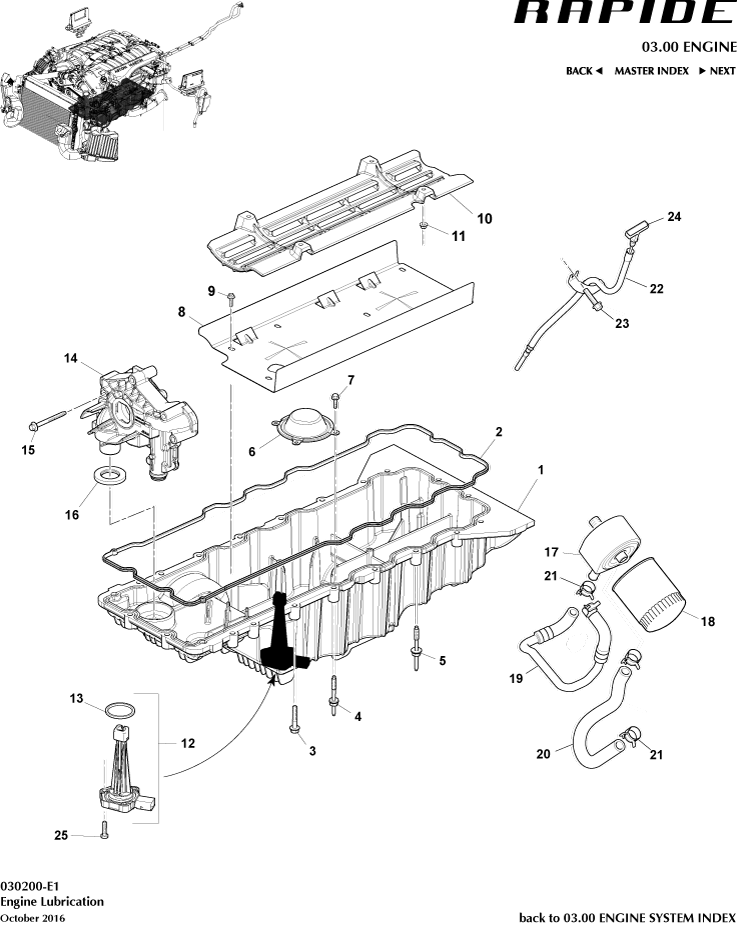

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	83305B694C6	Brace	83305B694C6 Brace -	-	1	Enquire
-	4G430410205	Plug, Oil Pan Drain	4G430410205 Plug, Oil Pan Drain Minimum order quantity of 8	-	1	Enquire
-	4G434410007	INSERT-OIL CLR BOLT	4G434410007 INSERT-OIL CLR BOLT -	-	1	Enquire
-	4G436K804AA	DEC ENG OIL LVL IND	4G436K804AA DEC ENG OIL LVL IND Not Illustrated	-	1	Enquire
1	8D336675DA	OIL PAN ASSEMBLY	8D336675DA OIL PAN ASSEMBLY -	-	1	Enquire
3	702605	BOLT M8 x 45 HEX FLANGE 8	702605 BOLT M8 x 45 HEX FLANGE 8 -	-	15	Enquire
4	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF -	-	5	Enquire
5	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF -	-	1	Enquire
7	69111	Bolt M6x18.5 hex flg hd	69111 Bolt M6x18.5 hex flg hd -	-	4	Enquire
9	702601	BOLT-M6-1.0 X 16 HEX FLG PT	702601 BOLT-M6-1.0 X 16 HEX FLG PT -	-	9	Enquire
10	4G4E6B660BA	WINDAGE TRAY	4G4E6B660BA WINDAGE TRAY -	-	1	Enquire
11	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 -	-	4	Enquire
12	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level -	-	1	Enquire
13	8W9387030BA	O Ring, Engine Low Oil Level Sensor	8W9387030BA O Ring, Engine Low Oil Level Sensor ALWAYS REPLACE. DO NOT RE-USE	-	1	Enquire
14	8G430411112	Service Assy - Oil Pump ARRIVING SOON	8G430411112 Service Assy - Oil Pump - ARRIVING SOON	-	1	Enquire
15	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8 -	-	4	Enquire
16	4G430410196	Seal, Oil Pump Pickup Tube to Pan ARRIVING SOON	4G430410196 Seal, Oil Pump Pickup Tube to Pan - ARRIVING SOON	-	1	Enquire
17	8G436A642BA	COOLER ASSY-ENG OIL	8G436A642BA COOLER ASSY-ENG OIL -	-	1	Enquire
18	4G434410818PK	OIL FILTER-BOX OF 12	4G434410818PK OIL FILTER-BOX OF 12 Pack of 12	-	1	Enquire
19	4G4E6N867BB	TUB & HOS ASY-ENG OIL COOL	4G4E6N867BB TUB & HOS ASY-ENG OIL COOL -	-	1	Enquire
20	4G4E8B451BA	HOSE ASSY - ENGINE OIL COOLER	4G4E8B451BA HOSE ASSY - ENGINE OIL COOLER -	-	1	Enquire
21	702858	HOSE CLAMP 23.9-27.1	702858 HOSE CLAMP 23.9-27.1 2 per hose	-	4	Enquire
22	4G4E6754AD	TUBE ASSEMBLY - OIL LEVEL ASSEMBLY	4G4E6754AD TUBE ASSEMBLY - OIL LEVEL ASSEMBLY -	-	1	Enquire
23	701745	Bolt, M8 x 30, Hex Flg Hd	701745 Bolt, M8 x 30, Hex Flg Hd -	-	1	Enquire
24	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	8D336750CA OIL LEVEL INDICATOR ASSEMBLY -	-	1	Enquire
25	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm -	-	3	Enquire
