Rapide S and AMR - Air Charging of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Rapide S and AMR - Air Charging

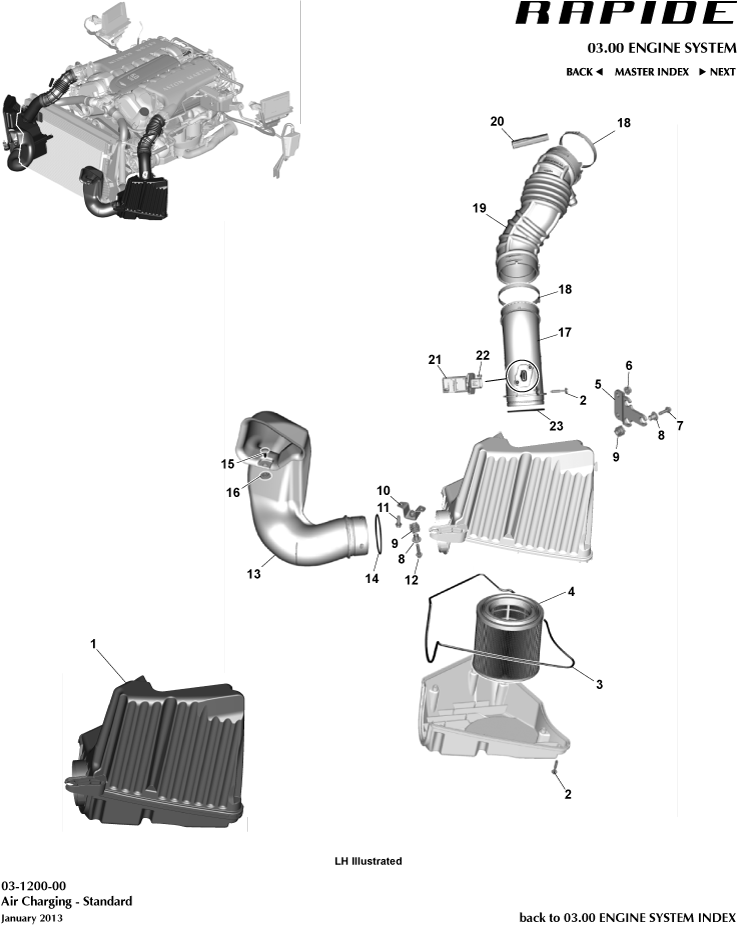

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439600BD	Airbox RH	4G439600BD Airbox RH -	-	1	Enquire
-	4G439A675BD	Duct- Air Intake RHS	4G439A675BD Duct- Air Intake RHS Includes Items 14 and 16	-	1	Enquire
-	ED2312B612AA	BDY-ENG ELECTR MS AI	ED2312B612AA BDY-ENG ELECTR MS AI From 15MY, Includes Item 23	-	2	Enquire
-	CD339C623BB	Duct Assy, Air Cleaner to Engine RH	CD339C623BB Duct Assy, Air Cleaner to Engine RH Includes Item 18	-	1	Enquire
-	ED2312B579AA	SNS ASSY ENG	ED2312B579AA SNS ASSY ENG From 15MY	-	2	Enquire
1	4G439600CD	Air Filter Box LH ARRIVING SOON	4G439600CD Air Filter Box LH - ARRIVING SOON	-	1	Enquire
6	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged -	-	8	Enquire
7	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head -	-	4	Enquire
8	4G435144AA	Spacer, Engine Airbox Isolator	4G435144AA Spacer, Engine Airbox Isolator -	-	8	Enquire
9	4G439697CA	Grommet, Engine Airbox	4G439697CA Grommet, Engine Airbox -	-	8	Enquire
10	CD339B609FA	Bracket, Air Cleaner Outer	CD339B609FA Bracket, Air Cleaner Outer -	-	2	Enquire
11	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	4	Enquire
12	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	4	Enquire
13	4G439A675CD	Duct - Air Intake LH	4G439A675CD Duct - Air Intake LH Includes Items 14 and 16	-	1	Enquire
14	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct -	-	2	Enquire
16	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	4G439N967AA Grommet - ENG A/CLNR Tub EXT -	-	2	Enquire
17	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor Up To 15MY, Includes Item 23	-	2	Enquire
18	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	4G439N832BB HOSE CLAMP DUCT TO AIRBOX -	-	4	Enquire
19	CD339C623AB	Duct Assy, Air Cleaner to Engine LH	CD339C623AB Duct Assy, Air Cleaner to Engine LH Includes Item 18	-	1	Enquire
20	4G4318K261AA	EDGE PROTECTION STRIP	4G4318K261AA EDGE PROTECTION STRIP -	-	2	Enquire
21	4G430810933	Mass Air Flow Meter ARRIVING SOON	4G430810933 Mass Air Flow Meter Up To 15MY ARRIVING SOON	-	2	Enquire
23	4G436C704BA	O-Ring Engine Duct Interior ARRIVING SOON	4G436C704BA O-Ring Engine Duct Interior - ARRIVING SOON	-	2	Enquire
