Seating - Lightweight of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Seating - Lightweight

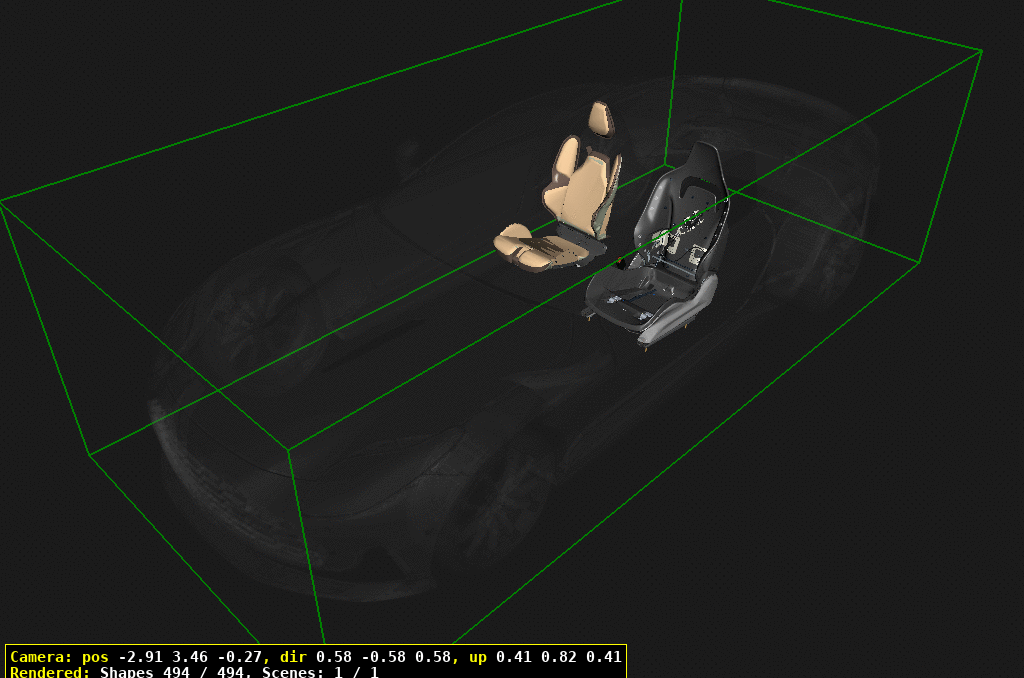

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	11318645715	Inlet camshaft	11318645715 Inlet camshaft	-	-	Enquire
2	61355B655C4	Control unit coach door	61355B655C4 Control unit coach door	-	-	Enquire
3	RY5360008BAW	FRT LWR ST ASSY RHS	RY5360008BAW FRT LWR ST ASSY RHS	-	1	Enquire
4	RY5360009BAW	FRT LWR ST ASSY LHS	RY5360009BAW FRT LWR ST ASSY LHS	-	1	Enquire
20	9784089S	D/TOP VIN PLT-STAMPD	9784089S D/TOP VIN PLT-STAMPD	-	1	Enquire
30	SY9Y20562AA	FRT DR OTR WAIST RH	SY9Y20562AA FRT DR OTR WAIST RH	-	1	Enquire
40	SY9Y9K729DC	MONOCOQUE ASSY LHD	SY9Y9K729DC MONOCOQUE ASSY LHD	-	1	Enquire
50	NY53465T10EAW	PNL ASY RR ST HD RST	NY53465T10EAW PNL ASY RR ST HD RST Includes item 60	-	1	Enquire
60	MY8314D696AB	ST SQB HTR MAT	MY8314D696AB ST SQB HTR MAT	-	1	Enquire
70	SY9YC27846FC	PNL BDYSD RH FED SC	SY9YC27846FC PNL BDYSD RH FED SC	-	1	Enquire
80	SY9Y20122NC	DOOR ASSY RH	SY9Y20122NC DOOR ASSY RH	-	1	Enquire
90	RY5361678ABW	LW ST CSHN INSRT ASY	RY5361678ABW LW ST CSHN INSRT ASY Includes item 100	-	1	Enquire
100	MY8314D698AC	ST CSN HTR MAT	MY8314D698AC ST CSN HTR MAT	-	1	Enquire
110	LY7Y63258AC	LW ST CSHN FM BZL	LY7Y63258AC LW ST CSHN FM BZL	-	1	Enquire
120	PY63621A64AAW	LW ST BKRST REL STRA	PY63621A64AAW LW ST BKRST REL STRA	-	1	Enquire
130	PY63605W01AAW	LW ST CSHN REL STRP	PY63605W01AAW LW ST CSHN REL STRP with Webbing	-	1	Enquire
131	PY63605W01BAW	LW ST CSHN REL STRAP	PY63605W01BAW LW ST CSHN REL STRAP without Webbing	-	1	Enquire
140	LY7Y631C00BA	LW ST TRIM CAP RTNR	LY7Y631C00BA LW ST TRIM CAP RTNR	-	1	Enquire
150	LY7Y600C76AA	LW ST TRIM CAP	LY7Y600C76AA LW ST TRIM CAP	-	1	Enquire
160	MY6YN604144AA	M5X16 CSK 6 LOB	MY6YN604144AA M5X16 CSK 6 LOB	-	1	Enquire
170	LY7Y602B48AA	LW ST BLT GDE FRNT R	LY7Y602B48AA LW ST BLT GDE FRNT R	-	1	Enquire
171	LY7Y602B47AA	LW ST BLT GDE FRNT L	LY7Y602B47AA LW ST BLT GDE FRNT L	-	1	Enquire
180	LY7Y666B82AB	LW ST BLT GDE RR RH	LY7Y666B82AB LW ST BLT GDE RR RH	-	1	Enquire
181	LY7Y666B83AB	LW ST BLT GDE RR LH	LY7Y666B83AB LW ST BLT GDE RR LH	-	1	Enquire
190	MY6YE603125AA	M4X10 FLT CSK SKT	MY6YE603125AA M4X10 FLT CSK SKT	-	1	Enquire
200	LY7Y600C76AA	LW ST TRIM CAP	LY7Y600C76AA LW ST TRIM CAP	-	1	Enquire
210	LY7Y631C00BA	LW ST TRIM CAP RTNR	LY7Y631C00BA LW ST TRIM CAP RTNR	-	1	Enquire
220	MY6YN604144AA	M5X16 CSK 6 LOB	MY6YN604144AA M5X16 CSK 6 LOB	-	1	Enquire
230	PY63644K79AA	LW ST GP HDR ASSY	PY63644K79AA LW ST GP HDR ASSY Includes item 240	-	2	Enquire
240	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
250	72605B91F52	Kit, Flagpole RR01, Right hand	72605B91F52 Kit, Flagpole RR01, Right hand Includes items 260	-	1	Enquire
260	708468	BAG TAG-SQUARE-GREY	708468 BAG TAG-SQUARE-GREY	-	1	Enquire
400	RY53600C15AD	FRT LW DRV LH SAT	RY53600C15AD FRT LW DRV LH SAT LHD, Satin	-	1	Enquire
401	RY53600C15DD	FRT LW ST DRV LH GLS	RY53600C15DD FRT LW ST DRV LH GLS LHD, Gloss	-	1	Enquire
402	RY53600C14BD	FRT LW ST PASS RH SA	RY53600C14BD FRT LW ST PASS RH SA LHD, Satin	-	1	Enquire
403	RY53600C14ED	FRT LW ST PASS RH GL	RY53600C14ED FRT LW ST PASS RH GL LHD, Gloss	-	1	Enquire
404	RY53600C14FD	FRT LW ST TT RH GLS	RY53600C14FD FRT LW ST TT RH GLS LHD, Federal, Gloss	-	1	Enquire
405	RY53600C14AD	FRT LW ST DRV RH SAT	RY53600C14AD FRT LW ST DRV RH SAT RHD, Satin	-	1	Enquire
406	RY53600C14DD	FRT LW ST DRV RH GLS	RY53600C14DD FRT LW ST DRV RH GLS RHD, Gloss	-	1	Enquire
407	RY53600C15BD	FRT LW PASS LH SAT	RY53600C15BD FRT LW PASS LH SAT RHD, Satin	-	1	Enquire
408	RY53600C15ED	FRT LW ST PASS LH GL	RY53600C15ED FRT LW ST PASS LH GL RHD, Gloss	-	1	Enquire
410	MY83610E54AC	FRT ST BELT BUCKLE	MY83610E54AC FRT ST BELT BUCKLE	-	2	Enquire
420	LY7YXC471045BC	LW ST ECU BRACKET	LY7YXC471045BC LW ST ECU BRACKET	-	2	Enquire
430	RY53SE14C249AB	DRIVER SEAT MODULE	RY53SE14C249AB DRIVER SEAT MODULE	-	1	Enquire
431	RY53SE14C249BB	PASS SEAT MODULE	RY53SE14C249BB PASS SEAT MODULE	-	1	Enquire
440	LY7Y617C84AA	LW ST SPCR RH	LY7Y617C84AA LW ST SPCR RH	-	1	Enquire
450	LY7Y617C85AA	LW ST SPCR RH	LY7Y617C85AA LW ST SPCR RH	-	1	Enquire
460	RY5311026BAA	M10 X 45 T50 FLANGE	RY5311026BAA M10 X 45 T50 FLANGE	-	4	Enquire
470	LY7Y484451AA	SC M10X1.5X16 PN HD	LY7Y484451AA SC M10X1.5X16 PN HD	-	4	Enquire
480	SY9Y69320KDW	SUNVISOR RH USA LEAT	SY9Y69320KDW SUNVISOR RH USA LEAT	-	1	Enquire
490	LY7Y7L565AB	FRT LW ST RCLNR CBL	LY7Y7L565AB FRT LW ST RCLNR CBL	-	1	Enquire
500	LY7Y600D44AA	FTR LW ST REL EMCH	LY7Y600D44AA FTR LW ST REL EMCH	-	1	Enquire
510	LY7Y14B683BB	FRT LW ST WRNG HRNS	LY7Y14B683BB FRT LW ST WRNG HRNS	-	1	Enquire
511	LY7Y14B684BB	FRT LW ST WRNG HRNS	LY7Y14B684BB FRT LW ST WRNG HRNS	-	1	Enquire
520	SY9Y23924CC	DR APPLIQUE RH - SC	SY9Y23924CC DR APPLIQUE RH - SC	-	1	Enquire
530	LY7Y10C850AB	FRT LW KLR SWTCH ASY	LY7Y10C850AB FRT LW KLR SWTCH ASY	-	2	Enquire
