Seating - Sports Plus of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Seating - Sports Plus

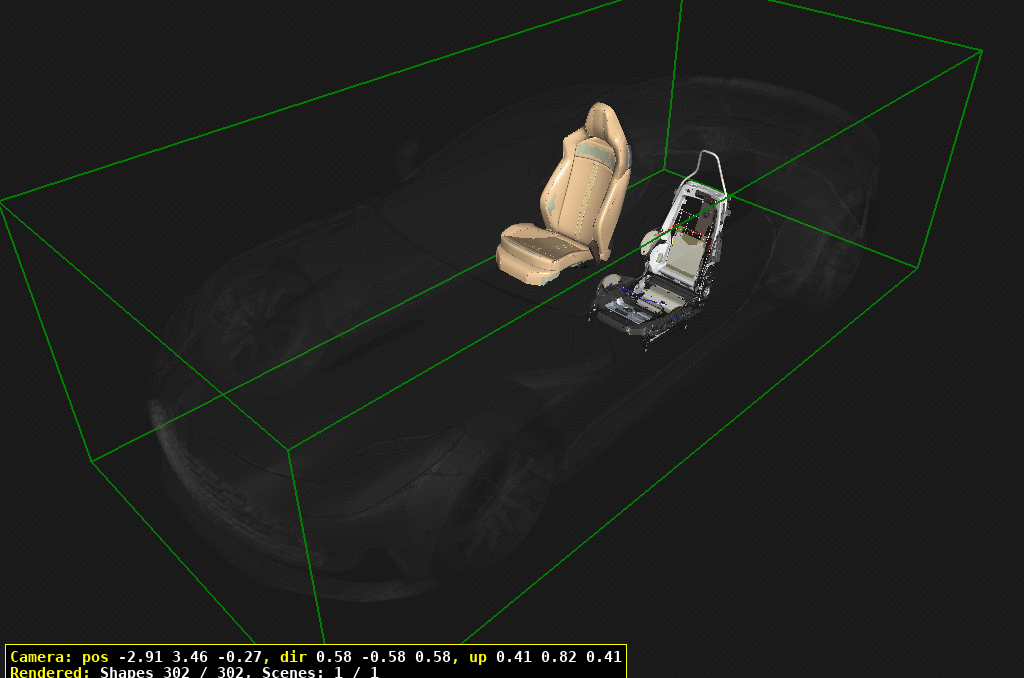

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	61355B655C4	Control unit coach door	61355B655C4 Control unit coach door	-	-	Enquire
-	11318645715	Inlet camshaft	11318645715 Inlet camshaft	-	-	Enquire
10	RY5360008AAW	FRONT SEAT ASSY RH	RY5360008AAW FRONT SEAT ASSY RH Order with VIN	-	1	Enquire
11	RY5360009AAW	FRONT SEAT ASSY LH	RY5360009AAW FRONT SEAT ASSY LH Order with VIN	-	1	Enquire
20	KY634D9513BC	FM ASSY SQB	KY634D9513BC FM ASSY SQB	-	2	Enquire
30	KY639515BC	FM ASSY CUSHION	KY639515BC FM ASSY CUSHION	-	2	Enquire
31	SY9Y042A75KCW	CNSL PNL CENTRE ASSY	SY9Y042A75KCW CNSL PNL CENTRE ASSY For OCS Service Kit,refer to Section 01-20	-	-	Enquire
40	HY5362152BCW	SLD ASY FT ST TG ASY	HY5362152BCW SLD ASY FT ST TG ASY LH, RH Seat	-	1	Enquire
41	HY5362153BCW	SLD ASY FT ST TG ASY	HY5362153BCW SLD ASY FT ST TG ASY RH, LH Seat	-	1	Enquire
50	HY5362152ACW	SLD ASY FT ST TG ASY	HY5362152ACW SLD ASY FT ST TG ASY RH, RH Seat	-	1	Enquire
51	HY5362153ACW	SLD ASY FT ST TG ASY	HY5362153ACW SLD ASY FT ST TG ASY LH, LH Seat	-	1	Enquire
60	HY5366914ACW	FRT ST BK/SHL INS AS	HY5366914ACW FRT ST BK/SHL INS AS Leather Trimmed	-	1	Enquire
61	KY53600E88PA	FRT ST BK PAINT	KY53600E88PA FRT ST BK PAINT Painted Piano Black	-	2	Enquire
62	KY53600E88NC	FT ST BK CHP CAR SAT	KY53600E88NC FT ST BK CHP CAR SAT Chopped Carbon Satin	-	2	Enquire
63	SY9Y017A86AC	HUSH PNL LWR DRVR LH	SY9Y017A86AC HUSH PNL LWR DRVR LH LH, Carbon 2x2 Twill	-	2	Enquire
64	KY53600E88FC	FRT ST BK CAR 2X2 RH	KY53600E88FC FRT ST BK CAR 2X2 RH RH, Carbon 2x2 Twill	-	2	Enquire
65	KY53044J50BB	FR ST BK KT TAMOASH	KY53044J50BB FR ST BK KT TAMOASH Tamo Ash	-	1	Enquire
66	RY53044J50EA	FRT ST BK DRK WLNT	RY53044J50EA FRT ST BK DRK WLNT Dark Walnut	-	1	Enquire
67	KY53044J50LB	FRT ST BK LIGHT ASH	KY53044J50LB FRT ST BK LIGHT ASH Light Ash Burl	-	1	Enquire
70	KY6366915AEW	FRT ST BK/SHL LWR AS	KY6366915AEW FRT ST BK/SHL LWR AS	-	2	Enquire
80	RY5362954BAW	CSHN CVR ASSY ACC RH	RY5362954BAW CSHN CVR ASSY ACC RH RH, 'Accelerate'	-	1	Enquire
81	RY5362954DAW	CSHN CVR ASSY INSP S	RY5362954DAW CSHN CVR ASSY INSP S RH, 'Inspire Sport'	-	1	Enquire
82	RY5362955BAW	CSHN CVR ASSY ACC LH	RY5362955BAW CSHN CVR ASSY ACC LH LH, 'Accelerate'	-	1	Enquire
83	RY5362955DAW	CSHN CVR ASSY INSP S	RY5362955DAW CSHN CVR ASSY INSP S LH, 'Inspire Sport'	-	1	Enquire
90	SY9Y14953BB	INFOT HEADUNIT BRKT	SY9Y14953BB INFOT HEADUNIT BRKT RH, 'Accelerate'	-	1	Enquire
91	RY5362766DAW	SQB CVR ASSY INSP S	RY5362766DAW SQB CVR ASSY INSP S RH, 'Inspire Sport'	-	1	Enquire
92	SY9Y20122FC	DOOR ASSY RH	SY9Y20122FC DOOR ASSY RH LH, 'Accelerate'	-	1	Enquire
93	RY5362767DAW	SQB CVR ASSY INSP S	RY5362767DAW SQB CVR ASSY INSP S LH, 'Inspire Sport'	-	1	Enquire
100	4328995	PROTECTION SET-INT	4328995 PROTECTION SET-INT	-	2	Enquire
110	HY5317C988AAW	VAL FRT ST INR RH	HY5317C988AAW VAL FRT ST INR RH RH Seat	-	1	Enquire
111	HY5317C989AAW	VAL FRT ST INR LH	HY5317C989AAW VAL FRT ST INR LH LH Seat	-	1	Enquire
120	HY53600C64AAW	VAL ASY CUSH RH	HY53600C64AAW VAL ASY CUSH RH RH, RH Seat	-	1	Enquire
121	HY53600C65AAW	VAL ASY CUSH LH	HY53600C65AAW VAL ASY CUSH LH LH, LH Seat	-	1	Enquire
130	HY5364344ACW	REAR BEZEL ASSY	HY5364344ACW REAR BEZEL ASSY	-	2	Enquire
140	RY53621A64AAW	FRT ST REL STRAP HR	RY53621A64AAW FRT ST REL STRAP HR Haircell	-	2	Enquire
141	RY53621A64EAW	FRT ST REL STRAP SA	RY53621A64EAW FRT ST REL STRAP SA Semi Aniline	-	2	Enquire
150	HY53627A25AB	MLD FRT ST SHD RL LH	HY53627A25AB MLD FRT ST SHD RL LH RH	-	1	Enquire
160	HY53627A24AB	MLD FRT ST SHD RL RH	HY53627A24AB MLD FRT ST SHD RL RH LH	-	1	Enquire
170	KY6314D696AA	HTR PAD FRT ST SQB	KY6314D696AA HTR PAD FRT ST SQB	-	2	Enquire
180	HY5314D698AB	HTR PAD FRT ST CSHN	HY5314D698AB HTR PAD FRT ST CSHN	-	2	Enquire
190	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD per seat	-	6	Enquire
200	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	2	Enquire
210	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per seat	-	2	Enquire
220	DD33487032AA	PUSH ON TRIM CLIP	DD33487032AA PUSH ON TRIM CLIP per seat	-	5	Enquire
230	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	3	Enquire
240	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per seat	-	2	Enquire
250	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP per seat	-	2	Enquire
260	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	2	Enquire
270	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	3	Enquire
280	DD33487032AA	PUSH ON TRIM CLIP	DD33487032AA PUSH ON TRIM CLIP per seat	-	8	Enquire
290	HY53644K79ACW	FLP ASY FRT ST BK BT	HY53644K79ACW FLP ASY FRT ST BK BT	-	1	Enquire
300	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH See Section 010501-10	-	1	Enquire
310	KY6363861AA	WINGS SUPT LH	KY6363861AA WINGS SUPT LH Sports Seat+	-	1	Enquire
320	KY6363860AA	WNGS SPT RH SPT PLS	KY6363860AA WNGS SPT RH SPT PLS Sports Seat+	-	1	Enquire
330	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD	-	4	Enquire
340	707618	SCREW M6x20 TH/FORMG	707618 SCREW M6x20 TH/FORMG	-	2	Enquire
350	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD	-	6	Enquire
360	HY53600B68AB	ST CLIM ASY CUSH	HY53600B68AB ST CLIM ASY CUSH Climate	-	1	Enquire
361	HY5363222AB	PAD FRT ST CSH	HY5363222AB PAD FRT ST CSH Heated	-	1	Enquire
370	KY63600B70AA	ST CLIM ASY SQUB	KY63600B70AA ST CLIM ASY SQUB Climate	-	1	Enquire
371	KY6364868AA	PAD FRT ST SQB	KY6364868AA PAD FRT ST SQB Heated	-	1	Enquire
400	707132	BOLT-M10 x40 HEX FLG	707132 BOLT-M10 x40 HEX FLG	-	8	Enquire
410	RY53608A15AB	FRONT ST DRV ASY LH	RY53608A15AB FRONT ST DRV ASY LH LH, LHD, Standard	-	1	Enquire
411	RY53608A15CB	FRONT ST PAS ASY LH	RY53608A15CB FRONT ST PAS ASY LH LH, RHD, Standard	-	1	Enquire
412	RY53608A15EB	FRT ST DVR ADJ BOL A	RY53608A15EB FRT ST DVR ADJ BOL A LH, LHD, AdjustableBolster	-	1	Enquire
413	RY53608A15GB	FRT ST ASY PAS ADJ B	RY53608A15GB FRT ST ASY PAS ADJ B LH, RHD, AdjustableBolster	-	1	Enquire
420	RY53608A14AB	FRONT ST DRV ASY RH	RY53608A14AB FRONT ST DRV ASY RH RH, RHD, Standard	-	1	Enquire
421	HY53608A14CB	FRT ST ASY PAS RH	HY53608A14CB FRT ST ASY PAS RH RH, LHD, Standard	-	1	Enquire
422	RY53608A14EB	FRT ST DVR ADJ BOL A	RY53608A14EB FRT ST DVR ADJ BOL A RH, RHD, AdjustableBolster	-	1	Enquire
423	RY53608A14GB	FRT ST ASY PAS ADJ B	RY53608A14GB FRT ST ASY PAS ADJ B RH, LHD, AdjustableBolster	-	1	Enquire
460	MY8314B684AA	WIR ASY FRT ST RH	MY8314B684AA WIR ASY FRT ST RH	-	1	Enquire
461	MY8314B683AA	WIR ASY FRT ST LH	MY8314B683AA WIR ASY FRT ST LH	-	1	Enquire
470	HY53629B01AA	ST TRK END CP FRT	HY53629B01AA ST TRK END CP FRT	-	3	Enquire
480	HY53629B03AA	ST TRK END CP RR	HY53629B03AA ST TRK END CP RR	-	1	Enquire
490	HY53XC471045AA	ECU BRACKET	HY53XC471045AA ECU BRACKET	-	2	Enquire
500	RY53SE14C249AB	DRIVER SEAT MODULE	RY53SE14C249AB DRIVER SEAT MODULE	-	1	Enquire
501	RY53SE14C249BB	PASS SEAT MODULE	RY53SE14C249BB PASS SEAT MODULE	-	1	Enquire
510	HY5363550AA	BLSTR BLDR FRT ST	HY5363550AA BLSTR BLDR FRT ST	-	1	Enquire
511	HY53603B16AA	BLDR ASY ST SQUB	HY53603B16AA BLDR ASY ST SQUB	-	1	Enquire
540	HY53631B86AB	FRONT SEAT SQUAB FAN	HY53631B86AB FRONT SEAT SQUAB FAN Climate	-	1	Enquire
541	HY538632AB	FRT ST CSHN FAN	HY538632AB FRT ST CSHN FAN Climate	-	1	Enquire
550	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	1	Enquire
