Exterior Trim - Volante of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Exterior Trim - Volante

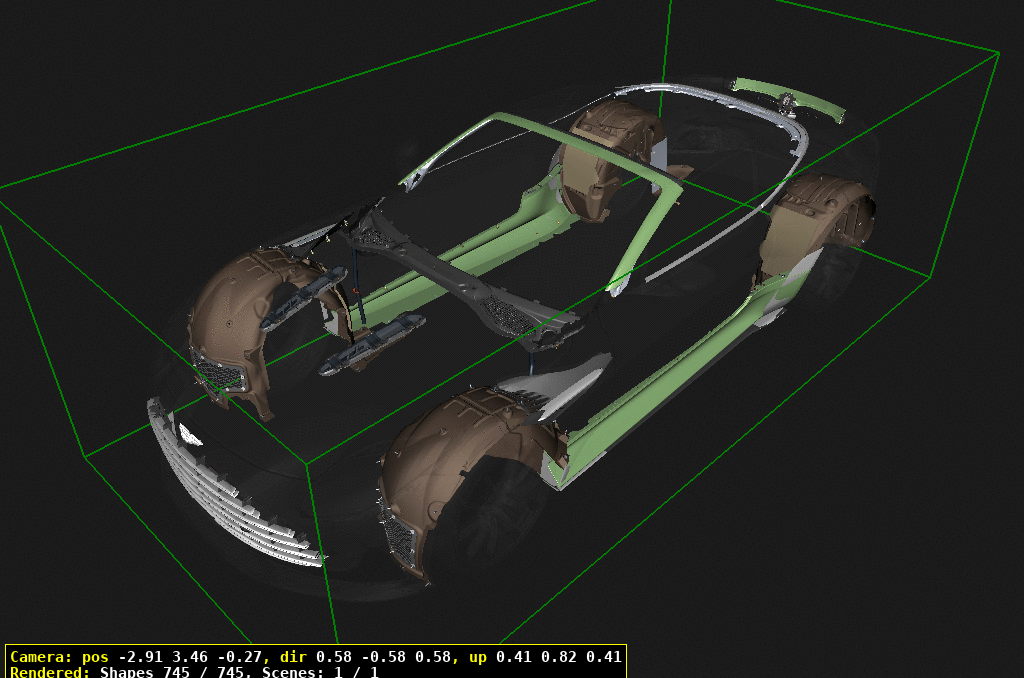

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	1	Enquire
20	RY538A100AB	RAD GRILLE BRIGHT	RY538A100AB RAD GRILLE BRIGHT Bright	-	1	Enquire
21	RY538A100BB	RAD GRILLE DARK	RY538A100BB RAD GRILLE DARK Dark	-	1	Enquire
30	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	9	Enquire
40	RY6310138AA	SELF TAPPING SCREW	RY6310138AA SELF TAPPING SCREW	-	10	Enquire
50	RY5313419AA	RAD GRL PLINTH BR LH	RY5313419AA RAD GRL PLINTH BR LH	-	1	Enquire
60	RY5313418AA	RAD GRL PLINTH BR RH	RY5313418AA RAD GRL PLINTH BR RH	-	1	Enquire
70	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	-	8	Enquire
80	RY538B148AA	GRILLE BRACKET ASSY	RY538B148AA GRILLE BRACKET ASSY	-	1	Enquire
90	RY538B183BA	GRILLE CENTRE CAP	RY538B183BA GRILLE CENTRE CAP	-	1	Enquire
100	703194	BOLT M8x45 HEX FLNG CHROME FREE	703194 BOLT M8x45 HEX FLNG CHROME FREE	-	2	Enquire
110	707125	BOLT-M6 x 45 HEX FLG	707125 BOLT-M6 x 45 HEX FLG	-	1	Enquire
120	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	2	Enquire
130	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) Pack of 5	-	2	Enquire
140	MY8306435AC	TOL COMP FIX	MY8306435AC TOL COMP FIX Black	-	2	Enquire
150	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
160	RY5317795AA	BUMPER FINISHER CHRM	RY5317795AA BUMPER FINISHER CHRM Satin Chrome	-	1	Enquire
161	1K2945511RDW	SWITCH (WARNING USE 410721633B)	1K2945511RDW SWITCH (WARNING USE 410721633B) Gloss Black	-	1	Enquire
170	RY5317794AA	BUMPER FINISHER CHRM	RY5317794AA BUMPER FINISHER CHRM Satin Chrome	-	1	Enquire
171	RY5317794BA	BUMPER FINISHER BLK	RY5317794BA BUMPER FINISHER BLK Gloss Black	-	1	Enquire
200	HY5316A759AB	HD VENT INB LH	HY5316A759AB HD VENT INB LH Black	-	1	Enquire
210	HY5316A758AB	HD VENT INB RH	HY5316A758AB HD VENT INB RH Black	-	1	Enquire
220	HY53106010AA	M6 DURALOCK FLNG NUT	HY53106010AA M6 DURALOCK FLNG NUT	-	12	Enquire
230	AD43106046AA	M6 WASHER	AD43106046AA M6 WASHER	-	6	Enquire
240	HY5302419AA	HOOD VENT SDR LH	HY5302419AA HOOD VENT SDR LH	-	1	Enquire
250	HY5302418AA	HOOD VENT SDR RH	HY5302418AA HOOD VENT SDR RH	-	1	Enquire
300	KY53L03065AE	FIN HDR WDSCRN SRND	KY53L03065AE FIN HDR WDSCRN SRND Body Colour	-	1	Enquire
301	KY53L03065BE	FIN HDR WDSCRN SRND	KY53L03065BE FIN HDR WDSCRN SRND Black	-	1	Enquire
302	LY73L03065AE	W/SCRN FIN GLOSS CRB	LY73L03065AE W/SCRN FIN GLOSS CRB Carbon	-	1	Enquire
310	GG3334402AA	WSHR M6 STARLOCK	GG3334402AA WSHR M6 STARLOCK Header Finisher	-	4	Enquire
320	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	14	Enquire
330	KY5303402AD	HDR LTCH BAR FINSHR	KY5303402AD HDR LTCH BAR FINSHR	-	1	Enquire
340	KY53L519A37AD	APLR FIN ASY LH	KY53L519A37AD APLR FIN ASY LH Body Colour	-	1	Enquire
341	KY53L519A37BD	APLR FIN ASY LH	KY53L519A37BD APLR FIN ASY LH Black	-	1	Enquire
342	LY73L519A37AC	A PLR ASY CRBN GLOSS	LY73L519A37AC A PLR ASY CRBN GLOSS Carbon	-	1	Enquire
350	KY53L519A36AD	A PLR FIN ASSY RH	KY53L519A36AD A PLR FIN ASSY RH Body Colour	-	1	Enquire
351	KY53L519A36BD	APLR FIN ASY RH	KY53L519A36BD APLR FIN ASY RH Black	-	1	Enquire
352	LY73L519A36AC	A PLR FIN ASY CRBN G	LY73L519A36AC A PLR FIN ASY CRBN G Carbon	-	1	Enquire
360	KY5351707AC	A POST SEAL CARRIER	KY5351707AC A POST SEAL CARRIER	-	1	Enquire
370	KY5351706AC	A POST SEAL CARRIER	KY5351706AC A POST SEAL CARRIER	-	1	Enquire
380	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	8	Enquire
390	6G33L02564BA	FIR TREE FIX 4.0 X 0.76 - 5.94	6G33L02564BA FIR TREE FIX 4.0 X 0.76 - 5.94	-	4	Enquire
400	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	2	Enquire
410	KY53L23262AA	DOOR WAIST FIN LH	KY53L23262AA DOOR WAIST FIN LH Bright	-	1	Enquire
411	KY53L23262BA	DOOR WAIST FIN LH	KY53L23262BA DOOR WAIST FIN LH Black	-	1	Enquire
420	KY53L23263AA	DOOR WAIST FIN RH	KY53L23263AA DOOR WAIST FIN RH Bright	-	1	Enquire
421	KY53L23263BA	DOOR WAIST FIN RH	KY53L23263BA DOOR WAIST FIN RH Black	-	1	Enquire
430	KY53L501A46AC	TONN FIN INNER	KY53L501A46AC TONN FIN INNER	-	1	Enquire
440	RY53280B63AD	SIDE STRAKE LH	RY53280B63AD SIDE STRAKE LH Satin Chrome	-	1	Enquire
441	RY53280B63BD	SIDE STRAKE LH	RY53280B63BD SIDE STRAKE LH Gloss Black	-	1	Enquire
442	RY53280B63CB	SIDE STRAKE LH	RY53280B63CB SIDE STRAKE LH Carbon	-	1	Enquire
450	RY53280B62AD	SIDE STRAKE RH	RY53280B62AD SIDE STRAKE RH Satin Chrome	-	1	Enquire
451	RY53280B62BD	SIDE STRAKE RH	RY53280B62BD SIDE STRAKE RH Gloss Black	-	1	Enquire
452	RY53280B62CB	SIDE STRAKE RH	RY53280B62CB SIDE STRAKE RH Carbon	-	1	Enquire
460	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	4	Enquire
470	AD43106046AA	M6 WASHER	AD43106046AA M6 WASHER	-	2	Enquire
480	RY53289B90AD	FENDER LOUVRE LH	RY53289B90AD FENDER LOUVRE LH	-	1	Enquire
490	RY53289B91AD	FENDER LOUVRE RH	RY53289B91AD FENDER LOUVRE RH	-	1	Enquire
500	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	10	Enquire
510	4G4346662AAPK	WSHR SPACING 2mm(10)	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10	-	10	Enquire
520	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	4	Enquire
530	RY5310609AC	SILL APPLQ LH	RY5310609AC SILL APPLQ LH Painted to Body Colour	-	1	Enquire
531	RY5310609BC	SILL APPLQ LH	RY5310609BC SILL APPLQ LH Black	-	1	Enquire
540	RY5310608AC	SILL APPLQ RH	RY5310608AC SILL APPLQ RH Painted to Body Colour	-	1	Enquire
541	RY5310608BC	SILL APPLQ RH	RY5310608BC SILL APPLQ RH Black	-	1	Enquire
560	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	8	Enquire
570	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	8	Enquire
580	9G33334177AA	Nut Plate	9G33334177AA Nut Plate	-	4	Enquire
590	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	8	Enquire
600	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head	-	2	Enquire
610	HY53200B15AC	SILL APLQ BRKT LH	HY53200B15AC SILL APLQ BRKT LH	-	1	Enquire
620	HY53200B14BA	SILL APLQ BRKT RH	HY53200B14BA SILL APLQ BRKT RH	-	1	Enquire
630	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
640	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	12	Enquire
650	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique	-	12	Enquire
660	RY5310611AA	SILL FINISHER LH	RY5310611AA SILL FINISHER LH Gloss Black	-	1	Enquire
661	RY5310611CC	SILL FNSHR CARBON LH	RY5310611CC SILL FNSHR CARBON LH Carbon	-	1	Enquire
670	RY5310612AA	SILL FINISHER RH	RY5310612AA SILL FINISHER RH Gloss Black	-	1	Enquire
671	RY5310612CC	SILL FNSHR CARBON RH	RY5310612CC SILL FNSHR CARBON RH Carbon	-	1	Enquire
680	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	16	Enquire
690	FD3337523AA	EDGE CLIP	FD3337523AA EDGE CLIP	-	4	Enquire
710	702587	PLASTIC TRIM PIN 8.0mm x 1.5	702587 PLASTIC TRIM PIN 8.0mm x 1.5	-	4	Enquire
720	KY53E865273AA	PANEL EDGE CLIP	KY53E865273AA PANEL EDGE CLIP	-	2	Enquire
730	KY53L1228495AA	WST FINISHER RR LH	KY53L1228495AA WST FINISHER RR LH Bright	-	1	Enquire
731	KY53L1228495BA	WST FINISHER RR LH	KY53L1228495BA WST FINISHER RR LH Black	-	1	Enquire
740	KY53L1228494AA	WST FINISHER RR RH	KY53L1228494AA WST FINISHER RR RH Bright	-	1	Enquire
741	KY53L1228494BA	WST FINISHER RR RH	KY53L1228494BA WST FINISHER RR RH Black	-	1	Enquire
750	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV	-	1	Enquire
760	KY53L501A47AC	TONN FIN OUTER	KY53L501A47AC TONN FIN OUTER Bright	-	1	Enquire
761	KY53L501A47BC	TONN FIN OUTER	KY53L501A47BC TONN FIN OUTER Black	-	1	Enquire
770	KY53F512A0AB	TONNEAU FNSHR SEAL	KY53F512A0AB TONNEAU FNSHR SEAL	-	1	Enquire
780	KY53L10631AA	TONNEAU FIN PPF LH	KY53L10631AA TONNEAU FIN PPF LH	-	1	Enquire
790	KY53L10630AA	TONNEAU FIN PPF RH	KY53L10630AA TONNEAU FIN PPF RH	-	1	Enquire
800	RY5310624AA	REAR SILL APP PPF RH	RY5310624AA REAR SILL APP PPF RH RH, Lower, Gloss	-	1	Enquire
801	RY5310624BA	REAR SILL APP PPF RH	RY5310624BA REAR SILL APP PPF RH RH, Lower, Matt	-	1	Enquire
802	RY5310624CA	REAR SILL APP PPF RH	RY5310624CA REAR SILL APP PPF RH RH, Lower, Gloss, whenSill Blade fitted	-	1	Enquire
803	RY5310624DA	REAR SILL APP PPF RH	RY5310624DA REAR SILL APP PPF RH RH, Lower, Matt, whenSill Blade fitted	-	1	Enquire
810	RY5310625AA	REAR SILL APP PPF LH	RY5310625AA REAR SILL APP PPF LH LH, Lower, Gloss	-	1	Enquire
811	RY5310625BA	REAR SILL APP PPF LH	RY5310625BA REAR SILL APP PPF LH LH, Lower, Matt	-	1	Enquire
812	RY5310625CA	REAR SILL APP PPF LH	RY5310625CA REAR SILL APP PPF LH LH, Lower, Gloss, whenSill Blade fitted	-	1	Enquire
813	RY5310625DA	REAR SILL APP PPF LH	RY5310625DA REAR SILL APP PPF LH LH, Lower, Matt, whenSill Blade fitted	-	1	Enquire
820	RY5310626AA	FRONT FENDER PPF RH	RY5310626AA FRONT FENDER PPF RH RH, Wing, Gloss	-	1	Enquire
821	RY5310626BA	FRONT FENDER PPF RH	RY5310626BA FRONT FENDER PPF RH RH, Wing, Matt	-	1	Enquire
830	RY5310627AA	FRONT FENDER PPF LH	RY5310627AA FRONT FENDER PPF LH LH, Wing, Gloss	-	1	Enquire
831	RY5310627BA	FRONT FENDER PPF LH	RY5310627BA FRONT FENDER PPF LH LH, Wing, Matt	-	1	Enquire
840	RY5310630AA	REAR QTR PPF RH	RY5310630AA REAR QTR PPF RH RH, Upper, Gloss	-	1	Enquire
841	RY5310630BA	REAR QTR PPF RH	RY5310630BA REAR QTR PPF RH RH, Upper, Matt	-	1	Enquire
850	RY5310631AA	REAR QTR PPF LH	RY5310631AA REAR QTR PPF LH LH, Upper, Gloss	-	1	Enquire
851	RY5310631BA	REAR QTR PPF LH	RY5310631BA REAR QTR PPF LH LH, Upper, Matt	-	1	Enquire
860	RY5310632AA	FR SL BLD FILM GL RH	RY5310632AA FR SL BLD FILM GL RH RH, Sill Front, Gloss	-	1	Enquire
861	RY5310632BA	FR SL BLD FILM MT RH	RY5310632BA FR SL BLD FILM MT RH RH, Sill Front, Matt	-	1	Enquire
870	RY5310633AA	FR SL BLD FILM GL LH	RY5310633AA FR SL BLD FILM GL LH LH, Sill Front, Gloss	-	1	Enquire
871	RY5310633BA	FR SL BLD FILM MT LH	RY5310633BA FR SL BLD FILM MT LH LH, Sill Front, Matt	-	1	Enquire
880	RY5310638AB	RR SL BLD APP PPF	RY5310638AB RR SL BLD APP PPF LH/RH, Sill Rear, Gloss	-	2	Enquire
900	RY5310641AA	FR SL BLD APP PPF LH	RY5310641AA FR SL BLD APP PPF LH LH, Sill Blade, Front	-	1	Enquire
910	RY5310640AA	FR SL BLD APP PPF RH	RY5310640AA FR SL BLD APP PPF RH RH, Sill Blade, Front	-	1	Enquire
920	RY5310643AA	FR LNG SL BLD APP PP	RY5310643AA FR LNG SL BLD APP PP LH, Sill Blade, Lower	-	1	Enquire
930	RY5310642AA	FR LNG SL BLD APP PP	RY5310642AA FR LNG SL BLD APP PP LH, Sill Blade, Lower	-	1	Enquire
1000	HY5302298DB	LF SCR INLET BLNK LH	HY5302298DB LF SCR INLET BLNK LH LHD	-	1	Enquire
1001	HY5302298CB	LF SCR INLET BLNK RH	HY5302298CB LF SCR INLET BLNK RH RHD	-	1	Enquire
1020	HY53018B86BA	UPR HVAC DCT LHD	HY53018B86BA UPR HVAC DCT LHD LHD	-	1	Enquire
1021	TY5319A321DA	DB12 26.5MY OWN ITA	TY5319A321DA DB12 26.5MY OWN ITA RHD	-	1	Enquire
1030	HY533811AA	LEAF SCREEN DRN TUBE	HY533811AA LEAF SCREEN DRN TUBE	-	2	Enquire
1040	JY53AFU1900AA	FIR TREE CABLE TIE	JY53AFU1900AA FIR TREE CABLE TIE	-	2	Enquire
1050	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
1060	RY5312529AA	LF SCRN RET CLIP	RY5312529AA LF SCRN RET CLIP	-	2	Enquire
1070	MY83382735AA	PLASTIC PUSH FIXING	MY83382735AA PLASTIC PUSH FIXING	-	2	Enquire
1080	RY53292670AA	LF SCRN MAIN BDY ASY	RY53292670AA LF SCRN MAIN BDY ASY	-	1	Enquire
1090	RY53020E47AB	LF SCRN END ASY LHS	RY53020E47AB LF SCRN END ASY LHS	-	1	Enquire
1100	RY53020E46AB	LF SCRN END ASY RHS	RY53020E46AB LF SCRN END ASY RHS	-	1	Enquire
1200	HY53404E00AC	MECH MOTOR ASSY	HY53404E00AC MECH MOTOR ASSY	-	1	Enquire
1210	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	4	Enquire
1220	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
1230	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
1240	703741	Bolt, M6 x 35	703741 Bolt, M6 x 35	-	2	Enquire
1250	HY5344298AD	SPOILER GUIDE ASSY	HY5344298AD SPOILER GUIDE ASSY	-	2	Enquire
1260	HY5314F266AE	DEPLOY MECH ASSY	HY5314F266AE DEPLOY MECH ASSY	-	1	Enquire
1270	KY53442A92AB	SPOILER BLADE VOL	KY53442A92AB SPOILER BLADE VOL	-	1	Enquire
1300	RY53407A74AA	WINGS BADGE	RY53407A74AA WINGS BADGE White/Green	-	1	Enquire
1301	RY53407A74BA	WINGS BADGE	RY53407A74BA WINGS BADGE Black Chrome	-	1	Enquire
1310	HY53407A74AA	WINGS BADGE	HY53407A74AA WINGS BADGE White/Green, 179mm	-	1	Enquire
1311	RY53407A74CA	WINGS BADGE	RY53407A74CA WINGS BADGE White/Green, 150mm	-	1	Enquire
1312	RY53407A74DA	WINGS BADGE	RY53407A74DA WINGS BADGE Black Chrome, 150mm	-	1	Enquire
1320	RY53001B40AA	SCRIPT BADGE-AM	RY53001B40AA SCRIPT BADGE-AM Chrome	-	1	Enquire
1321	RY53001B40BA	SCRIPT BADGE-AM	RY53001B40BA SCRIPT BADGE-AM Black Chrome	-	1	Enquire
1400	RY53166563AD	FRT W/ARC LNR FRT LH	RY53166563AD FRT W/ARC LNR FRT LH	-	1	Enquire
1410	RY53166562AD	FRT W/ARC LNR FRT RH	RY53166562AD FRT W/ARC LNR FRT RH	-	1	Enquire
1420	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	14	Enquire
1430	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	32	Enquire
1500	RY5354279L23AC	RR W/ARCH LINER LH	RY5354279L23AC RR W/ARCH LINER LH	-	1	Enquire
1510	RY5354279L22AC	RR W/ARCH LINER RH	RY5354279L22AC RR W/ARCH LINER RH	-	1	Enquire
1520	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	28	Enquire
1530	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD	-	4	Enquire
1540	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	8	Enquire
1550	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	4	Enquire
