Aston Martin GT DB12 (2024- - Body Closures - Coupe

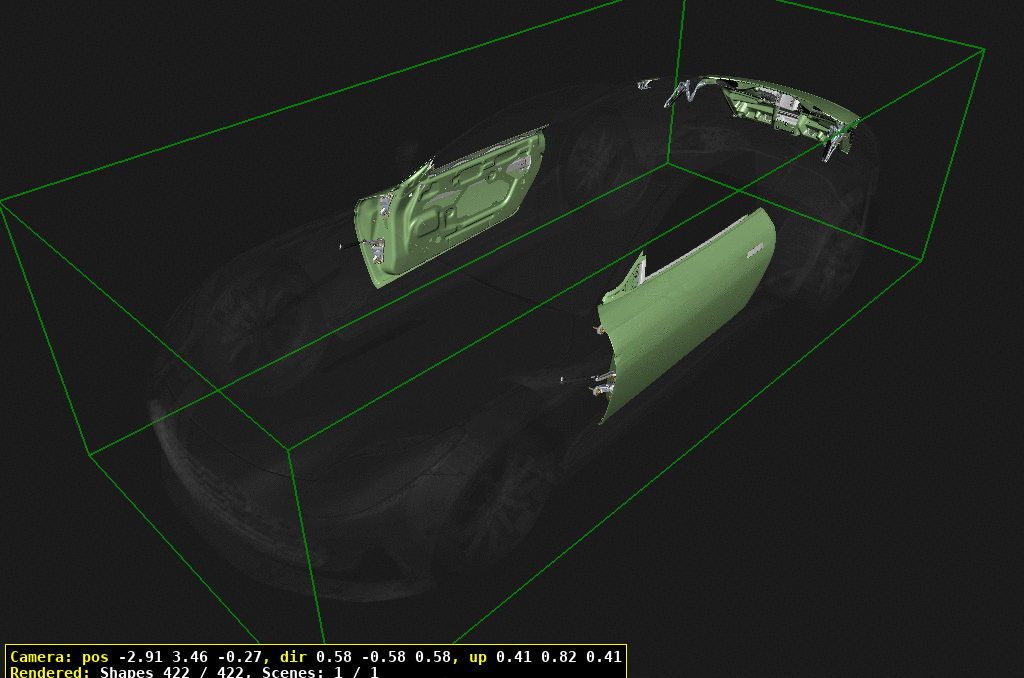

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	RY5320123AB	DOOR ASSY LH	RY5320123AB DOOR ASSY LH	-	1	Enquire
20	RY5320122AB	DOOR ASSY RH	RY5320122AB DOOR ASSY RH	-	1	Enquire
30	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
40	HY53F23504AD	GAS STRUT DOOR	HY53F23504AD GAS STRUT DOOR	-	2	Enquire
50	HY53483686AB	BOLT & WASHER M12	HY53483686AB BOLT & WASHER M12	-	4	Enquire
60	707166	BOLT & WSHR-M8 x 30	707166 BOLT & WSHR-M8 x 30	-	8	Enquire
70	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	2	Enquire
80	HY5322801AC	HGE ASY DR UPR LH	HY5322801AC HGE ASY DR UPR LH	-	1	Enquire
90	HY5322800AC	HGE ASY DR UPR RH	HY5322800AC HGE ASY DR UPR RH	-	1	Enquire
100	HY5322811AD	HGE ASY DR LWR LH	HY5322811AD HGE ASY DR LWR LH	-	1	Enquire
110	HY5322810AD	HGE ASY DR LWR RH	HY5322810AD HGE ASY DR LWR RH	-	1	Enquire
200	HY53C40626AF	DECKLID BND ASSY	HY53C40626AF DECKLID BND ASSY	-	1	Enquire
210	HY5340616AB	DECKLID OTR LWR	HY5340616AB DECKLID OTR LWR	-	1	Enquire
220	HY533K663AA	S CLIP DECKLID OUTER	HY533K663AA S CLIP DECKLID OUTER	-	7	Enquire
230	707142	SCREW M5 X 12	707142 SCREW M5 X 12	-	6	Enquire
240	HY53N623361AA	EDGE CLIP	HY53N623361AA EDGE CLIP	-	6	Enquire
250	HY53N800888AA	WASHER-6IDx18ODx1.6	HY53N800888AA WASHER-6IDx18ODx1.6	-	4	Enquire
260	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) Pack of 5	-	4	Enquire
270	HY53MJA4212AB	INNER DECKLID FOAM	HY53MJA4212AB INNER DECKLID FOAM	-	1	Enquire
280	HY53C406A10AC	GAS STRUT	HY53C406A10AC GAS STRUT	-	2	Enquire
290	HY53C42701AE	HINGE ASSY LH	HY53C42701AE HINGE ASSY LH	-	1	Enquire
300	HY53C42700AE	HINGE ASSY RH	HY53C42700AE HINGE ASSY RH	-	1	Enquire
310	707136	BLT&WSH-M8 x 25 HEX	707136 BLT&WSH-M8 x 25 HEX	-	4	Enquire
320	708058	BOLT-M6 x 40 BLACK	708058 BOLT-M6 x 40 BLACK	-	4	Enquire
330	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
400	RY53C405A02AA	PNL FU/FILL FLAP	RY53C405A02AA PNL FU/FILL FLAP	-	1	Enquire
410	RY53C405B96AA	ASY HNGE FU/FL FLAP	RY53C405B96AA ASY HNGE FU/FL FLAP	-	1	Enquire
420	707411	SCREW-M6 x 16 PAN	707411 SCREW-M6 x 16 PAN Black	-	3	Enquire
