Find Your Part

Bumpers of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Bumpers

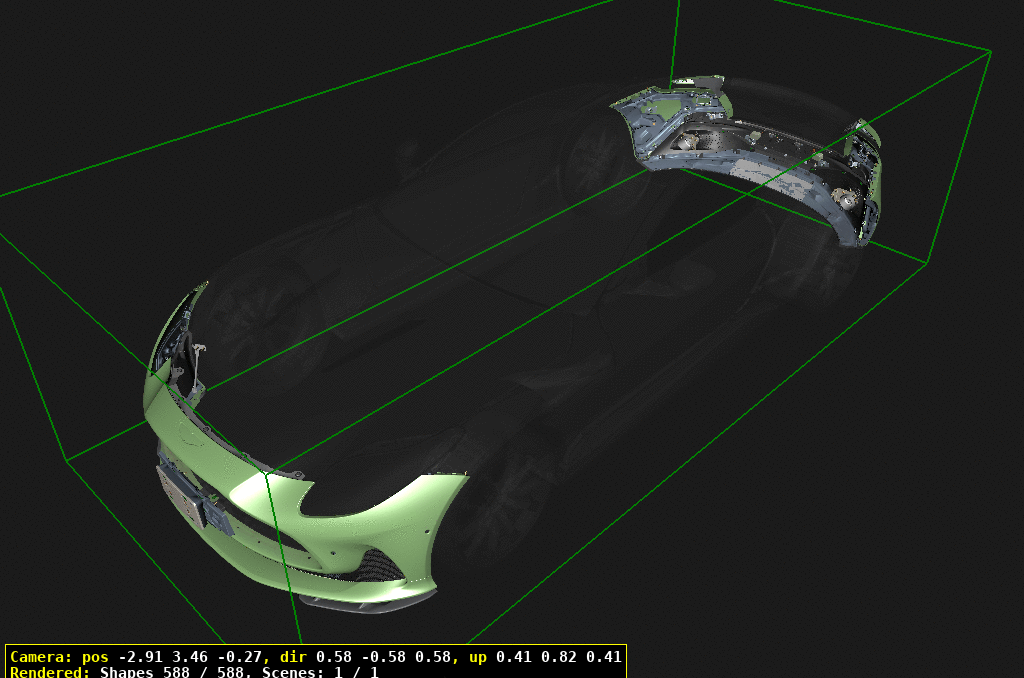

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY5317D957AD	FRT BMPR ASSY ROW	RY5317D957AD FRT BMPR ASSY ROW RoW	-	1	Enquire
21	RY5317D957BD	FRT BMPR ASSY FED	RY5317D957BD FRT BMPR ASSY FED Federal	-	1	Enquire
30	RY5317626AC	FRONT SPLITTER-BDY C	RY5317626AC FRONT SPLITTER-BDY C	-	1	Enquire
31	RY5317626BB	FRT SPLITTER W/CLDDG	RY5317626BB FRT SPLITTER W/CLDDG When Cladding (items200-211) is fitted	-	1	Enquire
40	RY53500B84AA	RADAR COVER	RY53500B84AA RADAR COVER	-	1	Enquire
50	RY53278G14AA	RADAR BRACKET	RY53278G14AA RADAR BRACKET	-	1	Enquire
55	HY53N800888AA	WASHER-6IDx18ODx1.6	HY53N800888AA WASHER-6IDx18ODx1.6	-	2	Enquire
60	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	4	Enquire
70	RY53MA046AAA	CAMERA BEZEL - FRONT	RY53MA046AAA CAMERA BEZEL - FRONT	-	1	Enquire
80	RY6319J219AA	HLDR CMR FRT FACING	RY6319J219AA HLDR CMR FRT FACING	-	1	Enquire
90	708101	SCREW-M4 x 16 W/WSHR	708101 SCREW-M4 x 16 W/WSHR	-	1	Enquire
100	RY538156AC	FRT BMPR MESH	RY538156AC FRT BMPR MESH	-	1	Enquire
110	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	5	Enquire
120	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	5	Enquire
130	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	5	Enquire
140	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
150	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	2	Enquire
160	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
170	RY538N337AD	AUX RAD DUCT FRT LH	RY538N337AD AUX RAD DUCT FRT LH	-	1	Enquire
180	RY538N336AD	AUX RAD DUCT FRT RH	RY538N336AD AUX RAD DUCT FRT RH	-	1	Enquire
190	HY53N623361AA	EDGE CLIP	HY53N623361AA EDGE CLIP	-	7	Enquire
200	RY53218B47AA	LH PU SPLITTER CLADD	RY53218B47AA LH PU SPLITTER CLADD Gloss Black	-	1	Enquire
201	RY53218B47BA	LH SPLITTER CLADDING	RY53218B47BA LH SPLITTER CLADDING Carbon	-	1	Enquire
210	RY53218B46AA	RH PU SPLITTER CLADD	RY53218B46AA RH PU SPLITTER CLADD Gloss Black	-	1	Enquire
211	RY53218B46BA	RH SPLITTER CLADDING	RY53218B46BA RH SPLITTER CLADDING Carbon	-	1	Enquire
220	707790	SCRW-M5x30 TORX-BLK	707790 SCRW-M5x30 TORX-BLK	-	10	Enquire
230	AD43106046AA	M6 WASHER	AD43106046AA M6 WASHER	-	10	Enquire
240	707626	M6 J NUT	707626 M6 J NUT	-	10	Enquire
260	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	5	Enquire
270	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
280	RY53E800336AA	M6 X 21.5 X 1 SCW	RY53E800336AA M6 X 21.5 X 1 SCW	-	12	Enquire
290	RY5317F773AA	AR GRL RET	RY5317F773AA AR GRL RET	-	10	Enquire
300	RY5310140AB	GOP MESH FOAM	RY5310140AB GOP MESH FOAM	-	2	Enquire
310	RY538C297AA	BMPR SUP LH	RY538C297AA BMPR SUP LH	-	1	Enquire
320	RY538C296AA	BMPR SUP RH	RY538C296AA BMPR SUP RH	-	1	Enquire
330	HY5390781AA	PATCH BOLT&WSHR	HY5390781AA PATCH BOLT&WSHR	-	4	Enquire
340	RY5317F787AA	BMPR REINF LH	RY5317F787AA BMPR REINF LH	-	1	Enquire
350	RY5317F786AA	BMPR REINF RH	RY5317F786AA BMPR REINF RH	-	1	Enquire
360	707790	SCRW-M5x30 TORX-BLK	707790 SCRW-M5x30 TORX-BLK	-	2	Enquire
370	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	-	2	Enquire
380	707790	SCRW-M5x30 TORX-BLK	707790 SCRW-M5x30 TORX-BLK	-	4	Enquire
390	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	-	4	Enquire
500	RY5315A282AD	CVR RR BMPR CRN LH	RY5315A282AD CVR RR BMPR CRN LH RoW, -> VIN L14216	-	1	Enquire
501	RY5315A282AE	CVR RR BMPR CRN LH	RY5315A282AE CVR RR BMPR CRN LH RoW, VIN L14217->	-	1	Enquire
502	RY5315A282BD	CVR RR BMPR CRN LH	RY5315A282BD CVR RR BMPR CRN LH Federal, -> VIN L14278	-	1	Enquire
503	RY5315A282BE	CVR RR BMPR CRN LH	RY5315A282BE CVR RR BMPR CRN LH Federal, VIN L14279->	-	1	Enquire
510	RY5315A281AD	CVR RR BMPR CRN RH	RY5315A281AD CVR RR BMPR CRN RH RoW, -> VIN L14993	-	1	Enquire
511	RY5315A281AF	CVR RR BMPR CRN RH	RY5315A281AF CVR RR BMPR CRN RH RoW, VIN L14994->	-	1	Enquire
512	RY5315A281BD	CVR RR BMPR CRN RH	RY5315A281BD CVR RR BMPR CRN RH Federal, -> VIN M14933	-	1	Enquire
513	RY5315A281BF	CVR RR BMPR CRN RH	RY5315A281BF CVR RR BMPR CRN RH Federal, VIN M14934->	-	1	Enquire
520	HY5301949AB	MESH REAR LOWER LH	HY5301949AB MESH REAR LOWER LH	-	1	Enquire
530	HY5301948AB	MESH REAR LOWER RH	HY5301948AB MESH REAR LOWER RH	-	1	Enquire
540	HY5313A539BA	INSERT REAR LAMP LH	HY5313A539BA INSERT REAR LAMP LH Coupe	-	1	Enquire
541	KY5313A539AA	INSERT REAR LAMP LH	KY5313A539AA INSERT REAR LAMP LH Volante	-	1	Enquire
550	HY5313A538BA	INSERT REAR LAMP RH	HY5313A538BA INSERT REAR LAMP RH Coupe	-	1	Enquire
551	KY5313A538AA	INSERT REAR LAMP RH	KY5313A538AA INSERT REAR LAMP RH Volante	-	1	Enquire
560	HY5313A537CA	INSERT REAR LAMP LH	HY5313A537CA INSERT REAR LAMP LH Adjustable	-	1	Enquire
570	HY5313A536BB	INSERT REAR LAMP RH	HY5313A536BB INSERT REAR LAMP RH Adjustable	-	1	Enquire
580	RY535K239AA	EXH FNSHR LH BRIGHT	RY535K239AA EXH FNSHR LH BRIGHT Bright	-	1	Enquire
581	RY535K239CA	EXH FINISHER LH GLOS	RY535K239CA EXH FINISHER LH GLOS Gloss Black	-	1	Enquire
582	RY535K239EA	EXH FINISHER LH MATT	RY535K239EA EXH FINISHER LH MATT Matt Black	-	1	Enquire
590	RY535K238AA	EXH FINISHER RH BRIH	RY535K238AA EXH FINISHER RH BRIH Bright	-	1	Enquire
591	RY535K238CA	EXH FINISHER RH GLOS	RY535K238CA EXH FINISHER RH GLOS Gloss Black	-	1	Enquire
592	RY535K238EA	EXH FINISHER RH MATT	RY535K238EA EXH FINISHER RH MATT Matt Black	-	1	Enquire
600	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	6	Enquire
610	HY535B282AA	EXH INSUL WSHR	HY535B282AA EXH INSUL WSHR	-	12	Enquire
620	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	10	Enquire
630	HY5319G759AB	BRKT RR LH TLPE	HY5319G759AB BRKT RR LH TLPE	-	1	Enquire
640	HY5319G758AB	BRKT RR RH TLPE	HY5319G758AB BRKT RR RH TLPE	-	1	Enquire
650	RY5317E955AB	RR BMPR INSRT ROW	RY5317E955AB RR BMPR INSRT ROW Black, RoW	-	1	Enquire
651	RY5317E955BB	RR BMPR INSRT FED	RY5317E955BB RR BMPR INSRT FED Black, Federal	-	1	Enquire
652	RY5317E955EC	RR BMPR INSRT ROW	RY5317E955EC RR BMPR INSRT ROW Carbon, RoW	-	1	Enquire
653	RY5317E955FC	RR BMPR INSRT FED	RY5317E955FC RR BMPR INSRT FED Carbon, Federal	-	1	Enquire
654	RY5317E955JA	RR BMPR INSRT CHINA	RY5317E955JA RR BMPR INSRT CHINA Carbon, China	-	1	Enquire
655	RY5317E955GC	RR BMPR INSRT CHINA	RY5317E955GC RR BMPR INSRT CHINA Black, China	-	1	Enquire
660	HY53F17B681AA	REAR BUMPER BRKT CTR	HY53F17B681AA REAR BUMPER BRKT CTR	-	1	Enquire
670	HY539927AA	S CLIP	HY539927AA S CLIP	-	8	Enquire
680	HY5313A465BA	TLS TO RR LAMP FIN	HY5313A465BA TLS TO RR LAMP FIN Coupe	-	1	Enquire
681	KY5313A465BA	TLS TO RR LAMP FIN	KY5313A465BA TLS TO RR LAMP FIN Volante	-	1	Enquire
690	HY5313A466AB	TLS TO RR LAMP FIN	HY5313A466AB TLS TO RR LAMP FIN Coupe	-	1	Enquire
691	KY5313A466BA	TLS TO RR LAMP FIN	KY5313A466BA TLS TO RR LAMP FIN Volante	-	1	Enquire
700	HY5317G953AA	ADJ BRKT RR BMPR LH	HY5317G953AA ADJ BRKT RR BMPR LH	-	1	Enquire
710	HY5317G952AA	ADJ BRKT RR BMPR RH	HY5317G952AA ADJ BRKT RR BMPR RH	-	1	Enquire
720	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	8	Enquire
730	697517	WASHER M6 LGE OD BLK	697517 WASHER M6 LGE OD BLK	-	2	Enquire
740	HY5310140AA	FOAM BLOCK	HY5310140AA FOAM BLOCK RoW only	-	2	Enquire
750	RY53278G14AA	RADAR BRACKET	RY53278G14AA RADAR BRACKET	-	2	Enquire
760	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	18	Enquire
770	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	24	Enquire
780	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	2	Enquire
790	4G4317F773AB	RET GRILLE BUMPER	4G4317F773AB RET GRILLE BUMPER	-	6	Enquire
800	6G3351756AA	SC M5X13 PN HD	6G3351756AA SC M5X13 PN HD	-	4	Enquire
820	707157	SCRW & WSHR-M6 x 30	707157 SCRW & WSHR-M6 x 30	-	2	Enquire
830	707629	SCREW-S/TAP-4.8	707629 SCREW-S/TAP-4.8	-	2	Enquire
840	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	4	Enquire
850	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	2	Enquire
860	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	2	Enquire
870	4G4313520AB	REAR LAMP FIX SEAL	4G4313520AB REAR LAMP FIX SEAL	-	6	Enquire
880	697517	WASHER M6 LGE OD BLK	697517 WASHER M6 LGE OD BLK	-	8	Enquire
890	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	8	Enquire
900	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
910	RY63E826A81AA	M6 WITOL	RY63E826A81AA M6 WITOL	-	4	Enquire
920	HY5317C911AA	RR BMPR OVR RDR CVR	HY5317C911AA RR BMPR OVR RDR CVR Federal, Black	-	1	Enquire
921	HY5317C911BA	RR BMPR OVR RDR CVR	HY5317C911BA RR BMPR OVR RDR CVR Federal, Graphite	-	1	Enquire
930	HY5317C910AA	RR BMPR OVR RDR CVR	HY5317C910AA RR BMPR OVR RDR CVR Federal, Black	-	1	Enquire
931	HY5317C910BA	RR BMPR OVR RDR CVR	HY5317C910BA RR BMPR OVR RDR CVR Federal, Graphite	-	1	Enquire
940	6G437210059	RET.FRT.BMP.MLDG	6G437210059 RET.FRT.BMP.MLDG Federal	-	2	Enquire
950	HY53E603123AA	4X12 TRX PN HD DT PT	HY53E603123AA 4X12 TRX PN HD DT PT	-	4	Enquire
1000	RY5317A835BB	FRT PLT PLNTH	RY5317A835BB FRT PLT PLNTH RoW	-	1	Enquire
1010	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
1020	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
1030	KY7317A835BA	FRT PLT PLNTH FED	KY7317A835BA FRT PLT PLNTH FED Federal	-	1	Enquire
1040	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	6	Enquire
1050	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
1060	RY5317A835CA	FRT PLT PLNTH	RY5317A835CA FRT PLT PLNTH GCC, Swiss	-	1	Enquire
1070	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
1080	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
1090	RY5317A835DA	FRT PLT PLNTH	RY5317A835DA FRT PLT PLNTH China	-	1	Enquire
1100	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
1110	RY5317A835EA	FRT PLT PLNTH	RY5317A835EA FRT PLT PLNTH Japan	-	1	Enquire
1120	707163	SCREW-4.8 x 25	707163 SCREW-4.8 x 25	-	2	Enquire
1130	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
2000	6G3317B389AE	LICENCE PLT BRKT-FED	6G3317B389AE LICENCE PLT BRKT-FED Federal, Swiss	-	1	Enquire
2010	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
2020	707629	SCREW-S/TAP-4.8	707629 SCREW-S/TAP-4.8	-	2	Enquire
2060	CD3317B389DD	LICENCE PLT BRKT CHI	CD3317B389DD LICENCE PLT BRKT CHI China	-	1	Enquire
2070	707629	SCREW-S/TAP-4.8	707629 SCREW-S/TAP-4.8	-	2	Enquire
2080	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
2090	AD4313418BA	Bracket, Number Plate, Rear	AD4313418BA Bracket, Number Plate, Rear	-	2	Enquire
2100	702943	Rivet, 3.2 x 12.5, Blind Al Dome Head	702943 Rivet, 3.2 x 12.5, Blind Al Dome Head	-	4	Enquire
