Lock and Latches of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Lock and Latches

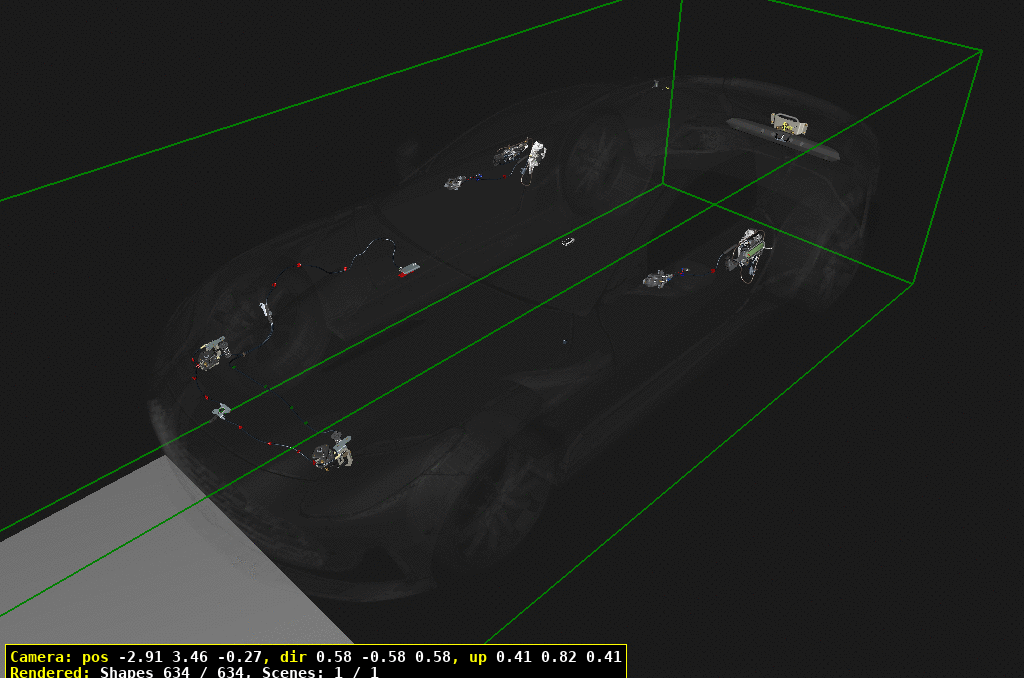

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	KY6316C774AA	REL LVR SECONDARY	KY6316C774AA REL LVR SECONDARY	-	1	Enquire
30	RY53405C44AB	CBL REL SECONDARY	RY53405C44AB CBL REL SECONDARY	-	2	Enquire
40	HY53SE16K688AA	STRIKER- BONNET	HY53SE16K688AA STRIKER- BONNET	-	2	Enquire
50	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
60	KY53SE16700AA	BONNET LATCH	KY53SE16700AA BONNET LATCH	-	2	Enquire
70	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
80	KY53SE19G366AA	SWITCH-HOOD LATCH-LH	KY53SE19G366AA SWITCH-HOOD LATCH-LH	-	1	Enquire
90	KY53SE19G367AA	SWITCH-HOOD LATCH-RH	KY53SE19G367AA SWITCH-HOOD LATCH-RH	-	1	Enquire
100	KY6316B769AA	LATCH SECONDARY LH	KY6316B769AA LATCH SECONDARY LH	-	1	Enquire
110	KY6316B768AA	LATCH SECONDARY RH	KY6316B768AA LATCH SECONDARY RH	-	1	Enquire
120	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
130	KY6316A944AA	STRKR SECONDARY	KY6316A944AA STRKR SECONDARY	-	2	Enquire
140	KY53SE16K808AA	POPUP SPRING	KY53SE16K808AA POPUP SPRING	-	2	Enquire
150	KY6316C657AA	CBL BNT PRIM FWD	KY6316C657AA CBL BNT PRIM FWD	-	1	Enquire
160	707935	CLIP EDGE-5.8 x 2.5	707935 CLIP EDGE-5.8 x 2.5	-	4	Enquire
170	701595	LTHR-L/MILL ST.JAMES	701595 LTHR-L/MILL ST.JAMES	-	1	Enquire
180	DD33F37521AA	Blanking Plug, 14mm ID	DD33F37521AA Blanking Plug, 14mm ID	-	1	Enquire
190	RY6316C751AA	BNT REL CBL MNTG BRK	RY6316C751AA BNT REL CBL MNTG BRK LHD	-	1	Enquire
191	RY6316C750AA	BNT REL CBL MNTG BRK	RY6316C750AA BNT REL CBL MNTG BRK RHD	-	1	Enquire
200	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	1	Enquire
210	61278875609	Double cell module for high-volt.battery	61278875609 Double cell module for high-volt.battery	-	1	Enquire
220	704443	Clip, Plastic, 5 x 6.5 x 2	704443 Clip, Plastic, 5 x 6.5 x 2	-	3	Enquire
230	KY53SE16A874AA	LEVER-HOOD RELEASE	KY53SE16A874AA LEVER-HOOD RELEASE	-	1	Enquire
240	KY6316C730AC	BRKT HD REL HNDL MNT	KY6316C730AC BRKT HD REL HNDL MNT	-	1	Enquire
250	701356	Rivet, Blind, M4x10	701356 Rivet, Blind, M4x10	-	2	Enquire
260	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	2	Enquire
270	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
300	HY53F22050AF	LOCKSET	HY53F22050AF LOCKSET LH Door only. Includesitem 310	-	1	Enquire
310	MY83654024AB	EMR KEY BLADE	MY83654024AB EMR KEY BLADE Cut Key, Order with VIN	-	1	Enquire
320	RY5321812AA	LATCH ASSY FRT DOOR	RY5321812AA LATCH ASSY FRT DOOR Includes Item 340	-	1	Enquire
330	RY5321813AA	LATCH ASSY FRT DOOR	RY5321813AA LATCH ASSY FRT DOOR Includes Item 340	-	1	Enquire
340	HY53F218A01AB	CABLE INT HNDL REL	HY53F218A01AB CABLE INT HNDL REL	-	2	Enquire
350	HY5321982AB	STRIKER DOOR	HY5321982AB STRIKER DOOR	-	2	Enquire
360	SY9Y9142DA	HTS BRKT	SY9Y9142DA HTS BRKT	-	2	Enquire
370	4G43224A68AA	Pivot Pin, Outside Handle	4G43224A68AA Pivot Pin, Outside Handle	-	2	Enquire
380	4G43224A72AH	DUMMY LIGHT LENS	4G43224A72AH DUMMY LIGHT LENS	-	2	Enquire
390	GG43AA0231AA	SCW M8X34 CSK FLAT	GG43AA0231AA SCW M8X34 CSK FLAT	-	4	Enquire
400	6G33239600AA	CLIP CABLE 5.2 SEALD	6G33239600AA CLIP CABLE 5.2 SEALD	-	2	Enquire
410	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	6	Enquire
420	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	6	Enquire
430	RY5322615AA	HND MCH DR IN FRT LH	RY5322615AA HND MCH DR IN FRT LH Satin Silver	-	1	Enquire
440	RY5322614AA	HND MCH DR IN FRT RH	RY5322614AA HND MCH DR IN FRT RH Satin Silver	-	1	Enquire
450	HY53A17N409AA	NUT M5 THUMB	HY53A17N409AA NUT M5 THUMB	-	6	Enquire
460	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	6	Enquire
470	704443	Clip, Plastic, 5 x 6.5 x 2	704443 Clip, Plastic, 5 x 6.5 x 2	-	2	Enquire
480	707004	BOLT & WSHR M6x16 HX	707004 BOLT & WSHR M6x16 HX	-	2	Enquire
490	PY83226A29AC	PRESNT EXT HDL DR LH	PY83226A29AC PRESNT EXT HDL DR LH Self-Presenting	-	1	Enquire
500	PY83226A28AC	PRESNT EXT HDL DR RH	PY83226A28AC PRESNT EXT HDL DR RH Self-Presenting	-	1	Enquire
510	22AA797GP	ASSY BRKT RR FENDER FRT RH	22AA797GP ASSY BRKT RR FENDER FRT RH See Section 19-1203	-	-	Enquire
520	13A4984CP	COVER - DOOR - GAS STRUT - RH	13A4984CP COVER - DOOR - GAS STRUT - RH See Section 19-1000, item870 for Self-PresentingHandle ECU	-	-	Enquire
700	6G436710235	Striker, Deck Lid Latch	6G436710235 Striker, Deck Lid Latch	-	1	Enquire
710	KY5344462AB	DCKLD LTCH MTG BRKT	KY5344462AB DCKLD LTCH MTG BRKT Volante	-	1	Enquire
720	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Volante	-	4	Enquire
730	6G436710237	Handle, Emergency Release, Deck Lid Latch	6G436710237 Handle, Emergency Release, Deck Lid Latch	-	1	Enquire
740	700610	SCREW M8x25 FLAT CSK PIL 10.9	700610 SCREW M8x25 FLAT CSK PIL 10.9	-	1	Enquire
750	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	4	Enquire
760	HY53F442A66AG	POWER LATCH	HY53F442A66AG POWER LATCH	-	1	Enquire
770	HY5311028AA	22MM BLK DMD BDY PG	HY5311028AA 22MM BLK DMD BDY PG	-	6	Enquire
780	HY5342626BD	EXT RR STRIKER BLACK	HY5342626BD EXT RR STRIKER BLACK Coupe, Black	-	1	Enquire
781	KY5342626BA	EXT RR STRIKER BLACK	KY5342626BA EXT RR STRIKER BLACK Volante, Black	-	1	Enquire
800	707624	BOLT-M8 x 14	707624 BOLT-M8 x 14	-	5	Enquire
900	HY539N287AB	FU FIL LPP TAPPET ARRIVING SOON	HY539N287AB FU FIL LPP TAPPET ARRIVING SOON	-	1	Enquire
910	HY539E917AB	FUEL FILLER MECH ARRIVING SOON	HY539E917AB FUEL FILLER MECH ARRIVING SOON	-	1	Enquire
920	HY5370312AA	FU FIL EMER REL	HY5370312AA FU FIL EMER REL	-	1	Enquire
