Body Structure - Volante of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Body Structure - Volante

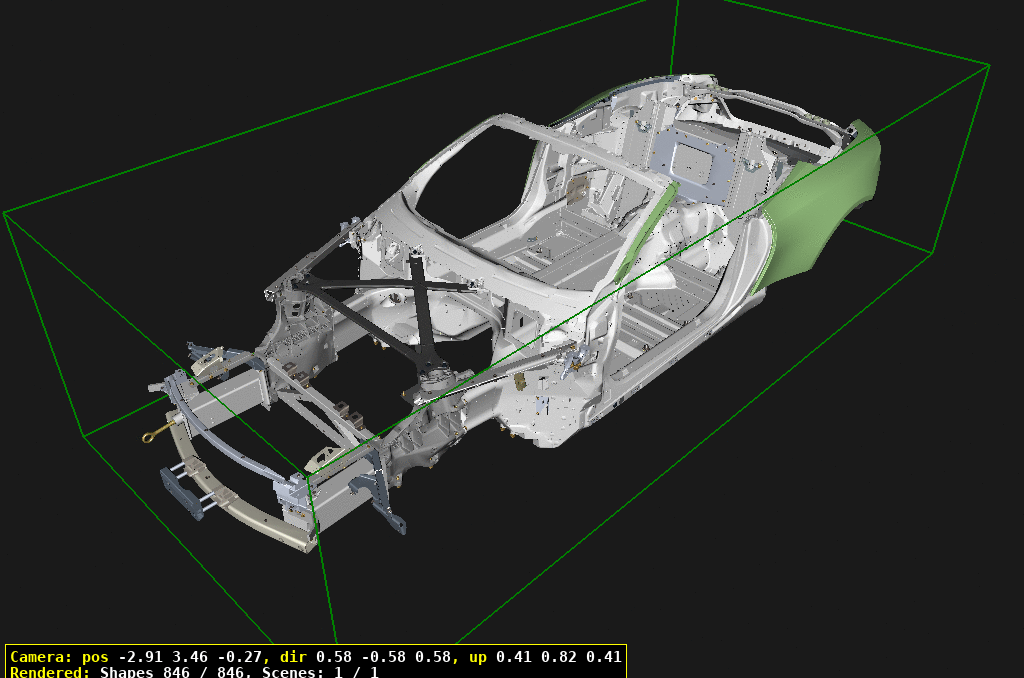

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
1	KY536310240	BODYSHELL-DB12 VOL	KY536310240 BODYSHELL-DB12 VOL Cat A. Less Closures	-	1	Enquire
20	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	10	Enquire
30	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	6	Enquire
40	RY53L101A70AE	CR MBR FRT UPR CONV	RY53L101A70AE CR MBR FRT UPR CONV Cat A	-	1	Enquire
50	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
60	703191	BOLT-M10x1.5x65 FLG CHROME FREE	703191 BOLT-M10x1.5x65 FLG CHROME FREE	-	2	Enquire
70	RY53V17N801AB	FRT CRSH CAN LH	RY53V17N801AB FRT CRSH CAN LH	-	1	Enquire
80	RY53V17N800AD	FRT CRUSH CAN RH	RY53V17N800AD FRT CRUSH CAN RH	-	1	Enquire
90	704440	Screw, M10 x 35	704440 Screw, M10 x 35	-	8	Enquire
100	HY536367912AB	NTPLT FRT CRSH CAN	HY536367912AB NTPLT FRT CRSH CAN	-	2	Enquire
110	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
120	HY53100A05AE	HSNG FRT SUS MNTG LH	HY53100A05AE HSNG FRT SUS MNTG LH Cat A	-	1	Enquire
130	HY53100A04AD	HSNG FRT SUS MNTG RH	HY53100A04AD HSNG FRT SUS MNTG RH Cat A	-	1	Enquire
140	HY53045J72AA	NITTO FOAM GASKET FR	HY53045J72AA NITTO FOAM GASKET FR	-	2	Enquire
150	HY53E802299AA	M12 SHOULDER BOLT	HY53E802299AA M12 SHOULDER BOLT	-	6	Enquire
160	RY5318C607AA	AIRBX MNTG BRKT	RY5318C607AA AIRBX MNTG BRKT	-	2	Enquire
170	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
180	RY5316A682AB	BRKT HD HINGE MNT LH	RY5316A682AB BRKT HD HINGE MNT LH	-	1	Enquire
190	RY5316A681AB	BRKT HD HINGE MNT RH	RY5316A681AB BRKT HD HINGE MNT RH	-	1	Enquire
200	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
210	RY533805AB	BRKT BONNET LTCH LH	RY533805AB BRKT BONNET LTCH LH	-	1	Enquire
220	RY533804AB	BRKT BONNET LTCH RH	RY533804AB BRKT BONNET LTCH RH	-	1	Enquire
230	708353	BOLT-M8x1.25x60 HEX	708353 BOLT-M8x1.25x60 HEX	-	4	Enquire
240	RY5385701AA	CRUSH CAN NUTPLATE	RY5385701AA CRUSH CAN NUTPLATE	-	2	Enquire
250	RY5316A909AA	CRSH CN NTPLT LWR	RY5316A909AA CRSH CN NTPLT LWR	-	2	Enquire
260	RY5313N079AE	ASSY HD/LP SUPT RR	RY5313N079AE ASSY HD/LP SUPT RR	-	1	Enquire
270	RY5313N078AD	ASSY HD/LP SUPT RR	RY5313N078AD ASSY HD/LP SUPT RR	-	1	Enquire
400	RY53L27847AA	PNL BODYSIDE LH	RY53L27847AA PNL BODYSIDE LH Cat A.	-	1	Enquire
410	RY53L27846AA	PNL BODYSIDE RH	RY53L27846AA PNL BODYSIDE RH Cat A.	-	1	Enquire
430	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5) Pack of 5	-	2	Enquire
440	KY53L02623AC	PNL CTRL CR LH CONV	KY53L02623AC PNL CTRL CR LH CONV Cat A	-	1	Enquire
450	KY53L02622AC	PNL CTRL CR RH CONV	KY53L02622AC PNL CTRL CR RH CONV Cat A	-	1	Enquire
500	KY63108A75BA	ASY BRA ENG CMPT BLK	KY63108A75BA ASY BRA ENG CMPT BLK Black	-	1	Enquire
510	707497PK	BOLT-M10 x1.5x30(10	707497PK BOLT-M10 x1.5x30(10 Pack of 10. ALWAYSREPLACE. NEVER REUSE	-	8	Enquire
520	HY53111C61AD	PANEL TOE BOARD LH	HY53111C61AD PANEL TOE BOARD LH LHD	-	1	Enquire
521	HY53111C60AD	PANEL TOE BOARD RH	HY53111C60AD PANEL TOE BOARD RH RHD	-	1	Enquire
530	RY53111C60BA	PANEL TOE BOARD RH	RY53111C60BA PANEL TOE BOARD RH LHD	-	1	Enquire
531	RY53111C61BA	PANEL TOE BOARD LH	RY53111C61BA PANEL TOE BOARD LH RHD	-	1	Enquire
540	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
550	RY5316185AD	BR ENG COMPST SD LH	RY5316185AD BR ENG COMPST SD LH	-	1	Enquire
560	RY5316184AD	BR ENG COMPST SD RH	RY5316184AD BR ENG COMPST SD RH	-	1	Enquire
570	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	10	Enquire
580	HY53110023AC	BRACE TUNNEL CENTRE	HY53110023AC BRACE TUNNEL CENTRE	-	1	Enquire
590	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	16	Enquire
600	RY5316807AB	BNT HNGE BRKT	RY5316807AB BNT HNGE BRKT	-	1	Enquire
610	RY5316806AB	BNT HNGE BRKT	RY5316806AB BNT HNGE BRKT	-	1	Enquire
620	708354	BLT &WSHR-M8 x 60	708354 BLT &WSHR-M8 x 60	-	4	Enquire
630	6G3343422AB	WASHER-DECKLID STRIK	6G3343422AB WASHER-DECKLID STRIK	-	6	Enquire
640	707166	BOLT & WSHR-M8 x 30	707166 BOLT & WSHR-M8 x 30	-	2	Enquire
650	HY538741AB	CLSR SERV CHNL	HY538741AB CLSR SERV CHNL	-	2	Enquire
660	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	16	Enquire
670	KY539F930AC	BRKT O/F HSE MTG	KY539F930AC BRKT O/F HSE MTG	-	1	Enquire
680	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
690	JY539G856AA	REINF PRG LINE	JY539G856AA REINF PRG LINE	-	1	Enquire
700	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	1	Enquire
710	HY5328611BB	BRKT FRT ST MNTG	HY5328611BB BRKT FRT ST MNTG	-	8	Enquire
720	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) Pack of 10	-	8	Enquire
730	HY5310126AC	ASSY BRKT SILL APPLQ	HY5310126AC ASSY BRKT SILL APPLQ	-	8	Enquire
740	707167	RIVET-4.65 x9.8 BLND	707167 RIVET-4.65 x9.8 BLND	-	16	Enquire
750	RY533A097BA	OTBD TBRD MNTG BRK R	RY533A097BA OTBD TBRD MNTG BRK R LHD	-	1	Enquire
751	RY533A097AA	OTBD TBRD MNTG BRK R	RY533A097AA OTBD TBRD MNTG BRK R RHD	-	1	Enquire
760	RY535A326BA	INBD TBRD MNTG BRK R	RY535A326BA INBD TBRD MNTG BRK R LHD	-	1	Enquire
761	RY535A326AA	INBD TBRD MNTG BRK R	RY535A326AA INBD TBRD MNTG BRK R RHD	-	1	Enquire
770	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	11	Enquire
780	KY53L5A367AA	CLSR RR SBFRM MNT LH	KY53L5A367AA CLSR RR SBFRM MNT LH	-	1	Enquire
790	KY53L5A366AA	CLSR RR SBFRM MNT RH	KY53L5A366AA CLSR RR SBFRM MNT RH	-	1	Enquire
800	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	10	Enquire
810	RY53L28143AA	PNL B PLR CVR LH	RY53L28143AA PNL B PLR CVR LH Cat A	-	1	Enquire
820	RY53L28142AA	PNL B PLR CVR RH	RY53L28142AA PNL B PLR CVR RH Cat A	-	1	Enquire
830	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	10	Enquire
840	KY53L279A55AC	PNL QTR WHLHS CLR LH	KY53L279A55AC PNL QTR WHLHS CLR LH	-	1	Enquire
850	KY53L279A54AC	PNL QTR WHLHS CLR RH	KY53L279A54AC PNL QTR WHLHS CLR RH	-	1	Enquire
860	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	4	Enquire
870	KY53L21763AB	BRKT ROOF MECH SUPTL	KY53L21763AB BRKT ROOF MECH SUPTL	-	1	Enquire
880	KY53L21762AB	BRKT ROOF MECH SUPTR	KY53L21762AB BRKT ROOF MECH SUPTR	-	1	Enquire
890	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
900	KY53L111D38AB	RR BLKHD CLR PNL	KY53L111D38AB RR BLKHD CLR PNL	-	1	Enquire
910	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	12	Enquire
920	KY53L114B10AC	REINF ISO TTHR MNTG	KY53L114B10AC REINF ISO TTHR MNTG	-	2	Enquire
930	705355	Bolt, M10 x 25	705355 Bolt, M10 x 25	-	2	Enquire
940	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	4	Enquire
950	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
960	KY53L501A33AA	TONN BSTP BRKT OTR	KY53L501A33AA TONN BSTP BRKT OTR	-	2	Enquire
970	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
980	KY53L501A32AA	TONN BSTP BRKT INR	KY53L501A32AA TONN BSTP BRKT INR	-	1	Enquire
990	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
1000	KY53L41037AC	PNL RR QTR INFLL LH	KY53L41037AC PNL RR QTR INFLL LH Cat A	-	1	Enquire
1010	KY53L41036AC	PNL RR QTR INFLL RH	KY53L41036AC PNL RR QTR INFLL RH Cat A	-	1	Enquire
1020	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	6	Enquire
1030	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	4	Enquire
1040	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
1050	KY53L21760AA	CFLP BSTP BRKT CONV	KY53L21760AA CFLP BSTP BRKT CONV	-	2	Enquire
1060	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
1070	KY53611B34AA	SPACER ST BLT PRT	KY53611B34AA SPACER ST BLT PRT	-	2	Enquire
1080	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	2	Enquire
1090	RY5316A989AC	ASY BRA FRT CRS	RY5316A989AC ASY BRA FRT CRS	-	1	Enquire
1100	HY53N090307AB	BOLT M8X24.5 HEX FLN	HY53N090307AB BOLT M8X24.5 HEX FLN	-	7	Enquire
1110	AD4311027AA	GROMMET 24.50 HOLE	AD4311027AA GROMMET 24.50 HOLE	-	2	Enquire
1120	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	2	Enquire
1200	HY5347124AG	PANEL TRUNK FLOOR	HY5347124AG PANEL TRUNK FLOOR Cat A. -> 24MY	-	1	Enquire
1201	904930	FLEX. RAFFR. SOSP. ANT. DX	904930 FLEX. RAFFR. SOSP. ANT. DX Cat A. 25MY->	-	1	Enquire
1210	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	8	Enquire
1220	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	4	Enquire
1230	KY53L45108AJ	ASSY TRUNK LID SURRD	KY53L45108AJ ASSY TRUNK LID SURRD Cat A	-	1	Enquire
1240	HY5317F035AF	ASSY CRSH/CAN RR LH	HY5317F035AF ASSY CRSH/CAN RR LH	-	1	Enquire
1250	HY5317F034AF	ASY CRSH/CN RR RH	HY5317F034AF ASY CRSH/CN RR RH	-	1	Enquire
1260	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	8	Enquire
1270	HY535F046AB	NTPLT M8 CRSHCN INR	HY535F046AB NTPLT M8 CRSHCN INR	-	2	Enquire
1280	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
1290	KY5342853AA	HINGE SPACER	KY5342853AA HINGE SPACER	-	6	Enquire
1291	KY5342853BA	HINGE SPACER	KY5342853BA HINGE SPACER	-	6	Enquire
1292	KY5342853CA	HINGE SPACER	KY5342853CA HINGE SPACER	-	6	Enquire
1300	KY539348AA	SEALING FOAM RG WSHR	KY539348AA SEALING FOAM RG WSHR	-	6	Enquire
1310	MY63205196AB	TLS DRAIN PLUG	MY63205196AB TLS DRAIN PLUG	-	1	Enquire
1320	HY5313263CA	RR LMP SPRT OTR LH	HY5313263CA RR LMP SPRT OTR LH	-	1	Enquire
1330	HY5313262CA	RR LMP SPRT OTR RH	HY5313262CA RR LMP SPRT OTR RH	-	1	Enquire
1340	HY5313266BA	EXT RR LMP INFILL SP	HY5313266BA EXT RR LMP INFILL SP	-	2	Enquire
1350	HY5313268CA	CLAMP PLATFORM	HY5313268CA CLAMP PLATFORM	-	4	Enquire
1360	HY5313267BA	ROTATION PLATFORM	HY5313267BA ROTATION PLATFORM	-	2	Enquire
1370	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	2	Enquire
1380	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
1390	707004	BOLT & WSHR M6x16 HX	707004 BOLT & WSHR M6x16 HX	-	10	Enquire
1400	KY53247B63AA	REINF DCKLID GAS STR	KY53247B63AA REINF DCKLID GAS STR	-	1	Enquire
1410	KY53247B62AA	REINF DCKLID GAS STR	KY53247B62AA REINF DCKLID GAS STR	-	1	Enquire
1420	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	4	Enquire
1430	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
1440	CD3343422BA	M8X21 BLK WASHER	CD3343422BA M8X21 BLK WASHER	-	2	Enquire
1450	RY53L41039AA	PNL RR QTR INR LH	RY53L41039AA PNL RR QTR INR LH Cat A	-	1	Enquire
1460	RY53L41038AA	PNL RR QTR INR RH	RY53L41038AA PNL RR QTR INR RH Cat A	-	1	Enquire
1470	RY53L10515AA	PNL TRUNK CLSR LH	RY53L10515AA PNL TRUNK CLSR LH Cat A	-	1	Enquire
1480	KY53L10514AE	PNL TRUNK CLSR RH	KY53L10514AE PNL TRUNK CLSR RH Cat A	-	1	Enquire
1490	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	4	Enquire
1500	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	6	Enquire
1600	RY5317F033AC	ARM FRONT BMPR	RY5317F033AC ARM FRONT BMPR RoW	-	1	Enquire
1610	RY5317F033BC	ARM FRONT BMPR	RY5317F033BC ARM FRONT BMPR Federal	-	1	Enquire
1620	RY5317F033CC	ARM FRONT BMPR	RY5317F033CC ARM FRONT BMPR China, GCC, South Korea	-	1	Enquire
1630	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
1640	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
1650	RY5317770AC	ARM FRT BMPR UPR	RY5317770AC ARM FRT BMPR UPR	-	1	Enquire
1660	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
1670	CD3343422BA	M8X21 BLK WASHER	CD3343422BA M8X21 BLK WASHER	-	4	Enquire
1680	RY5317E937BA	CORNER OVERRIDER	RY5317E937BA CORNER OVERRIDER Federal, China, GCC,South Korea	-	1	Enquire
1690	RY5317E936BA	CORNER OVERRIDER	RY5317E936BA CORNER OVERRIDER Federal, China, GCC,South Korea	-	1	Enquire
1700	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
1710	KY7316E170BB	STRT FRNT END BLSTR	KY7316E170BB STRT FRNT END BLSTR Federal	-	1	Enquire
1720	HY5316E146CA	BOLSTER STUD FED	HY5316E146CA BOLSTER STUD FED Federal	-	4	Enquire
1730	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
1740	HY5317B804BA	RECOVERY EYE	HY5317B804BA RECOVERY EYE	-	1	Enquire
1800	HY5317758AG	ARM RR BUMPER ROW	HY5317758AG ARM RR BUMPER ROW RoW	-	1	Enquire
1810	KY7317758CD	ARM REAR BUMPR CHINA	KY7317758CD ARM REAR BUMPR CHINA China, GCC, South Korea	-	1	Enquire
1820	KY7317758BE	ARM RR BUMPER FED	KY7317758BE ARM RR BUMPER FED Federal	-	1	Enquire
1830	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	6	Enquire
1840	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
