Interior Trim - Rear Cabin - Coupe of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Interior Trim - Rear Cabin - Coupe

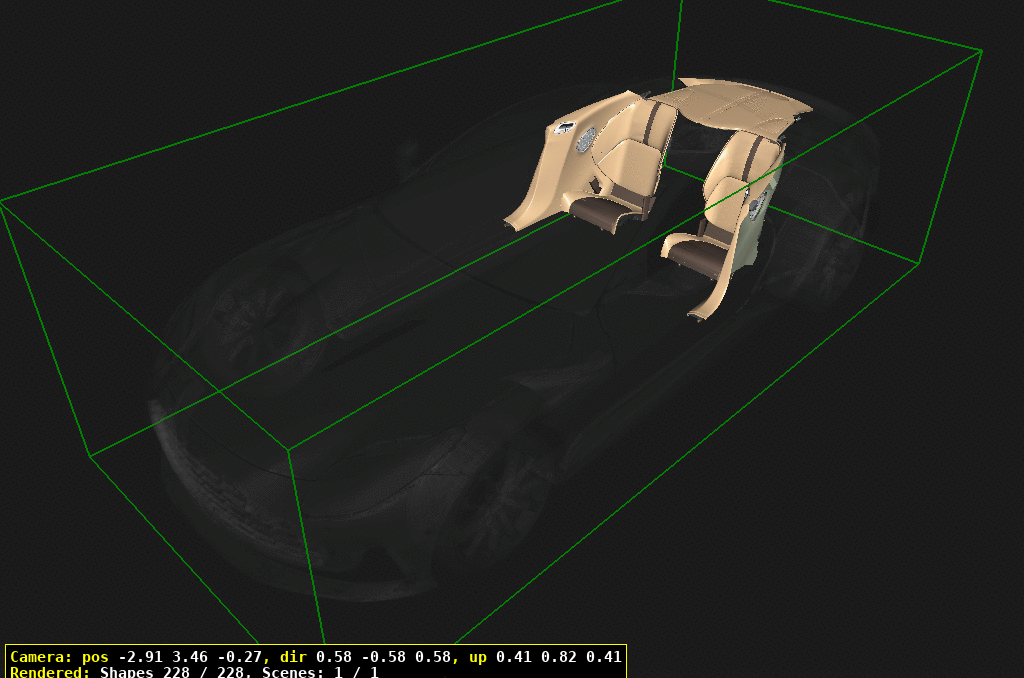

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY5331013ADW	PNL ASY BDY SD TM LH	RY5331013ADW PNL ASY BDY SD TM LH Haircell with Base Audio,includes item 40/41	-	1	Enquire
21	RY5331013EDW	PNL ASY BDY SD TM LH	RY5331013EDW PNL ASY BDY SD TM LH Semi Aniline with BaseAudio, includes item40/41	-	1	Enquire
22	907919	MANICOTTO MANDATA ANTERIORE	907919 MANICOTTO MANDATA ANTERIORE Haircell with B&O Audio,includes item 40/41	-	1	Enquire
23	RY53312A33EBW	PNL ASY BDY SD TM LH	RY53312A33EBW PNL ASY BDY SD TM LH Semi Aniline with B&OAudio, includes item40/41	-	1	Enquire
30	RY5331012ADW	PNL ASY BDY SD TM RH	RY5331012ADW PNL ASY BDY SD TM RH Haircell with Base Audio,includes item 40/41	-	1	Enquire
31	RY5331012EDW	PNL ASY BDY SD TM RH	RY5331012EDW PNL ASY BDY SD TM RH Semi Aniline with BaseAudio, includes item40/41	-	1	Enquire
32	908976	TUBAZIONE MANDATA H2O ANT	908976 TUBAZIONE MANDATA H2O ANT Haircell with B&O Audio,includes item 40/41	-	1	Enquire
33	RY53312A32EBW	PNL ASY BDY SD TM RH	RY53312A32EBW PNL ASY BDY SD TM RH Semi Aniline with B&OAudio, includes item40/41	-	1	Enquire
40	RY5340A580AB	RR QTR SPKR GRILLE-A	RY5340A580AB RR QTR SPKR GRILLE-A Base Audio, Silver	-	2	Enquire
41	RY5340A580BB	RR QTR SPKR GRILLE-	RY5340A580BB RR QTR SPKR GRILLE- Base Audio, Dark Chrome	-	2	Enquire
42	RY5318978AA	SPKR GRL TEARDROP HA	RY5318978AA SPKR GRL TEARDROP HA Halo Audio, Silver	-	2	Enquire
43	RY5318978BA	SPKR GRL TEARDROP HA	RY5318978BA SPKR GRL TEARDROP HA Halo Audio, Dark Chrome	-	2	Enquire
50	DD3368172AA	Spring Clip	DD3368172AA Spring Clip Included with SpeakerGrille	-	6	Enquire
60	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	8	Enquire
70	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	-	4	Enquire
80	HY53611B93AA	RR QTR SBLT BZL LH	HY53611B93AA RR QTR SBLT BZL LH Satin Silver	-	1	Enquire
81	HY53611B93BA	RR QTR SBLT BZL LH	HY53611B93BA RR QTR SBLT BZL LH Dark Chrome	-	1	Enquire
90	HY53611B92CA	RR QTR BZL RH	HY53611B92CA RR QTR BZL RH Satin Silver	-	1	Enquire
91	HY53611B92FA	RR QTR BZL RH	HY53611B92FA RR QTR BZL RH Dark Chrome	-	1	Enquire
100	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	2	Enquire
101	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	4	Enquire
200	NY5360594AAW	REAR SEAT SQUAB RH	NY5360594AAW REAR SEAT SQUAB RH Haircell	-	1	Enquire
201	SY63120609WB	DUP OWN BRAZIL 25MY	SY63120609WB DUP OWN BRAZIL 25MY Alcantara	-	1	Enquire
202	911031	GUARNIZIONE TIPO OR D.52,07X2,62	911031 GUARNIZIONE TIPO OR D.52,07X2,62 Semi Aniline	-	1	Enquire
203	913511	ALIGNMENT PIN	913511 ALIGNMENT PIN Semi Aniline & Alcantara	-	1	Enquire
210	NY5360032ABW	RR ST PAD ASY RH	NY5360032ABW RR ST PAD ASY RH Haircell	-	1	Enquire
211	SY63120609TB	DUP OWN CZECH 25MY	SY63120609TB DUP OWN CZECH 25MY Alcantara	-	1	Enquire
212	RY5360032EAW	RR ST PAD ASY RH	RY5360032EAW RR ST PAD ASY RH Semi Aniline	-	1	Enquire
213	RY5360032FAW	RR ST PAD ASY RH	RY5360032FAW RR ST PAD ASY RH Semi Aniline & Alcantara	-	1	Enquire
220	NY5360033AAW	RR ST BACK ASY LH	NY5360033AAW RR ST BACK ASY LH Haircell	-	1	Enquire
221	SY63120609LB	DUP OWN FR CAN 25MY	SY63120609LB DUP OWN FR CAN 25MY Alcantara	-	1	Enquire
222	RY5360033EAW	RR ST BACK ASY LH	RY5360033EAW RR ST BACK ASY LH Semi Aniline	-	1	Enquire
223	RY5360033FAW	RR ST BACK ASY LH	RY5360033FAW RR ST BACK ASY LH Semi Aniline & Alcantara	-	1	Enquire
230	NY5360595AAW	REAR SEAT SQUAB LH	NY5360595AAW REAR SEAT SQUAB LH Haircell	-	1	Enquire
231	SY63120609HB	DUP OWN US 25MY	SY63120609HB DUP OWN US 25MY Alcantara	-	1	Enquire
232	914497	RUBBER PHONE RETAINER MAT	914497 RUBBER PHONE RETAINER MAT Semi Aniline	-	1	Enquire
233	915004	STAFFETTA SEZIONAMENTO TUBAZIONI ANTIEVA	915004 STAFFETTA SEZIONAMENTO TUBAZIONI ANTIEVA Semi Aniline & Alcantara	-	1	Enquire
240	NY5360081AAW	RR ST CSHN ASY LH	NY5360081AAW RR ST CSHN ASY LH Haircell	-	1	Enquire
241	SY63120609GB	DUP OWN ARABIC 25MY	SY63120609GB DUP OWN ARABIC 25MY Alcantara	-	1	Enquire
242	NY5360081EAW	RR ST CSHN ASY LH	NY5360081EAW RR ST CSHN ASY LH Semi Aniline	-	1	Enquire
243	RY5360081FAW	RR ST CSHN ASY LH	RY5360081FAW RR ST CSHN ASY LH Semi Aniline & Alcantara	-	1	Enquire
250	NY5360080ABW	RR ST CSHN ASY RH	NY5360080ABW RR ST CSHN ASY RH Haircell	-	1	Enquire
251	SY63120609FB	DUP OWN JAP 25MY	SY63120609FB DUP OWN JAP 25MY Alcantara	-	1	Enquire
252	NY5360080EBW	RR ST CSHN ASY RH	NY5360080EBW RR ST CSHN ASY RH Semi Aniline	-	1	Enquire
253	RY5360080FAW	RR ST CSHN ASY RH	RY5360080FAW RR ST CSHN ASY RH Semi Aniline & Alcantara	-	1	Enquire
260	SY63120609EB	DUP OWN SPA 25MY	SY63120609EB DUP OWN SPA 25MY Haircell	-	2	Enquire
261	SY63120609DB	DUP OWN ITA 25MY	SY63120609DB DUP OWN ITA 25MY Semi Aniline	-	2	Enquire
270	SY5319A321AB	DB12 25MY OWN ENG	SY5319A321AB DB12 25MY OWN ENG Haircell	-	2	Enquire
271	948418	TUBAZ. RAFFREDDAM. BOBINE SX	948418 TUBAZ. RAFFREDDAM. BOBINE SX Semi Aniline	-	2	Enquire
280	NY5363846AAW	LMB ASY RR ST RH	NY5363846AAW LMB ASY RR ST RH Haircell	-	1	Enquire
281	919784	HEAT EXCHANGER WATER OUTLET PIPE	919784 HEAT EXCHANGER WATER OUTLET PIPE Alcantara	-	1	Enquire
282	NY5363846EAW	LMB ASY RR ST RH	NY5363846EAW LMB ASY RR ST RH Semi Aniline	-	1	Enquire
290	NY5363847AAW	LMB ASY RR ST LH	NY5363847AAW LMB ASY RR ST LH Haircell	-	1	Enquire
291	919981	SPORTELLO CASSETTO PLANCIA OPT PELLE CS	919981 SPORTELLO CASSETTO PLANCIA OPT PELLE CS Alcantara	-	1	Enquire
292	NY5363847EAW	LMB ASY RR ST LH	NY5363847EAW LMB ASY RR ST LH Semi Aniline	-	1	Enquire
300	NY53600E68AAW	ST BK INS ASY	NY53600E68AAW ST BK INS ASY Haircell	-	2	Enquire
301	NY53600E68EAW	ST BK INS ASY	NY53600E68EAW ST BK INS ASY Semi Aniline	-	2	Enquire
310	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	8	Enquire
330	NY5363844AAW	ASY PAD ISOFIX SQB	NY5363844AAW ASY PAD ISOFIX SQB Haircell	-	2	Enquire
331	NY5363844EAW	ASY PAD ISOFIX SQB	NY5363844EAW ASY PAD ISOFIX SQB Semi Aniline	-	2	Enquire
340	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	4	Enquire
350	HY53C31181AA	NVH INT RR QTR LH	HY53C31181AA NVH INT RR QTR LH	-	1	Enquire
360	HY53C31180AA	NVH INT RR QTR RH	HY53C31180AA NVH INT RR QTR RH	-	1	Enquire
370	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	8	Enquire
400	709176	INLAY SMPL-TINT BLUE	709176 INLAY SMPL-TINT BLUE Haircell	-	1	Enquire
401	NY5346668EAW	PNL ASY PK/TR TRM	NY5346668EAW PNL ASY PK/TR TRM Semi Aniline	-	1	Enquire
402	SY8304652BC	RR UP SPKR GRL HALO	SY8304652BC RR UP SPKR GRL HALO Nappa PVC	-	1	Enquire
410	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	2	Enquire
420	708891	P/SMPL-ARIZONA BRONZ	708891 P/SMPL-ARIZONA BRONZ Haircell	-	2	Enquire
421	NY53666B22EAW	TETHER CVR ASY	NY53666B22EAW TETHER CVR ASY Semi Aniline	-	2	Enquire
422	RY5315691BD	CONVERT ROOF SWITCH	RY5315691BD CONVERT ROOF SWITCH Nappa PVC	-	2	Enquire
430	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	2	Enquire
450	HY5346813ABW	PKG TRY SD PNL LH	HY5346813ABW PKG TRY SD PNL LH	-	1	Enquire
460	HY5346812ABW	PKG TRY SD PNL RH	HY5346812ABW PKG TRY SD PNL RH	-	1	Enquire
470	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE Cut from Roll	-	4	Enquire
480	AG4346660BA	Foam Block	AG4346660BA Foam Block	-	2	Enquire
