Front End of Aston Martin Aston Martin GT DB12 (2024-

View All

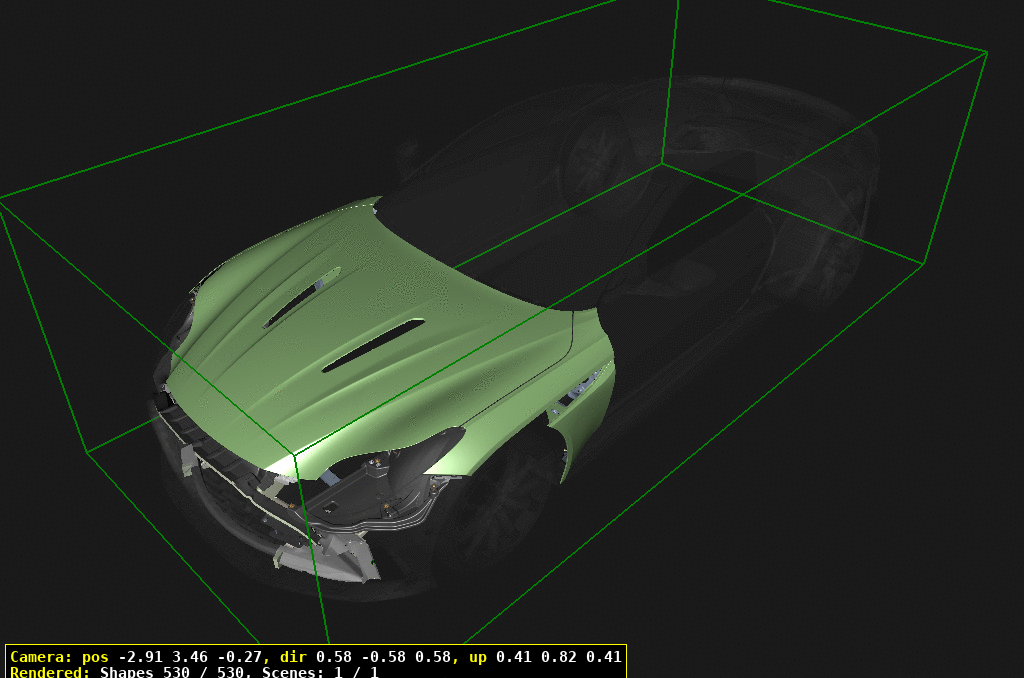

Aston Martin GT DB12 (2024- - Front End

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY53403C52AB	PNL VEN AIR CTR UPR	RY53403C52AB PNL VEN AIR CTR UPR	-	1	Enquire
30	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	4	Enquire
40	RY538211AC	PNL RAD GRL CTR	RY538211AC PNL RAD GRL CTR	-	1	Enquire
50	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	4	Enquire
60	RY538B411AA	GOP SIDE UPPER LH	RY538B411AA GOP SIDE UPPER LH	-	1	Enquire
70	RY538B410AA	GOP SIDE UPPER RH	RY538B410AA GOP SIDE UPPER RH Includes item 80	-	1	Enquire
80	DD3343394AA	PVC GROMMET	DD3343394AA PVC GROMMET	-	1	Enquire
90	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	6	Enquire
100	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	4	Enquire
110	RY538C465AA	AUX RAD DUCT LH	RY538C465AA AUX RAD DUCT LH	-	1	Enquire
120	RY538C464AA	AUX RAD DUCT RH	RY538C464AA AUX RAD DUCT RH	-	1	Enquire
130	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) Pack of 10	-	4	Enquire
140	RY53F01991AA	PNL VEN AIR LH	RY53F01991AA PNL VEN AIR LH	-	1	Enquire
150	RY53F01990AA	PNL VEN AIR RH	RY53F01990AA PNL VEN AIR RH	-	1	Enquire
160	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	6	Enquire
170	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	4	Enquire
180	RY53108K43BB	FRONT SPLITTER BEAM	RY53108K43BB FRONT SPLITTER BEAM	-	1	Enquire
190	KY638662AA	LWR RAD SEAL	KY638662AA LWR RAD SEAL	-	2	Enquire
200	RY5311465AA	UTRAY SPPRT BAR	RY5311465AA UTRAY SPPRT BAR	-	1	Enquire
210	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
220	KY638052AB	RAD SUPT LWR	KY638052AB RAD SUPT LWR Cat A	-	1	Enquire
230	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	4	Enquire
240	KY638B237AB	BRKT RSD SUPT LWR LH	KY638B237AB BRKT RSD SUPT LWR LH	-	1	Enquire
250	KY638B236AB	BRKT RSD SUPT LWR RH	KY638B236AB BRKT RSD SUPT LWR RH	-	1	Enquire
260	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	6	Enquire
270	RY538243AB	PANEL RAD GRILLE LH	RY538243AB PANEL RAD GRILLE LH	-	1	Enquire
280	RY538242AB	PANEL RAD GRILLE RH	RY538242AB PANEL RAD GRILLE RH	-	1	Enquire
290	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
300	RY5316C172AB	LWR FRT SPLTR SUPT	RY5316C172AB LWR FRT SPLTR SUPT	-	2	Enquire
310	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	2	Enquire
320	RY5316389AA	LWR FRT SPLTR BRKT L	RY5316389AA LWR FRT SPLTR BRKT L	-	1	Enquire
330	RY5316388AA	LWR FRT SPLTR BRKT R	RY5316388AA LWR FRT SPLTR BRKT R	-	1	Enquire
340	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	2	Enquire
350	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	4	Enquire
360	RY5317F019AA	SPLTR MNTG BRCKT	RY5317F019AA SPLTR MNTG BRCKT	-	1	Enquire
370	RY5317F018AA	SPLTR MNTG BRCKT	RY5317F018AA SPLTR MNTG BRCKT	-	1	Enquire
380	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
390	RY538B413AA	GOP SIDE LH	RY538B413AA GOP SIDE LH	-	1	Enquire
400	RY538B412AA	GOP SIDE RH	RY538B412AA GOP SIDE RH	-	1	Enquire
410	RY538662AB	INTAKE FOAM LOWER	RY538662AB INTAKE FOAM LOWER	-	2	Enquire
500	RY5316A177CB	FENDER UPPER ASSY LH	RY5316A177CB FENDER UPPER ASSY LH	-	1	Enquire
510	RY5316A176CB	FENDER UPPER ASSY RH	RY5316A176CB FENDER UPPER ASSY RH	-	1	Enquire
520	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	10	Enquire
530	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	2	Enquire
540	KY6315A303BA	STUD-M6x 20/M8 x 20	KY6315A303BA STUD-M6x 20/M8 x 20	-	1	Enquire
550	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	-	2	Enquire
560	7G43143002AA	GROMMET NUT 4.2	7G43143002AA GROMMET NUT 4.2	-	2	Enquire
570	RY5316A304AB	FNDR RR MTNG SHTGN	RY5316A304AB FNDR RR MTNG SHTGN	-	2	Enquire
580	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
590	RY5316N341AB	FENDER REAR MTNG LH	RY5316N341AB FENDER REAR MTNG LH	-	1	Enquire
600	RY5316N340AB	FNDR RR MNTG RH	RY5316N340AB FNDR RR MNTG RH	-	1	Enquire
610	RY5313069CE	FENDER CARRIER LH	RY5313069CE FENDER CARRIER LH Cat A	-	1	Enquire
620	RY5313068CE	FENDER CARRIER RH	RY5313068CE FENDER CARRIER RH Cat A	-	1	Enquire
630	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	6	Enquire
640	706890	BOLT & WSHR M6 x 24	706890 BOLT & WSHR M6 x 24	-	8	Enquire
650	KY63E830821AA	WHSR-25MM X 1.5MM	KY63E830821AA WHSR-25MM X 1.5MM	-	6	Enquire
660	MY8314108AA	WIZZY NUT	MY8314108AA WIZZY NUT	-	6	Enquire
670	RY5316N451AA	FENDER BRACKET	RY5316N451AA FENDER BRACKET	-	4	Enquire
680	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	12	Enquire
690	RY5316F124AA	FENDER BRACKET OUTBO	RY5316F124AA FENDER BRACKET OUTBO	-	2	Enquire
700	RY5316006AB	PNL ASY FRT FNDR LH	RY5316006AB PNL ASY FRT FNDR LH	-	1	Enquire
710	RY5316005AB	PNL ASY FRT FNDR RH	RY5316005AB PNL ASY FRT FNDR RH	-	1	Enquire
720	RY5316A005AA	BRKT FRT FND PLR MNT	RY5316A005AA BRKT FRT FND PLR MNT	-	4	Enquire
730	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
740	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	6	Enquire
750	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	8	Enquire
770	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique	-	2	Enquire
780	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	2	Enquire
790	SY9Y9K729BC	MONOCOQUE ASSY LHD	SY9Y9K729BC MONOCOQUE ASSY LHD	-	4	Enquire
800	AG4332692AA	Washer, M8, Large OD	AG4332692AA Washer, M8, Large OD	-	4	Enquire
810	RY5316A306AA	FEND CARRI TRANS PL	RY5316A306AA FEND CARRI TRANS PL	-	4	Enquire
820	CD3325955AA	SCREW M5 x 12	CD3325955AA SCREW M5 x 12	-	8	Enquire
830	703741	Bolt, M6 x 35	703741 Bolt, M6 x 35	-	2	Enquire
840	697517	WASHER M6 LGE OD BLK	697517 WASHER M6 LGE OD BLK	-	2	Enquire
850	HY5319G465BA	BRKT WSH BOT RET	HY5319G465BA BRKT WSH BOT RET	-	1	Enquire
860	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	1	Enquire
870	RY5316A014AA	WEATHERSTRIP HOOD SL	RY5316A014AA WEATHERSTRIP HOOD SL	-	2	Enquire
900	RY5316612AC	BONNET ASSY	RY5316612AC BONNET ASSY	-	1	Enquire
910	RY6316801AC	HINGE ASSY HOOD LH	RY6316801AC HINGE ASSY HOOD LH	-	1	Enquire
920	RY6316800AC	HINGE ASSY HOOD RH	RY6316800AC HINGE ASSY HOOD RH	-	1	Enquire
930	RY5316C826AB	GAS STRUT HOOD	RY5316C826AB GAS STRUT HOOD	-	2	Enquire
940	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	2	Enquire
950	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
960	RY6318179AA	BRKT GAS STRUT MTG	RY6318179AA BRKT GAS STRUT MTG	-	1	Enquire
970	RY6318178AA	BRKT GAS STRUT MTG	RY6318178AA BRKT GAS STRUT MTG	-	1	Enquire
980	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
990	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
1000	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	-	6	Enquire
1010	RY5316B874AA	BNNT HGE SPPRT	RY5316B874AA BNNT HGE SPPRT	-	2	Enquire
1020	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
1030	91AB16C618AA	STOP - HOOD BUMPER	91AB16C618AA STOP - HOOD BUMPER	-	2	Enquire
1040	MY63J611V46AA	BRACKET BUMPSTOP	MY63J611V46AA BRACKET BUMPSTOP	-	2	Enquire
1050	707643	CAP SCREW M5 x 20-BL	707643 CAP SCREW M5 x 20-BL	-	4	Enquire
