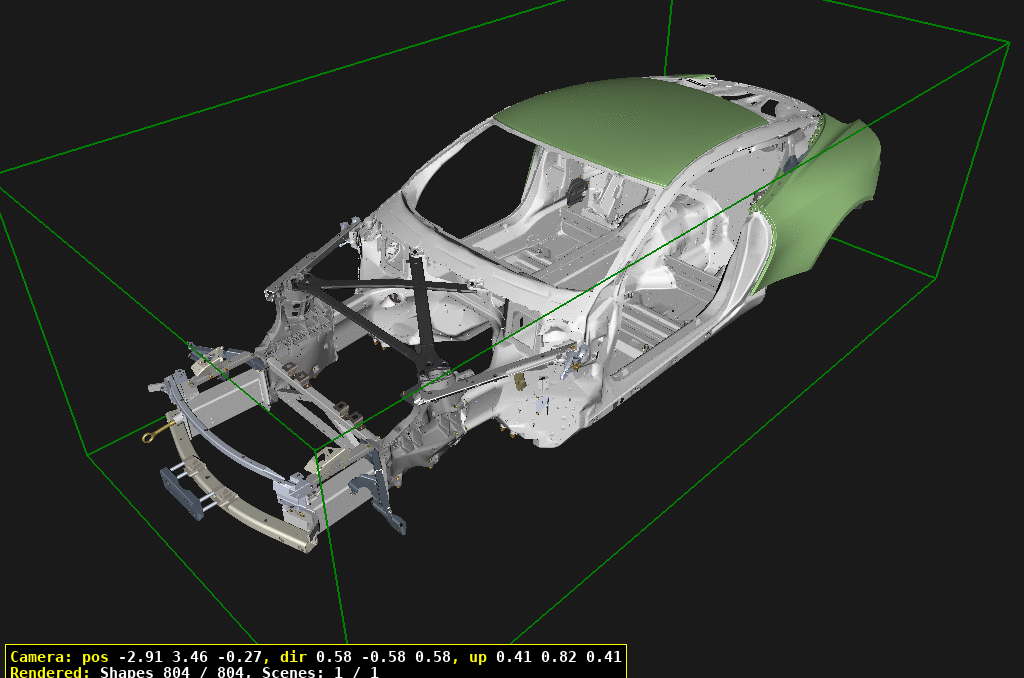

Aston Martin GT DB12 (2024- - Body Structure - Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
1	RY536310239	BODYSHELL-DB12 CPE	RY536310239 BODYSHELL-DB12 CPE Cat A. Less Closures	-	1	Enquire
20	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	10	Enquire
30	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	6	Enquire
40	RY53L101A70AE	CR MBR FRT UPR CONV	RY53L101A70AE CR MBR FRT UPR CONV Cat A	-	1	Enquire
50	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
60	703191	BOLT-M10x1.5x65 FLG CHROME FREE	703191 BOLT-M10x1.5x65 FLG CHROME FREE	-	2	Enquire
70	RY53V17N801AB	FRT CRSH CAN LH	RY53V17N801AB FRT CRSH CAN LH	-	1	Enquire
80	RY53V17N800AD	FRT CRUSH CAN RH	RY53V17N800AD FRT CRUSH CAN RH	-	1	Enquire
90	704440	Screw, M10 x 35	704440 Screw, M10 x 35	-	8	Enquire
100	HY536367912AB	NTPLT FRT CRSH CAN	HY536367912AB NTPLT FRT CRSH CAN	-	2	Enquire
110	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
120	HY53100A05AE	HSNG FRT SUS MNTG LH	HY53100A05AE HSNG FRT SUS MNTG LH Cat A	-	1	Enquire
130	HY53100A04AD	HSNG FRT SUS MNTG RH	HY53100A04AD HSNG FRT SUS MNTG RH Cat A	-	1	Enquire
140	HY53045J72AA	NITTO FOAM GASKET FR	HY53045J72AA NITTO FOAM GASKET FR	-	2	Enquire
150	HY53E802299AA	M12 SHOULDER BOLT	HY53E802299AA M12 SHOULDER BOLT	-	6	Enquire
160	RY5318C607AA	AIRBX MNTG BRKT	RY5318C607AA AIRBX MNTG BRKT	-	2	Enquire
170	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
180	RY5316A682AB	BRKT HD HINGE MNT LH	RY5316A682AB BRKT HD HINGE MNT LH	-	1	Enquire
190	RY5316A681AB	BRKT HD HINGE MNT RH	RY5316A681AB BRKT HD HINGE MNT RH	-	1	Enquire
200	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
210	RY533805AB	BRKT BONNET LTCH LH	RY533805AB BRKT BONNET LTCH LH	-	1	Enquire
220	RY533804AB	BRKT BONNET LTCH RH	RY533804AB BRKT BONNET LTCH RH	-	1	Enquire
230	708353	BOLT-M8x1.25x60 HEX	708353 BOLT-M8x1.25x60 HEX	-	4	Enquire
240	RY5385701AA	CRUSH CAN NUTPLATE	RY5385701AA CRUSH CAN NUTPLATE	-	2	Enquire
250	RY5316A909AA	CRSH CN NTPLT LWR	RY5316A909AA CRSH CN NTPLT LWR	-	2	Enquire
260	RY5313N079AE	ASSY HD/LP SUPT RR	RY5313N079AE ASSY HD/LP SUPT RR	-	1	Enquire
270	RY5313N078AD	ASSY HD/LP SUPT RR	RY5313N078AD ASSY HD/LP SUPT RR	-	1	Enquire
500	KY73C50202AA	ROOF PNL CARB GLOS	KY73C50202AA ROOF PNL CARB GLOS Cat A. Carbon Fibre,Gloss	-	1	Enquire
501	HY53C50202EA	PNL ROOF ALU	HY53C50202EA PNL ROOF ALU Cat A. Aluminium	-	1	Enquire
502	HY53C50202BC	OPT ROOF GLOSS BLACK	HY53C50202BC OPT ROOF GLOSS BLACK Cat A. Gloss Black	-	1	Enquire
510	HY5316740BA	PAD-CHMSL ON RR HDR	HY5316740BA PAD-CHMSL ON RR HDR CHMSL to Rear Header	-	8	Enquire
520	AD4313407AA	FOAM STRIP ROOF	AD4313407AA FOAM STRIP ROOF	-	3	Enquire
530	HY5313407AA	FOAM BLOCK - ROOF	HY5313407AA FOAM BLOCK - ROOF	-	2	Enquire
540	HY53N623361AA	EDGE CLIP	HY53N623361AA EDGE CLIP Fitted to Cantrail	-	2	Enquire
600	RY53C27847AA	PNL BDYSD LH	RY53C27847AA PNL BDYSD LH Cat A.	-	1	Enquire
610	RY53C20010AA	ASSY BODYSIDE RH	RY53C20010AA ASSY BODYSIDE RH Cat A. Includes FuelFiller Bowl	-	1	Enquire
620	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	6	Enquire
640	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5) Pack of 5	-	2	Enquire
650	SY9Y14025BB	FRT DR TR LINK RHS P	SY9Y14025BB FRT DR TR LINK RHS P	-	1	Enquire
660	6G3303837AA	BUMPON SQUARE BLOCK	6G3303837AA BUMPON SQUARE BLOCK	-	1	Enquire
700	KY63108A75BA	ASY BRA ENG CMPT BLK	KY63108A75BA ASY BRA ENG CMPT BLK Black	-	1	Enquire
710	707497PK	BOLT-M10 x1.5x30(10	707497PK BOLT-M10 x1.5x30(10 Pack of 10. ALWAYSREPLACE. NEVER REUSE	-	8	Enquire
720	RY5316A989AC	ASY BRA FRT CRS	RY5316A989AC ASY BRA FRT CRS	-	1	Enquire
730	HY53N090307AB	BOLT M8X24.5 HEX FLN	HY53N090307AB BOLT M8X24.5 HEX FLN	-	7	Enquire
740	RY53314A92AA	PNL REAR DMPR CVR	RY53314A92AA PNL REAR DMPR CVR	-	1	Enquire
750	707262	NUT & WSHER M5	707262 NUT & WSHER M5	-	2	Enquire
760	703152	SCREW/WSHR M6x20 HEX PILOT CHROME FREE	703152 SCREW/WSHR M6x20 HEX PILOT CHROME FREE	-	10	Enquire
770	HY53111C61AD	PANEL TOE BOARD LH	HY53111C61AD PANEL TOE BOARD LH LHD	-	1	Enquire
771	HY53111C60AD	PANEL TOE BOARD RH	HY53111C60AD PANEL TOE BOARD RH RHD	-	1	Enquire
780	RY53111C60BA	PANEL TOE BOARD RH	RY53111C60BA PANEL TOE BOARD RH LHD	-	1	Enquire
781	RY53111C61BA	PANEL TOE BOARD LH	RY53111C61BA PANEL TOE BOARD LH RHD	-	1	Enquire
790	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
800	RY5328143AA	PNL B PLR CVR LH	RY5328143AA PNL B PLR CVR LH Cat A	-	1	Enquire
810	RY5328142AA	PNL B PLR CVR RH	RY5328142AA PNL B PLR CVR RH Cat A	-	1	Enquire
820	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	12	Enquire
830	RY5316185AD	BR ENG COMPST SD LH	RY5316185AD BR ENG COMPST SD LH	-	1	Enquire
840	RY5316184AD	BR ENG COMPST SD RH	RY5316184AD BR ENG COMPST SD RH	-	1	Enquire
850	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	10	Enquire
860	HY53110023AC	BRACE TUNNEL CENTRE	HY53110023AC BRACE TUNNEL CENTRE	-	1	Enquire
870	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	16	Enquire
880	RY5316807AB	BNT HNGE BRKT	RY5316807AB BNT HNGE BRKT	-	1	Enquire
890	RY5316806AB	BNT HNGE BRKT	RY5316806AB BNT HNGE BRKT	-	1	Enquire
900	708354	BLT &WSHR-M8 x 60	708354 BLT &WSHR-M8 x 60	-	4	Enquire
910	6G3343422AB	WASHER-DECKLID STRIK	6G3343422AB WASHER-DECKLID STRIK	-	6	Enquire
920	707166	BOLT & WSHR-M8 x 30	707166 BOLT & WSHR-M8 x 30	-	2	Enquire
1010	HY535A367AA	CLSR RR DMPR FU LH	HY535A367AA CLSR RR DMPR FU LH	-	1	Enquire
1020	HY535A366AA	CLSR RR DMPR FU RH	HY535A366AA CLSR RR DMPR FU RH	-	1	Enquire
1030	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	10	Enquire
1040	HY53624D19AC	MNTG FRNT SD D LP LH	HY53624D19AC MNTG FRNT SD D LP LH	-	1	Enquire
1050	HY53624D18AC	MNTG FRNT ST D LP RH	HY53624D18AC MNTG FRNT ST D LP RH	-	1	Enquire
1060	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
1070	HY538741AB	CLSR SERV CHNL	HY538741AB CLSR SERV CHNL	-	2	Enquire
1080	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	16	Enquire
1090	KY539F930AC	BRKT O/F HSE MTG	KY539F930AC BRKT O/F HSE MTG	-	1	Enquire
1100	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
1110	JY539G856AA	REINF PRG LINE	JY539G856AA REINF PRG LINE	-	1	Enquire
1120	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	1	Enquire
1130	HY5328611BB	BRKT FRT ST MNTG	HY5328611BB BRKT FRT ST MNTG	-	8	Enquire
1140	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) Pack of 10	-	8	Enquire
1150	HY5310126AC	ASSY BRKT SILL APPLQ	HY5310126AC ASSY BRKT SILL APPLQ	-	8	Enquire
1160	707167	RIVET-4.65 x9.8 BLND	707167 RIVET-4.65 x9.8 BLND	-	16	Enquire
1170	RY533A097BA	OTBD TBRD MNTG BRK R	RY533A097BA OTBD TBRD MNTG BRK R LHD	-	1	Enquire
1171	RY533A097AA	OTBD TBRD MNTG BRK R	RY533A097AA OTBD TBRD MNTG BRK R RHD	-	1	Enquire
1180	RY535A326BA	INBD TBRD MNTG BRK R	RY535A326BA INBD TBRD MNTG BRK R LHD	-	1	Enquire
1181	RY535A326AA	INBD TBRD MNTG BRK R	RY535A326AA INBD TBRD MNTG BRK R RHD	-	1	Enquire
1190	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	11	Enquire
1193	AD4311027AA	GROMMET 24.50 HOLE	AD4311027AA GROMMET 24.50 HOLE	-	2	Enquire
1194	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	2	Enquire
1200	HY5347124AG	PANEL TRUNK FLOOR	HY5347124AG PANEL TRUNK FLOOR Cat A. -> 24MY	-	1	Enquire
1201	904930	FLEX. RAFFR. SOSP. ANT. DX	904930 FLEX. RAFFR. SOSP. ANT. DX Cat A. 25MY->	-	1	Enquire
1210	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	12	Enquire
1220	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	4	Enquire
1230	HY5313263CA	RR LMP SPRT OTR LH	HY5313263CA RR LMP SPRT OTR LH	-	1	Enquire
1240	HY5313262CA	RR LMP SPRT OTR RH	HY5313262CA RR LMP SPRT OTR RH	-	1	Enquire
1250	RY53C10515AB	PNL TRUNK CLSR LH	RY53C10515AB PNL TRUNK CLSR LH Cat A	-	1	Enquire
1260	HY53C10514AB	PNL TRUNK CLSR RH	HY53C10514AB PNL TRUNK CLSR RH Cat A	-	1	Enquire
1270	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	8	Enquire
1280	RY53C41039AA	PNL RR QTR INR LH	RY53C41039AA PNL RR QTR INR LH Cat A. Composite	-	1	Enquire
1290	RY53C41038AB	PNL RR QTR INR RH	RY53C41038AB PNL RR QTR INR RH Cat A. Composite	-	1	Enquire
1300	HY53C45108AG	ASSY TRNK LID SURD	HY53C45108AG ASSY TRNK LID SURD Cat A. Composite.Includes items 1310 &1320	-	1	Enquire
1310	HY5345039AC	HNGE MNTNG LH	HY5345039AC HNGE MNTNG LH	-	1	Enquire
1320	HY5345038AC	HNGE MNTNG RH	HY5345038AC HNGE MNTNG RH	-	1	Enquire
1330	HY5322824AA	PLATE D LID REINF	HY5322824AA PLATE D LID REINF	-	2	Enquire
1340	707004	BOLT & WSHR M6x16 HX	707004 BOLT & WSHR M6x16 HX	-	10	Enquire
1350	HY5317F035AF	ASSY CRSH/CAN RR LH	HY5317F035AF ASSY CRSH/CAN RR LH	-	1	Enquire
1360	HY5317F034AF	ASY CRSH/CN RR RH	HY5317F034AF ASY CRSH/CN RR RH	-	1	Enquire
1370	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	8	Enquire
1380	HY535F046AB	NTPLT M8 CRSHCN INR	HY535F046AB NTPLT M8 CRSHCN INR	-	2	Enquire
1390	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
1400	HY5324443AA	CAP TLS CRNR OUT LH	HY5324443AA CAP TLS CRNR OUT LH Cat A	-	1	Enquire
1410	HY5324442AA	CAP TLS CRNR OUT RH	HY5324442AA CAP TLS CRNR OUT RH Cat A	-	1	Enquire
1420	HY53C42765AC	REINF HINGE MOUNTING	HY53C42765AC REINF HINGE MOUNTING	-	1	Enquire
1430	HY53C42764AC	REINF HINGE MNTNG RH	HY53C42764AC REINF HINGE MNTNG RH	-	1	Enquire
1440	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	4	Enquire
1450	HY5313267BA	ROTATION PLATFORM	HY5313267BA ROTATION PLATFORM	-	2	Enquire
1460	HY5313268CA	CLAMP PLATFORM	HY5313268CA CLAMP PLATFORM	-	4	Enquire
1470	HY5313266BA	EXT RR LMP INFILL SP	HY5313266BA EXT RR LMP INFILL SP	-	2	Enquire
1480	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	2	Enquire
1490	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
1500	RY5317F033AC	ARM FRONT BMPR	RY5317F033AC ARM FRONT BMPR RoW	-	1	Enquire
1510	RY5317F033BC	ARM FRONT BMPR	RY5317F033BC ARM FRONT BMPR Federal	-	1	Enquire
1520	RY5317F033CC	ARM FRONT BMPR	RY5317F033CC ARM FRONT BMPR China, GCC, South Korea	-	1	Enquire
1530	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
1540	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
1550	RY5317770AC	ARM FRT BMPR UPR	RY5317770AC ARM FRT BMPR UPR	-	1	Enquire
1560	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
1570	CD3343422BA	M8X21 BLK WASHER	CD3343422BA M8X21 BLK WASHER	-	4	Enquire
1580	RY5317E937BA	CORNER OVERRIDER	RY5317E937BA CORNER OVERRIDER Federal, China, GCC,South Korea	-	1	Enquire
1590	RY5317E936BA	CORNER OVERRIDER	RY5317E936BA CORNER OVERRIDER Federal, China, GCC,South Korea	-	1	Enquire
1600	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
1610	KY7316E170BB	STRT FRNT END BLSTR	KY7316E170BB STRT FRNT END BLSTR Federal	-	1	Enquire
1620	HY5316E146CA	BOLSTER STUD FED	HY5316E146CA BOLSTER STUD FED Federal	-	4	Enquire
1630	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
1640	HY5317B804BA	RECOVERY EYE	HY5317B804BA RECOVERY EYE	-	1	Enquire
1700	HY5317758AG	ARM RR BUMPER ROW	HY5317758AG ARM RR BUMPER ROW RoW	-	1	Enquire
1710	KY7317758CE	ARM REAR BUMPR CHINA	KY7317758CE ARM REAR BUMPR CHINA China, GCC, South Korea	-	1	Enquire
1720	KY7317758BE	ARM RR BUMPER FED	KY7317758BE ARM RR BUMPER FED Federal	-	1	Enquire
1730	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	6	Enquire
1740	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
