Find Your Part

Interior Trim - Upper - Volante of Aston Martin Aston Martin GT DB12 (2024-

View All

Aston Martin GT DB12 (2024- - Interior Trim - Upper - Volante

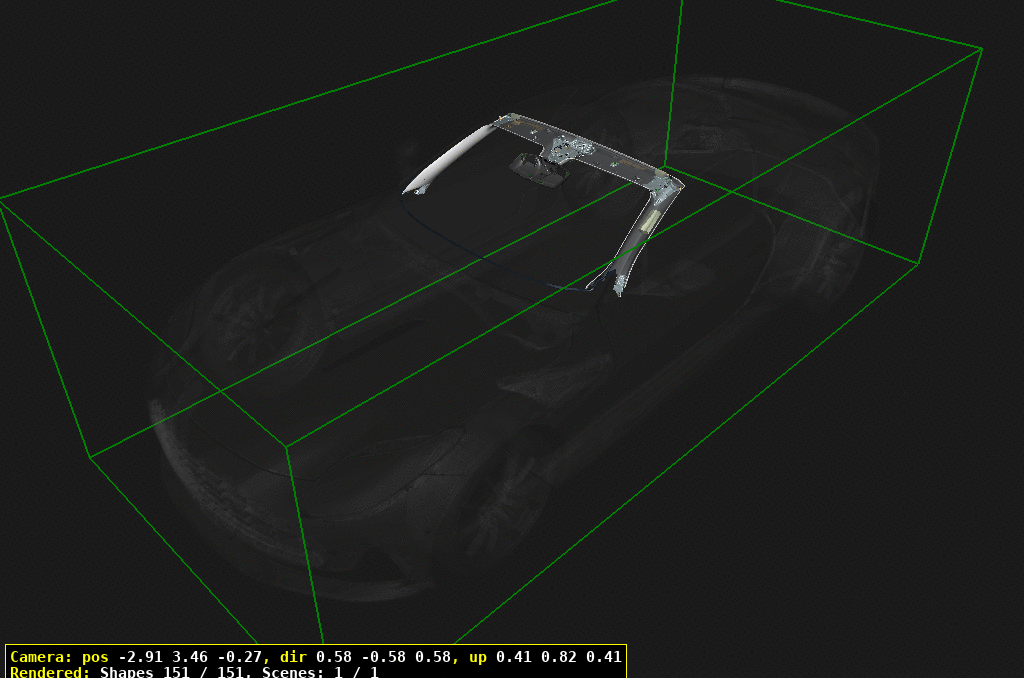

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	RY53L03408BDW	HDR ASSY COMP	RY53L03408BDW HDR ASSY COMP Premium Audio. Includesitems 30-110 & CabinTemperature Sensor. SeeSection 12-00	-	1	Enquire
21	RY53L03408ACW	HDR ASSY COMP	RY53L03408ACW HDR ASSY COMP Base Audio. Includesitems 30-80 & CabinTemperature Sensor. SeeSection 12-00	-	1	Enquire
30	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM ALWAYS REPLACE. DO NOTREUSE	-	2	Enquire
40	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE Cut from Roll	-	4	Enquire
50	HY53103500AA	GASKET	HY53103500AA GASKET	-	2	Enquire
80	RY5319H503AA	HVAC SENSOR BEZEL	RY5319H503AA HVAC SENSOR BEZEL	-	1	Enquire
90	RY5304651BB	FRT HDR TWEETER ASSY	RY5304651BB FRT HDR TWEETER ASSY B&W Audio	-	1	Enquire
100	RY5304650BB	FRT HDR TWEETER ASSY	RY5304650BB FRT HDR TWEETER ASSY B&W Audio	-	1	Enquire
110	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	4	Enquire
120	NY6369321EBW	SUNVISOR ASSY LH	NY6369321EBW SUNVISOR ASSY LH Leather	-	1	Enquire
121	MY6369320DCW	SUNVISOR ASSY RH	MY6369320DCW SUNVISOR ASSY RH Alcantara	-	1	Enquire
130	NY6369320EBW	SUNVISOR ASSY RH	NY6369320EBW SUNVISOR ASSY RH Leather	-	1	Enquire
131	MY6369321DCW	SUNVISOR ASSY LH	MY6369321DCW SUNVISOR ASSY LH Alcantara	-	1	Enquire
140	HY53E805403AC	M5X20 STAINLESS PIL	HY53E805403AC M5X20 STAINLESS PIL	-	4	Enquire
150	702138	SCREW M6x16 PAN INT	702138 SCREW M6x16 PAN INT	-	3	Enquire
160	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
170	MY83SE19G379AA	BEZEL-MICROPHONE	MY83SE19G379AA BEZEL-MICROPHONE	-	1	Enquire
180	RY53519A60AA	MPC CVR	RY53519A60AA MPC CVR Includes item 200	-	1	Enquire
190	RY5317D550AA	MPC HARNESS CVR	RY5317D550AA MPC HARNESS CVR	-	1	Enquire
200	MY8315N402AA	U CLIP SIDE FEATURE	MY8315N402AA U CLIP SIDE FEATURE	-	4	Enquire
300	NY73L025B39AAW	A PLR TRIM ASSY COMP	NY73L025B39AAW A PLR TRIM ASSY COMP	-	1	Enquire
310	NY73L025B38AAW	A PLR TRIM ASSY COMP	NY73L025B38AAW A PLR TRIM ASSY COMP	-	1	Enquire
320	MY8315N402AA	U CLIP SIDE FEATURE	MY8315N402AA U CLIP SIDE FEATURE ALWAYS REPLACE. DO NOTREUSE	-	4	Enquire
330	HY53103500AA	GASKET	HY53103500AA GASKET	-	4	Enquire
340	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	4	Enquire
350	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
360	HY5323020AA	NITTO FOAM STRIP	HY5323020AA NITTO FOAM STRIP	-	1	Enquire
