Aston Martin DBS V12 - Soft Sealing

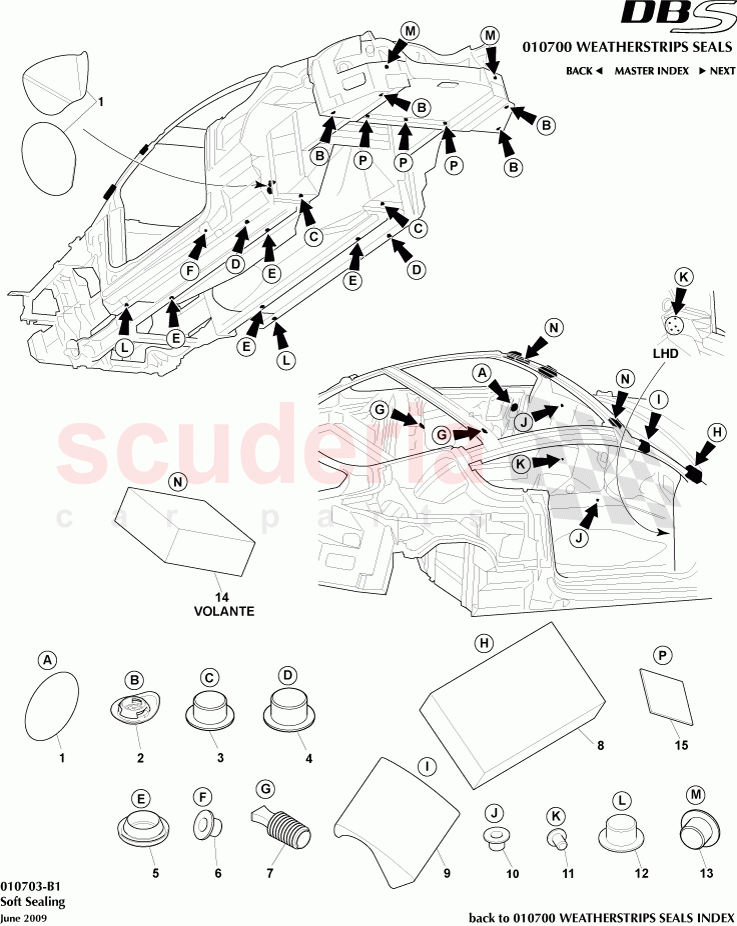

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43L20220AA	Seal Patch, Large 50mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33N804263AA	Rubber Plug, 22mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33N804814AA	Rubber Plug, 24mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432273AA	BLACK TPR BODY PLUG 25mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3325919AA	Rubber Plug, 12mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N805935AA	Flangeless Plug, Black PVC, 17mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F280C09AA	A PILLAR SEALING PRISEAL FOAM BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43026A30AB	Baffle, Front Body Pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33N806457AA	Rubber Plug, 20mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N808070AA	Rubber Plug, 19mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4358863AA	Pad, Header Sealing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43L20220AA	Seal Patch, Large 50mm	4G43L20220AA Seal Patch, Large 50mm	-	4	Enquire
2	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	-	4	Enquire
3	6G33N804263AA	Rubber Plug, 22mm, Black Thermoplastic	6G33N804263AA Rubber Plug, 22mm, Black Thermoplastic	-	2	Enquire
4	6G33N804814AA	Rubber Plug, 24mm, Black Thermoplastic	6G33N804814AA Rubber Plug, 24mm, Black Thermoplastic	-	2	Enquire
5	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm	-	4	Enquire
6	6G3325919AA	Rubber Plug, 12mm, Black Thermoplastic	6G3325919AA Rubber Plug, 12mm, Black Thermoplastic	-	2	Enquire
7	4G43N805935AA	Flangeless Plug, Black PVC, 17mm	4G43N805935AA Flangeless Plug, Black PVC, 17mm	-	4	Enquire
8	4G43F280C09AA	A PILLAR SEALING PRISEAL FOAM BLOCK	4G43F280C09AA A PILLAR SEALING PRISEAL FOAM BLOCK	-	2	Enquire
9	4G43026A30AB	Baffle, Front Body Pillar	4G43026A30AB Baffle, Front Body Pillar	-	2	Enquire
10	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic	-	3	Enquire
11	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic 6 required for LHD	-	3	Enquire
12	6G33N806457AA	Rubber Plug, 20mm, Black Thermoplastic	6G33N806457AA Rubber Plug, 20mm, Black Thermoplastic	-	2	Enquire
13	4G43N808070AA	Rubber Plug, 19mm, Black Thermoplastic	4G43N808070AA Rubber Plug, 19mm, Black Thermoplastic	-	2	Enquire
14	4G4358863AA	Pad, Header Sealing	4G4358863AA Pad, Header Sealing VOLANTE	-	2	Enquire
15	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	3	Enquire
