Ev Body Structure (Volante) (Page 1)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - EV Body Structure (Volante) (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K36AF TUNNEL REINFORCEMENT FRONT Enquire To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G431660AA TUNNEL REINFORCEMENT FRONT SPACER Enquire To Order
Photo Part No Description Price (each) Stock
4G43061B70AA CAP DUST COVER Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre Enquire To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
9G4344210AA SPOILER ASSY REAR Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
4G435340AJ BRACKET ECU MOUNTING RH Enquire To Order
Photo Part No Description Price (each) Stock
4G435341AJ BRACKET ECU MOUNTING LH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
AD43V17N800AC BUMPER FRONT CRASH CAN Enquire To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
8D3313068AB PNL HD/LP MTNG RH Enquire To Order
Photo Part No Description Price (each) Stock
8D3313069AB PNL HD/LP MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH Enquire To Order
Photo Part No Description Price (each) Stock
4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43111C61AE Panel, Dummy Floor Front, RHD Enquire To Order
4G43111C60AD PANEL DUMMY FLOOR FRONT Enquire To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front Enquire To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button Enquire To Order
Photo Part No Description Price (each) Stock
8D33108A86AA BRACKET FRONT CROSS BRACE RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33108A87AA BRACKET FRONT CROSS BRACE LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43108A75AA BRA FRT CS Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive Enquire To Order
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS Enquire To Order
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS Enquire To Order
Photo Part No Description Price (each) Stock
6G33ALR6871AA Screw, M10 x 25 Enquire To Order
Photo Part No Description Price (each) Stock
4G4367518AE PANEL REAR SEAT HEEL BOARD RH Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
7G4310N660AC PANEL BATTERY COVER RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33199901AA NUTPLATE HEAD LAMP BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH Enquire To Order
View All

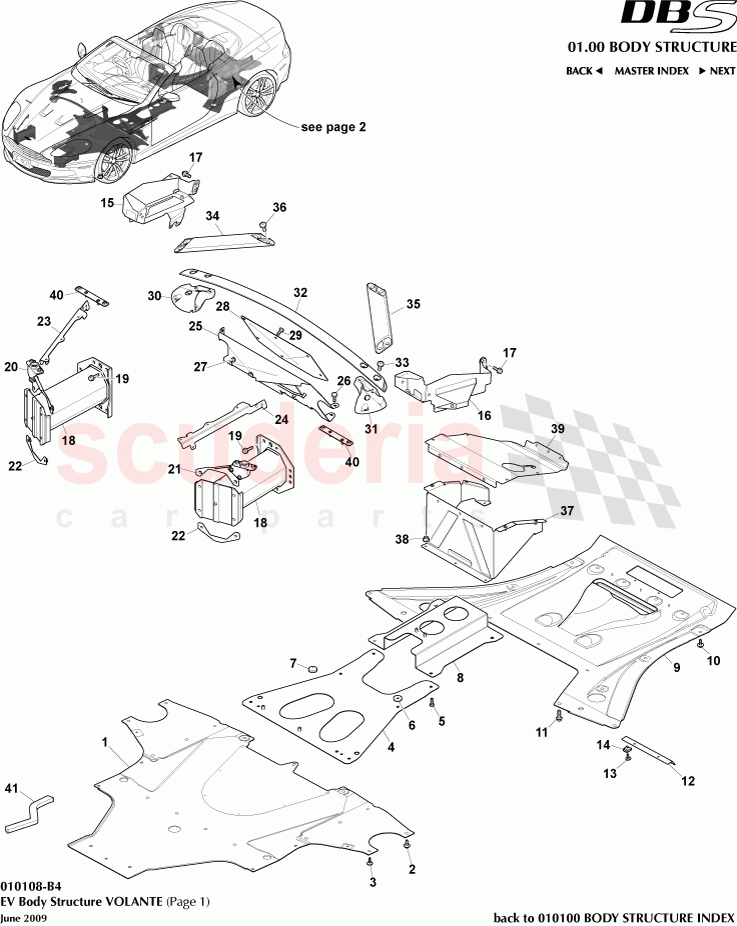

EV Body Structure (Volante) (Page 1) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		- 1 Enquire
2 703268
Screw and Washer, M8 x 21 		- 14 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 2 Enquire
4 4G43111K36AF
TUNNEL REINFORCEMENT FRONT 		- 1 Enquire
5 703172PK
Screw M8 x 25 Pan Head (Pack of 10) 		- 8 Enquire
6 4G431660AA
TUNNEL REINFORCEMENT FRONT SPACER 		- 4 Enquire
7 4G43061B70AA
CAP DUST COVER 		- 2 Enquire
8 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
9 FD33L17C857AB
SHIELD-RR BMPR OPG 		- 1 Enquire
10 703268
Screw and Washer, M8 x 21 		- 17 Enquire
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 2 Enquire
12 9G4344210AA
SPOILER ASSY REAR 		- 1 Enquire
13 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 2 Enquire
14 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
ARRIVING SOON 		- 2 Enquire
15 4G435340AJ
BRACKET ECU MOUNTING RH 		- 1 Enquire
16 4G435341AJ
BRACKET ECU MOUNTING LH 		- 1 Enquire
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
6 per brkt 		- 12 Enquire
18 AD43V17N800AC
BUMPER FRONT CRASH CAN 		- 2 Enquire
19 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can 		- 12 Enquire
20 8D3313068AB
PNL HD/LP MTNG RH 		- 1 Enquire
21 8D3313069AB
PNL HD/LP MNTG LH 		- 1 Enquire
22 4G436367912AD
NUT PLT ASY FRT CRSH 		- 2 Enquire
23 4G43043B19AC
TUBE PASSENGER AIR BAG INITIATPR RH 		- 1 Enquire
24 4G43043B20AC
TUBE PASSENGER AIR BAG INITIATOR LH 		- 1 Enquire
25 4G43111C61AE
Panel, Dummy Floor Front, RHD 		- 1 Enquire
25 4G43111C60AD
PANEL DUMMY FLOOR FRONT 		- 1 Enquire
26 704701
Screw, M6 x 20, Socket Head Button 		- 6 Enquire
27 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 2 Enquire
28 4G43111B48AB
Panel, Dummy Floor Cover, Front 		- 1 Enquire
29 704701
Screw, M6 x 20, Socket Head Button 		- 7 Enquire
30 8D33108A86AA
BRACKET FRONT CROSS BRACE RH 		- 1 Enquire
31 8D33108A87AA
BRACKET FRONT CROSS BRACE LH 		- 1 Enquire
32 4G43108A75AA
BRA FRT CS 		- 1 Enquire
33 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
34 4G432011136
REINF BDY FRT C/BARS 		- 1 Enquire
35 4G432011136
REINF BDY FRT C/BARS 		- 1 Enquire
36 6G33ALR6871AA
Screw, M10 x 25
4 per crush bar 		- 8 Enquire
37 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH 		- 1 Enquire
38 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 2 Enquire
39 7G4310N660AC
PANEL BATTERY COVER RH 		- 1 Enquire
40 8D33199901AA
NUTPLATE HEAD LAMP BRACKET 		- 2 Enquire
41 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		- 1 Enquire
