Body Dash and Cowl (Volante) of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Body Dash and Cowl (Volante)

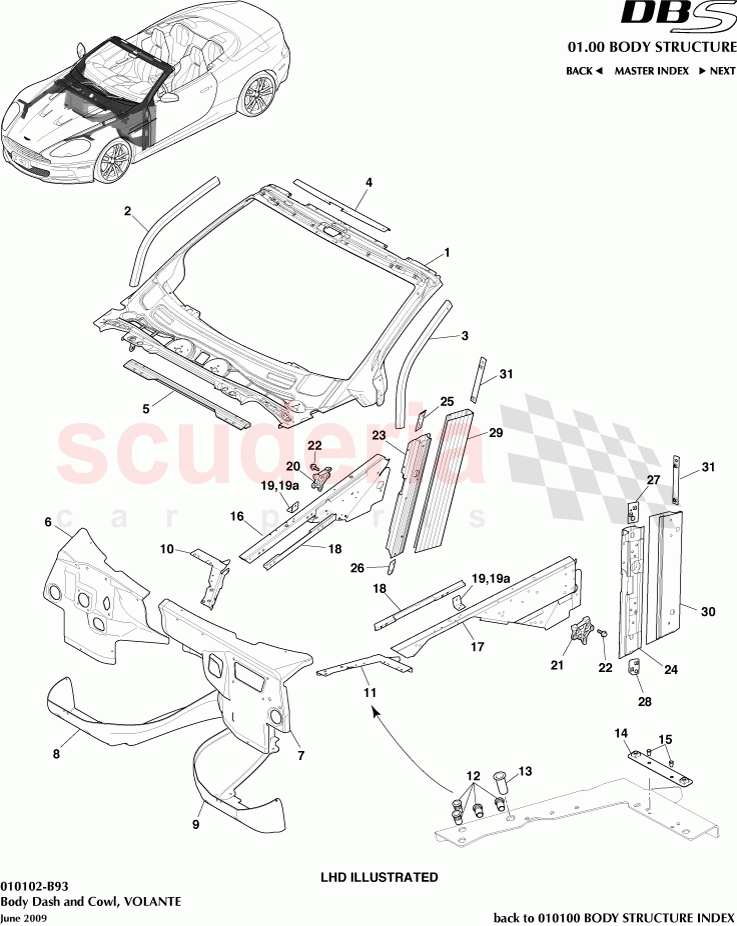

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EG33L03014AB	FR ASY W/SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOGG33F02526AA	REINF FRT BDY PLR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02527AA	Pillar, Front Body Reinforcement, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L03444AB	Reinf Windshield Header	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310414AA	MEMBER FRONT CS AT DH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F01760AB	PANEL DASH UPPER RH	Enquire	To Order
	6G33F01760BB	PANEL DASH UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F01761AB	PANEL DASH UPPER LH	Enquire	To Order
	6G33F01761BB	PANEL DASH UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33F01612AA	Panel, Dash Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33F01613AA	Panel, Dash Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4316430AA	REINF HOOD STRIKER PLATE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4316431AA	REINF HOOD STRIKER PLATE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO6G3317F790AC	NUTPLATE SHOTGUN M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C18178AB	Bracket, Gas Damper Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G4316A681AC	REINF HOOD HNGE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G4316A682AB	RH REINF HOOD HINGE ON BODY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F02660AB	Pillar, front body lower front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F02661AB	Pillar, front body lower front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F02662AC	Extrusion front body pillar lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F02663AC	Extrusion front body pillar lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486226AA	Nutplate, M8, IP beam	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	EG33L03014AB	FR ASY W/SHIELD	EG33L03014AB FR ASY W/SHIELD Structural Cat. A only	-	1	Enquire
2	GOGG33F02526AA	REINF FRT BDY PLR	GOGG33F02526AA REINF FRT BDY PLR Structural Cat. A only	-	1	Enquire
3	GOAG33F02527AA	Pillar, Front Body Reinforcement, LH	GOAG33F02527AA Pillar, Front Body Reinforcement, LH Structural Cat. A only	-	1	Enquire
4	4G43L03444AB	Reinf Windshield Header	4G43L03444AB Reinf Windshield Header Structural Cat. A only	-	1	Enquire
5	AG3310414AA	MEMBER FRONT CS AT DH	AG3310414AA MEMBER FRONT CS AT DH Structural Cat. A only	-	1	Enquire
6	6G33F01760AB	PANEL DASH UPPER RH	6G33F01760AB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
6	6G33F01760BB	PANEL DASH UPPER RH	6G33F01760BB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
7	6G33F01761AB	PANEL DASH UPPER LH	6G33F01761AB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
7	6G33F01761BB	PANEL DASH UPPER LH	6G33F01761BB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
8	BG33F01612AA	Panel, Dash Side, RH	BG33F01612AA Panel, Dash Side, RH Structural Cat. A only	-	1	Enquire
9	BG33F01613AA	Panel, Dash Side, LH	BG33F01613AA Panel, Dash Side, LH Structural Cat. A only	-	1	Enquire
10	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH	-	1	Enquire
11	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH	-	1	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 4 per striker plate, Structural Cat. A only	-	8	Enquire
13	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 1 per striker plate	-	2	Enquire
14	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET Structural Cat. A only	-	2	Enquire
15	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET 2 per nut plate, Structural Cat. A only	-	4	Enquire
16	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 Structural Cat. A only	-	1	Enquire
17	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 Structural Cat. A only	-	1	Enquire
18	GO6G3317F790AC	NUTPLATE SHOTGUN M10	GO6G3317F790AC NUTPLATE SHOTGUN M10 Structural Cat. A only	-	2	Enquire
19	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A only	-	2	Enquire
20	GO8G4316A681AC	REINF HOOD HNGE BODY	GO8G4316A681AC REINF HOOD HNGE BODY Structural Cat. A only	-	1	Enquire
21	GO8G4316A682AB	RH REINF HOOD HINGE ON BODY LH	GO8G4316A682AB RH REINF HOOD HINGE ON BODY LH Structural Cat. A only	-	1	Enquire
22	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm 3 reinf hood hinge, Structural Cat. A only	-	6	Enquire
23	6G33F02660AB	Pillar, front body lower front, RH	6G33F02660AB Pillar, front body lower front, RH Structural Cat. A only	-	1	Enquire
24	6G33F02661AB	Pillar, front body lower front, LH	6G33F02661AB Pillar, front body lower front, LH Structural Cat. A only	-	1	Enquire
25	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A only	-	1	Enquire
26	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural Cat. A only	-	1	Enquire
27	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
28	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
29	6G33F02662AC	Extrusion front body pillar lower, RH	6G33F02662AC Extrusion front body pillar lower, RH Structural Cat. A only	-	1	Enquire
30	6G33F02663AC	Extrusion front body pillar lower, LH	6G33F02663AC Extrusion front body pillar lower, LH Structural Cat. A only	-	1	Enquire
31	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A only	-	2	Enquire
