Body Rear End (Volante) of Aston Martin Aston Martin DBS V12

View All

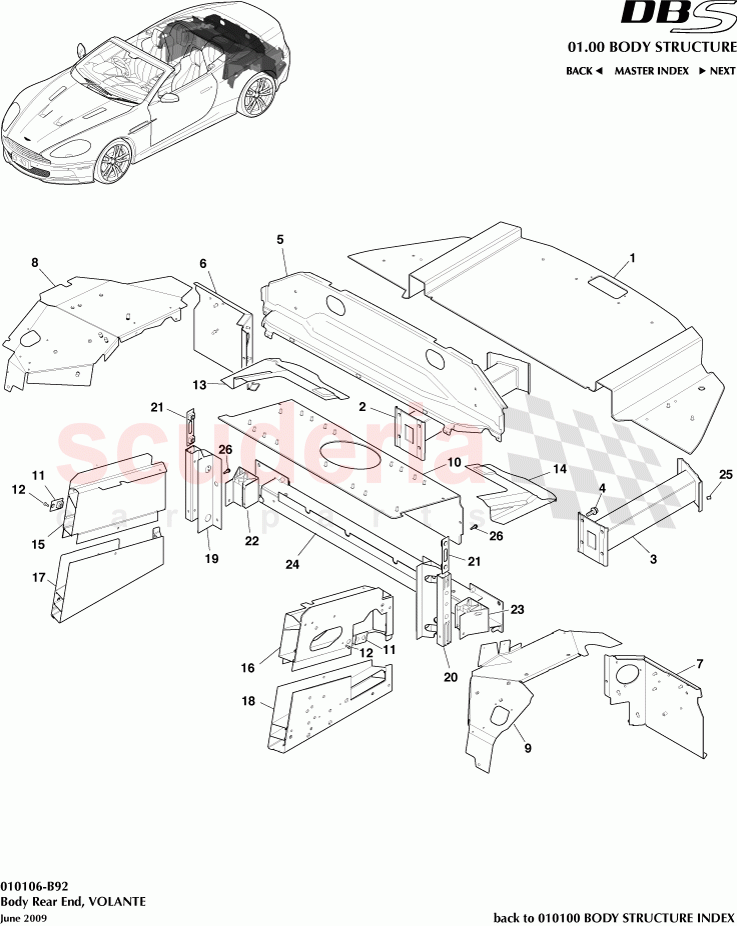

Aston Martin DBS V12 - Body Rear End (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	GG4347124AA	PNL FLOOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F034BA	Absorber, Rear Bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F035BA	Absorber, Rear Bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700115	SCREW M8x25 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L40334GE	Panel, Upper Back, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L10515AD	Panel, Rear Floor Side Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L279A54AB	Panel, quarter wheel housing inner rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L279A55AC	Panel, quarter wheel housing inner rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C278A71GB	Panel, fuel tank compartment, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4324442AA	Cap, centre body pillar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4324443AA	Cap, Centre Body Pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L10282AB	Member floor side upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P09G43L10283AA	Member floor side upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310456AA	Member rear floor side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310457AA	Member rear floor side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P09G335A355AA	Support, sub frame rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P09G335A356AA	Support, sub frame rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4340338AB	Reinforced lower back centre panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	GG4347124AA	PNL FLOOR TRUNK	GG4347124AA PNL FLOOR TRUNK Structural Cat. A only	-	1	Enquire
2	9G4317F034BA	Absorber, Rear Bumper, RH	9G4317F034BA Absorber, Rear Bumper, RH Structural Cat. A only	-	1	Enquire
3	9G4317F035BA	Absorber, Rear Bumper, LH	9G4317F035BA Absorber, Rear Bumper, LH Structural Cat. A only	-	1	Enquire
4	700115	SCREW M8x25 HEX FLG	700115 SCREW M8x25 HEX FLG	-	8	Enquire
5	9G43L40334GE	Panel, Upper Back, Centre	9G43L40334GE Panel, Upper Back, Centre Structural Cat. A only	-	1	Enquire
6	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	9G43L10514AD PANEL REAR FLOOR SIDE OUTER RIGHT HAND Structural Cat. A only	-	1	Enquire
7	9G43L10515AD	Panel, Rear Floor Side Outer LH	9G43L10515AD Panel, Rear Floor Side Outer LH Structural Cat. A only	-	1	Enquire
8	9G43L279A54AB	Panel, quarter wheel housing inner rear, RH	9G43L279A54AB Panel, quarter wheel housing inner rear, RH Structural Cat. A only	-	1	Enquire
9	9G43L279A55AC	Panel, quarter wheel housing inner rear, LH	9G43L279A55AC Panel, quarter wheel housing inner rear, LH Structural Cat. A only	-	1	Enquire
10	8G43C278A71GB	Panel, fuel tank compartment, upper	8G43C278A71GB Panel, fuel tank compartment, upper Structural Cat. A only	-	1	Enquire
11	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	2	Enquire
12	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	2	Enquire
13	9G4324442AA	Cap, centre body pillar, RH	9G4324442AA Cap, centre body pillar, RH Structural Cat. A only	-	1	Enquire
14	9G4324443AA	Cap, Centre Body Pillar, LH	9G4324443AA Cap, Centre Body Pillar, LH Structural Cat. A only	-	1	Enquire
15	9G43L10282AB	Member floor side upper, RH	9G43L10282AB Member floor side upper, RH Structural Cat. A only	-	1	Enquire
16	P09G43L10283AA	Member floor side upper, LH	P09G43L10283AA Member floor side upper, LH Structural Cat. A only	-	1	Enquire
17	9G4310456AA	Member rear floor side, RH	9G4310456AA Member rear floor side, RH Structural Cat. A only	-	1	Enquire
18	9G4310457AA	Member rear floor side, LH	9G4310457AA Member rear floor side, LH Structural Cat. A only	-	1	Enquire
19	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
20	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
21	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
22	P09G335A355AA	Support, sub frame rear, RH	P09G335A355AA Support, sub frame rear, RH Structural Cat. A only	-	1	Enquire
23	P09G335A356AA	Support, sub frame rear, LH	P09G335A356AA Support, sub frame rear, LH Structural Cat. A only	-	1	Enquire
24	8G4340338AB	Reinforced lower back centre panel	8G4340338AB Reinforced lower back centre panel Structural Cat. A only	-	1	Enquire
25	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	-	4	Enquire
26	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head	-	4	Enquire
