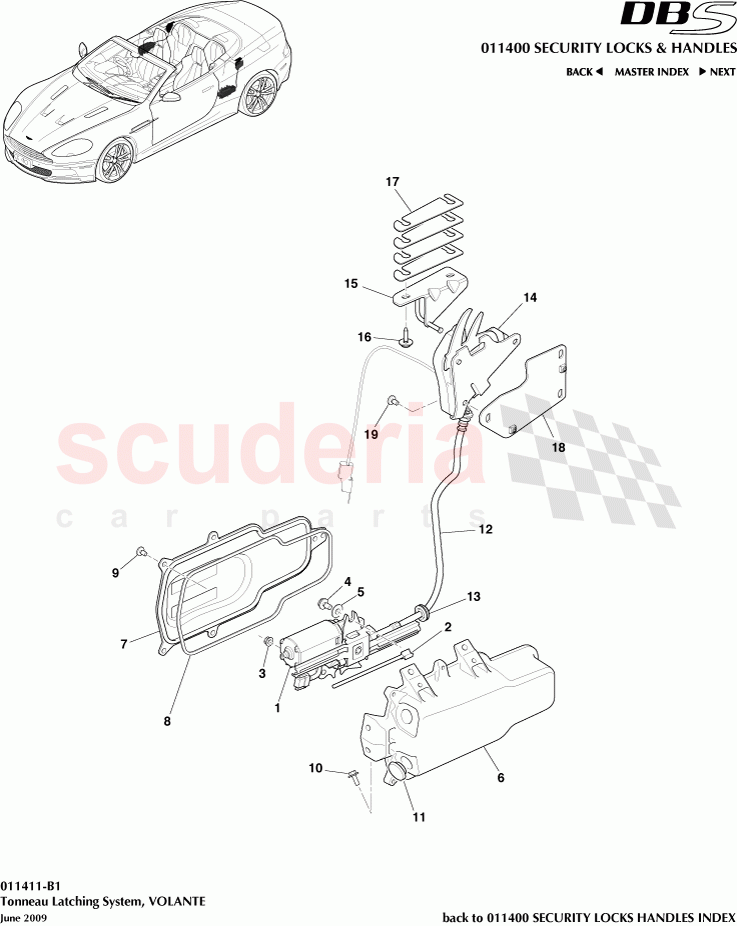

Aston Martin DBS V12 - Tonneau Latching System (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433710477	Motor Tonneau Latch	Enquire	To Order
	4G43239600AA	Tonneau Motor Cable Guide Clip	Enquire	To Order

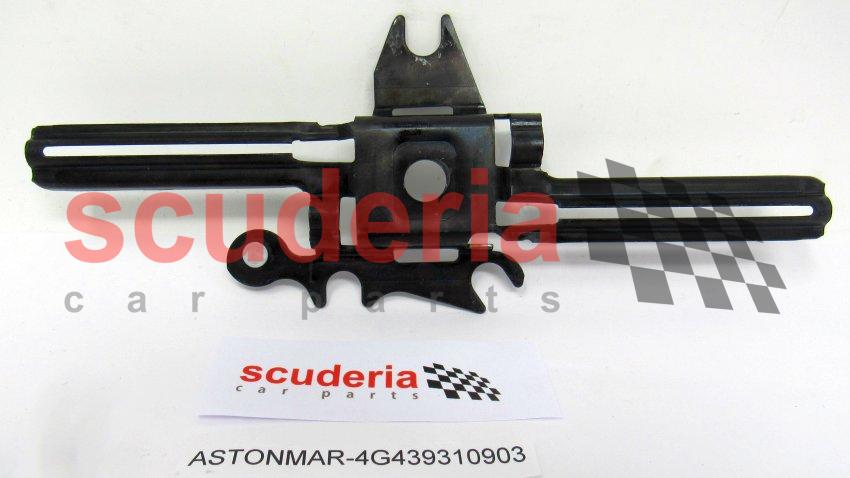

	4G439310903	Cable Guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4353923AA	WORM CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4368009AD	Enclosure, tonneau latch motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4353548AC	Lid, Tonneau Latch Motor Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433956AB	Seal, tonneau latch motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701574	Screw, M6 x 12, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43301347AA	BLACK TPR BODY PLUG 20mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4353922AB	Tonneau Latch Motor Drive Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C691AD	Grommet Sleeve, Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354797AB	Latch, Tonneau, LH	Enquire	To Order
	4G4354796AB	Latch, Tonneau, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4353975AD	STRIKER ASSY TONNEAU COVER LH	Enquire	To Order
	4G4353974AD	STRIKER ASSY TONNEAU COVER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43431F59AC	LOWER TONNEAU STRIKER SHIM 1mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L43161AC	LH TONNEAU LATCH MOUNTING PLATE	Enquire	To Order
	4G43L43160AC	RH TONNEAU LATCH MOUNTING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703143	BUTTON TORX WASHER CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433710477	Motor Tonneau Latch	4G433710477 Motor Tonneau Latch -Cable guide clip required	-	2	Enquire
1	4G43239600AA	Tonneau Motor Cable Guide Clip	4G43239600AA Tonneau Motor Cable Guide Clip -Order with motor	-	2	Enquire
1	4G439310903	Cable Guide	4G439310903 Cable Guide	-	2	Enquire
2	4G4353923AA	WORM CABLE	4G4353923AA WORM CABLE	-	2	Enquire
3	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
4	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	6	Enquire
5	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	6	Enquire
6	4G4368009AD	Enclosure, tonneau latch motor	4G4368009AD Enclosure, tonneau latch motor	-	2	Enquire
7	4G4353548AC	Lid, Tonneau Latch Motor Assy	4G4353548AC Lid, Tonneau Latch Motor Assy	-	2	Enquire
8	4G433956AB	Seal, tonneau latch motor	4G433956AB Seal, tonneau latch motor	-	2	Enquire
9	701574	Screw, M6 x 12, Pan Head	701574 Screw, M6 x 12, Pan Head	-	7	Enquire
10	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	6	Enquire
11	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm	-	2	Enquire
12	4G4353922AB	Tonneau Latch Motor Drive Cable	4G4353922AB Tonneau Latch Motor Drive Cable	-	2	Enquire
13	4G436C691AD	Grommet Sleeve, Cable	4G436C691AD Grommet Sleeve, Cable	-	2	Enquire
14	4G4354797AB	Latch, Tonneau, LH	4G4354797AB Latch, Tonneau, LH	-	1	Enquire
14	4G4354796AB	Latch, Tonneau, RH	4G4354796AB Latch, Tonneau, RH	-	1	Enquire
15	4G4353975AD	STRIKER ASSY TONNEAU COVER LH	4G4353975AD STRIKER ASSY TONNEAU COVER LH	-	1	Enquire
15	4G4353974AD	STRIKER ASSY TONNEAU COVER RH	4G4353974AD STRIKER ASSY TONNEAU COVER RH	-	1	Enquire
16	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	6	Enquire
17	4G43431F59AC	LOWER TONNEAU STRIKER SHIM 1mm	4G43431F59AC LOWER TONNEAU STRIKER SHIM 1mm	-	-	Enquire
18	4G43L43161AC	LH TONNEAU LATCH MOUNTING PLATE	4G43L43161AC LH TONNEAU LATCH MOUNTING PLATE	-	1	Enquire
18	4G43L43160AC	RH TONNEAU LATCH MOUNTING PLATE	4G43L43160AC RH TONNEAU LATCH MOUNTING PLATE	-	1	Enquire
19	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	4	Enquire
