EV Body Structure (Volante) (Page 2)

Find Your Part

Aston Martin DBS V12 - EV Body Structure (Volante) (Page 2)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4338580AF ASSY PANEL FUEL TANK COMPARTMENT LOWER Enquire To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 To Order
Photo Part No Description Price (each) Stock
6G335D022AD BRACKET REAR SUB FRAME STABILISER $68.05 To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder $6.10 To Order
Photo Part No Description Price (each) Stock
6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper $17.74 To Order
Photo Part No Description Price (each) Stock
6G3318A000AD Member, Rear Shock Absorber Mounting, RH $987.42 To Order
Photo Part No Description Price (each) Stock
6G3318A001AD Member, Rear Shock Absorber Mounting, LH $987.42 To Order
Photo Part No Description Price (each) Stock
703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE $11.14 To Order
Photo Part No Description Price (each) Stock
6G3380997AA Nutplate, M12, Rear Damper Mounting, Front $6.83 To Order
Photo Part No Description Price (each) Stock
4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 $16.81 To Order
Photo Part No Description Price (each) Stock
4G434S018AA Bracket, Tonneau Cover Bump Stop Mounting, RH $41.22 To Order
Photo Part No Description Price (each) Stock
4G434S017AA Bracket, Tonneau Cover Bump Stop Mounting, LH $41.22 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
4G43L24556AB Nutplate, Pillar Centre Body Inner Rear $59.94 To Order
Photo Part No Description Price (each) Stock
7G432943707AA Plate, Weld Nut, Centre $6.22 To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH $43.45 To Order
Photo Part No Description Price (each) Stock
9G4328115AA Baffle, Quarter Panel At Wheel, Housing Upper, LH $43.45 To Order
Photo Part No Description Price (each) Stock
703704 Stud, M8 x 13.6+16, Hex Head $10.84 To Order
Photo Part No Description Price (each) Stock
8G43L04702GA PANEL WINDOW REGULATOR OPENING COVER RH $147.09 To Order
Photo Part No Description Price (each) Stock
8G43L04703GA PANEL WINDOW REGULATOR OPENING COVER LH $147.09 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
4G43A410K24AH Panel, Rear Body Pillar Closing, RH $63.63 To Order
Photo Part No Description Price (each) Stock
4G43A410K25AH Panel, Rear Body Pillar Closing, LH $63.63 To Order
Photo Part No Description Price (each) Stock
9G435422AB Se bearing casting, rear quarter, RH $42.38 To Order
Photo Part No Description Price (each) Stock
9G435423AB Se bearing casting, rear quarter, LH $42.38 To Order
Photo Part No Description Price (each) Stock
703704 Stud, M8 x 13.6+16, Hex Head $10.84 To Order
Photo Part No Description Price (each) Stock
9G4328034AB Panel, Rear Quarter Shedder, RH $154.58 To Order
Photo Part No Description Price (each) Stock
9G4328035AB Panel, Rear Quarter Shedder, LH $100.50 To Order
Photo Part No Description Price (each) Stock
4G43303A92AB QTR WINDOW REG MNT BRKT RH $159.94 To Order
Photo Part No Description Price (each) Stock
4G43303A92AB QTR WINDOW REG MNT BRKT RH $159.94 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
9G43507A62AC TONNEAU PUMP COVER PLATE LEFT HAND SIDE $160.48 To Order
Photo Part No Description Price (each) Stock
702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) $5.88 To Order
Photo Part No Description Price (each) Stock
9G43P8K141AB Gasket, Tonneau Pump Closing Panel $11.86 To Order
Photo Part No Description Price (each) Stock
9G43507A63AB Closing plate assy, pump Enquire To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE $0.75 To Order
Photo Part No Description Price (each) Stock
4G43L025C50AB Trough, Front Body Pillar Upper, RH $7.65 To Order
Photo Part No Description Price (each) Stock
4G43L025C51AB Trough, Front Body Pillar Upper, LH $6.99 To Order
Photo Part No Description Price (each) Stock
4G43L234A70AA Alignment pin, main bearing bracket Enquire To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.73 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 To Order
Photo Part No Description Price (each) Stock
4G4314A573AA Plate Assembly, Window Regulator Rear Switch Cover $21.57 To Order
View All

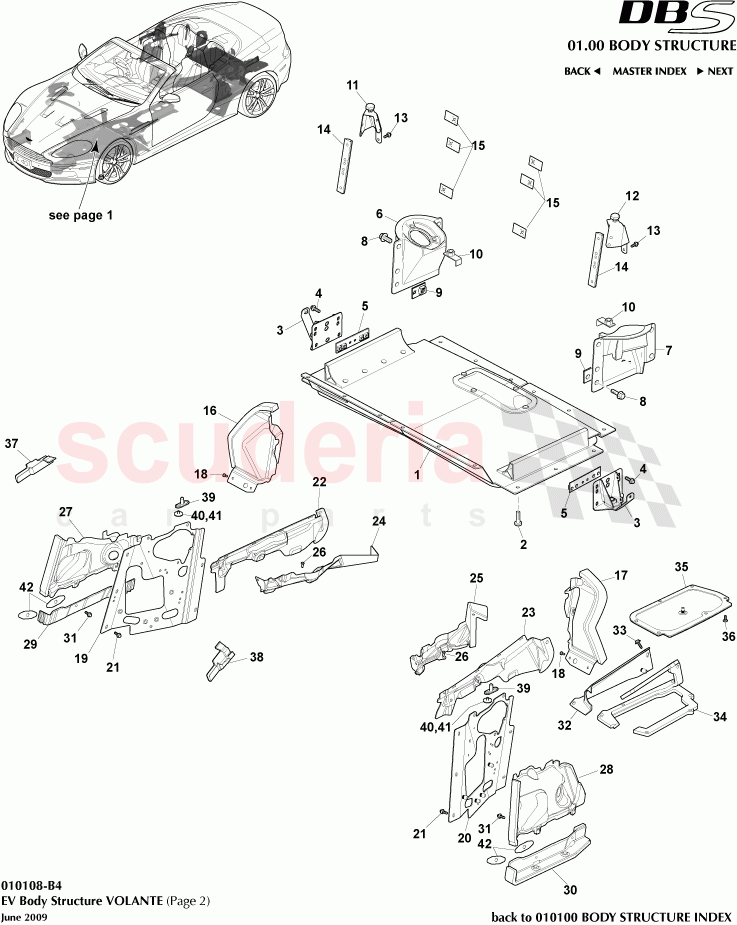

EV Body Structure (Volante) (Page 2) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G4338580AF
ASSY PANEL FUEL TANK COMPARTMENT LOWER 		- 1 Enquire
2 703121
Screw, M8 x 25, Hex Flange Head 		$0.29 18
3 6G335D022AD
BRACKET REAR SUB FRAME STABILISER 		$68.05 2
4 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		$6.10 -
5 6G335N394AB
Nutplate Bracket, Rear Subframe Stabiliser, Upper 		$17.74 2
6 6G3318A000AD
Member, Rear Shock Absorber Mounting, RH 		$987.42 1
7 6G3318A001AD
Member, Rear Shock Absorber Mounting, LH 		$987.42 1
8 703185
M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE
4 per member 		$11.14 8
9 6G3380997AA
Nutplate, M12, Rear Damper Mounting, Front 		$6.83 2
10 4G43501B0AC
NUT PLATE REAR SUB FRAME REAR M14 		$16.81 2
11 4G434S018AA
Bracket, Tonneau Cover Bump Stop Mounting, RH 		$41.22 1
12 4G434S017AA
Bracket, Tonneau Cover Bump Stop Mounting, LH 		$41.22 1
13 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
3 per bkt 		$0.21 6
14 4G43L24556AB
Nutplate, Pillar Centre Body Inner Rear 		$59.94 2
15 7G432943707AA
Plate, Weld Nut, Centre 		$6.22 6
16 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		$43.45 1
17 9G4328115AA
Baffle, Quarter Panel At Wheel, Housing Upper, LH 		$43.45 1
18 703704
Stud, M8 x 13.6+16, Hex Head
3 per panel 		$10.84 6
19 8G43L04702GA
PANEL WINDOW REGULATOR OPENING COVER RH 		$147.09 1
20 8G43L04703GA
PANEL WINDOW REGULATOR OPENING COVER LH 		$147.09 1
21 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
10 per panel 		$0.21 20
22 4G43A410K24AH
Panel, Rear Body Pillar Closing, RH 		$63.63 1
23 4G43A410K25AH
Panel, Rear Body Pillar Closing, LH 		$63.63 1
24 9G435422AB
Se bearing casting, rear quarter, RH 		$42.38 1
25 9G435423AB
Se bearing casting, rear quarter, LH 		$42.38 1
26 703704
Stud, M8 x 13.6+16, Hex Head
3 per panel 		$10.84 6
27 9G4328034AB
Panel, Rear Quarter Shedder, RH 		$154.58 1
28 9G4328035AB
Panel, Rear Quarter Shedder, LH 		$100.50 1
29 4G43303A92AB
QTR WINDOW REG MNT BRKT RH 		$159.94 1
30 4G43303A92AB
QTR WINDOW REG MNT BRKT RH 		$159.94 1
31 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
2 per bkt 		$0.21 4
32 9G43507A62AC
TONNEAU PUMP COVER PLATE LEFT HAND SIDE 		$160.48 1
33 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20) 		$5.88 3
34 9G43P8K141AB
Gasket, Tonneau Pump Closing Panel 		$11.86 1
35 9G43507A63AB
Closing plate assy, pump 		- 1 Enquire
36 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		$0.75 6
37 4G43L025C50AB
Trough, Front Body Pillar Upper, RH 		$7.65 1
38 4G43L025C51AB
Trough, Front Body Pillar Upper, LH 		$6.99 1
39 4G43L234A70AA
Alignment pin, main bearing bracket 		- 2 Enquire
40 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
2 per pin 		$0.73 4
41 703265
Screw, M6 x 16, Hex Flange Head
2 per pin 		$0.36 4
42 4G4314A573AA
Plate Assembly, Window Regulator Rear Switch Cover
2 per regulator 		$21.57 4
