Front Structure of Aston Martin Aston Martin DBS V12

View All

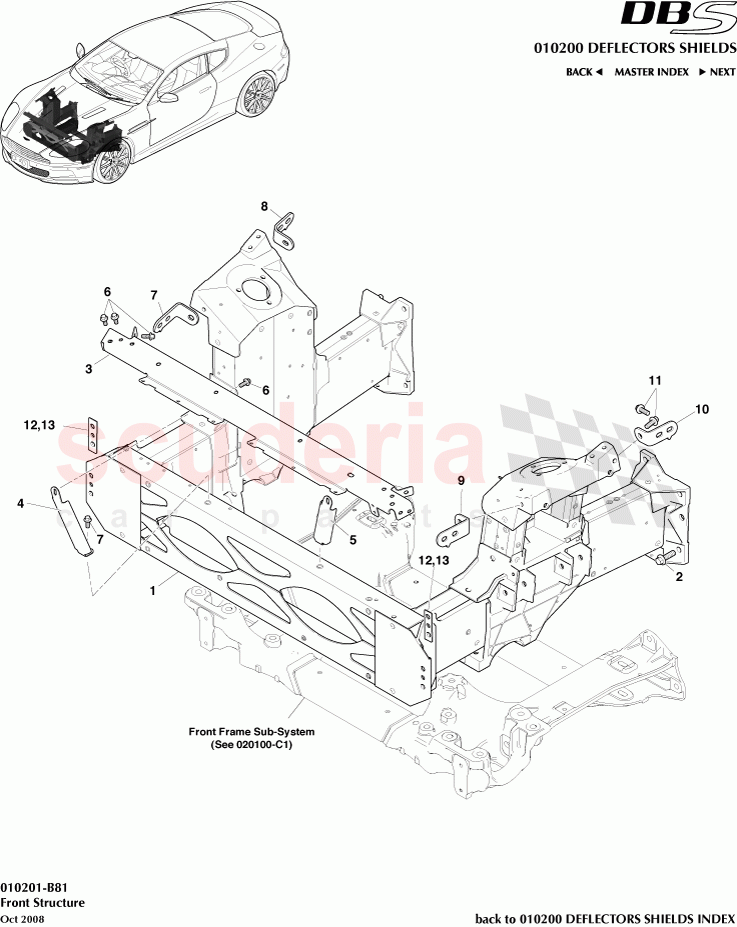

Aston Martin DBS V12 - Front Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G43CSA01GA	Front Structure Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703184	Screw M12 x 40 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G432011479	MBR FRT CS LAT MNTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G4310072AA	Reinforcement, Front Strut Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G4310073AA	REINF FRONT STRUT MOUNTING FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310594AA	Bracket, Front Side Member to Front Suspension Housing, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33103A32AB	Bracket, front s/m, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310595AA	Bracket, Front Side Member to Front Suspension Housing, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33130A33AB	BRACKET FRONT SIDE MEMBER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4371480AC	Nutplate, Front Crush Structure, Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G43CSA01GA	Front Structure Assembly	8G43CSA01GA Front Structure Assembly Chassis plate required, Structrual Cat. A only	-	1	Enquire
2	703184	Screw M12 x 40 Hex Flange Head	703184 Screw M12 x 40 Hex Flange Head	-	20	Enquire
3	8G432011479	MBR FRT CS LAT MNTG	8G432011479 MBR FRT CS LAT MNTG	-	1	Enquire
4	GO8G4310072AA	Reinforcement, Front Strut Mounting, RH	GO8G4310072AA Reinforcement, Front Strut Mounting, RH	-	1	Enquire
5	GO8G4310073AA	REINF FRONT STRUT MOUNTING FRONT LH	GO8G4310073AA REINF FRONT STRUT MOUNTING FRONT LH	-	1	Enquire
6	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	10	Enquire
7	6G3310594AA	Bracket, Front Side Member to Front Suspension Housing, RH	6G3310594AA Bracket, Front Side Member to Front Suspension Housing, RH	-	1	Enquire
8	6G33103A32AB	Bracket, front s/m, RH	6G33103A32AB Bracket, front s/m, RH	-	1	Enquire
9	6G3310595AA	Bracket, Front Side Member to Front Suspension Housing, LH	6G3310595AA Bracket, Front Side Member to Front Suspension Housing, LH	-	1	Enquire
10	6G33130A33AB	BRACKET FRONT SIDE MEMBER LH	6G33130A33AB BRACKET FRONT SIDE MEMBER LH	-	1	Enquire
11	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	-	8	Enquire
12	4G4371480AC	Nutplate, Front Crush Structure, Outer	4G4371480AC Nutplate, Front Crush Structure, Outer	-	2	Enquire
13	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	2	Enquire
