Body Rear End Composite Parts (Volante)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Rear End Composite Parts (Volante)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G43L45108AA TRUNK LID SURROUND Enquire To Order
Photo Part No Description Price (each) Stock
8D33110825AE Panel, Body Side Outer to Tube, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33110824AE Panel, Body Side Outer to Tube, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G432K197AB CA ASY RR WHL BRK QUAD LH Enquire To Order
Photo Part No Description Price (each) Stock
4G432K198AB CA ASY RR WHL BRK QUAD RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43500B31AC TONNEAU LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43500B30AC TONNEAU DRAIN RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43430A47AF Seal, Hinge to Inner Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43430A46AF Seal, Hinge to Inner Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43427A21AD Wipe seal, Tonneau Hinge, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43427A20AD Wipe seal, Tnneau Hinge, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43C42764AG Support Bracket, Decklid Hinge Mounting Enquire To Order
Photo Part No Description Price (each) Stock
4G43L40739BB FILL TL GTPNL LWR CN Enquire To Order
Photo Part No Description Price (each) Stock
4G43L40738BB FILL TL GTPNL LWR CN Enquire To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET Enquire To Order
Photo Part No Description Price (each) Stock
6G33RA610123AA Pop Rivet, Aluminium, 4.8 Enquire To Order
Photo Part No Description Price (each) Stock
703754 RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL Enquire To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET Enquire To Order
Photo Part No Description Price (each) Stock
4G437810814 Fastener Assembly, 6.2x3, 5.8, Push In Enquire To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm Enquire To Order
View All

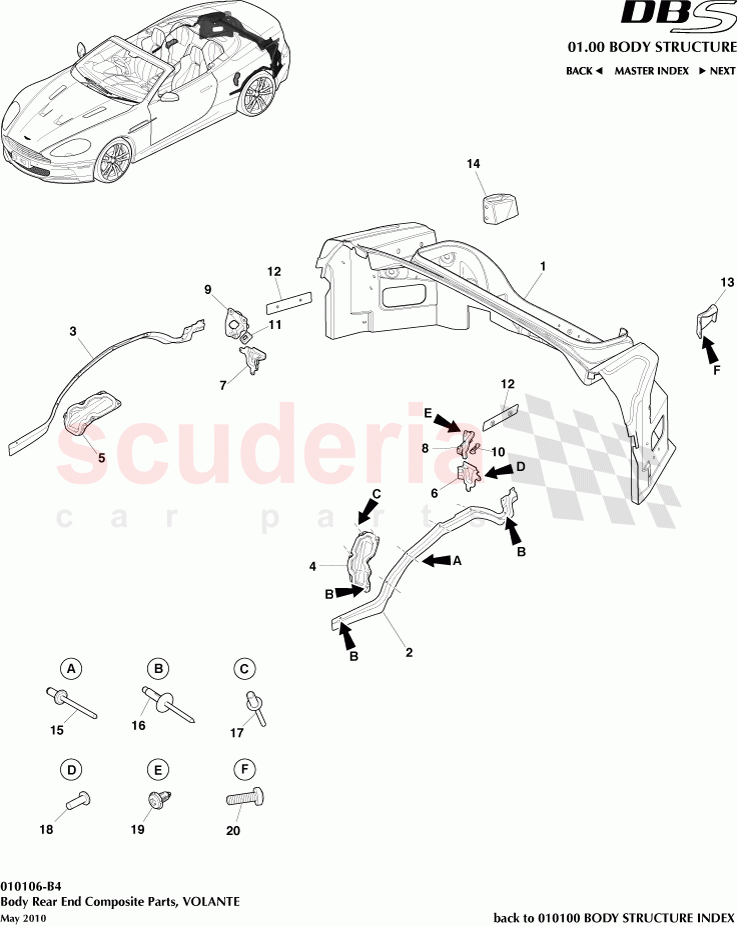

Body Rear End Composite Parts (Volante) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G43L45108AA
TRUNK LID SURROUND
Structural Cat. A only 		- 1 Enquire
2 8D33110825AE
Panel, Body Side Outer to Tube, LH
Structural Cat. A only 		- 1 Enquire
3 8D33110824AE
Panel, Body Side Outer to Tube, RH
Structural Cat. A only 		- 1 Enquire
4 4G432K197AB
CA ASY RR WHL BRK QUAD LH 		- 1 Enquire
5 4G432K198AB
CA ASY RR WHL BRK QUAD RH 		- 1 Enquire
6 4G43500B31AC
TONNEAU LH 		- 1 Enquire
7 4G43500B30AC
TONNEAU DRAIN RH 		- 1 Enquire
8 4G43430A47AF
Seal, Hinge to Inner Panel, LH 		- 1 Enquire
9 4G43430A46AF
Seal, Hinge to Inner Panel, RH 		- 1 Enquire
10 4G43427A21AD
Wipe seal, Tonneau Hinge, LH 		- 1 Enquire
11 4G43427A20AD
Wipe seal, Tnneau Hinge, RH 		- 1 Enquire
12 4G43C42764AG
Support Bracket, Decklid Hinge Mounting 		- 2 Enquire
13 4G43L40739BB
FILL TL GTPNL LWR CN 		- 1 Enquire
14 4G43L40738BB
FILL TL GTPNL LWR CN 		- 1 Enquire
15 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		- 8 Enquire
16 6G33RA610123AA
Pop Rivet, Aluminium, 4.8 		- 4 Enquire
17 703754
RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL 		- 8 Enquire
18 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		- 4 Enquire
19 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In 		- 6 Enquire
20 700607
Screw Hex Flange Head M6 x 16mm 		- 4 Enquire
