Body Side Quarter Trim and Ornamentation (Coupe) of Aston Martin Aston Martin DBS V12

View All

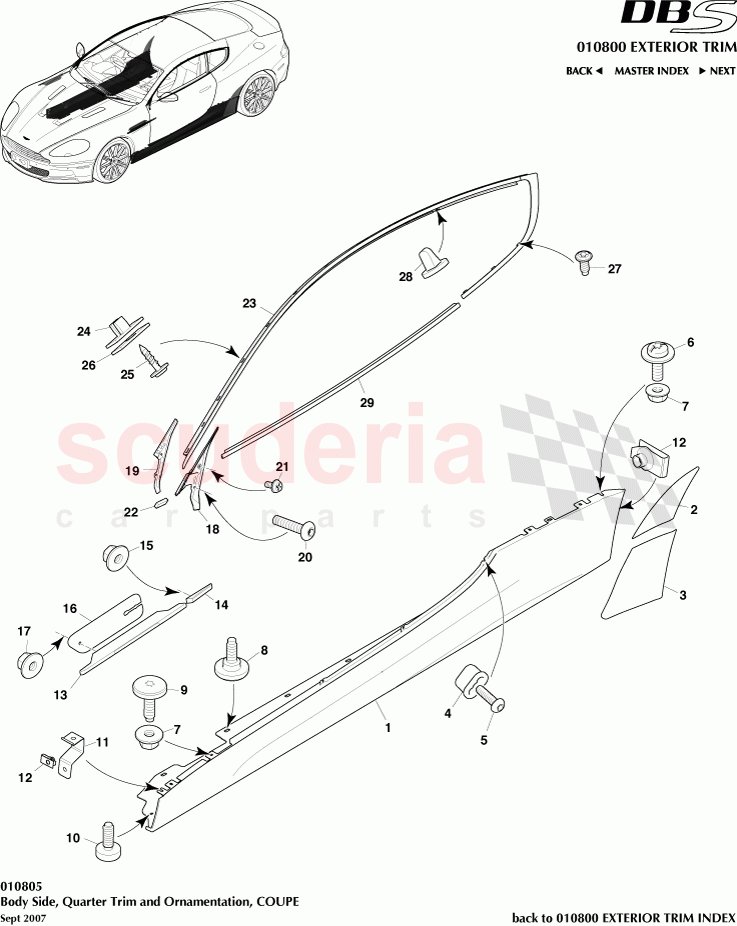

Aston Martin DBS V12 - Body Side Quarter Trim and Ornamentation (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3310609AF	SILL APPLIQUE LH	Enquire	To Order
	8D3310608AF	SILL APPLIQUE RH	Enquire	To Order
	8G435144AA	Spacer, Sill Applique	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310631AB	Tape, Rear quarter, LH	Enquire	To Order
	8D3310630AB	Tape, Rear quarter, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310627AD	SILL REAR TAPE LH	Enquire	To Order
	8D3310626AD	SILL REAR TAPE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4348954AA	SILL ANTI STRIP LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430516BBA	Screw, M6 x 16, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3316586AA	WHEEL ARCH LINER SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	8D33280B63AE	SIDE STRAKE FENDER LH	Enquire	To Order
	8D33280B62AE	SIDE STRAKE FENDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33018K29AC	SIDE STRAKE DOOR LH	Enquire	To Order
	8D33018K28AC	SIDE STRAKE DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD33280B84AA	MESH SIDE STRAKE LH BLACK	Enquire	To Order
	BD33280B83AA	MESH SIDE STRAKE RH BLACK	Enquire	To Order
	8D33280B84AC	MESH SIDE STRAKE LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	Enquire	To Order
	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	Enquire	To Order
	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700235	SCREW 4.2x905 TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C47775BA	ADHESIVE FOAM STRIP ROOF EDGE LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43519A36CF	ROOF FINISHER SIDE	Enquire	To Order
	4G43519A37CF	ROOF FINISHER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43143002AA	GROMMET NUT 4.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G434999AA	Washer, Load Spreading	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701656	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20563BA	Weatherstrip, Front Door Outer, LH	Enquire	To Order
	4G43F20562BA	Weatherstrip, Front Door Outer, RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3310609AF	SILL APPLIQUE LH	8D3310609AF SILL APPLIQUE LH	-	1	Enquire
1	8D3310608AF	SILL APPLIQUE RH	8D3310608AF SILL APPLIQUE RH	-	1	Enquire
1	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique	-	14	Enquire
2	8D3310631AB	Tape, Rear quarter, LH	8D3310631AB Tape, Rear quarter, LH	-	1	Enquire
2	8D3310630AB	Tape, Rear quarter, RH	8D3310630AB Tape, Rear quarter, RH	-	1	Enquire
3	8D3310627AD	SILL REAR TAPE LH	8D3310627AD SILL REAR TAPE LH	-	1	Enquire
3	8D3310626AD	SILL REAR TAPE RH	8D3310626AD SILL REAR TAPE RH	-	1	Enquire
4	4G4348954AA	SILL ANTI STRIP LOCKNUT	4G4348954AA SILL ANTI STRIP LOCKNUT	-	1	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	6	Enquire
6	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	2	Enquire
7	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	4	Enquire
8	701567	Screw, M6 x 16	701567 Screw, M6 x 16	-	14	Enquire
9	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	4	Enquire
10	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	14	Enquire
11	8D3316586AA	WHEEL ARCH LINER SUPPORT BRACKET	8D3316586AA WHEEL ARCH LINER SUPPORT BRACKET	-	2	Enquire
12	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	-	2	Enquire
13	8D33280B63AE	SIDE STRAKE FENDER LH	8D33280B63AE SIDE STRAKE FENDER LH	-	1	Enquire
13	8D33280B62AE	SIDE STRAKE FENDER RH	8D33280B62AE SIDE STRAKE FENDER RH	-	1	Enquire
14	8D33018K29AC	SIDE STRAKE DOOR LH	8D33018K29AC SIDE STRAKE DOOR LH	-	1	Enquire
14	8D33018K28AC	SIDE STRAKE DOOR RH	8D33018K28AC SIDE STRAKE DOOR RH	-	1	Enquire
15	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	4	Enquire
16	BD33280B84AA	MESH SIDE STRAKE LH BLACK	BD33280B84AA MESH SIDE STRAKE LH BLACK Carbon Edition	-	1	Enquire
16	BD33280B83AA	MESH SIDE STRAKE RH BLACK	BD33280B83AA MESH SIDE STRAKE RH BLACK Carbon Edition	-	1	Enquire
16	8D33280B84AC	MESH SIDE STRAKE LH	8D33280B84AC MESH SIDE STRAKE LH	-	1	Enquire
16	8D33280B83AC	MESH SIDE STRAKE RH	8D33280B83AC MESH SIDE STRAKE RH	-	1	Enquire
17	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
18	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH	-	1	Enquire
18	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH	-	1	Enquire
19	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	-	1	Enquire
19	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	-	1	Enquire
20	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head	-	2	Enquire
21	700235	SCREW 4.2x905 TAP	700235 SCREW 4.2x905 TAP	-	2	Enquire
22	4G43C47775BA	ADHESIVE FOAM STRIP ROOF EDGE LOWER	4G43C47775BA ADHESIVE FOAM STRIP ROOF EDGE LOWER	-	2	Enquire
23	4G43519A36CF	ROOF FINISHER SIDE	4G43519A36CF ROOF FINISHER SIDE	-	1	Enquire
23	4G43519A37CF	ROOF FINISHER SIDE	4G43519A37CF ROOF FINISHER SIDE	-	1	Enquire
24	7G43143002AA	GROMMET NUT 4.2	7G43143002AA GROMMET NUT 4.2	-	26	Enquire
26	8G434999AA	Washer, Load Spreading	8G434999AA Washer, Load Spreading	-	16	Enquire
27	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10)	-	8	Enquire
28	701656	RETAINER	701656 RETAINER	-	36	Enquire
29	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH	-	1	Enquire
29	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH	-	1	Enquire
