Underbody of Aston Martin Aston Martin DBS V12

View All

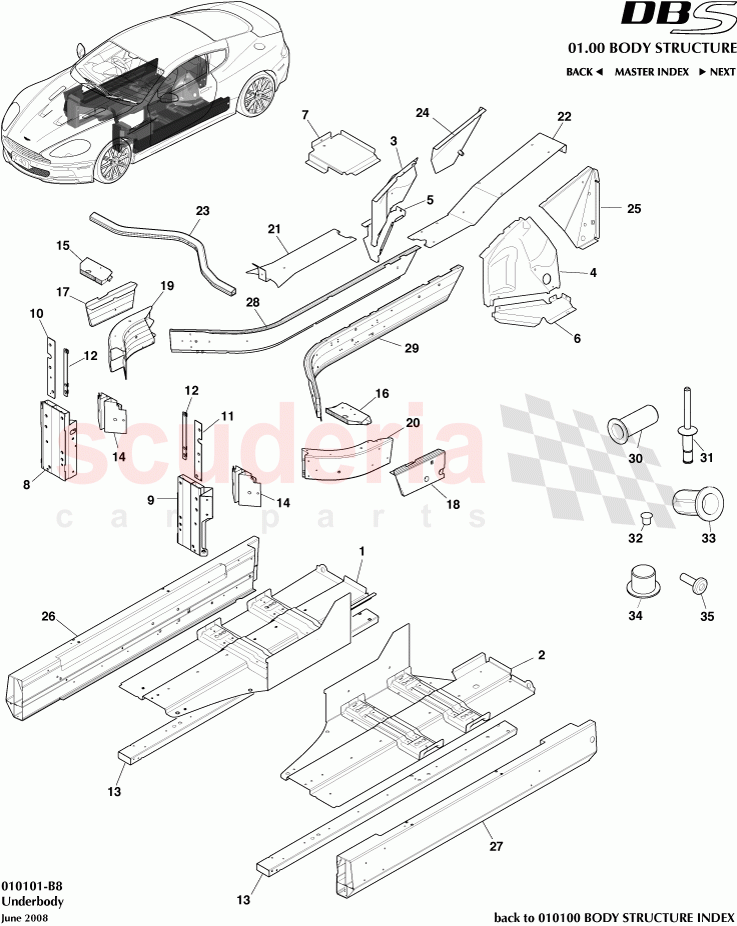

Aston Martin DBS V12 - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G431610879S	Panel assy, floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD3311141AC	PANEL FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313058AB	TUNNEL REAR SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4313059AB	TUNNEL REAR SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310120AA	MEMBER FLOOR SIDE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F001K28AB	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310094AC	Member, reinforce front side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310095AC	REINF MEMBER FRONT SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A94AC	Member, lower reinforce front side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100A95AC	Member, lower reinforce front side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310276AF	MEMBER FRONT SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310277AG	Member, front side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G33113C18AC	Panel, tunnel top front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311160AD	Panel, tunnel top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F02599AB	Member, body front cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4358111K36GA	Tunnel, reinforce rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4358111K37GA	Tunnel, reinforce rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43L1898AA	Sill assy, outer, RH	Enquire	To Order
	AG43C1898AA	ASSEMBLY SILL OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L1899AA	ASSEMBLY SILL OUTER LH	Enquire	To Order
	BG43C1899AA	Assembly Sill Out LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3310772AC	TUNNEL EXTRUSION RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3310773AC	TUNNEL EXTRUSION LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333800AA	Rivnut, 7/16UNF hex flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH VIN stamp required, Structural Cat. A only	-	1	Enquire
2	FD3311141AC	PANEL FLOOR LH	FD3311141AC PANEL FLOOR LH Structural Cat. A only	-	1	Enquire
3	8G4313058AB	TUNNEL REAR SIDE RH	8G4313058AB TUNNEL REAR SIDE RH Structural Cat. A only	-	1	Enquire
4	9G4313059AB	TUNNEL REAR SIDE LH	9G4313059AB TUNNEL REAR SIDE LH Structural Cat. A only	-	1	Enquire
5	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
6	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH Structural Cat. A only	-	1	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A only	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A only	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A only	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A only	-	1	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A only	-	2	Enquire
13	CG4310120AA	MEMBER FLOOR SIDE FRONT	CG4310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
14	6G33F001K28AB	Bracket, tunnel upper inner	6G33F001K28AB Bracket, tunnel upper inner Structural Cat. A only	-	2	Enquire
15	6G3310094AC	Member, reinforce front side, RH	6G3310094AC Member, reinforce front side, RH Structural Cat. A only	-	1	Enquire
16	6G3310095AC	REINF MEMBER FRONT SIDE LH	6G3310095AC REINF MEMBER FRONT SIDE LH Structural Cat. A only	-	1	Enquire
17	6G33100A94AC	Member, lower reinforce front side, RH	6G33100A94AC Member, lower reinforce front side, RH Structural Cat. A only	-	1	Enquire
18	6G33100A95AC	Member, lower reinforce front side, LH	6G33100A95AC Member, lower reinforce front side, LH Structural Cat. A only	-	1	Enquire
19	6G3310276AF	MEMBER FRONT SIDE RH	6G3310276AF MEMBER FRONT SIDE RH Structural Cat. A only	-	1	Enquire
20	6G3310277AG	Member, front side, LH	6G3310277AG Member, front side, LH Structural Cat. A only	-	1	Enquire
21	7G33113C18AC	Panel, tunnel top front	7G33113C18AC Panel, tunnel top front Structural Cat. A only	-	1	Enquire
22	8G4311160AD	Panel, tunnel top	8G4311160AD Panel, tunnel top Structural Cat. A only	-	1	Enquire
23	6G33F02599AB	Member, body front cross	6G33F02599AB Member, body front cross Structural Cat. A only	-	1	Enquire
24	8G4358111K36GA	Tunnel, reinforce rear, RH	8G4358111K36GA Tunnel, reinforce rear, RH Structural Cat. A only	-	1	Enquire
25	8G4358111K37GA	Tunnel, reinforce rear, LH	8G4358111K37GA Tunnel, reinforce rear, LH Structural Cat. A only	-	1	Enquire
26	AG43L1898AA	Sill assy, outer, RH	AG43L1898AA Sill assy, outer, RH VOLANTE, Structural Cat. A only	-	1	Enquire
26	AG43C1898AA	ASSEMBLY SILL OUTER RH	AG43C1898AA ASSEMBLY SILL OUTER RH COUPE, Structural Cat. A only	-	1	Enquire
27	BG43L1899AA	ASSEMBLY SILL OUTER LH	BG43L1899AA ASSEMBLY SILL OUTER LH VOLANTE, Structural Cat. A only	-	1	Enquire
27	BG43C1899AA	Assembly Sill Out LH	BG43C1899AA Assembly Sill Out LH COUPE, Structural Cat. A only	-	1	Enquire
28	9G3310772AC	TUNNEL EXTRUSION RIGHT HAND	9G3310772AC TUNNEL EXTRUSION RIGHT HAND Structural Cat. A only	-	1	Enquire
29	9G3310773AC	TUNNEL EXTRUSION LEFT HAND	9G3310773AC TUNNEL EXTRUSION LEFT HAND Structural Cat. A only	-	1	Enquire
30	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni Structural Cat. A only	-	1	Enquire
31	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind Structural Cat. A only	-	-	Enquire
32	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm Structural Cat. A only	-	-	Enquire
33	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange Structural Cat. A only	-	4	Enquire
34	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic Structural Cat. A only	-	2	Enquire
35	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET Structural Cat. A only	-	6	Enquire
