Rear Seat Assembly (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

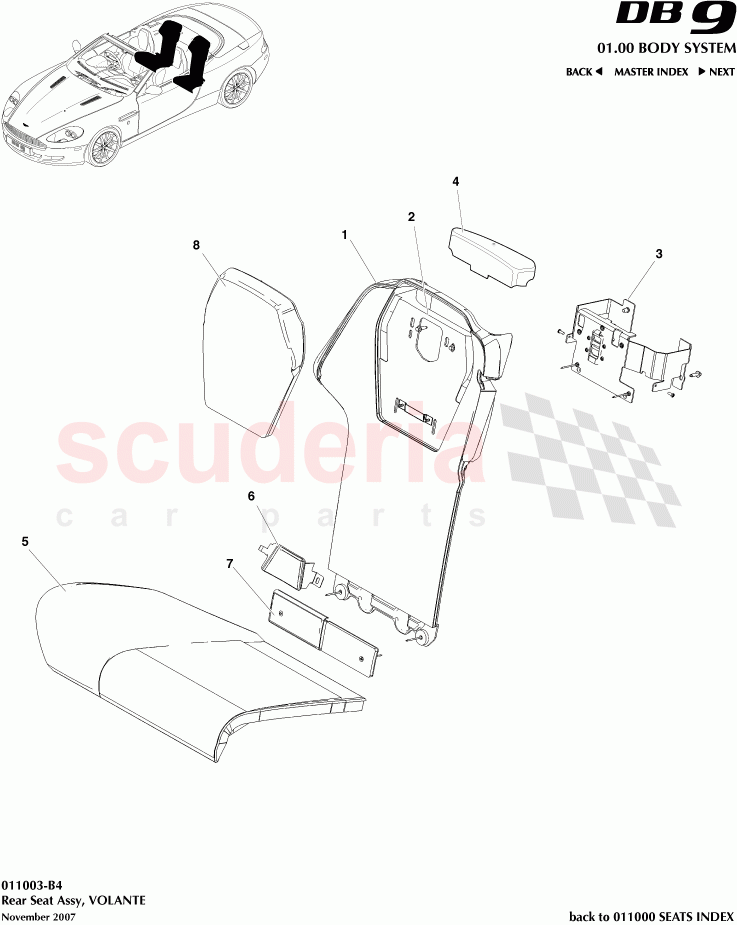

Aston Martin DB9 (2004-2012) - Rear Seat Assembly (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G43L60033ABW	LH SEAT BACK TRIMMED	Enquire	To Order
	7G43L60032AAW	TOP LEVEL ASSEMBLY FOR REAR SEAT SQUAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43L64216AB	REAR SQUAB SUPPORT BRACKET RH	Enquire	To Order
	7G43L64217AB	REAR SQUAB SUPPORT BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43L465C00ABW	COVER ASSEMBLY ROLLOVER PROTECTION RIGHT HAND	Enquire	To Order
	7G43L465C01ABW	COVER ASSEMBLY ROLLOVER PROTECTION LEFT HAND	Enquire	To Order
	4G43L465C00AAW	CVR ASSY R/OVER PROT SYS RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7G4360080ACW	REAR SEAT CUSHION ASSY RH	Enquire	To Order
	7G4360081ACW	REAR SEAT CUSHION ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L672A20ABW	Panel Assembly, Rear Seat Side Lower, RH	Enquire	To Order
	4G43L672A21ABW	Panel Assembly, Rear Seat Side Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L63846ACW	PAD ASSY RR ST CSHN LWR RH	Enquire	To Order
	4G43L63847ACW	PAD ASSY RR ST CSHN LWR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43465T10ABW	HEAD REST INFILL TOP LEVEL	Enquire	To Order
	701356	Rivet, Blind, M4x10	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G43L60033ABW	LH SEAT BACK TRIMMED	8G43L60033ABW LH SEAT BACK TRIMMED 08MY	-	1	Enquire
1	7G43L60032AAW	TOP LEVEL ASSEMBLY FOR REAR SEAT SQUAB	7G43L60032AAW TOP LEVEL ASSEMBLY FOR REAR SEAT SQUAB	-	1	Enquire
2	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head 07MY	-	8	Enquire
2	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head 08MY	-	8	Enquire
3	7G43L64216AB	REAR SQUAB SUPPORT BRACKET RH	7G43L64216AB REAR SQUAB SUPPORT BRACKET RH	-	1	Enquire
3	7G43L64217AB	REAR SQUAB SUPPORT BRACKET LH	7G43L64217AB REAR SQUAB SUPPORT BRACKET LH	-	1	Enquire
4	7G43L465C00ABW	COVER ASSEMBLY ROLLOVER PROTECTION RIGHT HAND	7G43L465C00ABW COVER ASSEMBLY ROLLOVER PROTECTION RIGHT HAND 07MY on	-	1	Enquire
4	7G43L465C01ABW	COVER ASSEMBLY ROLLOVER PROTECTION LEFT HAND	7G43L465C01ABW COVER ASSEMBLY ROLLOVER PROTECTION LEFT HAND 07MY on	-	1	Enquire
4	4G43L465C00AAW	CVR ASSY R/OVER PROT SYS RH	4G43L465C00AAW CVR ASSY R/OVER PROT SYS RH 06MY	-	1	Enquire
4	4G43L465C01AAW	CVR ASSY R/OVR PROT SYS LH	4G43L465C01AAW CVR ASSY R/OVR PROT SYS LH 06MY	-	1	Enquire
5	7G4360080ACW	REAR SEAT CUSHION ASSY RH	7G4360080ACW REAR SEAT CUSHION ASSY RH	-	1	Enquire
5	7G4360081ACW	REAR SEAT CUSHION ASSY LH	7G4360081ACW REAR SEAT CUSHION ASSY LH	-	1	Enquire
6	4G43L672A20ABW	Panel Assembly, Rear Seat Side Lower, RH	4G43L672A20ABW Panel Assembly, Rear Seat Side Lower, RH	-	1	Enquire
6	4G43L672A21ABW	Panel Assembly, Rear Seat Side Lower, LH	4G43L672A21ABW Panel Assembly, Rear Seat Side Lower, LH	-	1	Enquire
7	4G43L63846ACW	PAD ASSY RR ST CSHN LWR RH	4G43L63846ACW PAD ASSY RR ST CSHN LWR RH	-	1	Enquire
7	4G43L63847ACW	PAD ASSY RR ST CSHN LWR LH	4G43L63847ACW PAD ASSY RR ST CSHN LWR LH	-	1	Enquire
8	4G43465T10ABW	HEAD REST INFILL TOP LEVEL	4G43465T10ABW HEAD REST INFILL TOP LEVEL	-	2	Enquire
8	701356	Rivet, Blind, M4x10	701356 Rivet, Blind, M4x10	-	8	Enquire
