Aston Martin DB9 (2004-2012) - Floor Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G339662AA RH FOOTREST ASY $207.96 To Order
Photo Part No Description Price (each) Stock
6G333N234AB BRACKET FOOTREST RHD $57.39 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 To Order
Photo Part No Description Price (each) Stock
6G33044J08AA Energy Absorber, Footrest $37.57 To Order
Photo Part No Description Price (each) Stock
9G3312021AA Cover Plate, Foot Rest, RH $58.89 To Order
Photo Part No Description Price (each) Stock
6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK $0.75 To Order
Photo Part No Description Price (each) Stock
4G439661BA Footrest assy, LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G433N328BE Bracket, Foot Rest $147.16 To Order
Photo Part No Description Price (each) Stock
4G33044J09AA Footrest, energy absorber, LHD Enquire To Order
Photo Part No Description Price (each) Stock
9G4312020BA LHD FOOTREST TOP PAD ASSY $384.28 To Order
Photo Part No Description Price (each) Stock
6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK $0.75 To Order
Photo Part No Description Price (each) Stock
4G4313162ADW Carpet, tunnel, RH Enquire To Order
4G4313163ADW Carpet, tunnel, LH Enquire To Order
4G4313165AEW Carpet, tunnel, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G4313141AEW Carpet, sill, LH Enquire To Order
8G4313141ABW Carpet, sill, LH Enquire To Order
4G4313139AEW Carpet, sill, LH Enquire To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G3313925AA Push On Button, M5 x 35 $0.75 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.11 To Order
Photo Part No Description Price (each) Stock
4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) $10.55 To Order
Photo Part No Description Price (each) Stock
4G43130A12ACW Carpet, front floor, RH, RHD Enquire To Order
4G43130A10ACW Carpet, front floor, LH, RHD Enquire To Order
4G43130A08ADW Carpet Assembly, Front Floor RH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43132A52BA Name plate, front sill, personalised Enquire To Order
4G438010787 NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY DB9 $305.94 To Order
4G438010295 SILL NAME PLATE DB9 PERSONALISED $513.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4313254AAW SILL TREAD LEATHER NAME PAD RH $703.99 To Order
4G4313255AAW SILL TREAD LEATHER NAME PAD LH $1,335.72 To Order
Photo Part No Description Price (each) Stock
4G43132A12BE FRONT SILL SCUFF PLATE RH $253.21 To Order
8G43132A12AA Plate, front sill, RH Enquire To Order
4G43132A13BE FRONT SILL SCUFF PLATE LH $219.33 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
707142 SCREW M5 X 12 $0.25 To Order
Photo Part No Description Price (each) Stock
4G4313218BA BRACKET FRONT SCUFF TO SILL BIW $34.04 To Order
Photo Part No Description Price (each) Stock
703738 SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 $1.44 To Order
4G433L657AA Screw, M5 x 20, Countersunk, Black $0.37 To Order
Photo Part No Description Price (each) Stock

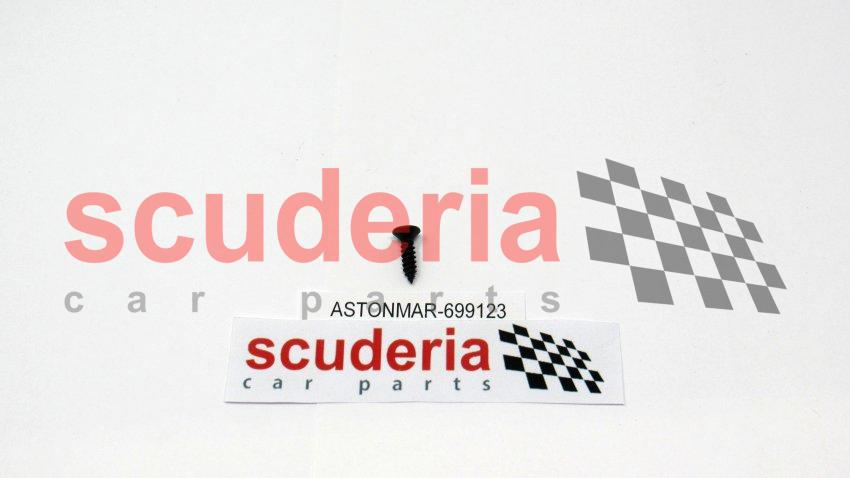

699123 Screw, No.6 x 9.5 Countersunk Head $0.37 To Order
Photo Part No Description Price (each) Stock
4G43831236AAW HANDBRAKE GAITER RHD $804.08 To Order
4G43831237AAW HANDBRAKE GAITER LHD $804.08 To Order
Photo Part No Description Price (each) Stock
4G43M4D4515AA Foam Strip, Handbrake Gaiter $0.87 To Order
Photo Part No Description Price (each) Stock
6G33M1H403AA Cover, Floor Pan $3.16 To Order
Photo Part No Description Price (each) Stock
6G33666A40AB Finisher, Carpet, Common, RHS $107.29 To Order
Photo Part No Description Price (each) Stock
6G33666A41AB Finisher, Carpet, Common, LHS $59.91 To Order
Photo Part No Description Price (each) Stock
6G3368D11AA Screw, M5 x 12, Cap Head $0.64 To Order
Photo Part No Description Price (each) Stock
6G3368D11BA Screw, M5 x 20, Cap Head $1.44 To Order
Photo Part No Description Price (each) Stock
4G43100A91BA Support, rear floor, LH sat nav Enquire To Order
4G43100A91AA Support, rear floor, LH Enquire To Order
4G43100A90AA Support Panel, Rear Floor, RH $61.21 To Order
Photo Part No Description Price (each) Stock
702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head $0.39 To Order
Photo Part No Description Price (each) Stock
8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK $0.41 To Order
Photo Part No Description Price (each) Stock
6G33100N00AA Adhesive Tape, Double Sided $15.71 To Order
Photo Part No Description Price (each) Stock
4G43130A37ACW Carpet, rear footwell, LH Enquire To Order
8G43130A37ACW Carpet Assembly, Rear Floor LH Enquire To Order
4G43130A36ACW Carpet Assembly, Rear Floor RH $216.09 To Order
Photo Part No Description Price (each) Stock
4G4318449BD ACCELERATOR SCUFF PLATE LHD $84.42 To Order
Photo Part No Description Price (each) Stock
4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH $46.48 To Order
Photo Part No Description Price (each) Stock
9D33311A76CA Speaker Grille, Footwell, RH, B&O $787.84 To Order
Photo Part No Description Price (each) Stock
9D33311A77CA Speaker Grille, Footwell, LH, B&O $787.84 To Order
Photo Part No Description Price (each) Stock
4G438310388 DB9 RHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS $3,251.04 To Order
4G438310412 DB9 LHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS $3,251.04 To Order
4G438310367 DB9 RHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS $2,511.57 To Order
...and 33 more part variants. See table on right for more details.
View All

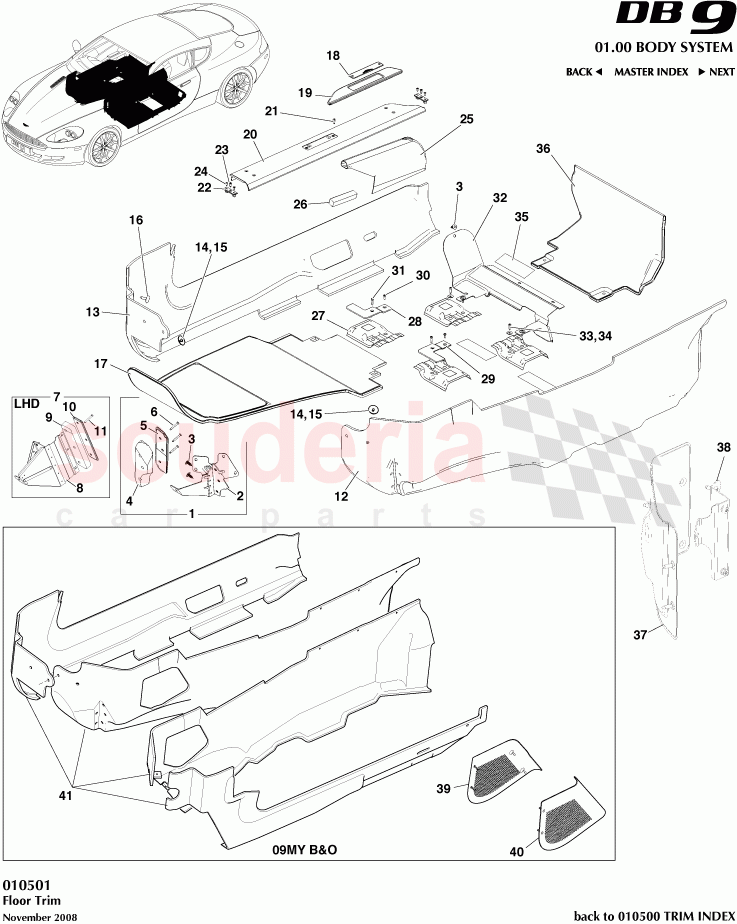

Floor Trim of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G339662AA
RH FOOTREST ASY 		$207.96 1
2 6G333N234AB
BRACKET FOOTREST RHD 		$57.39 1
3 703151
Screw M6x16 Washer Hex HD Chrome Free 		$0.53 3
4 6G33044J08AA
Energy Absorber, Footrest 		$37.57 1
5 9G3312021AA
Cover Plate, Foot Rest, RH 		$58.89 1
6 6G33E801202AA
M5X45MM CSK HEX STAINLESS STEEL BLACK 		$0.75 3
7 4G439661BA
Footrest assy, LHD 		- 1 Enquire
8 4G433N328BE
Bracket, Foot Rest 		$147.16 1
9 4G33044J09AA
Footrest, energy absorber, LHD 		- 5 Enquire
10 9G4312020BA
LHD FOOTREST TOP PAD ASSY 		$384.28 1
11 6G33E801202AA
M5X45MM CSK HEX STAINLESS STEEL BLACK 		$0.75 3
12 4G4313162ADW
Carpet, tunnel, RH
LHD 		- 1 Enquire
12 4G4313163ADW
Carpet, tunnel, LH
RHD 		- 1 Enquire
12 4G4313165AEW
Carpet, tunnel, LH
LHD 		- 1 Enquire
13 4G4313141AEW
Carpet, sill, LH
RHD, 07MY 		- 1 Enquire
13 8G4313141ABW
Carpet, sill, LH
RHD, 08MY 		- 1 Enquire
13 4G4313139AEW
Carpet, sill, LH
LHD, 07MY 		- 1 Enquire
13 8G4313139ABW
Carpet, sill, LH
LHD, 08MY 		- 1 Enquire
13 9D33281B10CWW
Side carpet kit, RHD
9.5MY 		- 1 Enquire
13 9D33281B11CWW
Side carpet kit, LHD
9.5MY 		- 1 Enquire
13 4G43281B10ABW
KIT ASSEMBLY SIDE CARPET RHD
07MY 		- 1 Enquire
13 8G43281B10ABW
Side carpet kit, RHD
08MY 		- 1 Enquire
13 8G43281B10ACW
Side carpet kit, RHD
09MY 		- 1 Enquire
13 4G43281B11ABW
KIT ASSEMBLY SIDE CARPET LHD
07MY 		$1,119.15 1
13 8G43281B11ABW
Side carpet kit, LHD
08MY 		- 1 Enquire
13 8G43281B11AEW
KIT ASSEMBLY SIDE CARPET LHD
09MY 		$1,206.46 1
13 4G4313144AEW
Carpet, sill, RH
RHD 		- 1 Enquire
13 4G4313149AEW
Carpet, sill, RH
LHD 		- 1 Enquire
14 6G3313925AA
Push On Button, M5 x 35 		$0.75 3
15 702295
Nut, M5, Hex Flange Head 		$0.11 3
16 4G43STC3710AAPK
Fir Tree 8mm Fastener (Pack of 20) 		$10.55 2
17 4G43130A12ACW
Carpet, front floor, RH, RHD 		- 1 Enquire
17 4G43130A10ACW
Carpet, front floor, LH, RHD 		- 1 Enquire
17 4G43130A08ADW
Carpet Assembly, Front Floor RH 		- 1 Enquire
17 4G43130A09AEW
Carpet Assembly, Front Floor LH 		$924.16 1
18 4G43132A52BA
Name plate, front sill, personalised
Special Edition-Le Mans 		- 2 Enquire
18 4G438010787
NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY DB9 		$305.94 2
18 4G438010295
SILL NAME PLATE DB9 PERSONALISED 		$513.10 2
18 697687
SCREW No6 x 9.5 CSK BLACK 		$0.12 4
19 4G4313254AAW
SILL TREAD LEATHER NAME PAD RH 		$703.99 1
19 4G4313255AAW
SILL TREAD LEATHER NAME PAD LH 		$1,335.72 1
20 4G43132A12BE
FRONT SILL SCUFF PLATE RH
07MY 		$253.21 1
20 8G43132A12AA
Plate, front sill, RH
08MY 		- 1 Enquire
20 4G43132A13BE
FRONT SILL SCUFF PLATE LH
07MY 		$219.33 1
20 8G43132A13AA
Plate, front sill, LH
08MY 		- 1 Enquire
21 707142
SCREW M5 X 12 		$0.25 2
22 4G4313218BA
BRACKET FRONT SCUFF TO SILL BIW 		$34.04 4
23 703738
SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18
08MY 		$1.44 4
23 4G433L657AA
Screw, M5 x 20, Countersunk, Black
07MY 		$0.37 4
24 699123
Screw, No.6 x 9.5 Countersunk Head 		$0.37 8
25 4G43831236AAW
HANDBRAKE GAITER RHD
07MY 		$804.08 1
25 4G43831237AAW
HANDBRAKE GAITER LHD
07MY 		$804.08 1
26 4G43M4D4515AA
Foam Strip, Handbrake Gaiter 		$0.87 1
27 6G33M1H403AA
Cover, Floor Pan 		$3.16 4
28 6G33666A40AB
Finisher, Carpet, Common, RHS 		$107.29 1
29 6G33666A41AB
Finisher, Carpet, Common, LHS 		$59.91 1
30 6G3368D11AA
Screw, M5 x 12, Cap Head 		$0.64 4
31 6G3368D11BA
Screw, M5 x 20, Cap Head 		$1.44 4
32 4G43100A91BA
Support, rear floor, LH sat nav
07MY 		- 1 Enquire
32 4G43100A91AA
Support, rear floor, LH
07MY 		- 1 Enquire
32 4G43100A90AA
Support Panel, Rear Floor, RH 		$61.21 1
33 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head 		$0.39 2
34 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK 		$0.41 4
35 6G33100N00AA
Adhesive Tape, Double Sided 		$15.71 3
36 4G43130A37ACW
Carpet, rear footwell, LH
07MY 		- 1 Enquire
36 8G43130A37ACW
Carpet Assembly, Rear Floor LH
08MY 		- 1 Enquire
36 4G43130A36ACW
Carpet Assembly, Rear Floor RH 		$216.09 1
37 4G4318449BD
ACCELERATOR SCUFF PLATE LHD 		$84.42 1
38 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH 		$46.48 1
39 9D33311A76CA
Speaker Grille, Footwell, RH, B&O 		$787.84 1
40 9D33311A77CA
Speaker Grille, Footwell, LH, B&O 		$787.84 1
41 4G438310388
DB9 RHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS
All Model Years 		$3,251.04 1
41 4G438310412
DB9 LHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS
All Model Years 		$3,251.04 1
41 4G438310367
DB9 RHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS
All Model Years 		$2,511.57 1
41 4G438310391
DB9 LHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS
All Model Years 		$2,511.57 1
41 4G438310372
DB9 RHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MOD YEARS
All Model Years 		$2,511.57 1
41 4G438310396
DB9 LHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MODEL YRS
All Model Years 		$3,979.28 1
41 4G438310383
DB9 RHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS
All Model Years 		$2,897.90 1
41 4G438310407
DB9 LHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS
All Model Years 		$3,251.04 1
41 4G438310382
DB9 RHD SIDE & CENTRE CARPET KIT - B.CHERRY-ALL MOD YRS
All Model Years 		$3,251.04 1
41 4G438310406
DB9 LHD SIDE & CENTRE CARPET KIT - B.CHERRY ALL MOD YRS
All Model Years 		$3,251.04 1
41 4G438310386
DB9 RHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS
All Model Years 		$3,251.04 1
41 4G438310410
DB9 LHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS
All Model Years 		$3,251.04 1
41 4G438310387
DB9 RHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS
All Model Years 		$3,251.04 1
41 4G438310411
DB9 LHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS
All Model Years 		$3,251.04 1
41 4G438310366
DB9 RHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS
All Model Years 		$2,511.57 1
41 4G438310390
DB9 LHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS
All Model Years 		$2,511.57 1
41 4G438310370
DB9 RHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310394
DB9 LHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310371
DB9 RHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS
All Model Years 		$4,022.44 1
41 4G438310395
DB9 LHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 9G438311020
DB9 RHD SIDE & CENTRE CARPET KIT SAHARA TAN
All Model Years 		- 1 Enquire
41 9G438311022
DB9 LHD SIDE & CENTRE CARPET KIT SAHARA TAN
All Model Years 		- 1 Enquire
41 4G438310384
DB9 RHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS
All Model Years 		$2,897.90 1
41 4G438310408
DB9 LHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS
All Model Years 		$3,251.04 1
41 4G438310385
DB9 RHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS
All Model Years 		$2,897.90 1
41 4G438310409
DB9 LHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS
All Model Years 		$2,897.90 1
41 9G438311017
DB9 RHD FRONT & REAR CARPET KIT-SAHARA TAN - ALL MOD YEARS
All Model Years 		$3,013.36 1
41 9G438311018
DB9 LHD FRONT & REAR CARPET KIT-SAHARA TAN- ALL MOD YEARS
All Model Years 		$3,013.36 1
41 4G438310381
DB9 RHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS
All Model Years 		$3,251.04 1
41 4G438310405
DB9 LHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS
All Model Years 		$3,251.04 1
41 4G438310368
DB9 RHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310392
DB9 LHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310369
DB9 RHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310393
DB9 LHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS
All Model Years 		$2,511.57 1
41 4G438310365
DB9 RHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS
All Model Years 		$3,920.93 1
41 4G438310389
DB9 LHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS
All Model Years 		$3,979.30 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
