Body Side Quarter Trim Assembly (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

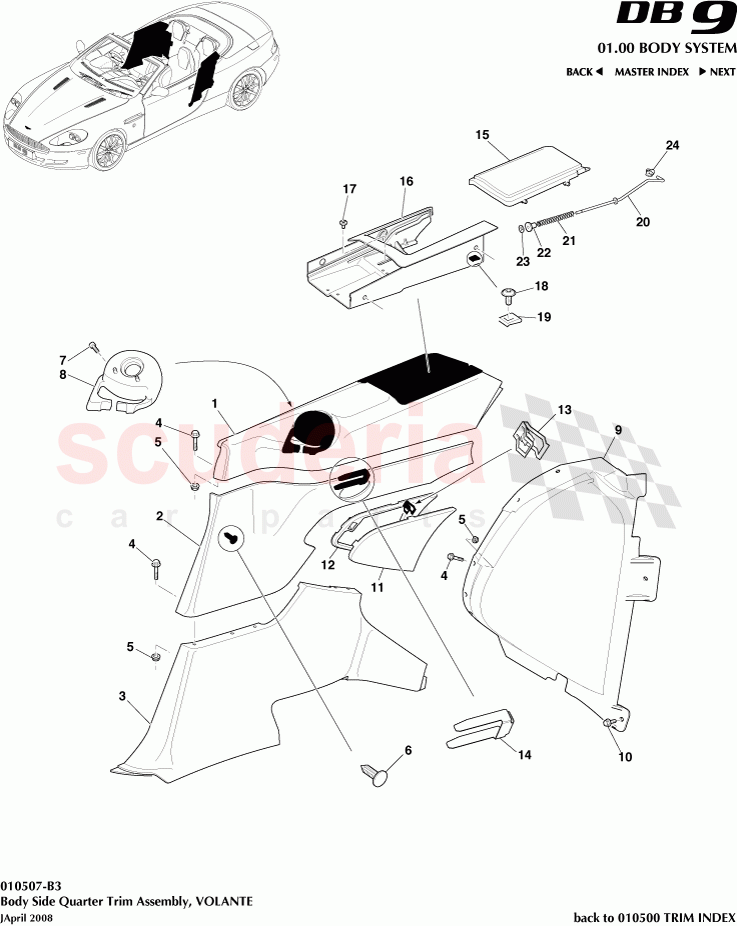

Aston Martin DB9 (2004-2012) - Body Side Quarter Trim Assembly (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43L31112ADW	PANEL BODY SIDE TR R RH	Enquire	To Order
	4G43L31113ADW	PANEL BODY SIDE TR REAR LH	Enquire	To Order
	6G43L31112AAW	PANEL BODY SIDE TR R RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43L31486ADW	MIDDLE QTR PANEL ASSY RHS	Enquire	To Order
	8G43L31486ABW	Panel assy, quarter trim mid section, RH	Enquire	To Order
	4G43L31487ADW	Panel assy, quarter trim mid section, LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43L312A06ACW	LOWER QTR PANEL ASY RHS	Enquire	To Order
	8G43L312A06AAW	LOWER QUARTER PANEL ASSY RHS	Enquire	To Order
	4G43L312A07ACW	LOWER QTR PANEL ASY LHS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43V850063AA	Screw, Cap Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L24858AB	Bezel Assy, Seat Belt B Post Upper, RH	Enquire	To Order
	4G43L24859AB	Bezel Assy, Seat Belt B Post Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L60594ADW	Seat Back Panel Assy, RH	Enquire	To Order
	4G43L60595ADW	PANEL ASY REAR ST BK LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L14501AAW	SPEAKER GRILLE AND FOAM ASSY RHS	Enquire	To Order
	4G43L14502AAW	SPEAKER GRILLE AND FOAM ASSY LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43310C02AC	BRKT SPKR CRL BODY SDTR RH	Enquire	To Order
	4G43310C03AC	BRKT SPKR GRL BDY SD TR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43290E16AB	Plate, Light to Quarter Panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43539A40ABW	Lid, Flap Finisher Top, RH	Enquire	To Order
	4G43539A41ABW	Lid, Flap Finisher Top, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	Enquire	To Order
	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702211	SCREW M5x8.0x0.80 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701440	Screw Self Tapping Washer Head 4.2 x 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701653	Spring Nut, U Type, 4.2 x 0.7-2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L53296AA	Link Rod, Flap Top RH	Enquire	To Order
	4G43L53297AA	Link Rod, Flap Top LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317431AA	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43338013AA	PLUG BLANKING (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103021AB	Fix, Push On	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431861AA	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43L31112ADW	PANEL BODY SIDE TR R RH	4G43L31112ADW PANEL BODY SIDE TR R RH Up to (V) B05390	-	1	Enquire
1	4G43L31113ADW	PANEL BODY SIDE TR REAR LH	4G43L31113ADW PANEL BODY SIDE TR REAR LH Up to (V) B05390	-	1	Enquire
1	6G43L31112AAW	PANEL BODY SIDE TR R RH	6G43L31112AAW PANEL BODY SIDE TR R RH From (V) B05391	-	1	Enquire
1	6G43L31113AAW	PANEL BODY SIDE TR REAR LH	6G43L31113AAW PANEL BODY SIDE TR REAR LH From (V) B05391	-	1	Enquire
2	4G43L31486ADW	MIDDLE QTR PANEL ASSY RHS	4G43L31486ADW MIDDLE QTR PANEL ASSY RHS 07MY	-	1	Enquire
2	8G43L31486ABW	Panel assy, quarter trim mid section, RH	8G43L31486ABW Panel assy, quarter trim mid section, RH 08MY	-	1	Enquire
2	4G43L31487ADW	Panel assy, quarter trim mid section, LH	4G43L31487ADW Panel assy, quarter trim mid section, LH 07MY	-	1	Enquire
2	8G43L31487ABW	Panel assy, quarter trim mid section, LH	8G43L31487ABW Panel assy, quarter trim mid section, LH 08MY	-	1	Enquire
3	4G43L312A06ACW	LOWER QTR PANEL ASY RHS	4G43L312A06ACW LOWER QTR PANEL ASY RHS 07MY	-	1	Enquire
3	8G43L312A06AAW	LOWER QUARTER PANEL ASSY RHS	8G43L312A06AAW LOWER QUARTER PANEL ASSY RHS 08MY	-	1	Enquire
3	4G43L312A07ACW	LOWER QTR PANEL ASY LHS	4G43L312A07ACW LOWER QTR PANEL ASY LHS 07MY	-	1	Enquire
3	8G43L312A07AAW	LOWER QUARTER PANEL ASSY LHS	8G43L312A07AAW LOWER QUARTER PANEL ASSY LHS 08MY	-	1	Enquire
4	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
5	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	32	Enquire
6	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20)	-	2	Enquire
7	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd	-	2	Enquire
8	4G43L24858AB	Bezel Assy, Seat Belt B Post Upper, RH	4G43L24858AB Bezel Assy, Seat Belt B Post Upper, RH	-	1	Enquire
8	4G43L24859AB	Bezel Assy, Seat Belt B Post Upper, LH	4G43L24859AB Bezel Assy, Seat Belt B Post Upper, LH	-	1	Enquire
9	4G43L60594ADW	Seat Back Panel Assy, RH	4G43L60594ADW Seat Back Panel Assy, RH	-	1	Enquire
9	4G43L60595ADW	PANEL ASY REAR ST BK LOWER	4G43L60595ADW PANEL ASY REAR ST BK LOWER	-	1	Enquire
10	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	32	Enquire
11	4G43L14501AAW	SPEAKER GRILLE AND FOAM ASSY RHS	4G43L14501AAW SPEAKER GRILLE AND FOAM ASSY RHS	-	1	Enquire
11	4G43L14502AAW	SPEAKER GRILLE AND FOAM ASSY LHS	4G43L14502AAW SPEAKER GRILLE AND FOAM ASSY LHS	-	1	Enquire
12	4G43310C02AC	BRKT SPKR CRL BODY SDTR RH	4G43310C02AC BRKT SPKR CRL BODY SDTR RH	-	1	Enquire
12	4G43310C03AC	BRKT SPKR GRL BDY SD TR LH	4G43310C03AC BRKT SPKR GRL BDY SD TR LH	-	1	Enquire
13	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	2	Enquire
14	4G43290E16AB	Plate, Light to Quarter Panel	4G43290E16AB Plate, Light to Quarter Panel	-	2	Enquire
15	4G43539A40ABW	Lid, Flap Finisher Top, RH	4G43539A40ABW Lid, Flap Finisher Top, RH	-	1	Enquire
15	4G43539A41ABW	Lid, Flap Finisher Top, LH	4G43539A41ABW Lid, Flap Finisher Top, LH	-	1	Enquire
16	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH	-	1	Enquire
16	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH	-	1	Enquire
17	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD	-	2	Enquire
18	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5	-	2	Enquire
19	701653	Spring Nut, U Type, 4.2 x 0.7-2	701653 Spring Nut, U Type, 4.2 x 0.7-2	-	2	Enquire
20	4G43L53296AA	Link Rod, Flap Top RH	4G43L53296AA Link Rod, Flap Top RH	-	1	Enquire
20	4G43L53297AA	Link Rod, Flap Top LH	4G43L53297AA Link Rod, Flap Top LH	-	1	Enquire
21	4G4317431AA	SPRING	4G4317431AA SPRING 1 per Link	-	2	Enquire
22	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) 1 per Link	-	2	Enquire
23	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On 1 per Link	-	2	Enquire
24	4G431861AA	CLIP	4G431861AA CLIP 1 per Link	-	2	Enquire
