Rear Seat Assembly (Coupe) of Aston Martin Aston Martin DB9 (2004-2012)

View All

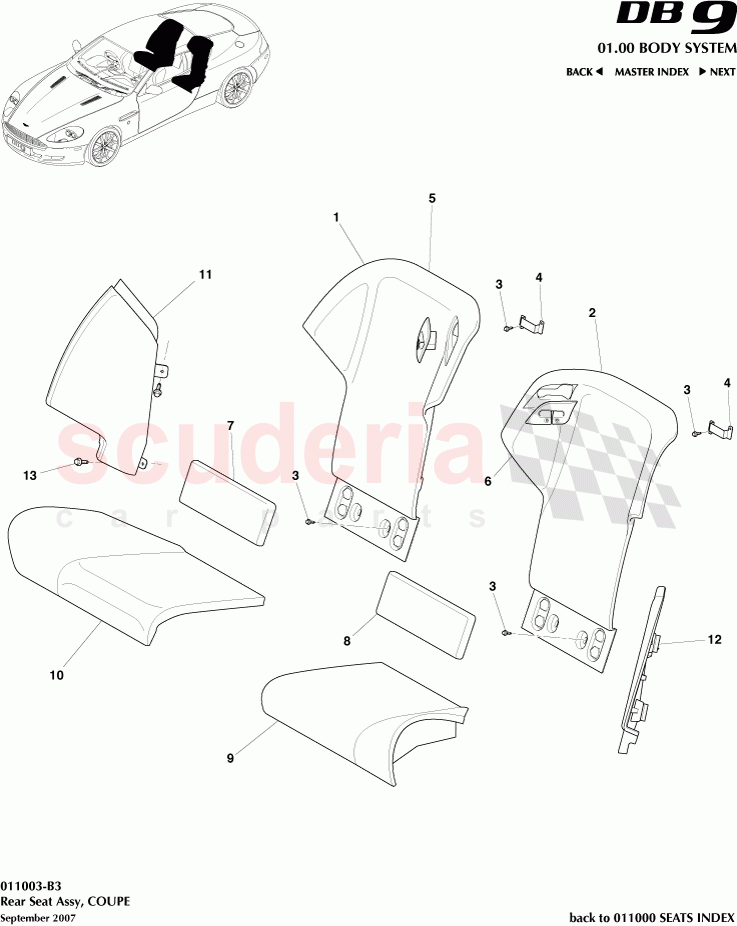

Aston Martin DB9 (2004-2012) - Rear Seat Assembly (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7G4360032ACW	REAR SEAT BACK ASSY RH - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4360033ABW	REAR SEAT BACK ASSY LH - COUPE	Enquire	To Order
	7G4360033ABW	REAR SEAT BACK ASSY LH - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	IN STOCK
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4341171AB	Bracket, Squab Rear Fixing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43611B90AD	REAR SEATBELT BEZEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43611B91AD	REAR SEATBELT BEZEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4363846ABW	LUMBAR PAD REAR SEAT RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4363847ABW	LUMBAR PAD REAR SEAT LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4360081ACW	REAR SEAT CUSHION ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4360080ACW	REAR SEAT CUSHION ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4360594ABW	REAR SEAT BOLSTER PANEL ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4360595ABW	REAR SEAT BOLSTER PANEL ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	IN STOCK
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7G4360032ACW	REAR SEAT BACK ASSY RH - COUPE	7G4360032ACW REAR SEAT BACK ASSY RH - COUPE	-	1	Enquire
2	8G4360033ABW	REAR SEAT BACK ASSY LH - COUPE	8G4360033ABW REAR SEAT BACK ASSY LH - COUPE 08MY	-	1	Enquire
2	7G4360033ABW	REAR SEAT BACK ASSY LH - COUPE	7G4360033ABW REAR SEAT BACK ASSY LH - COUPE	-	1	Enquire
3	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head 07MY IN STOCK	-	8	Enquire
3	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head 08MY IN STOCK	-	8	Enquire
4	4G4341171AB	Bracket, Squab Rear Fixing	4G4341171AB Bracket, Squab Rear Fixing	-	2	Enquire
5	4G43611B90AD	REAR SEATBELT BEZEL RH	4G43611B90AD REAR SEATBELT BEZEL RH	-	1	Enquire
6	4G43611B91AD	REAR SEATBELT BEZEL LH	4G43611B91AD REAR SEATBELT BEZEL LH	-	1	Enquire
7	4G4363846ABW	LUMBAR PAD REAR SEAT RHS	4G4363846ABW LUMBAR PAD REAR SEAT RHS	-	1	Enquire
8	4G4363847ABW	LUMBAR PAD REAR SEAT LHS	4G4363847ABW LUMBAR PAD REAR SEAT LHS	-	1	Enquire
9	7G4360081ACW	REAR SEAT CUSHION ASSY LH	7G4360081ACW REAR SEAT CUSHION ASSY LH	-	1	Enquire
10	7G4360080ACW	REAR SEAT CUSHION ASSY RH	7G4360080ACW REAR SEAT CUSHION ASSY RH	-	1	Enquire
11	4G4360594ABW	REAR SEAT BOLSTER PANEL ASSY RH	4G4360594ABW REAR SEAT BOLSTER PANEL ASSY RH	-	1	Enquire
12	4G4360595ABW	REAR SEAT BOLSTER PANEL ASSY LH	4G4360595ABW REAR SEAT BOLSTER PANEL ASSY LH	-	1	Enquire
13	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head 07MY IN STOCK	-	8	Enquire
13	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head 08MY IN STOCK	-	8	Enquire
