Body Rear End Trim Assembly (Coupe) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Body Rear End Trim Assembly (Coupe)

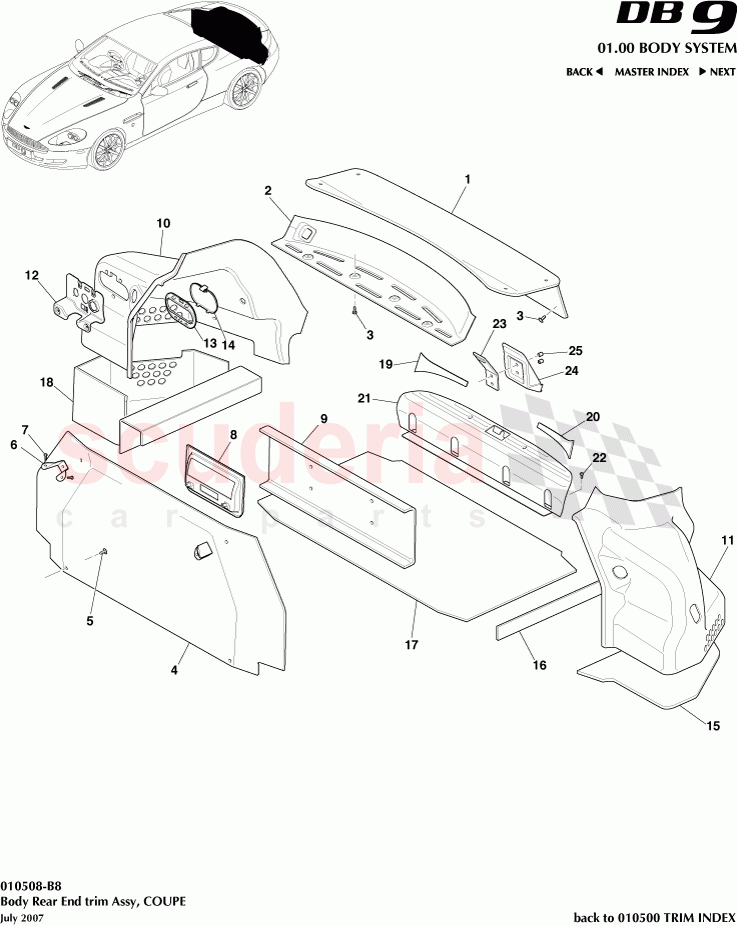

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43580374AC	TRUNKLID TRIM ASSY COMPLETE - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43454B04AB	Plenum Carpet, Luggage Compartment, Upper Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4345444FC	BACKBOARD ASSEMBLY COUPE	Enquire	To Order
	4G4345444EC	BACKBOARD ASSEMBLY COUPE	Enquire	To Order
	4G4345444DD	Cover assy, luggage compartment, front	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4346312AB	LOADSPACE CARPET PANEL FIXING BRKT RR UPPER RH	Enquire	To Order
	4G4346313AB	LOADSPACE CARPET PANEL FIXING BRKT RR UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313388BB	HOUSING ASSEMBLY SAT NAV	Enquire	To Order
	4G4313388CB	MODULES HOUSING TYRE PRESS SENSOR	Enquire	To Order
	4G4313388AB	MODULES HOUSING - TYRE PRESS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318C949AA	AMP COVER TRIM ASY LOADSPACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4345422CF	Moulded Carpet, Loadspace, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4345423CC	Moulded Carpet, Loadspace, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4343660AC	Plate Assy, luggage compartment Switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4343662AA	LOAD COMPARTMENT SWITCH BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313A752AC	LOAD COMPARTMENT SWITCH PLATE - LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43454K63AB	LHS COUPE LOADSPACE CARPET TRIM ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313138AA	Carpet rear Floor Side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4345456CC	LOADSPACE CARPET CTR - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43454K65CB	LOADSPACE TRIM ASSEMBLY RHS COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43130A58CA	RH SCUFF INFIL CARPET BLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43130A58DA	LH SCUFF INFIL CARPET BLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4342626AD	Scuff Plate, Rear Loadspace	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43434A30AB	Strap Assembly, Lugage comparment Door Pull	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4321893BA	Striker, cover assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43012M6TAAA	M6 NUTSORT TAPPEX - 012M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43580374AC	TRUNKLID TRIM ASSY COMPLETE - COUPE	4G43580374AC TRUNKLID TRIM ASSY COMPLETE - COUPE	-	1	Enquire
2	4G43454B04AB	Plenum Carpet, Luggage Compartment, Upper Front	4G43454B04AB Plenum Carpet, Luggage Compartment, Upper Front	-	1	Enquire
3	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	8	Enquire
4	4G4345444FC	BACKBOARD ASSEMBLY COUPE	4G4345444FC BACKBOARD ASSEMBLY COUPE Non Standard audio+TPM+Sat nav	-	1	Enquire
4	4G4345444EC	BACKBOARD ASSEMBLY COUPE	4G4345444EC BACKBOARD ASSEMBLY COUPE Standard audio+TPM+Sat nav	-	1	Enquire
4	4G4345444DD	Cover assy, luggage compartment, front	4G4345444DD Cover assy, luggage compartment, front Non Standard audio, ROW	-	1	Enquire
4	4G4345444CD	BACKBOARD ASSEMBLY COUPE	4G4345444CD BACKBOARD ASSEMBLY COUPE Standard ROW	-	1	Enquire
4	7G43451A22ACW	BOOT FRONT BOARD	7G43451A22ACW BOOT FRONT BOARD	-	1	Enquire
4	7G4345444AB	LOAD COMPARTMENT FRONT BOARD ASSY	7G4345444AB LOAD COMPARTMENT FRONT BOARD ASSY	-	1	Enquire
4	4G4331427AA	RETAINING STRAP ASSY UNBRELLA HANDLE	4G4331427AA RETAINING STRAP ASSY UNBRELLA HANDLE	-	1	Enquire
4	4G4331426AA	RETENTION STRAP ASSY UMBRELLA POINT	4G4331426AA RETENTION STRAP ASSY UMBRELLA POINT	-	1	Enquire
4	7G4311762ACW	STOWAGE BOX DOOR	7G4311762ACW STOWAGE BOX DOOR	-	1	Enquire
5	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	4	Enquire
6	4G4346312AB	LOADSPACE CARPET PANEL FIXING BRKT RR UPPER RH	4G4346312AB LOADSPACE CARPET PANEL FIXING BRKT RR UPPER RH	-	1	Enquire
6	4G4346313AB	LOADSPACE CARPET PANEL FIXING BRKT RR UPPER LH	4G4346313AB LOADSPACE CARPET PANEL FIXING BRKT RR UPPER LH	-	1	Enquire
7	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10)	-	4	Enquire
8	4G4313388BB	HOUSING ASSEMBLY SAT NAV	4G4313388BB HOUSING ASSEMBLY SAT NAV Sat nav non TPM	-	1	Enquire
8	4G4313388CB	MODULES HOUSING TYRE PRESS SENSOR	4G4313388CB MODULES HOUSING TYRE PRESS SENSOR Sat nav +TPM	-	1	Enquire
8	4G4313388AB	MODULES HOUSING - TYRE PRESS SENSOR	4G4313388AB MODULES HOUSING - TYRE PRESS SENSOR TPM	-	1	Enquire
9	4G4318C949AA	AMP COVER TRIM ASY LOADSPACE	4G4318C949AA AMP COVER TRIM ASY LOADSPACE	-	1	Enquire
10	4G4345422CF	Moulded Carpet, Loadspace, RH	4G4345422CF Moulded Carpet, Loadspace, RH	-	1	Enquire
11	4G4345423CC	Moulded Carpet, Loadspace, LH	4G4345423CC Moulded Carpet, Loadspace, LH	-	1	Enquire
12	4G4343660AC	Plate Assy, luggage compartment Switch	4G4343660AC Plate Assy, luggage compartment Switch	-	1	Enquire
13	4G4343662AA	LOAD COMPARTMENT SWITCH BEZEL	4G4343662AA LOAD COMPARTMENT SWITCH BEZEL	-	1	Enquire
14	4G4313A752AC	LOAD COMPARTMENT SWITCH PLATE - LID	4G4313A752AC LOAD COMPARTMENT SWITCH PLATE - LID	-	1	Enquire
15	7G43454K63AB	LHS COUPE LOADSPACE CARPET TRIM ASSY	7G43454K63AB LHS COUPE LOADSPACE CARPET TRIM ASSY	-	1	Enquire
16	4G4313138AA	Carpet rear Floor Side LH	4G4313138AA Carpet rear Floor Side LH	-	1	Enquire
17	4G4345456CC	LOADSPACE CARPET CTR - COUPE	4G4345456CC LOADSPACE CARPET CTR - COUPE	-	1	Enquire
18	4G43454K65CB	LOADSPACE TRIM ASSEMBLY RHS COUPE	4G43454K65CB LOADSPACE TRIM ASSEMBLY RHS COUPE	-	1	Enquire
19	4G43130A58CA	RH SCUFF INFIL CARPET BLANK	4G43130A58CA RH SCUFF INFIL CARPET BLANK	-	1	Enquire
20	4G43130A58DA	LH SCUFF INFIL CARPET BLANK	4G43130A58DA LH SCUFF INFIL CARPET BLANK	-	1	Enquire
21	4G4342626AD	Scuff Plate, Rear Loadspace	4G4342626AD Scuff Plate, Rear Loadspace	-	1	Enquire
22	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	4	Enquire
23	4G43434A30AB	Strap Assembly, Lugage comparment Door Pull	4G43434A30AB Strap Assembly, Lugage comparment Door Pull	-	1	Enquire
24	4G4321893BA	Striker, cover assy	4G4321893BA Striker, cover assy 07MY	-	1	Enquire
25	4G43012M6TAAA	M6 NUTSORT TAPPEX - 012M6	4G43012M6TAAA M6 NUTSORT TAPPEX - 012M6	-	2	Enquire
