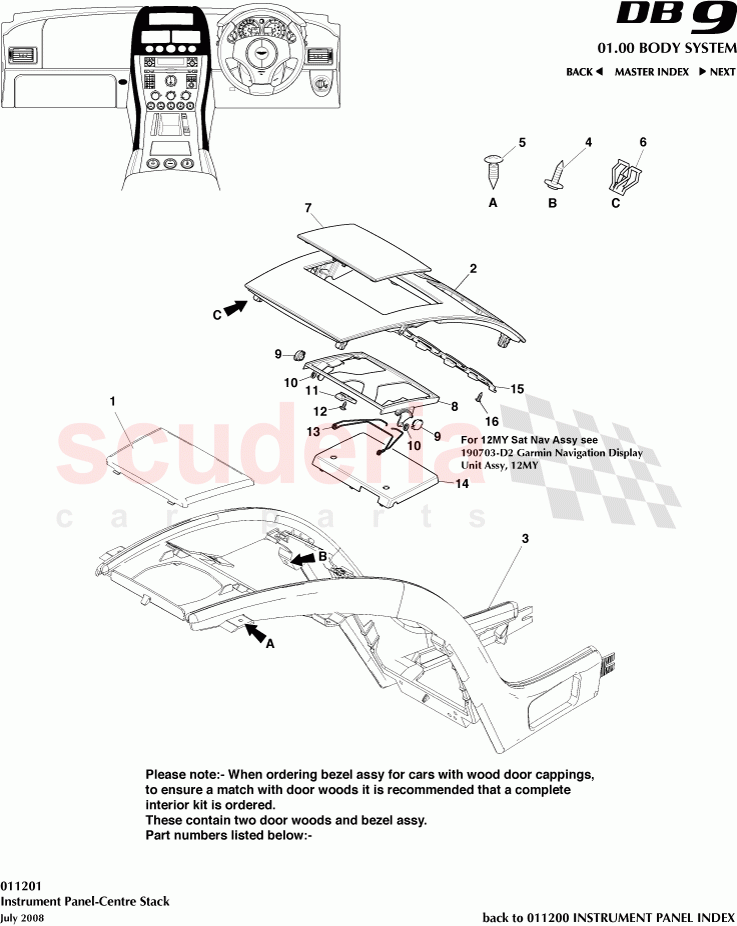

Aston Martin DB9 (2004-2012) - Instrument Panel-Centre Stack

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	Enquire	To Order
	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order
	AG43045J10AA	Nav surround and door assy, Manual	Enquire	To Order

...and 75 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43C04350AFW	PANEL ASSEMBLY INSTRUMENT CENTRE	Enquire	To Order
	91909	PNL ASSY INSTR CTR	Enquire	To Order
	9G4355210ACW	Panel, instrument, centre	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43045G37AA	DOOR CONSOLE NAV	Enquire	To Order
	AD43045G37AA	DOOR CONSOLE NAV NEXUS ALLOY	Enquire	To Order
	6G33045G37AAW	DR CNSL NAV NAV LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3338392AA	SPINDLE DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314163AB	LOCATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A462AB	Retainer, control switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703170	SCREW 4x8 PAN T/H CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G436910786	VENEER FITG KIT-ALUM	4G436910786 VENEER FITG KIT-ALUM -Not for 09MY onwards	-	-	Enquire
-	4G438710330	INT SET-PIANO BLACK AUTO. NON SAT NAV	4G438710330 INT SET-PIANO BLACK AUTO. NON SAT NAV -Not for 09MY onwards	-	-	Enquire
-	4G438710323	INT KIT-MAHOGANY MANUAL. NON SAT NAV	4G438710323 INT KIT-MAHOGANY MANUAL. NON SAT NAV -Not for 09MY onwards	-	-	Enquire
-	4G438710801	INT KIT-BAMBOO MANL	4G438710801 INT KIT-BAMBOO MANL -Not for 09MY onwards	-	-	Enquire
-	4G438710319	INT KIT-WALNUT MANL NON SAT NAV	4G438710319 INT KIT-WALNUT MANL NON SAT NAV -Not for 09MY onwards	-	-	Enquire
-	4G438710327	INT KIT-BAMBOO MANL NON SAT NAV	4G438710327 INT KIT-BAMBOO MANL NON SAT NAV -Not for 09MY onwards	-	-	Enquire
-	4G438710326	INT KIT-BAMBOO AUTO NON SAT NAV	4G438710326 INT KIT-BAMBOO AUTO NON SAT NAV -Not for 09MY onwards	-	-	Enquire
1	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	9D33C046A26AC Grille Assy, Centre Speaker, Instrument Panel 9.5MY	-	1	Enquire
1	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	4G43C046A26ACW GRILL INSTRUMENT PANEL RADIO PLATINUM	-	1	Enquire
2	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY For use with metal substrate/metal foil surround	-	1	Enquire
2	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY For use with plastic sub surround	-	1	Enquire
2	AG43045J10AA	Nav surround and door assy, Manual	AG43045J10AA Nav surround and door assy, Manual 11MY Olive Ash Burl, 11MY	-	1	Enquire
2	AG43045J10BA	Nav surround and door assy, Auto	AG43045J10BA Nav surround and door assy, Auto 11MY Olive Ash Burl, 11MY	-	1	Enquire
2	AG43045J10CA	Surround only, Manual - No Nav	AG43045J10CA Surround only, Manual - No Nav 11MY Olive Ash Burl, 11MY	-	1	Enquire
2	AG43045J10DA	Navigation Surround Assy, Olive Ash	AG43045J10DA Navigation Surround Assy, Olive Ash 11MY Olive Ash Burl, 11MY	-	1	Enquire
2	AG43047A04BA	BEZL ASSY I/PNL MAN	AG43047A04BA BEZL ASSY I/PNL MAN 11MY Double Apex Alloy	-	1	Enquire
2	AG43047A04DA	Nav surround and door assy, Manual	AG43047A04DA Nav surround and door assy, Manual 11MY Double Apex Alloy	-	1	Enquire
2	AG43047A04AA	BEZL ASSY I/PNL AUTO	AG43047A04AA BEZL ASSY I/PNL AUTO 11MY Double Apex Alloy	-	1	Enquire
2	AG43045H43DA	NAY SURROUND ASSY MAN	AG43045H43DA NAY SURROUND ASSY MAN 11MY Double Apex Alloy	-	1	Enquire
2	AG43047A04CA	Nav surround and door assy, Auto	AG43047A04CA Nav surround and door assy, Auto 11MY Double Apex Alloy	-	1	Enquire
2	AG43045H43CA	ALLOY FINISH EXCLUSIVE VH300	AG43045H43CA ALLOY FINISH EXCLUSIVE VH300 11MY Double Apex Alloy	-	1	Enquire
2	4G43045K18PB	NAVIGATION SURROUND - PIANO	4G43045K18PB NAVIGATION SURROUND - PIANO Up to (V) A08054	-	1	Enquire
2	4G43045K18NB	NAVIGATION SURROUND - PIANO	4G43045K18NB NAVIGATION SURROUND - PIANO Up to (V) B08107	-	1	Enquire
2	4G43045K18EB	NAVIGATION SURROUND - MAHOGANY	4G43045K18EB NAVIGATION SURROUND - MAHOGANY Up to (V) A08142	-	1	Enquire
2	4G43045K18AB	NAVIGATION SURROUND - WALNUT	4G43045K18AB NAVIGATION SURROUND - WALNUT Up to (V) B08133	-	1	Enquire
2	AD43047A04BA	BEZEL ASSEMBLY I/PANEL MAN	AD43047A04BA BEZEL ASSEMBLY I/PANEL MAN 11MY Nexus Alloy	-	1	Enquire
2	AD43047A04DA	Nav surround and door assy, Manual	AD43047A04DA Nav surround and door assy, Manual 11MY Nexus Alloy	-	1	Enquire
2	AD43047A04AA	BEZL ASSY I/PNL AUTO NEXUS ALLOY	AD43047A04AA BEZL ASSY I/PNL AUTO NEXUS ALLOY 11MY Nexus Alloy	-	1	Enquire
2	AD43045H43BA	NAV SURROUND ASSEMBLY MAN	AD43045H43BA NAV SURROUND ASSEMBLY MAN 11MY Nexus Alloy	-	1	Enquire
2	AD43047A04CA	Nav surround and door assy, Auto	AD43047A04CA Nav surround and door assy, Auto 11MY Nexus Alloy	-	1	Enquire
2	AD43045H43AA	NAV SURROUND ASSY AUTO NEXUS ALLOY	AD43045H43AA NAV SURROUND ASSY AUTO NEXUS ALLOY 11MY Nexus Alloy	-	1	Enquire
2	4G43045K18PB	NAVIGATION SURROUND - PIANO	4G43045K18PB NAVIGATION SURROUND - PIANO From (V) A08055	-	1	Enquire
2	4G43045K18NB	NAVIGATION SURROUND - PIANO	4G43045K18NB NAVIGATION SURROUND - PIANO From (V) B08108	-	1	Enquire
2	4G43045K18EB	NAVIGATION SURROUND - MAHOGANY	4G43045K18EB NAVIGATION SURROUND - MAHOGANY From (V) A08143	-	1	Enquire
2	4G43045K18AB	NAVIGATION SURROUND - WALNUT	4G43045K18AB NAVIGATION SURROUND - WALNUT From (V) B08134	-	1	Enquire
2	6G33045H43ABW	NAV SURROUND ASSY	6G33045H43ABW NAV SURROUND ASSY From DD101141	-	1	Enquire
2	4G43045K18GB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18GB BZL ASY I/PNL CONTR - WALNUT From DD100591	-	1	Enquire
2	4G43045K18TA	BZL ASY I/PNL CONTR - TETRA ROUGE	4G43045K18TA BZL ASY I/PNL CONTR - TETRA ROUGE LeMans	-	1	Enquire
2	4G43045K18SA	NAVIGATION SURROUND - TETRA ROUGE	4G43045K18SA NAVIGATION SURROUND - TETRA ROUGE LeMans	-	1	Enquire
2	4G43045K18DB	NAVIGATION SURROUND - WALNUT	4G43045K18DB NAVIGATION SURROUND - WALNUT Up to	-	1	Enquire
2	4G43045K18BB	NAVIGATION SURROUND - MAHOGANY	4G43045K18BB NAVIGATION SURROUND - MAHOGANY Up to	-	1	Enquire
2	4G43045K18FB	NAVIGATION SURROUND - BAMBOO	4G43045K18FB NAVIGATION SURROUND - BAMBOO Up to	-	1	Enquire
2	4G43045K18RB	BZL ASY I/PNL CONTR - PIANO	4G43045K18RB BZL ASY I/PNL CONTR - PIANO Up to	-	1	Enquire
2	4G43045K18CB	NAVIGATION SURROUND - BAMBOO	4G43045K18CB NAVIGATION SURROUND - BAMBOO Up to	-	1	Enquire
2	4G43045K18QB	BZL ASY I/PNL CONTR - PIANO	4G43045K18QB BZL ASY I/PNL CONTR - PIANO Up to	-	1	Enquire
2	4G43045K18LB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18LB BZL ASY I/PNL CONTR - MAHOGANY Up to	-	1	Enquire
2	4G43045K18KB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18KB BZL ASY I/PNL CONTR - WALNUT Up to	-	1	Enquire
2	4G43045K18HB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18HB BZL ASY I/PNL CONTR - MAHOGANY Up to	-	1	Enquire
2	4G43045K18MB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18MB BZL ASY I/PNL CONTR - BAMBOO Up to	-	1	Enquire
2	4G43045K18GB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18GB BZL ASY I/PNL CONTR - WALNUT Up to	-	1	Enquire
2	4G43045K18JB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18JB BZL ASY I/PNL CONTR - BAMBOO Up to	-	1	Enquire
2	6G33045H43BBW	NAV SURROUND ASSY	6G33045H43BBW NAV SURROUND ASSY From	-	1	Enquire
2	4G43045K18DB	NAVIGATION SURROUND - WALNUT	4G43045K18DB NAVIGATION SURROUND - WALNUT From	-	1	Enquire
2	4G43045K18RB	BZL ASY I/PNL CONTR - PIANO	4G43045K18RB BZL ASY I/PNL CONTR - PIANO From	-	1	Enquire
2	CG43045J10UE	BZL ASY I/PNL CONTR	CG43045J10UE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	4G43045K18BB	NAVIGATION SURROUND - MAHOGANY	4G43045K18BB NAVIGATION SURROUND - MAHOGANY From	-	1	Enquire
2	4G43045K18FB	NAVIGATION SURROUND - BAMBOO	4G43045K18FB NAVIGATION SURROUND - BAMBOO From	-	1	Enquire
2	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO 09MY	-	1	Enquire
2	4G43045K18QB	BZL ASY I/PNL CONTR - PIANO	4G43045K18QB BZL ASY I/PNL CONTR - PIANO From	-	1	Enquire
2	CG43045J10RE	BZL ASY I/PNL CONTR	CG43045J10RE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	4G43045K18CB	NAVIGATION SURROUND - BAMBOO	4G43045K18CB NAVIGATION SURROUND - BAMBOO From	-	1	Enquire
2	4G43045K18LB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18LB BZL ASY I/PNL CONTR - MAHOGANY From	-	1	Enquire
2	CG43045J10LE	BZL ASY I/PNL CONTR	CG43045J10LE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	CG43045J10WD	BZL I/PNL CONTRO	CG43045J10WD BZL I/PNL CONTRO 09MY	-	1	Enquire
2	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	CG43045J10NE SAT NAV TRIM SURROUND BLACK 09MY	-	1	Enquire
2	CG43045J10EE	NAV SURROUND - MAH	CG43045J10EE NAV SURROUND - MAH 09MY	-	1	Enquire
2	CG43045J10TD	NAV SURROUND - ASH	CG43045J10TD NAV SURROUND - ASH 09MY	-	1	Enquire
2	4G43045K18KB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18KB BZL ASY I/PNL CONTR - WALNUT From	-	1	Enquire
2	CG43045J10KE	BZL ASY I/PNL CONTR	CG43045J10KE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	4G43045K18HB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18HB BZL ASY I/PNL CONTR - MAHOGANY From	-	1	Enquire
2	CG43045J10HD	Centre Bezel Assy, Instrument Panel, Mahogany	CG43045J10HD Centre Bezel Assy, Instrument Panel, Mahogany 09MY	-	1	Enquire
2	4G43045K18MB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18MB BZL ASY I/PNL CONTR - BAMBOO From	-	1	Enquire
2	CG43045J10MD	BZL ASY I/PNL CONTRO	CG43045J10MD BZL ASY I/PNL CONTRO 09MY	-	1	Enquire
2	CG43045J10VE	BZL ASY I/PNL CONTR	CG43045J10VE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	6G33047A04BBW	BEZEL ASSY I/PNL MAN MAN - NON NAV	6G33047A04BBW BEZEL ASSY I/PNL MAN MAN - NON NAV 07MY	-	1	Enquire
2	9G43047A05DAW	Bezel assy, alloy, MANUAL, Standard	9G43047A05DAW Bezel assy, alloy, MANUAL, Standard 09MY	-	1	Enquire
2	CG43045J10DE	NAV SURROUND-WALNUT	CG43045J10DE NAV SURROUND-WALNUT 09MY	-	1	Enquire
2	CG43045J10BE	NAV SURROUND - MAH	CG43045J10BE NAV SURROUND - MAH 09MY	-	1	Enquire
2	CG43045J10FD	NAV SURROUND -BAMBOO	CG43045J10FD NAV SURROUND -BAMBOO 09MY	-	1	Enquire
2	CG43045J10SE	NAV SURROUND - ASH	CG43045J10SE NAV SURROUND - ASH 09MY	-	1	Enquire
2	CG43045J10GD	Centre Bezel Assy, Instrument Panel, Walnut	CG43045J10GD Centre Bezel Assy, Instrument Panel, Walnut 09MY	-	1	Enquire
2	4G43045K18JB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18JB BZL ASY I/PNL CONTR - BAMBOO From	-	1	Enquire
2	CG43045J10JD	Centre Bezel Assy, Instrument Panel, Bamboo	CG43045J10JD Centre Bezel Assy, Instrument Panel, Bamboo 09MY	-	1	Enquire
2	6G33047A04ABW	BEZEL ASSY I/PNL MAN	6G33047A04ABW BEZEL ASSY I/PNL MAN 07MY	-	1	Enquire
2	9G43047A05CAW	Bezel assy, alloy, AUTO, Standard	9G43047A05CAW Bezel assy, alloy, AUTO, Standard 09MY	-	1	Enquire
2	CG43045J10AE	NAV SURROUND -WALNUT	CG43045J10AE NAV SURROUND -WALNUT 09MY	-	1	Enquire
2	CG43045J10CE	NAV SURROUND - BAMBO	CG43045J10CE NAV SURROUND - BAMBO 09MY	-	1	Enquire
3	4G43C04350AFW	PANEL ASSEMBLY INSTRUMENT CENTRE	4G43C04350AFW PANEL ASSEMBLY INSTRUMENT CENTRE Standard	-	1	Enquire
3	91909	PNL ASSY INSTR CTR	91909 PNL ASSY INSTR CTR Sat Nav	-	1	Enquire
3	9G4355210ACW	Panel, instrument, centre	9G4355210ACW Panel, instrument, centre 11MY	-	1	Enquire
3	CG4355210ACW	Panel, instrument, centre	CG4355210ACW Panel, instrument, centre 12MY	-	1	Enquire
4	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	6	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	14	Enquire
6	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	6	Enquire
7	AG43045G37AA	DOOR CONSOLE NAV	AG43045G37AA DOOR CONSOLE NAV 11MY Double Apex Alloy	-	1	Enquire
7	AD43045G37AA	DOOR CONSOLE NAV NEXUS ALLOY	AD43045G37AA DOOR CONSOLE NAV NEXUS ALLOY 11MY Nexus Alloy	-	1	Enquire
7	6G33045G37AAW	DR CNSL NAV NAV LID	6G33045G37AAW DR CNSL NAV NAV LID	-	1	Enquire
8	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	6G3318C917AB BRACKET - NAVIGATION MOUNTING	-	1	Enquire
9	6G3338392AA	SPINDLE DAMPER	6G3338392AA SPINDLE DAMPER	-	2	Enquire
10	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	6G338979AA WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	-	2	Enquire
11	6G3314163AB	LOCATOR	6G3314163AB LOCATOR	-	2	Enquire
12	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	1	Enquire
13	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	6G3319363AE SPRING TORSION 100 x 75 x 1.8	-	1	Enquire
14	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY	-	1	Enquire
15	6G3314A462AB	Retainer, control switch	6G3314A462AB Retainer, control switch	-	1	Enquire
16	703170	SCREW 4x8 PAN T/H CHROME FREE	703170 SCREW 4x8 PAN T/H CHROME FREE	-	6	Enquire
