Aston Martin DB9 (2004-2012) - Front Side Door Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4324070AAW PAD ASSY DOOR A/REST UPPER RH $504.50 To Order
4G4324071AAW PAD ASSY DOOR A/REST UPPER LH $504.50 To Order
Photo Part No Description Price (each) Stock
4G4324242ADW INSERT ASSY FRONT DOOR A/REST RH $241.94 To Order
4G4324243ADW INSERT ASSY FRONT DOOR A/REST LH $241.94 To Order
Photo Part No Description Price (each) Stock
9G4322614AB ASY INSIDE RLSE HNDL $1,831.44 To Order
9G4322615AB ASY INSIDE RLSE HNDL $1,831.44 To Order
4G4322614BA ASSY INSIDE RELEASE HANDLE RH PLATINUM $1,831.44 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43104081BA Screw, M6 x 55, Cap Head Countersunk, Black $1.44 To Order
Photo Part No Description Price (each) Stock
707620 Nut-M4 HEX FLANGED $0.43 To Order
Photo Part No Description Price (each) Stock
707613 SCREW M4.2 X 13 FLANGE BLACK $1.00 To Order
Photo Part No Description Price (each) Stock
9G43C18978CA GRILLE-RADIO SPKR RH $666.03 To Order
9G43C18979CA GRILLE-RADIO SPKR LH $665.94 To Order
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 To Order
Photo Part No Description Price (each) Stock
9G438711265 Panel Assy, Door Trim Kit, Tamo Ash $1,536.26 To Order
AG4323928AAW Panel, door trim, upper, RH Enquire To Order
AG4323929AAW Panel, door trim, upper, LH Enquire To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9G4323936ABW PNL ASY FR DR TR LWR $1,416.33 To Order
9G4323937AAW Panel assy, front door trim, lower, LH Enquire To Order
4G4323936AEW PANEL ASSEMBLY FRONT DOOR TRIM LOWER RH $1,455.30 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4323718AAW POCKET ASSY DOOR RH $753.59 To Order
4G4323719AAW POCKET ASSY DOOR LH $746.98 To Order
4G4323718ABW POCKET ASSY DOOR RH $753.59 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4323864AFW INSERT ASSEMBLY DOOR TRIM PANEL - RH $604.33 To Order
4G4323865AFW INSERT ASSEMBLY DOOR TRIM PANEL - LH $604.33 To Order
Photo Part No Description Price (each) Stock
707620 Nut-M4 HEX FLANGED $0.43 To Order
Photo Part No Description Price (each) Stock
4G4314717AB WINDOW LIFT SWITCH PASSENGER SIDE $298.65 To Order
4G4314540BB WINDOW LIFT SWITCH DRIVERS SIDE WITH POWERFOLD MIRRORS $278.06 To Order
Photo Part No Description Price (each) Stock
4G43C237898AA BEZEL DOOR TRIM $123.89 To Order
Photo Part No Description Price (each) Stock
4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black $0.71 To Order
Photo Part No Description Price (each) Stock
702086 SCREW 4.2x13 FLG $0.62 To Order
Photo Part No Description Price (each) Stock
4G4323900AB PANEL DOOR TRIM UPPER RH $297.37 To Order
4G4323901AB PANEL DOOR TRIM UPPER LH $297.37 To Order
Photo Part No Description Price (each) Stock
703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE $0.37 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 To Order
Photo Part No Description Price (each) Stock
707620 Nut-M4 HEX FLANGED $0.43 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 To Order
Photo Part No Description Price (each) Stock
4G43237A76ACW Cap Front Door Trim RR RH $104.98 To Order
4G43237A77ACW CAP FRONT DOOR TRIM RR LH $104.98 To Order
Photo Part No Description Price (each) Stock
AG4320838BA Retainer, Door Trim Upper $16.74 To Order
Photo Part No Description Price (each) Stock
707613 SCREW M4.2 X 13 FLANGE BLACK $1.00 To Order
Photo Part No Description Price (each) Stock
4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black $0.71 To Order
Photo Part No Description Price (each) Stock
702086 SCREW 4.2x13 FLG $0.62 To Order
701025 SCREW No8 x 13 FLANGED AB S.T. $0.50 To Order
707623 Screw and Washer, M4 x 16, Pan Head $0.61 To Order
Photo Part No Description Price (each) Stock
4G4302275AB Seal Venair Outlet Duct Door Lower RH $5.35 To Order
4G4302276AB Seal Venair Outlet Duct Door Lower LH $5.35 To Order
View All

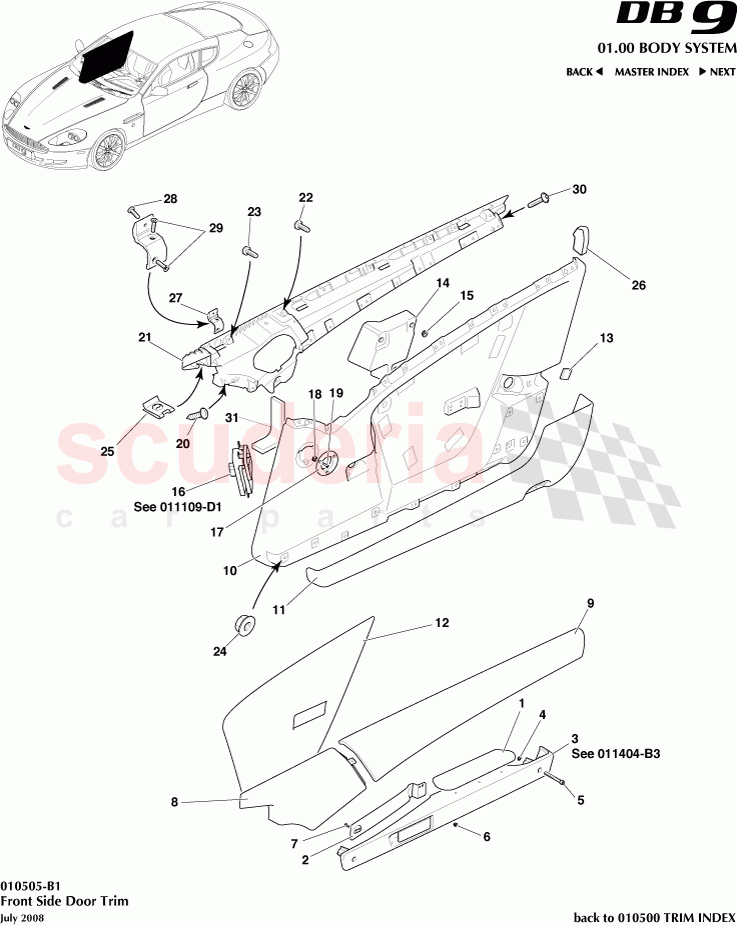

Front Side Door Trim of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G4323942FAW
Panel assy, front door trim, RH, RHD B&O
Leather top roll 9.5MY 		- 1 Enquire
- 9G4323943FAW
Panel assy, front door trim, LH, RHD B&O
Leather top roll 9.5MY 		- 1 Enquire
- 9G4323942EAW
Panel assy, front door trim, RH, LHD B&O
Leather top roll 9.5MY 		- 1 Enquire
- 9G4323943EAW
Panel assy, front door trim, LH, LHD B&O
Leather top roll 9.5MY 		- 1 Enquire
- 9G4323942BBW
Panel assy, front door trim, RH, RHD Alpine
Leather top roll 09MY 		- 1 Enquire
- 9G4323943BBW
Panel assy, front door trim, LH, RHD Alpine
Leather top roll 09MY 		- 1 Enquire
- 9G4323942ABW
Panel assy, front door trim, RH, LHD Alpine
Leather top roll 09MY 		- 1 Enquire
- 9G4323943ABW
Panel assy, front door trim, RH, LHD Alpine
Leather top roll 09MY 		- 1 Enquire
- 9G4323942HAW
Panel assy, front door trim, RH, RHD B&O
No top roll 9.5MY 		- 1 Enquire
- 9G4323943HAW
Panel assy, front door trim, LH, RHD B&O
No top roll 9.5MY 		- 1 Enquire
- 9G4323942GAW
Panel assy, front door trim, RH, LHD B&O
No top roll 9.5MY 		- 1 Enquire
- 9G4323943GAW
Panel assy, front door trim, LH, LHD B&O
No top roll 9.5MY 		- 1 Enquire
- 9G4323942DBW
Panel assy, front door trim, RH, RHD Alpine
No top roll 09MY 		- 1 Enquire
- 9G4323943DBW
Panel assy, front door trim, LH, RHD Alpine
No top roll 09MY 		- 1 Enquire
- 9G4323942CBW
Panel assy, front door trim, RH, LHD Alpine
No top roll 09MY 		- 1 Enquire
- 9G4323943CBW
Panel assy, front door trim, LH, LHD Alpine
No top roll 09MY 		- 1 Enquire
- 4G4323942BFW
Panel assy, front door trim, RH, RHD
Leather top roll 		$2,794.12 1
- 4G4323943BFW
Panel assy, front door trim, LH, RHD
Leather top roll 		$2,218.18 1
- 7G4323942AAW
PNL ASY FRT DR TRIM COMP RH LHD -LEATHER WRAPPED TOP ROLL
Leather top roll 		$2,265.10 1
- 7G4323943AAW
PNL ASY FRT DR TRIM COMP LH LHD -LEATHER WRAPPED TOP ROLL
Leather top roll 		- 1 Enquire
- 4G4323942FBW
Panel door trim upper veneer, RH, RHD
Mahogany veneer 		- 1 Enquire
- 4G4323942EBW
Panel door trim upper veneer, RH, LHD
Mahogany veneer 		$3,285.34 1
- 4G4323943FBW
Panel door trim upper veneer, LH, RHD
Mahogany veneer 		- 1 Enquire
- 4G4323943EBW
Panel door trim upper veneer, LH, LHD
Mahogany veneer 		$3,285.34 1
- 4G4323942CBW
PNL ASY FRT DR TRIM COMP RH LHD - WALNUT VENEER
Walnut veneer 		$3,399.89 1
- 4G4323943DBW
Panel door trim upper veneer, LH, RHD
Walnut veneer 		$2,834.06 1
- 4G4323943CBW
PNL ASY FRT DR TRIM COMP LH LHD - WALNUT VENEER
Walnut veneer 		$3,399.89 1
- 4G4323942HBW
Panel door trim upper veneer, RH, RHD
Bamboo veneer 		- 1 Enquire
- 4G4323942GBW
Panel door trim upper veneer, RH, LHD
Bamboo veneer 		- 1 Enquire
- 4G4323943HBW
Panel door trim upper veneer, LH, RHD
Bamboo veneer 		- 1 Enquire
- 4G4323943GBW
Panel door trim upper veneer, LH, LHD
Bamboo veneer 		- 1 Enquire
- 4G4323942DBW
Panel door trim upper veneer RH, RHD
Walnut veneer 		$2,834.06 1
- 4G4323942KBW
Panel assy, front door trim, RH, RHD
Piano black 		$4,006.09 1
- 4G4323943KBW
Panel assy, front door trim, LH, RHD
Piano black 		- 1 Enquire
- 4G4323942JBW
Panel assy, front door trim, RH, LHD
Piano black 		- 1 Enquire
- 4G4323943JBW
Panel assy, front door trim, LH, LHD
Piano black 		- 1 Enquire
- 4G4324141ACW
A/REST ASSY DOOR TRIM (DOOR PULL LH) 		- 1 Enquire
- 4G4324140ACW
A/REST ASSY DOOR TRIM (DOOR PULL RH) 		- 1 Enquire
1 4G4324070AAW
PAD ASSY DOOR A/REST UPPER RH 		$504.50 1
1 4G4324071AAW
PAD ASSY DOOR A/REST UPPER LH 		$504.50 1
2 4G4324242ADW
INSERT ASSY FRONT DOOR A/REST RH 		$241.94 1
2 4G4324243ADW
INSERT ASSY FRONT DOOR A/REST LH 		$241.94 1
3 9G4322614AB
ASY INSIDE RLSE HNDL
Iridium Silver 09MY 		$1,831.44 1
3 9G4322615AB
ASY INSIDE RLSE HNDL
Iridium Silver 09MY 		$1,831.44 1
3 4G4322614BA
ASSY INSIDE RELEASE HANDLE RH PLATINUM
Platinum 		$1,831.44 1
3 4G4322615BA
ASSY INSIDE RELEASE HANDLE LH PLATINUM
Platinum 		$1,831.44 1
5 4G43104081BA
Screw, M6 x 55, Cap Head Countersunk, Black
Door handle attach 		$1.44 4
6 707620
Nut-M4 HEX FLANGED 		$0.43 3
7 707613
SCREW M4.2 X 13 FLANGE BLACK 		$1.00 2
8 9G43C18978CA
GRILLE-RADIO SPKR RH 		$666.03 1
8 9G43C18979CA
GRILLE-RADIO SPKR LH 		$665.94 1
8 701448
Spring Nut, U Type, 4.2 x 2.1 		$1.25 1
9 9G438711265
Panel Assy, Door Trim Kit, Tamo Ash
Tamo ash veneer 09MY 		$1,536.26 1
9 AG4323928AAW
Panel, door trim, upper, RH
Olive ash burl, 11MY 		- 1 Enquire
9 AG4323929AAW
Panel, door trim, upper, LH
Olive ash burl, 11MY 		- 1 Enquire
9 4G4323928ACW
PNL ASY DR TRIM APPLIQUE RH -LEATHER WRAPPED TOP ROLL
Leather top roll 		$559.65 1
9 4G4323929ACW
PANL ASY DOOR TRIM APPLIQUE LH -LEATHER WRAPPED TOP ROLL
Leather top roll 		$559.65 1
9 4G438710255
VENEER SET-DOOR PAIR MAHOGANY
Mahogany veneer 		$1,359.02 1
9 4G438710254
VENEER SET-DOOR PAIR WALNUT
Walnut veneer 		$1,359.02 1
9 4G438710256
VENEER SET-DOOR PAIR BAMBOO
Bamboo veneer 		$1,359.02 1
9 4G438710257
VENEER SET-DOOR PAIR PIANO BLACK
Piano black 		$1,359.02 1
9 4G438710956
VENEER SET-DOOR PAIR TETRA ROUGE
Tetra Rouge 		$4,228.51 1
9 4G438710257
VENEER SET-DOOR PAIR PIANO BLACK 		$1,359.02 1
9 4G438710956
VENEER SET-DOOR PAIR TETRA ROUGE 		$4,228.51 1
9 4G438710255
VENEER SET-DOOR PAIR MAHOGANY 		$1,359.02 1
9 4G438710254
VENEER SET-DOOR PAIR WALNUT 		$1,359.02 1
9 4G438710256
VENEER SET-DOOR PAIR BAMBOO 		$1,359.02 1
10 9G4323936ABW
PNL ASY FR DR TR LWR
09MY 		$1,416.33 1
10 9G4323937AAW
Panel assy, front door trim, lower, LH
09MY 		- 1 Enquire
10 4G4323936AEW
PANEL ASSEMBLY FRONT DOOR TRIM LOWER RH 		$1,455.30 1
10 4G4323937AEW
PANEL ASSEMBLY FRONT DOOR TRIM LOWER LH 		$1,455.30 1
10 4G43N805935AA
Flangeless Plug, Black PVC, 17mm 		$0.96 4
11 4G4323718AAW
POCKET ASSY DOOR RH
Up to (V) A06777 		$753.59 1
11 4G4323719AAW
POCKET ASSY DOOR LH
Up to (V) A06777 		$746.98 1
11 4G4323718ABW
POCKET ASSY DOOR RH
From (V) A06778 		$753.59 1
11 4G4323719ABW
POCKET ASSY DOOR LH
From (V) A06778 		$746.98 1
12 4G4323864AFW
INSERT ASSEMBLY DOOR TRIM PANEL - RH 		$604.33 1
12 4G4323865AFW
INSERT ASSEMBLY DOOR TRIM PANEL - LH 		$604.33 1
15 707620
Nut-M4 HEX FLANGED 		$0.43 4
16 4G4314717AB
WINDOW LIFT SWITCH PASSENGER SIDE
Platinum 		$298.65 1
16 4G4314540BB
WINDOW LIFT SWITCH DRIVERS SIDE WITH POWERFOLD MIRRORS
Platinum 		$278.06 1
17 4G43C237898AA
BEZEL DOOR TRIM 		$123.89 2
19 4G43103081BA
Screw, M4 x 16, Countersunk, Stainless Black 		$0.71 6
20 702086
SCREW 4.2x13 FLG 		$0.62 15
21 4G4323900AB
PANEL DOOR TRIM UPPER RH 		$297.37 1
21 4G4323901AB
PANEL DOOR TRIM UPPER LH 		$297.37 1
22 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE 		$0.37 10
23 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		$2.80 14
24 707620
Nut-M4 HEX FLANGED 		$0.43 4
25 701448
Spring Nut, U Type, 4.2 x 2.1 		$1.25 1
26 4G43237A76ACW
Cap Front Door Trim RR RH 		$104.98 1
26 4G43237A77ACW
CAP FRONT DOOR TRIM RR LH 		$104.98 1
27 AG4320838BA
Retainer, Door Trim Upper 		$16.74 6
28 707613
SCREW M4.2 X 13 FLANGE BLACK 		$1.00 10
29 4G43103081BA
Screw, M4 x 16, Countersunk, Stainless Black 		$0.71 8
30 702086
SCREW 4.2x13 FLG 		$0.62 1
30 701025
SCREW No8 x 13 FLANGED AB S.T. 		$0.50 20
30 707623
Screw and Washer, M4 x 16, Pan Head 		$0.61 8
31 4G4302275AB
Seal Venair Outlet Duct Door Lower RH 		$5.35 1
31 4G4302276AB
Seal Venair Outlet Duct Door Lower LH 		$5.35 1

Haven't found what you're looking for?

More: Aston Martin Doors Tuning Parts Need help? Call us

View Cart / Checkout
