Aston Martin DB9 (2004-2012) - Instrument Panel, Leather Covered

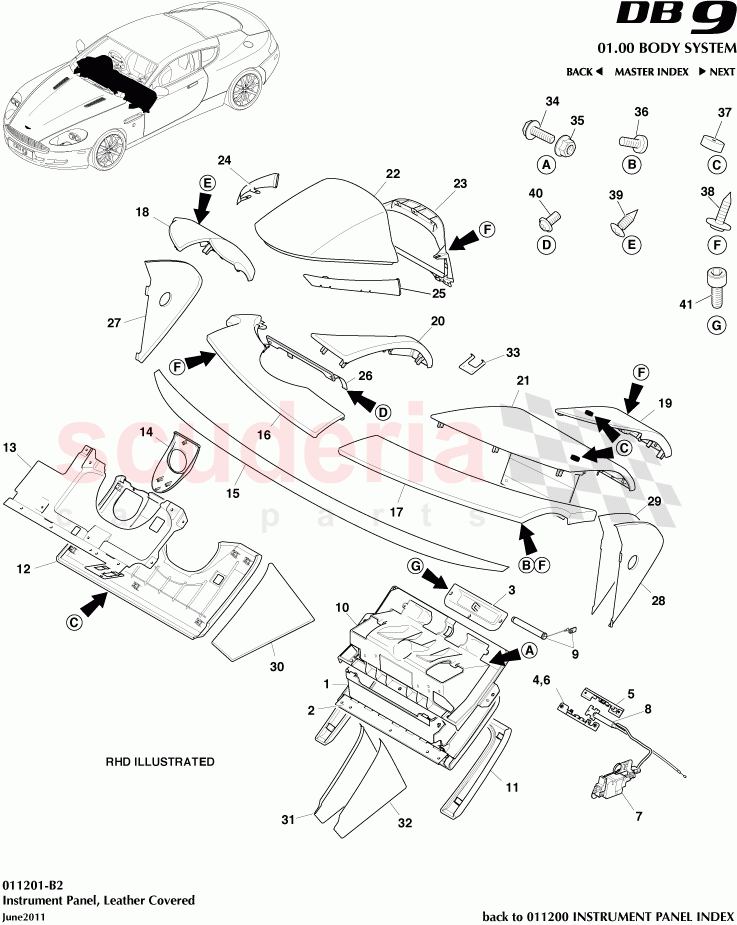

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33C06010ABW Glovebox, complete assy $2,728.07 To Order
4G43C06010AEW Glovebox, complete assy $1,318.80 To Order
Photo Part No Description Price (each) Stock
4G436910058 HINGE-GLOVEBOX DOOR $18.15 To Order
Photo Part No Description Price (each) Stock
4G43C06157AD Striker, Glove Compartment Door Latch $24.60 To Order
Photo Part No Description Price (each) Stock
4G43C044W04CB LATCH HOUSING UPPER $48.51 To Order
Photo Part No Description Price (each) Stock
4G43C044W04DB LATCH HOUSING LOWER $24.71 To Order
Photo Part No Description Price (each) Stock
701580PK Rivet Dome Head (Pack of 20) $11.36 To Order
Photo Part No Description Price (each) Stock
4G433710067 Actuator Assy, Fuel Filler $358.15 To Order
Photo Part No Description Price (each) Stock
AG4340180BA Cable, Fuel Filler Flap Release $59.00 To Order
4G432K625AA Abutment, Fuel Filler Cable $35.80 To Order
Photo Part No Description Price (each) Stock
4G43C06102AB Damper, Glovebox $58.92 To Order
Photo Part No Description Price (each) Stock
6G3356241AE Sight Shield, Glove Compartment Assy $59.66 To Order
6G3356241AE Sight Shield, Glove Compartment Assy $59.66 To Order
6G3356240AC Shield, sight, glovebox assy Enquire To Order
Photo Part No Description Price (each) Stock
4G43C043K93BFW Panel assy, passenger side lower, RHD Enquire To Order
8D33C043K93BCW PASS LOWER RHD $773.11 To Order
4G43C043K93AEW Panel assy, passenger side lower, LHD Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43C04325BGW Panel assy, Instrument lower drivers side, RHD Enquire To Order
4G43C04325BFW Panel assy, Instrument lower drivers side, RHD Enquire To Order
4G43C04325AFW Panel assy, Instrument lower drivers side, LHD Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4360K51DA Knee Protector, RHD $65.34 To Order
4G4360K51CA Knee Protector, LHD $65.34 To Order
4G4360K51BF Protector, knee, RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4311A665AD Bezel, Light Switch $11.71 To Order
Photo Part No Description Price (each) Stock
4G4344643AB EDGE FINISHER I/PNL $59.12 To Order
Photo Part No Description Price (each) Stock
9G43C043C54BBW Cover assy, Instrument Panel upper drivers side, RHD $999.91 To Order
9G43C043C54ABW COVER ASY INSTRUMENT PANEL UPPER DRIVER SIDE - LHD $494.38 To Order
4G43C043C54BHW Cover assy, Instrument Panel upper drivers side, RHD $479.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9G43C043C54DBW COVER ASY INSTRUMENT PANEL UPPER PASSENGER SIDE -RHD $494.38 To Order
4G43C043C54DHW Cover assy, Instrument Panel upper passenger side, RHD $628.00 To Order
4G43C043C54CHW Cover assy, Instrument Panel upper passenger side, LHD $628.00 To Order
Photo Part No Description Price (each) Stock
8D33C04634CCW DRIVER UPP OUTER RHD $622.91 To Order
8D33C04634ACW DRIVER UPP OUTER LHD $622.91 To Order
4G43C04634CFW Panel assy, Instrument upper drivers side outer, RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43C04635BEW Panel assy, instrument, Upper, passenger, RHD Enquire To Order
8D33C04635BCW PASS UPP OUTER RHD $622.82 To Order
4G43C04635AFW PNL ASY INSTR UPR PA $423.85 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D33C04634DDW DRIVER UPP INNER RHD $230.51 To Order
8D33C04634BDW DRIVER UPP INNER LHD $1,028.10 To Order
4G43C04634DGW PANEL ASY INSTRUMENT UPPER - DRIVER SIDE INNER RHD $423.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43C044H58BGW Panel and door assy, airbag, RHD $1,081.30 To Order
8D33C044H58BCW PASS AIRBAG DOOR RHD $1,361.18 To Order
4G43C044H58AHW PNL & DR ASY I/PNL $1,081.30 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D3310862ACW BINNACLE HOOD $1,485.63 To Order
4G4310862ALW HOOD ASSY INSTRUMENT CLUSTER $2,125.59 To Order
702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) $18.93 To Order
Photo Part No Description Price (each) Stock
4G43C04606AD Bezel, Cluster Opening, Instrument Panel $199.86 To Order
Photo Part No Description Price (each) Stock
4G43C045C90BC APPLIQUE CLUSTER BZL - RH $107.20 To Order
Photo Part No Description Price (each) Stock
4G43C045C90AC APPLIQUE CLUSTER BZL - LH $107.20 To Order
Photo Part No Description Price (each) Stock
4G433T501AEW Cover, Steering Column Upper $74.17 To Order
Photo Part No Description Price (each) Stock
8D33044B92AAW Leather End Cover, Instrument Panel, RH $174.31 To Order
4G43044B92AAW COVER I/PANEL END RH LEFT HAND DRIVER LEATHER $64.91 To Order
8D33044B92AAW Leather End Cover, Instrument Panel, RH $174.31 To Order
Photo Part No Description Price (each) Stock
8D33044B92CAW Leather End Cover, Instrument Panel, LH $174.31 To Order
4G43044B92CAW COVER INSTRUMENT PANEL END LEFT HAND LEFT HAND DRIVE $64.91 To Order
8D33044B92CAW Leather End Cover, Instrument Panel, LH $174.31 To Order
Photo Part No Description Price (each) Stock
4G43044B93AA Cover Spacer, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
8D33044H41AAW Centre Leather Cover, Instrument Panel, RH $226.89 To Order
4G43044H41AAW COVER I/PANEL CENTRE RH LEATHER $102.55 To Order
4G43044H41BAW CVR I/PNL CENTRE RIGHT HAND LTH RHD $102.55 To Order
Photo Part No Description Price (each) Stock
8D33044H40AAW Centre Leather Cover, Instrument Panel, LH $226.89 To Order
4G43044H40AAW COVER I/PANEL CENTRE LH LEATHER $102.55 To Order
4G43044H40BAW COVER I/PNL CENTRE LEFT HAND LTH RHD $102.55 To Order
Photo Part No Description Price (each) Stock
4G43044B95AA Spacer, Cover, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
4G43044K82AB Bracket, instrument panel, energy absorbing Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.59 To Order
Photo Part No Description Price (each) Stock
703156 Screw/Washer M6x18 Chrome Free $0.82 To Order
Photo Part No Description Price (each) Stock
4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD $3.08 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 To Order
Photo Part No Description Price (each) Stock
702086 SCREW 4.2x13 FLG $0.62 To Order
Photo Part No Description Price (each) Stock
703170 SCREW 4x8 PAN T/H CHROME FREE $2.28 To Order
Photo Part No Description Price (each) Stock
4G43105104AA Screw, M4 x 8, Cap Head, Black $0.25 To Order
View All
Instrument Panel, Leather Covered of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D33C06010ABW
Glovebox, complete assy
12MY 		$2,728.07 1
1 4G43C06010AEW
Glovebox, complete assy 		$1,318.80 1
2 4G436910058
HINGE-GLOVEBOX DOOR 		$18.15 1
3 4G43C06157AD
Striker, Glove Compartment Door Latch 		$24.60 1
4 4G43C044W04CB
LATCH HOUSING UPPER 		$48.51 1
5 4G43C044W04DB
LATCH HOUSING LOWER 		$24.71 1
6 701580PK
Rivet Dome Head (Pack of 20) 		$11.36 2
7 4G433710067
Actuator Assy, Fuel Filler 		$358.15 1
8 AG4340180BA
Cable, Fuel Filler Flap Release 		$59.00 1
8 4G432K625AA
Abutment, Fuel Filler Cable 		$35.80 1
9 4G43C06102AB
Damper, Glovebox 		$58.92 1
10 6G3356241AE
Sight Shield, Glove Compartment Assy
08MY From (V) A09110 		$59.66 1
10 6G3356241AE
Sight Shield, Glove Compartment Assy
07MY 		$59.66 1
10 6G3356240AC
Shield, sight, glovebox assy
11MY 		- 1 Enquire
11 4G43C043K93BFW
Panel assy, passenger side lower, RHD
11MY 		- 1 Enquire
11 8D33C043K93BCW
PASS LOWER RHD
12MY 		$773.11 1
11 4G43C043K93AEW
Panel assy, passenger side lower, LHD
11MY 		- 1 Enquire
11 8D33C043K93ACW
PASSENGER LOWER LHD
12MY 		$477.19 1
11 4G43C043K93BDW
Panel assy, passenger side lower, RHD 		$541.25 1
11 4G43C043K93ADW
PANEL ASY INSTRUMENT LOWER - PASSENGER SIDE 		$408.51 1
12 4G43C04325BGW
Panel assy, Instrument lower drivers side, RHD
Frm 12-6-06 up to 22-12-06 		- 1 Enquire
12 4G43C04325BFW
Panel assy, Instrument lower drivers side, RHD
Frm 21-4-06 up to 12-6-06 		- 1 Enquire
12 4G43C04325AFW
Panel assy, Instrument lower drivers side, LHD
Frm 21-4-06 up to 12-6-06 		- 1 Enquire
12 4G43C04325AGW
Panel assy, Instrument lower drivers side, LHD
Frm 12-6-06 U to 22-12-06 		- 1 Enquire
12 4G43C04325BEW
PANEL ASSEMBLY INSTRUMENT LOWER - DRIVERS SIDE - RHD
Up to 21-4-06 		$527.59 1
12 4G43C04325BHW
PANEL ASSEMBLY INSTRUMENT LOWER - DRIVERS SIDE - RHD
From 22-12-06 		- 1 Enquire
12 4G43C04325AEW
PANEL ASSEMBLY INSTRUMENT LOWER - DRIVER SIDE - LHD
Up to 21-4-06 		$527.59 1
12 4G43C04325AHW
Panel assy, Instrument lower drivers side, LHD
From 22-12-06 		- 1 Enquire
12 8D33C04325BCW
DRIVER LOWER RHD
12MY 		$1,005.57 1
12 8D33C04325ACW
DRIVER LOWER LHD
12MY 		$1,049.50 1
13 4G4360K51DA
Knee Protector, RHD
08MY From (V) A09110 		$65.34 1
13 4G4360K51CA
Knee Protector, LHD
08MY From (V) A09110 		$65.34 1
13 4G4360K51BF
Protector, knee, RHD
07MY 		- 1 Enquire
13 4G4360K51AF
Protector, knee, LHD
07MY 		- 1 Enquire
14 4G4311A665AD
Bezel, Light Switch 		$11.71 1
15 4G4344643AB
EDGE FINISHER I/PNL
Frm 5-1-04 Up to 11-7-05 		$59.12 1
16 9G43C043C54BBW
Cover assy, Instrument Panel upper drivers side, RHD
11MY 		$999.91 1
16 9G43C043C54ABW
COVER ASY INSTRUMENT PANEL UPPER DRIVER SIDE - LHD
11MY 		$494.38 1
16 4G43C043C54BHW
Cover assy, Instrument Panel upper drivers side, RHD 		$479.61 1
16 4G43C043C54AHW
Cover assy, Instrument Panel upper drivers side, LHD 		$494.38 1
17 9G43C043C54DBW
COVER ASY INSTRUMENT PANEL UPPER PASSENGER SIDE -RHD
11MY 		$494.38 1
17 4G43C043C54DHW
Cover assy, Instrument Panel upper passenger side, RHD 		$628.00 1
17 4G43C043C54CHW
Cover assy, Instrument Panel upper passenger side, LHD 		$628.00 1
18 8D33C04634CCW
DRIVER UPP OUTER RHD
12MY 		$622.91 1
18 8D33C04634ACW
DRIVER UPP OUTER LHD
12MY 		$622.91 1
18 4G43C04634CFW
Panel assy, Instrument upper drivers side outer, RHD 		- 1 Enquire
18 4G43C04634AGW
PNL ASY INSTR UPR 		$423.85 1
19 4G43C04635BEW
Panel assy, instrument, Upper, passenger, RHD
11MY 		- 1 Enquire
19 8D33C04635BCW
PASS UPP OUTER RHD
12MY 		$622.82 1
19 4G43C04635AFW
PNL ASY INSTR UPR PA
11MY 		$423.85 1
19 8D33C04635ACW
DRIVER UPP OUTER LHD
12MY 		$506.80 1
19 4G43C04635BDW
Panel assy, instrument, Upper, passenger, RHD 		- 1 Enquire
19 4G43C04635AFW
PNL ASY INSTR UPR PA 		$423.85 1
20 8D33C04634DDW
DRIVER UPP INNER RHD
12MY 		$230.51 1
20 8D33C04634BDW
DRIVER UPP INNER LHD
12MY 		$1,028.10 1
20 4G43C04634DGW
PANEL ASY INSTRUMENT UPPER - DRIVER SIDE INNER RHD 		$423.85 1
20 4G43C04634BHW
PNL ASY INSTR UPR 		$629.36 1
21 4G43C044H58BGW
Panel and door assy, airbag, RHD
11MY 		$1,081.30 1
21 8D33C044H58BCW
PASS AIRBAG DOOR RHD
12MY 		$1,361.18 1
21 4G43C044H58AHW
PNL & DR ASY I/PNL
11MY 		$1,081.30 1
21 8D33C044H58ACW
PASS AIRBAG DOOR LHD
12MY 		$1,088.65 1
21 4G43C044H58BGW
Panel and door assy, airbag, RHD 		$1,081.30 1
21 4G43C044H58AHW
PNL & DR ASY I/PNL 		$1,081.30 1
22 8D3310862ACW
BINNACLE HOOD
12MY 		$1,485.63 1
22 4G4310862ALW
HOOD ASSY INSTRUMENT CLUSTER 		$2,125.59 1
22 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) 		$18.93 4
23 4G43C04606AD
Bezel, Cluster Opening, Instrument Panel 		$199.86 1
24 4G43C045C90BC
APPLIQUE CLUSTER BZL - RH 		$107.20 1
25 4G43C045C90AC
APPLIQUE CLUSTER BZL - LH 		$107.20 1
26 4G433T501AEW
Cover, Steering Column Upper 		$74.17 1
27 8D33044B92AAW
Leather End Cover, Instrument Panel, RH
12MY 		$174.31 1
27 4G43044B92AAW
COVER I/PANEL END RH LEFT HAND DRIVER LEATHER 		$64.91 1
27 8D33044B92AAW
Leather End Cover, Instrument Panel, RH 		$174.31 1
28 8D33044B92CAW
Leather End Cover, Instrument Panel, LH
12MY 		$174.31 1
28 4G43044B92CAW
COVER INSTRUMENT PANEL END LEFT HAND LEFT HAND DRIVE 		$64.91 1
28 8D33044B92CAW
Leather End Cover, Instrument Panel, LH 		$174.31 1
29 4G43044B93AA
Cover Spacer, Instrument Panel 		- 1 Enquire
30 8D33044H41AAW
Centre Leather Cover, Instrument Panel, RH
12MY 		$226.89 1
30 4G43044H41AAW
COVER I/PANEL CENTRE RH LEATHER 		$102.55 1
30 4G43044H41BAW
CVR I/PNL CENTRE RIGHT HAND LTH RHD 		$102.55 1
31 8D33044H40AAW
Centre Leather Cover, Instrument Panel, LH
12MY 		$226.89 1
31 4G43044H40AAW
COVER I/PANEL CENTRE LH LEATHER 		$102.55 1
31 4G43044H40BAW
COVER I/PNL CENTRE LEFT HAND LTH RHD 		$102.55 1
32 4G43044B95AA
Spacer, Cover, Instrument Panel 		- 1 Enquire
33 4G43044K82AB
Bracket, instrument panel, energy absorbing
07MY 		- 1 Enquire
34 703265
Screw, M6 x 16, Hex Flange Head 		$0.36 4
35 703169
NUT - M6 HEX FLANGE CHROME FREE 		$0.59 4
36 703156
Screw/Washer M6x18 Chrome Free 		$0.82 7
37 4G43C045F70AB
RETAINER PASSENGER AIRBAG COVER PAD 		$3.08 4
38 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		$2.80 63
39 702086
SCREW 4.2x13 FLG 		$0.62 12
40 703170
SCREW 4x8 PAN T/H CHROME FREE 		$2.28 7
41 4G43105104AA
Screw, M4 x 8, Cap Head, Black
07MY 		$0.25 3

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
