Name: Console Panel with Armrest Stowage (Manual)
Rating: 4.7 (1 reviews)

View All

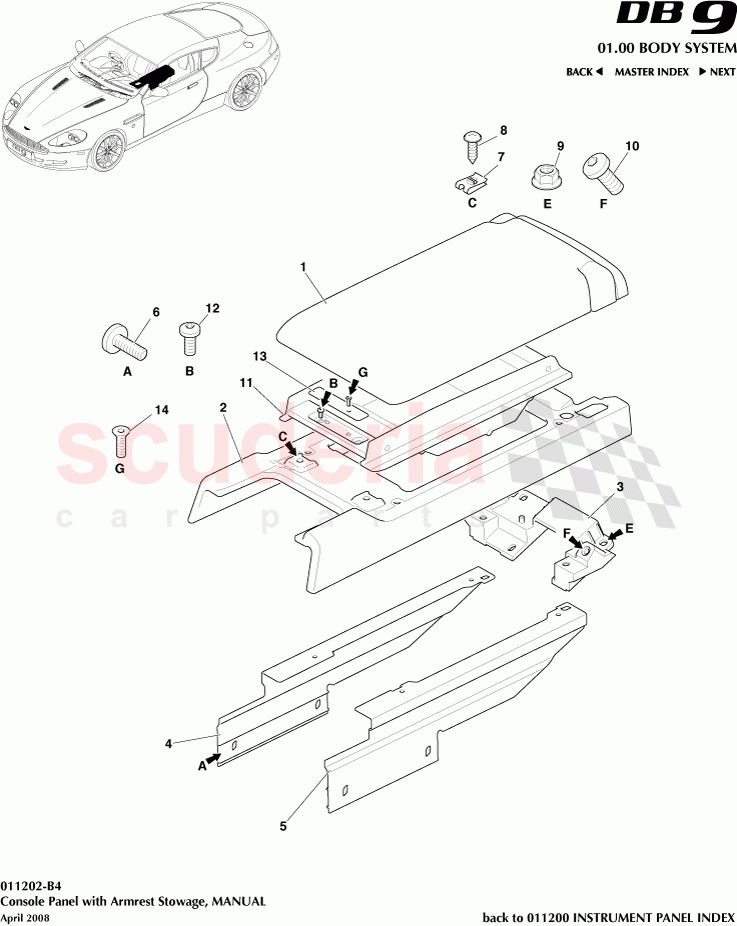

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4367446ACW	PANEL ASSEMBLY REAR CONSOLE	$879.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43045W34AB	REAR CONSOLE MOUNTING BRACKET ASY	$97.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B04AB	Reinforcement Assy, Console Panel, RH	$70.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B05AB	Reinforcement Assy, Console Panel, LH	$70.96	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	703173	SCREW M8x16 PAN HD CHROME FREE	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43115A00AA	Stowage compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43061A36AAW	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	$0.50	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43045C76BBW	PAD ASSY CONSOLE ARMREST	4G43045C76BBW PAD ASSY CONSOLE ARMREST 6.5MY onwards	$1,622.03	1
1	4G43045C76ABW	PAD ASSY CONSOLE ARMREST	4G43045C76ABW PAD ASSY CONSOLE ARMREST	$1,551.77	1
2	4G4367446ACW	PANEL ASSEMBLY REAR CONSOLE	4G4367446ACW PANEL ASSEMBLY REAR CONSOLE	$879.39	1
3	4G43045W34AB	REAR CONSOLE MOUNTING BRACKET ASY	4G43045W34AB REAR CONSOLE MOUNTING BRACKET ASY	$97.95	1
4	4G43043B04AB	Reinforcement Assy, Console Panel, RH	4G43043B04AB Reinforcement Assy, Console Panel, RH	$70.96	1
5	4G43043B05AB	Reinforcement Assy, Console Panel, LH	4G43043B05AB Reinforcement Assy, Console Panel, LH	$70.96	1
6	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	6
7	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	$1.25	2
8	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	$2.80	8
9	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	$1.05	3
10	703173	SCREW M8x16 PAN HD CHROME FREE	703173 SCREW M8x16 PAN HD CHROME FREE	$0.80	2
11	4G43115A00AA	Stowage compartment	4G43115A00AA Stowage compartment	-	1	Enquire
12	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	$0.21	2
13	4G43061A36AAW	Plate	4G43061A36AAW Plate	-	1	Enquire
14	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	$0.50	2
