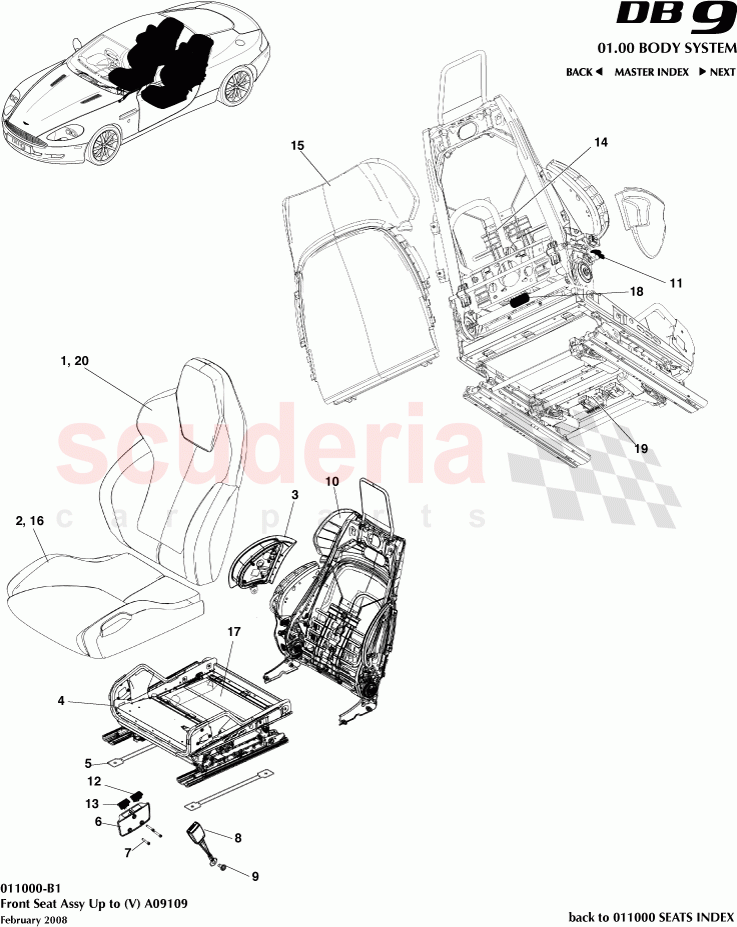

Aston Martin DB9 (2004-2012) - Front Seat Assembly Up to (V) A09109

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4364572ABW	FRONT SEAT SQUAB RH COVER ASSY	Enquire	To Order
	4G4364573ABW	FRONT SEAT SQUAB LH COVER ASSY	Enquire	To Order
	7G4364572ADW	FRONT SEAT SQUAB RH COVER ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4362900AAW	FRONT SEAT CUSHION RH COVER ASSY	Enquire	To Order
	4G4362901AAW	FRONT SEAT CUSHION LH COVER ASSY	Enquire	To Order
	7G4362900ADW	COVER ASSY FRONT SEAT CUSHION RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43600B94AAW	SIDE AIRBAG RH	Enquire	To Order
	4G43600B95AAW	SIDE AIRBAG LH	Enquire	To Order
	4G437410690	Airbag, Side, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G33L60344AC	FRONT SEAT CUSHION FRAME DRIVER	Enquire	To Order
	4G437410116	Track Assembly, Front Lightweight Seat	Enquire	To Order
	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4361888AC	FRONT SEAT SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43647K22AA	SWITCH ASSY VALANCE HEATER & LUMBAR	Enquire	To Order
	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43618A38AB	M6 X 35 SKT HD SCREW BLACK S424	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4364800AB	FRONT SEAT SQUAB FRAME RH	Enquire	To Order
	4G4364801AB	FRONT SEAT SQUAB FRAME LH	Enquire	To Order
	CG4364800AC	Squab Frame, Front Seat, RH, Memory	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

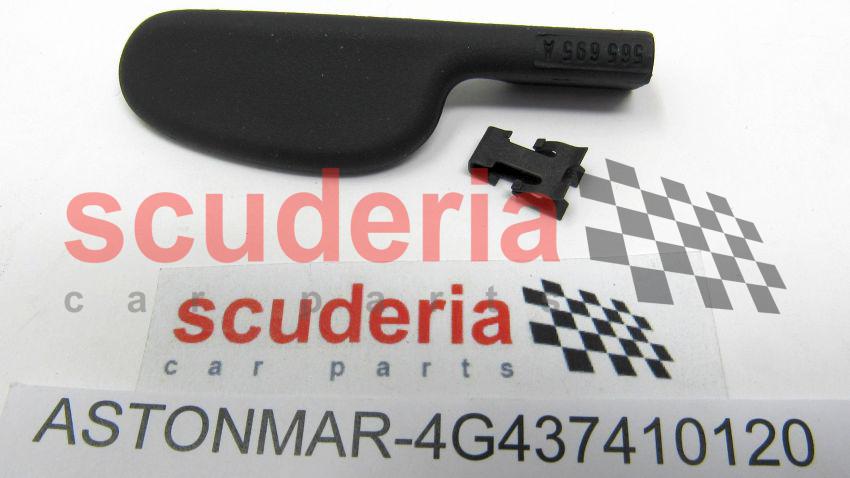

	4G437410120	FRONT SEAT - TILT LEVER - RH	Enquire	To Order

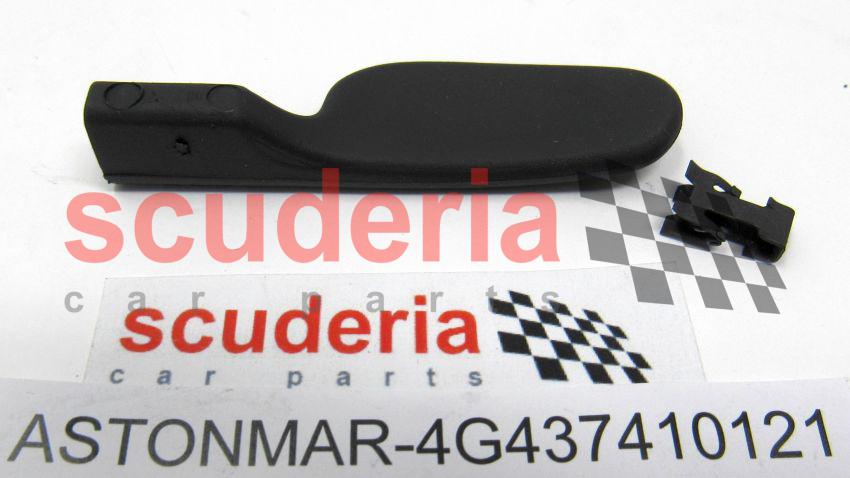

	4G437410121	Front Seat - Tilt Lever - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR	Enquire	To Order
	4G43647K22AA	SWITCH ASSY VALANCE HEATER & LUMBAR	Enquire	To Order
	7G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR UPPER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4314D694AA	SEAT HEATING SWITCH - SEAT	Enquire	To Order
	7G4314D694AA	SEAT HEATING SWITCH - SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410124	LUMBAR SUPPORT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4362293AAW	Panel, upper back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4360050ABW	FRONT SEAT CUSHION RH TRIMMED ASSY	Enquire	To Order
	4G4360051ABW	Cushion assy, front seat trimmed, LH	Enquire	To Order
	4G439515AA	FRONT SEAT CUSHION FOAM RH	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G437410119	SUSPENSION MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410127	Kit, Squab Motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410118	CONNECTOR BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4360008ABW	ASY FRONT SEAT RH	4G4360008ABW ASY FRONT SEAT RH Up to (V) A06677	-	1	Enquire
-	4G4360009ABW	ASSY FRONT SEAT LH	4G4360009ABW ASSY FRONT SEAT LH Up to (V) A06677	-	1	Enquire
-	7G4360008ADW	ASSY FRONT SEAT RH	7G4360008ADW ASSY FRONT SEAT RH From (V) A06678	-	1	Enquire
-	7G4360009ADW	ASSY FRONT SEAT LHS	7G4360009ADW ASSY FRONT SEAT LHS From (V) A06678	-	1	Enquire
1	4G4364572ABW	FRONT SEAT SQUAB RH COVER ASSY	4G4364572ABW FRONT SEAT SQUAB RH COVER ASSY Up to (V) A06677	-	1	Enquire
1	4G4364573ABW	FRONT SEAT SQUAB LH COVER ASSY	4G4364573ABW FRONT SEAT SQUAB LH COVER ASSY Up to (V) A06677	-	1	Enquire
1	7G4364572ADW	FRONT SEAT SQUAB RH COVER ASSY	7G4364572ADW FRONT SEAT SQUAB RH COVER ASSY From (V) A06678	-	1	Enquire
1	7G4364573ADW	FRONT SEAT SQUAB LH COVER ASSY	7G4364573ADW FRONT SEAT SQUAB LH COVER ASSY From (V) A06678	-	1	Enquire
2	4G4362900AAW	FRONT SEAT CUSHION RH COVER ASSY	4G4362900AAW FRONT SEAT CUSHION RH COVER ASSY Up to (V) A06677	-	1	Enquire
2	4G4362901AAW	FRONT SEAT CUSHION LH COVER ASSY	4G4362901AAW FRONT SEAT CUSHION LH COVER ASSY Up to (V) A06677	-	1	Enquire
2	7G4362900ADW	COVER ASSY FRONT SEAT CUSHION RH	7G4362900ADW COVER ASSY FRONT SEAT CUSHION RH From (V) A06678	-	1	Enquire
2	7G4362901ADW	COVER ASSY FRONT SEAT CUSHION LH	7G4362901ADW COVER ASSY FRONT SEAT CUSHION LH From (V) A06678	-	1	Enquire
3	4G43600B94AAW	SIDE AIRBAG RH	4G43600B94AAW SIDE AIRBAG RH Up to (V) A06677	-	1	Enquire
3	4G43600B95AAW	SIDE AIRBAG LH	4G43600B95AAW SIDE AIRBAG LH Up to (V) A06677	-	1	Enquire
3	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH From (V) A06678	-	1	Enquire
3	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH From (V) A06678	-	1	Enquire
4	6G33L60344AC	FRONT SEAT CUSHION FRAME DRIVER	6G33L60344AC FRONT SEAT CUSHION FRAME DRIVER Up to (V) A06677	-	2	Enquire
4	4G437410116	Track Assembly, Front Lightweight Seat	4G437410116 Track Assembly, Front Lightweight Seat Up to (V) A06677	-	2	Enquire
4	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS From (V) A06678	-	1	Enquire
4	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting From (V) A06678	-	1	Enquire
4	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting From (V) A06678	-	2	Enquire
4	702526	Bolt M8 x 30 Hex Flange Head	702526 Bolt M8 x 30 Hex Flange Head	-	8	Enquire
5	4G4361888AC	FRONT SEAT SPACER	4G4361888AC FRONT SEAT SPACER Up to (V) A06677	-	4	Enquire
6	4G43647K22AA	SWITCH ASSY VALANCE HEATER & LUMBAR	4G43647K22AA SWITCH ASSY VALANCE HEATER & LUMBAR Up to (V) A06677	-	1	Enquire
6	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH From (V) A06678	-	1	Enquire
7	4G43618A38AB	M6 X 35 SKT HD SCREW BLACK S424	4G43618A38AB M6 X 35 SKT HD SCREW BLACK S424 Up to (V) A06677	-	3	Enquire
8	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt 07MY	-	2	Enquire
10	4G4364800AB	FRONT SEAT SQUAB FRAME RH	4G4364800AB FRONT SEAT SQUAB FRAME RH Up to (V) A06677	-	1	Enquire
10	4G4364801AB	FRONT SEAT SQUAB FRAME LH	4G4364801AB FRONT SEAT SQUAB FRAME LH Up to (V) A06677	-	1	Enquire
10	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory From (V) A06678	-	1	Enquire
10	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory From (V) A06678	-	1	Enquire
11	4G437410120	FRONT SEAT - TILT LEVER - RH	4G437410120 FRONT SEAT - TILT LEVER - RH Up to (V) A06677	-	1	Enquire
11	4G437410121	Front Seat - Tilt Lever - LH	4G437410121 Front Seat - Tilt Lever - LH Up to (V) A06677	-	1	Enquire
12	4G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR	4G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR Up to (V) A06677	-	1	Enquire
12	4G43647K22AA	SWITCH ASSY VALANCE HEATER & LUMBAR	4G43647K22AA SWITCH ASSY VALANCE HEATER & LUMBAR Up to (V) A06677	-	2	Enquire
12	7G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR UPPER	7G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR UPPER From (V) A06678	-	1	Enquire
12	7G4314D692AA	SEAT SWITCH ASSEMBLY LUMBAR LOWER	7G4314D692AA SEAT SWITCH ASSEMBLY LUMBAR LOWER From (V) A06678	-	1	Enquire
12	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH From (V) A06678	-	2	Enquire
13	4G4314D694AA	SEAT HEATING SWITCH - SEAT	4G4314D694AA SEAT HEATING SWITCH - SEAT Up to (V) A06677	-	2	Enquire
13	7G4314D694AA	SEAT HEATING SWITCH - SEAT	7G4314D694AA SEAT HEATING SWITCH - SEAT From (V) A06678	-	2	Enquire
14	4G437410124	LUMBAR SUPPORT KIT	4G437410124 LUMBAR SUPPORT KIT Up to (V) A06677	-	1	Enquire
15	4G4362293AAW	Panel, upper back	4G4362293AAW Panel, upper back Up to (V) A06677	-	2	Enquire
16	4G4360050ABW	FRONT SEAT CUSHION RH TRIMMED ASSY	4G4360050ABW FRONT SEAT CUSHION RH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
16	4G4360051ABW	Cushion assy, front seat trimmed, LH	4G4360051ABW Cushion assy, front seat trimmed, LH Up to (V) A06677	-	1	Enquire
16	4G439515AA	FRONT SEAT CUSHION FOAM RH	4G439515AA FRONT SEAT CUSHION FOAM RH Up to (V) A06677	-	1	Enquire
16	4G439516AA	FRONT SEAT CUSHION FOAM LH	4G439516AA FRONT SEAT CUSHION FOAM LH Up to (V) A06677	-	1	Enquire
16	7G4360050ADW	Cushion assy, front seat trimmed, RH	7G4360050ADW Cushion assy, front seat trimmed, RH From (V) A06678	-	1	Enquire
16	7G4360051ADW	Cushion assy, front seat trimmed, LH	7G4360051ADW Cushion assy, front seat trimmed, LH From (V) A06678	-	1	Enquire
16	8G439515AA	FRT ST CUSH FOAM RH	8G439515AA FRT ST CUSH FOAM RH From (V) A06678	-	1	Enquire
16	8G439516AA	FRT ST CUSH FOAM LH	8G439516AA FRT ST CUSH FOAM LH From (V) A06678	-	1	Enquire
17	4G437410119	SUSPENSION MAT	4G437410119 SUSPENSION MAT	-	2	Enquire
18	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor For pre 07MY cars only	-	2	Enquire
19	4G437410118	CONNECTOR BRACKET	4G437410118 CONNECTOR BRACKET	-	2	Enquire
20	4G4360136AAW	FRONT SEAT SQUAB RH TRIMMED ASSY	4G4360136AAW FRONT SEAT SQUAB RH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
20	4G4360137AAW	FRONT SEAT SQUAB LH TRIMMED ASSY	4G4360137AAW FRONT SEAT SQUAB LH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
20	4G434D9513AA	SQUAB FOAM RH	4G434D9513AA SQUAB FOAM RH Up to (V) A06677	-	1	Enquire
20	4G434D9514AA	SQUAB FOAM LH	4G434D9514AA SQUAB FOAM LH Up to (V) A06677	-	1	Enquire
20	4G437410126	SEAT HARNESS KIT	4G437410126 SEAT HARNESS KIT Up to (V) A06677	-	1	Enquire
20	92057	SEAT ECU-DRIVER	92057 SEAT ECU-DRIVER Up to (V) A06677	-	2	Enquire
20	4G4314D698AA	CUSHION HEATING ELEMENT	4G4314D698AA CUSHION HEATING ELEMENT Up to (V) A06677	-	2	Enquire
20	4G4314D696AA	SQUAB HEATING ELEMENT	4G4314D696AA SQUAB HEATING ELEMENT Up to (V) A06677	-	2	Enquire
20	4G4319K322AA	HEATING RELAYS	4G4319K322AA HEATING RELAYS Up to (V) A06677	-	4	Enquire
20	92055	SEAT ECU-PASS	92055 SEAT ECU-PASS From (V) A06678	-	1	Enquire
20	7G4360136ADW	Squab assy, front seat trimmed, RH	7G4360136ADW Squab assy, front seat trimmed, RH From (V) A06678	-	1	Enquire
20	7G4360137ADW	Squab assy, front seat trimmed, LH	7G4360137ADW Squab assy, front seat trimmed, LH From (V) A06678	-	1	Enquire
20	92057	SEAT ECU-DRIVER	92057 SEAT ECU-DRIVER From (V) A06678	-	1	Enquire
20	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight From (V) A06678	-	1	Enquire
20	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight From (V) A06678	-	1	Enquire
20	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH From (V) A06678	-	1	Enquire
20	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH From (V) A06678	-	1	Enquire
20	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override From (V) A06678	-	2	Enquire
20	6G33062A00BB	GLOVEBOX SWITCH	6G33062A00BB GLOVEBOX SWITCH From (V) A06678	-	2	Enquire
20	7G43061B53AC	Switch, valence cover, 3 hole	7G43061B53AC Switch, valence cover, 3 hole From (V) A06678	-	2	Enquire
20	7G4314B426AB	Sensor, seat track position	7G4314B426AB Sensor, seat track position From (V) A06678	-	2	Enquire
20	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater From (V) A06678	-	2	Enquire
20	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab From (V) A06678	-	2	Enquire
20	7G437411070	SEAT HARNESS	7G437411070 SEAT HARNESS From (V)A06678	-	1	Enquire
20	4G437410913	SEAT HARNESS WITH MEMORY	4G437410913 SEAT HARNESS WITH MEMORY 07MY	-	1	Enquire
20	4G437410914	SEAT HARNESS NON MEMORY	4G437410914 SEAT HARNESS NON MEMORY 07MY	-	1	Enquire
20	4G437410122	SEAT SIDE COVER RH	4G437410122 SEAT SIDE COVER RH	-	1	Enquire
20	4G437410123	SEAT SIDE COVER LH	4G437410123 SEAT SIDE COVER LH	-	1	Enquire
20	4G437410125	SEAT BACK SHELL KIT	4G437410125 SEAT BACK SHELL KIT	-	1	Enquire
