Console Panel with Armrest Stowage (Manual) (2008) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Console Panel with Armrest Stowage (Manual) (2008)

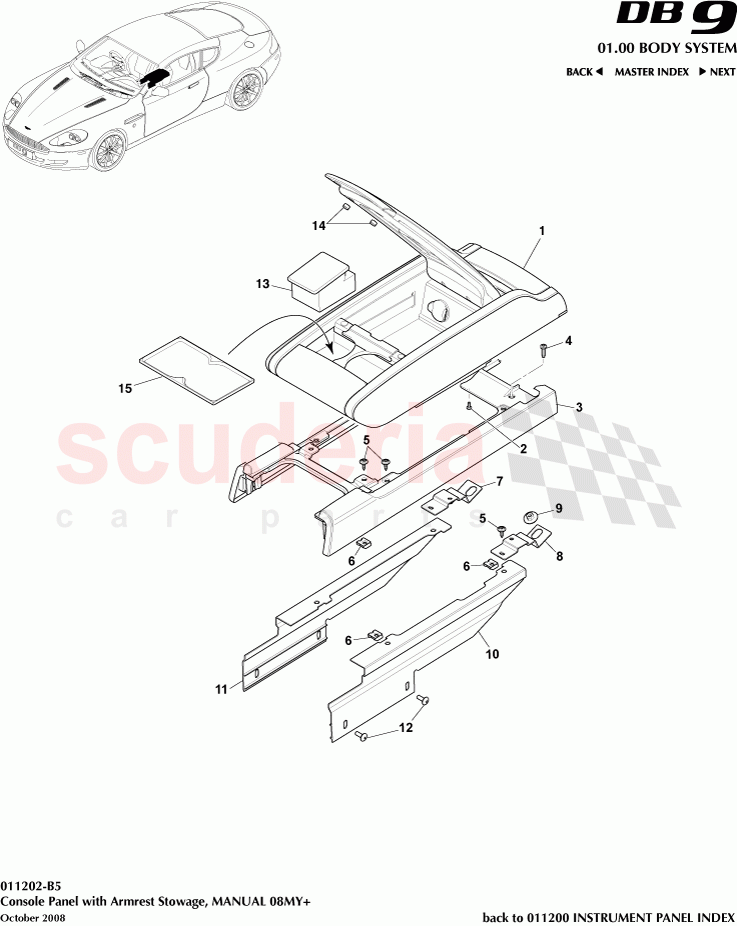

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G43045C76ABW	FRONT CONSOLE WITH STOWAGE	Enquire	To Order
	8G43045C76AAW	PAD ASSY CONSOLE ARMREST STWG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4367446AAW	Panel Assy, Rear Console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B05AB	Reinforcement Assy, Console Panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B04AB	Reinforcement Assy, Console Panel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43044J16AAW	Support, elbow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43040K60AA	MAT - PHONE SHELF	Enquire	To Order
	8G4323697AA	Magnet and Bumpstop Set	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G43045C76ABW	FRONT CONSOLE WITH STOWAGE	9G43045C76ABW FRONT CONSOLE WITH STOWAGE 09MY	-	1	Enquire
1	8G43045C76AAW	PAD ASSY CONSOLE ARMREST STWG	8G43045C76AAW PAD ASSY CONSOLE ARMREST STWG	-	1	Enquire
2	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	-	4	Enquire
3	CG4367446AAW	Panel Assy, Rear Console	CG4367446AAW Panel Assy, Rear Console	-	1	Enquire
4	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10)	-	2	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	6	Enquire
6	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	6	Enquire
7	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	8G4313522AA Bracket, Stowage Compartment Mounting, RH	-	1	Enquire
8	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	8G4313523AA Bracket, Stowage Compartment Mounting, LH	-	1	Enquire
9	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
10	4G43043B05AB	Reinforcement Assy, Console Panel, LH	4G43043B05AB Reinforcement Assy, Console Panel, LH	-	1	Enquire
11	4G43043B04AB	Reinforcement Assy, Console Panel, RH	4G43043B04AB Reinforcement Assy, Console Panel, RH	-	1	Enquire
12	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	4	Enquire
13	9G43044J16AAW	Support, elbow	9G43044J16AAW Support, elbow 09MY	-	1	Enquire
14	8G43040K60AA	MAT - PHONE SHELF	8G43040K60AA MAT - PHONE SHELF	-	1	Enquire
14	8G4323697AA	Magnet and Bumpstop Set	8G4323697AA Magnet and Bumpstop Set	-	1	Enquire
