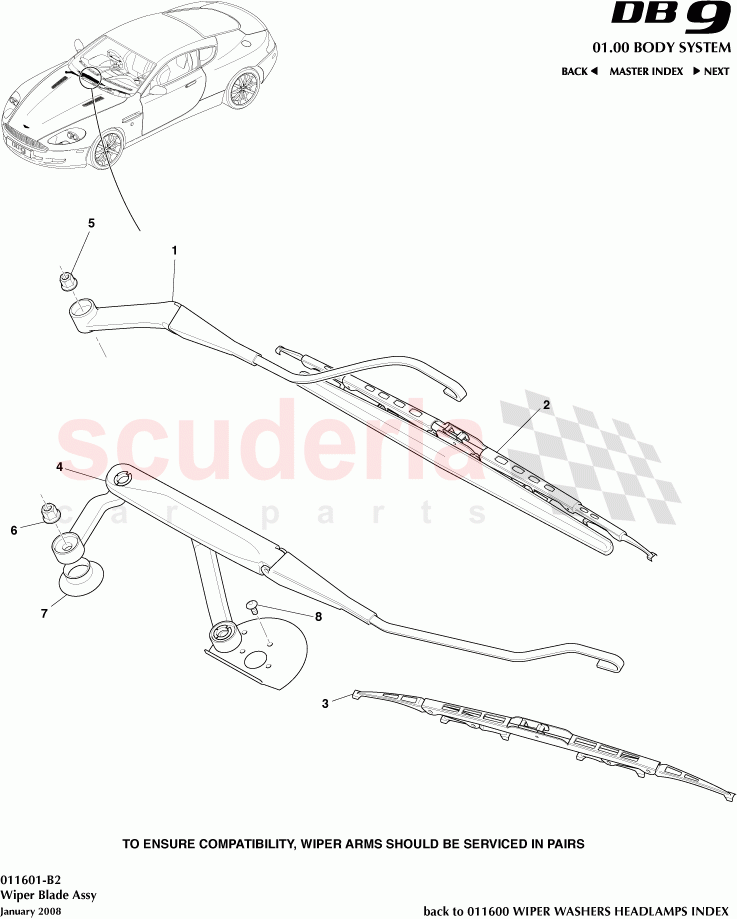

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

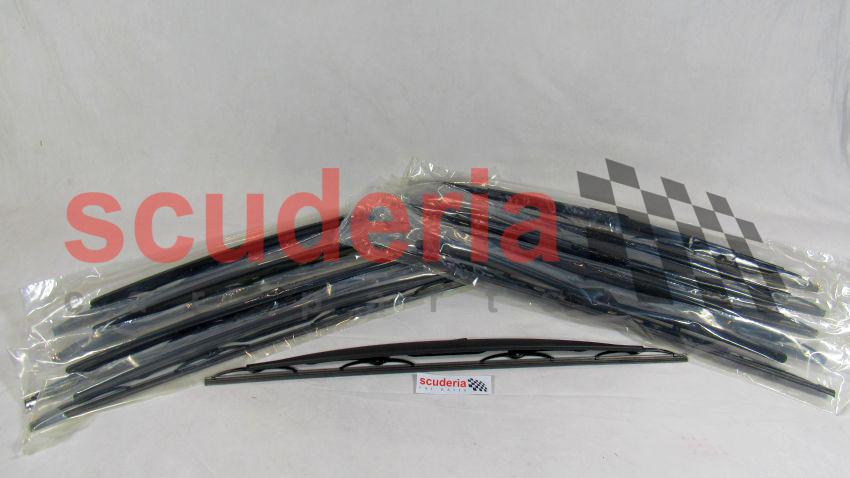

	9G4317B437AAPK	WIPER BLADE DRIVER`S SIDE LHD LHS BOX OF 10	Enquire	To Order
	9G4317528AAPK	WIPER BLADE-600mm DRIVER S SIDE RHD RHS BOX OF 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317B437CAPK	WIPER BLADE-500mm PASSENGER SIDE RHD LHS BOX OF 10	Enquire	To Order
	4G4317528CAPK	WIPER BLADE-500mm PASSENGER SIDE LHD RHS BOX OF 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317D559BA	Seal, Windshield Wiper Spindle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703085	Screw M6x12 PC TI8	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4317526FA	DRIVER SIDE ARM ASSY RHD	4G4317526FA DRIVER SIDE ARM ASSY RHD RHD	-	1	Enquire
1	4G4317526EA	PASSENGER SIDE ARM ASSY LHD	4G4317526EA PASSENGER SIDE ARM ASSY LHD LHD	-	1	Enquire
2	9G4317B437AAPK	WIPER BLADE DRIVER`S SIDE LHD LHS BOX OF 10	9G4317B437AAPK WIPER BLADE DRIVER`S SIDE LHD LHS BOX OF 10 LHD	-	1	Enquire
2	9G4317528AAPK	WIPER BLADE-600mm DRIVER S SIDE RHD RHS BOX OF 10	9G4317528AAPK WIPER BLADE-600mm DRIVER S SIDE RHD RHS BOX OF 10 RHD	-	1	Enquire
3	4G4317B437CAPK	WIPER BLADE-500mm PASSENGER SIDE RHD LHS BOX OF 10	4G4317B437CAPK WIPER BLADE-500mm PASSENGER SIDE RHD LHS BOX OF 10 RHD	-	1	Enquire
3	4G4317528CAPK	WIPER BLADE-500mm PASSENGER SIDE LHD RHS BOX OF 10	4G4317528CAPK WIPER BLADE-500mm PASSENGER SIDE LHD RHS BOX OF 10 LHD	-	1	Enquire
4	4G4317527EA	DRIVER SIDE ARM ASSY LHD	4G4317527EA DRIVER SIDE ARM ASSY LHD LHD	-	1	Enquire
4	4G4317527FA	PASSENGER SIDE ARM ASSY RHD	4G4317527FA PASSENGER SIDE ARM ASSY RHD RHD	-	1	Enquire
5	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	1	Enquire
6	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10) 08MY	-	2	Enquire
6	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10) 07MY	-	2	Enquire
7	4G4317D559BA	Seal, Windshield Wiper Spindle	4G4317D559BA Seal, Windshield Wiper Spindle	-	1	Enquire
8	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	4	Enquire
