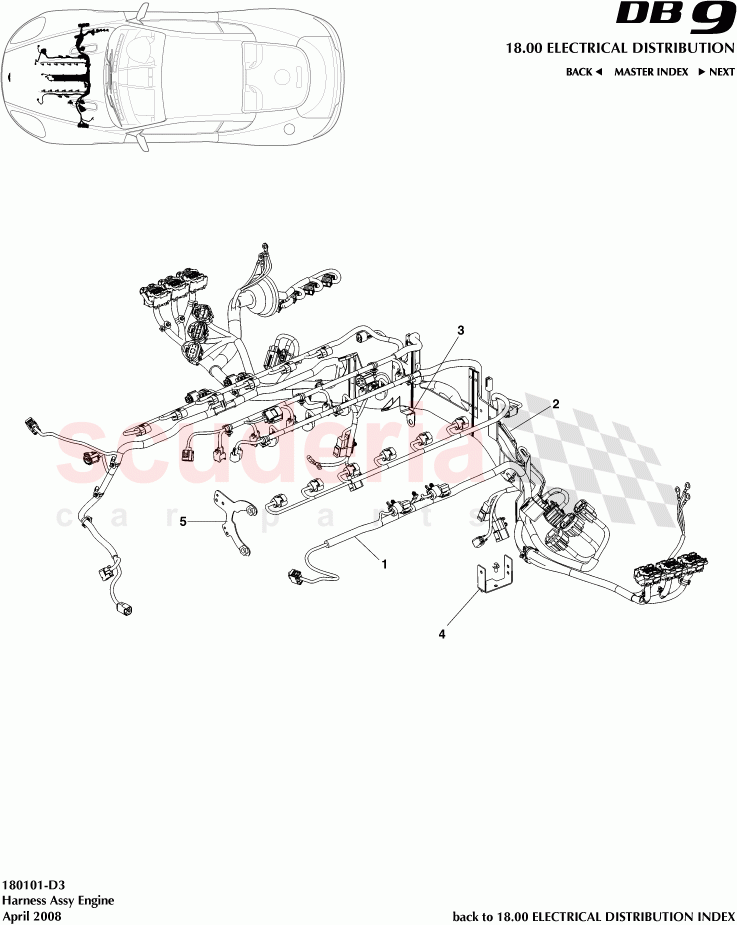

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4314W163EA	BRACKET WIRING HARNESS MOUNTING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314W163DA	BRACKET WIRING HARNESS MOUNTING RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4312B637AD	HARNESS ASSY ENGINE	4G4312B637AD HARNESS ASSY ENGINE 2 pin ignition coils	-	1	Enquire
1	4G4312B637BA	HARNESS ASSY ENGINE	4G4312B637BA HARNESS ASSY ENGINE 3 pin ignition coils	-	1	Enquire
1	8G4312B637CB	HARNESS ASSY ENGINE	8G4312B637CB HARNESS ASSY ENGINE 09MY	-	1	Enquire
1	BG4312B637AA	HARNESS ASSY ENGINE	BG4312B637AA HARNESS ASSY ENGINE 11MY	-	1	Enquire
2	4G4314W163EA	BRACKET WIRING HARNESS MOUNTING LH	4G4314W163EA BRACKET WIRING HARNESS MOUNTING LH	-	1	Enquire
3	4G4314W163DA	BRACKET WIRING HARNESS MOUNTING RH	4G4314W163DA BRACKET WIRING HARNESS MOUNTING RH	-	1	Enquire
4	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL	-	1	Enquire
5	702848	NUT-M5 FL/HX P/T 8	702848 NUT-M5 FL/HX P/T 8 09MY	-	-	Enquire
5	4G4314A004GG	BRKT-CMS SENSOR BNKA	4G4314A004GG BRKT-CMS SENSOR BNKA	-	1	Enquire
5	4G4314A280DD	Earth Strap, Bonnet	4G4314A280DD Earth Strap, Bonnet	-	1	Enquire
5	6G4314A280AA	Earth Strap, Engine	6G4314A280AA Earth Strap, Engine	-	1	Enquire
5	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	1	Enquire
5	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	1	Enquire
5	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	1	Enquire
5	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	4	Enquire
